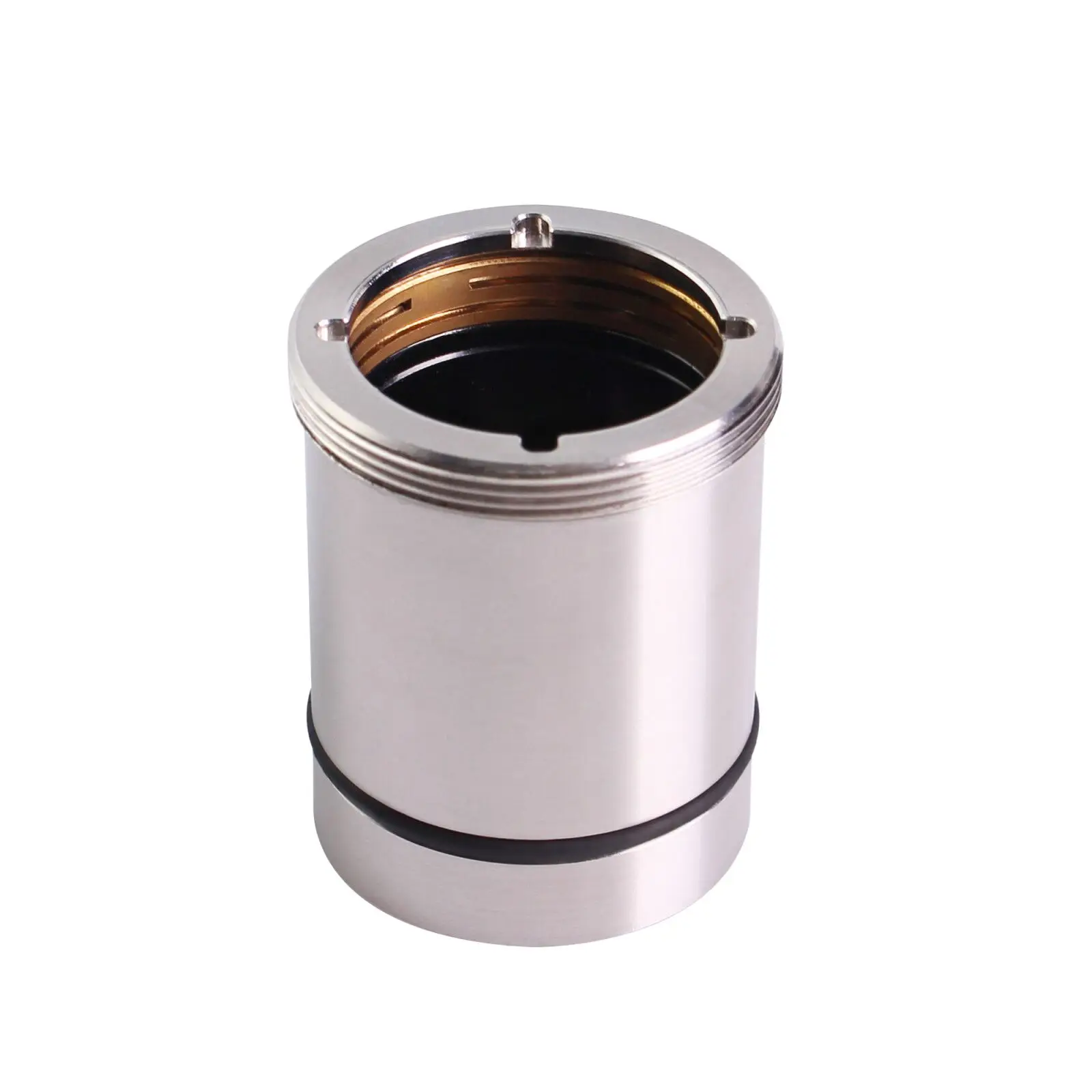

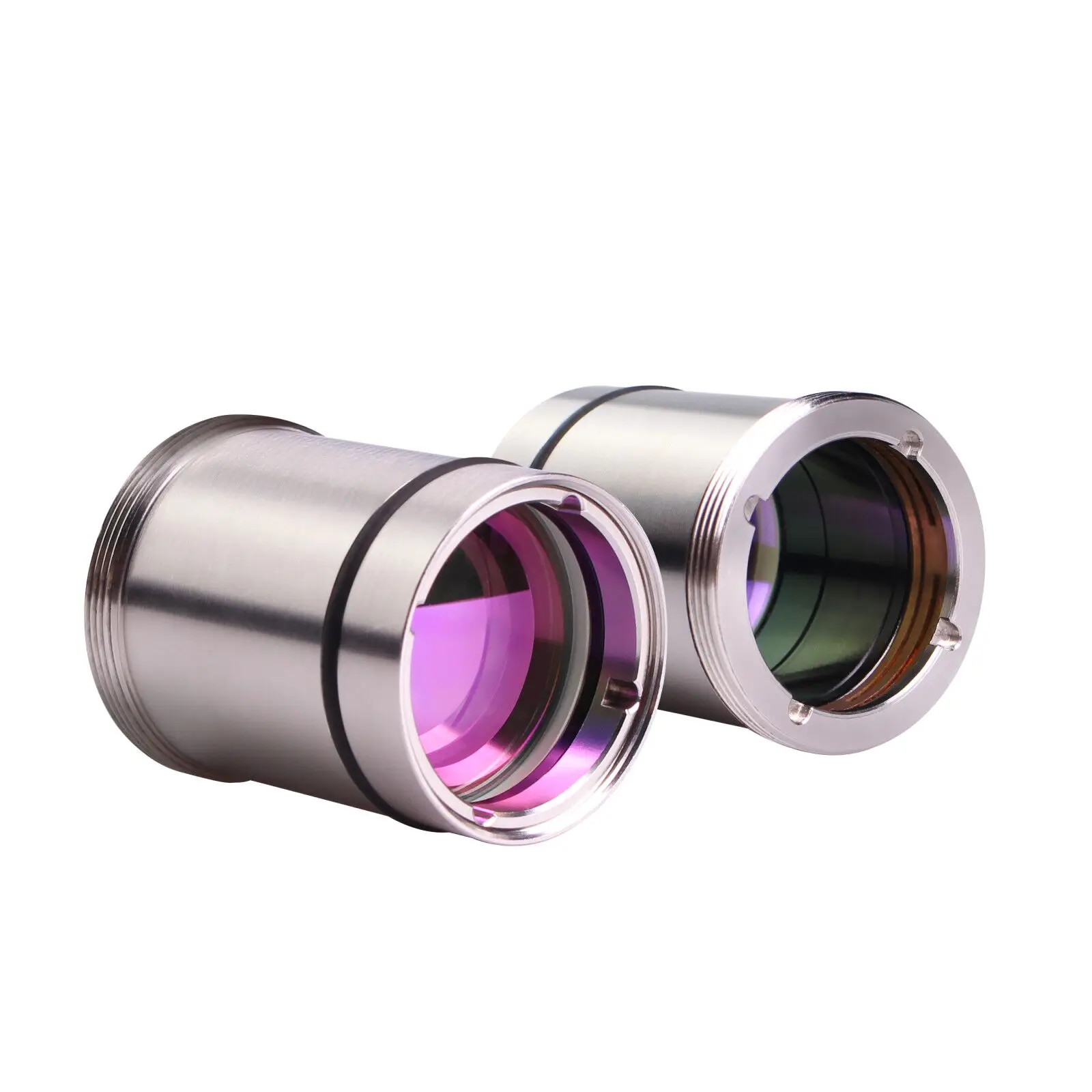

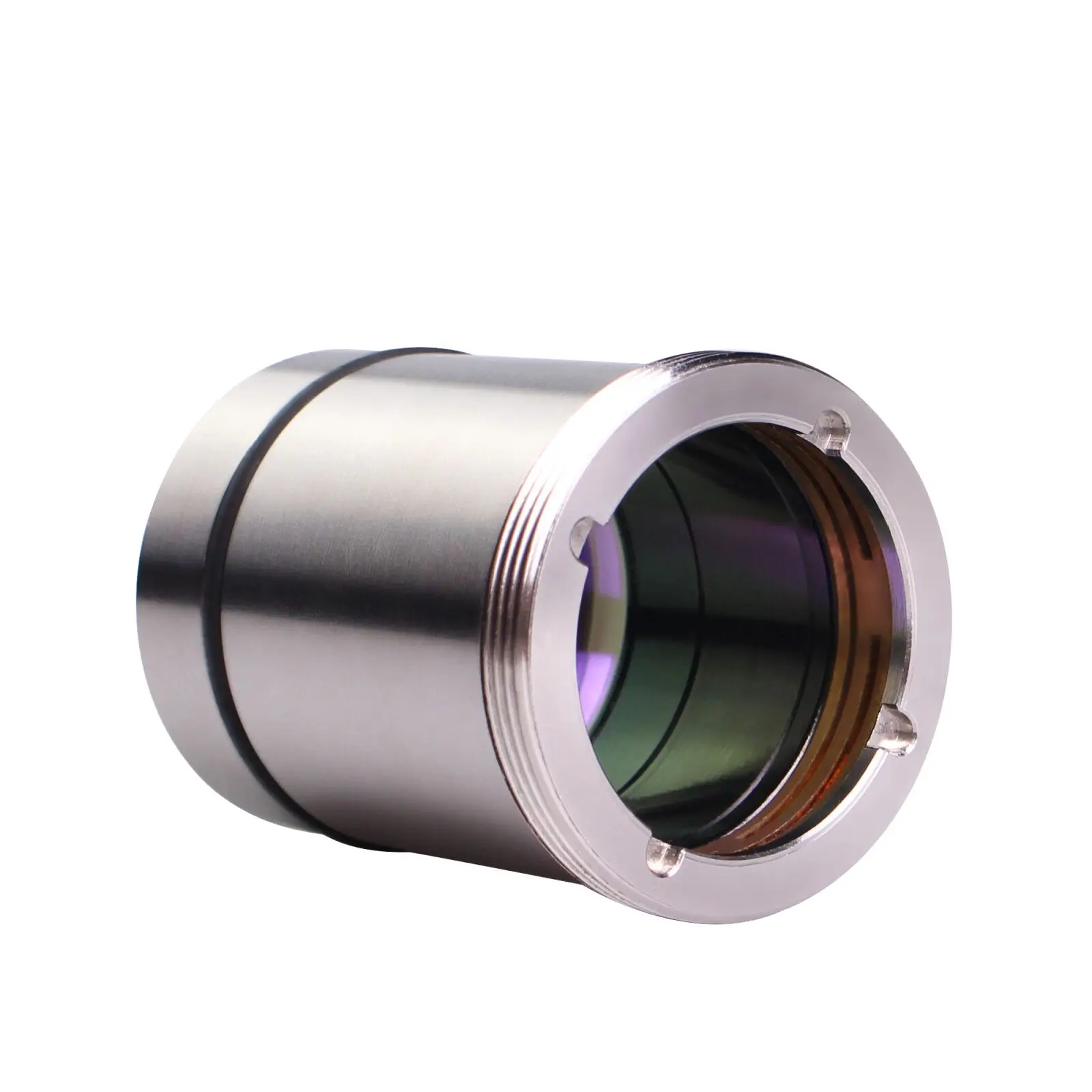

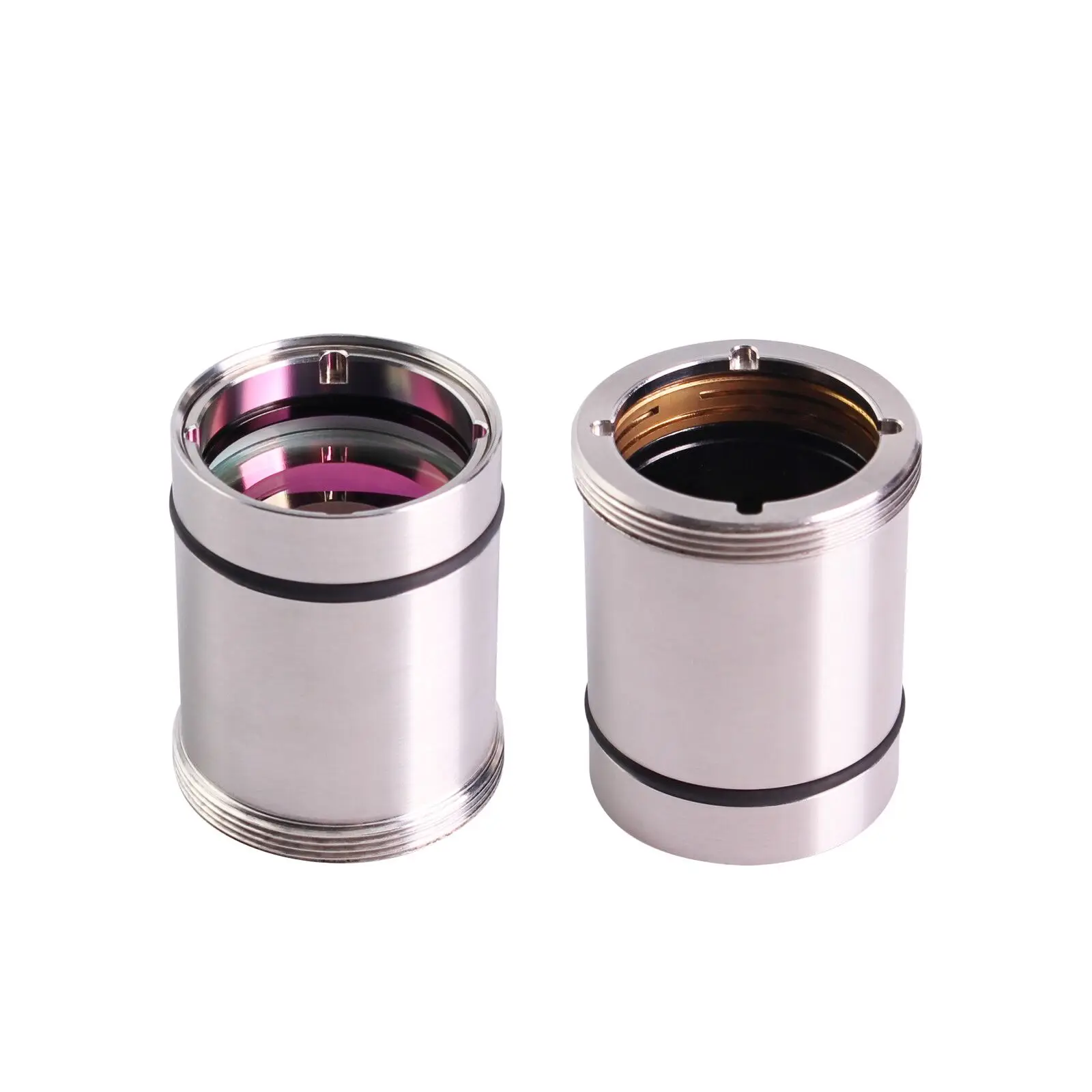

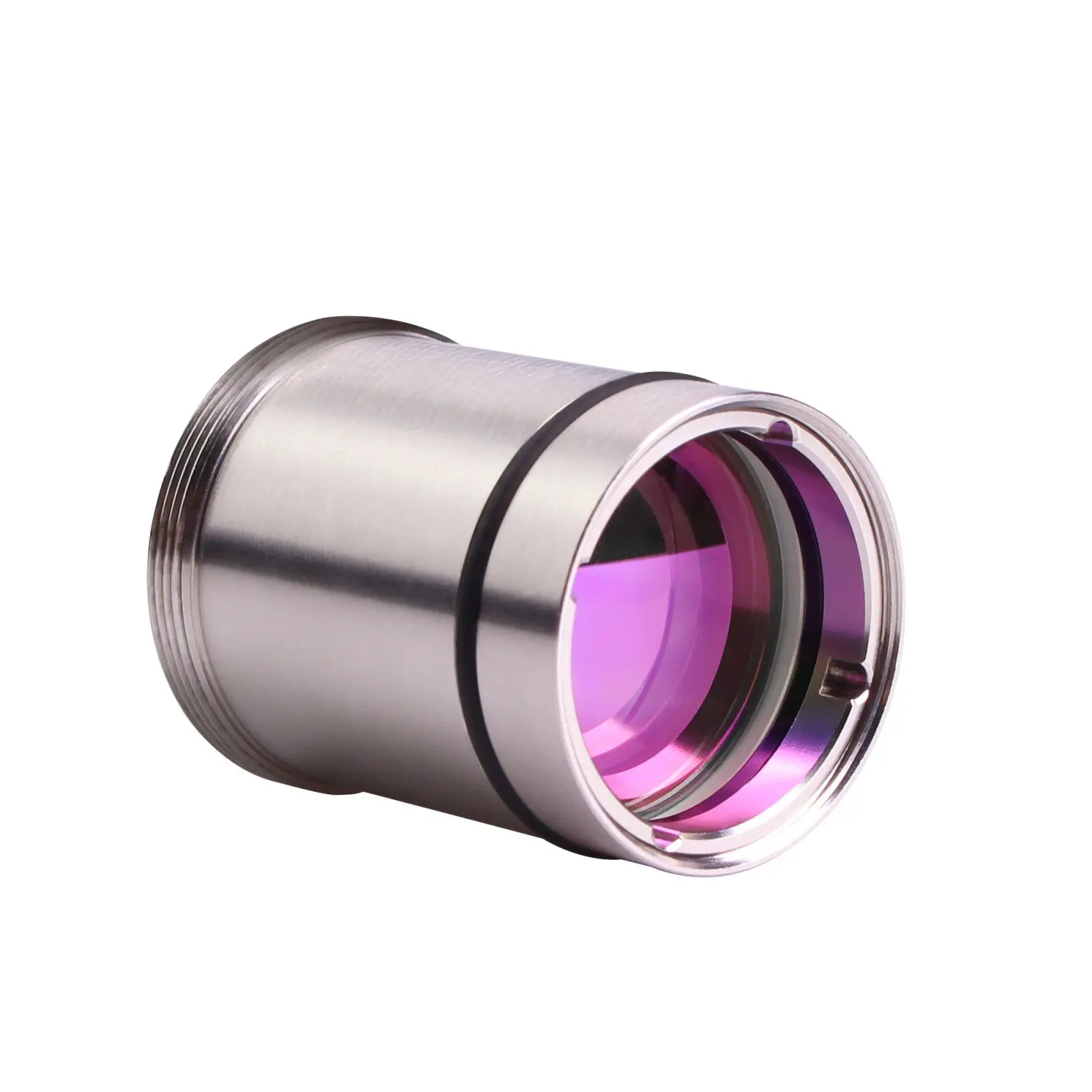

Fiber Laser Focus Collimating Lens For Cutting Head 30mm 100/125mmFL Fiber Laser Optics
- Category: >>>
- Supplier: Suzhou ALS Optoelectronic Technology Co. Ltd.
Share on (1600545992438):
Product Overview
Description
Product Image
Fiber laser cutting is normally used for cutting metal materials with medium and high power, general light path transmission order like: laser beam go through the collimating lens, where the beam is collimated and become parallel light beam, and then focus lens set parallel light focusing on the job position, at the same time protective lenses, behind the focusing lenses, can prevent the focusing lenses from splash damage. In addition, in the L-shaped cutting head, the collimated light beam will be deflected 90 degrees by the 45-degree reflection mirror, and then goes through the focusing lenses, resulting in the focus cutting
Power : 0 - 6000W
Diameter : 30mm
Application : WSX / RayTools / Precitec fiber laser cutting head
Please kindly confirm with us on the parameter request , material , packaging demand, etc. before paying us. Contact method see "Contact" colomn.
Kindly note that lens' different present color never means quality level. To judge lens/optics good or not, only by testing on machine. We welcome your trial on our samples.
Product Description
SPECIAL SPEC can also be produced here.
We offer CUSTOMIZED SERVICE.
Collimating lens and Focusing lens are applied in fiber laser systerm. The substrates of both lenses are fused Silica. Both lenses are coated with AR-coating in both sides. In order to minimize spherical aberration, we usually advise our customers to use doublet-element spherical lenses assembly design. We strictly control the quality through excellent optic fabrication and leading edge coating technology, to provide our customers with the highest quality lenses.These lenses are widely used in laser cutting, laser welding, laser cladding systems and so on.
Specifications | |
Material | Fused Silica |
Diameter Tolerances | +.000", -.005" |
Thickness Tolerances | ±.005" |
Surface Figure | Plane:1/0.5 Curve: 3/1 (Power/irregularity) |
Centration | < .001" |
Focal Length Tolerance | < 1.0% |
Surface Quality | < 10-5 scratch-dig Laser Finish |
Spectral Performance | |
Standard AR Coating type Both Sides @ 1070nm (AR Coating) | |
Absorption | < 30PPM |
Transmittance | > 99.9% |
Hot-sale Products
We are Chinese manufacturer producing laser and infrared lenses, ALS Group have companies location in Suzhou and Dalian, we have more than 25 years' experience in laser optics design, production, sales and service , we also do laser repair in China, like repair on IPG modules, changing Amada machine from CO2 to Fiber, etc.
We also help many Chinese lens factories do lens film coating,please have confidence in our quality, we expect to establish cooperation with you, please be assured that we can support you very well in the market.
We also have OEM factory partners in producing nozzles and ceramics, as well as fiber laser cutting head, to offer customers one-stop purchasing, we supply laser machine consumables , like lenses, mirrors, windows, nozzles and ceramics of laser brands like: Precitec, WSX, RayTools, Trumpf, Bystronic,AMADA, Highyag, Lasermech, Cypcut. etc.
Packaging & Delivery
FAQ
Q1: Can I use our own packing?
A: Yes! OEM is available for us. You can send your packing material to our factory
or we can purchase the designated packing for you.
You may pay for some extra cost if caused.
Q2: Do you have inspection procedures for evaporation materials?
A: 100% self-inspection before packing
Q3: What's my consideration when I choose one kind of evaporation material?
A: The application and the application effect you want.
Q4: What's my consideration when I choose an evaporation material supplier?
A: Professional and experienced manufacturer, stable quality control, efficient service.
