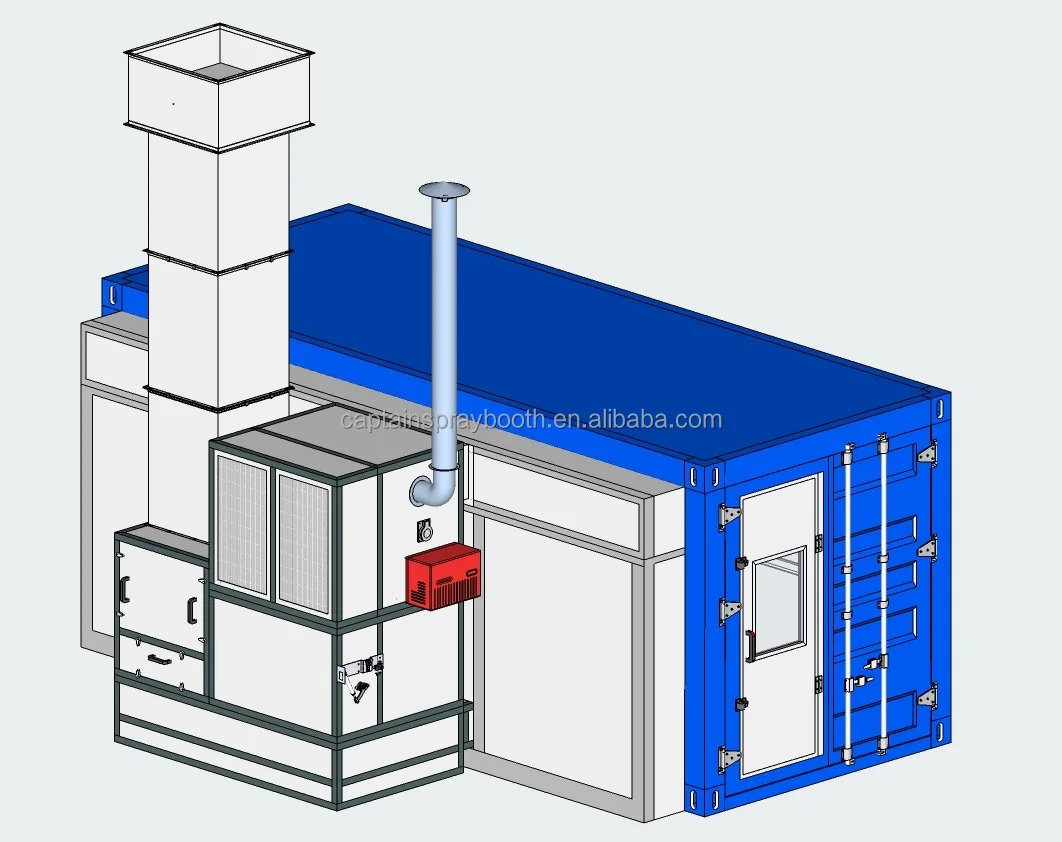

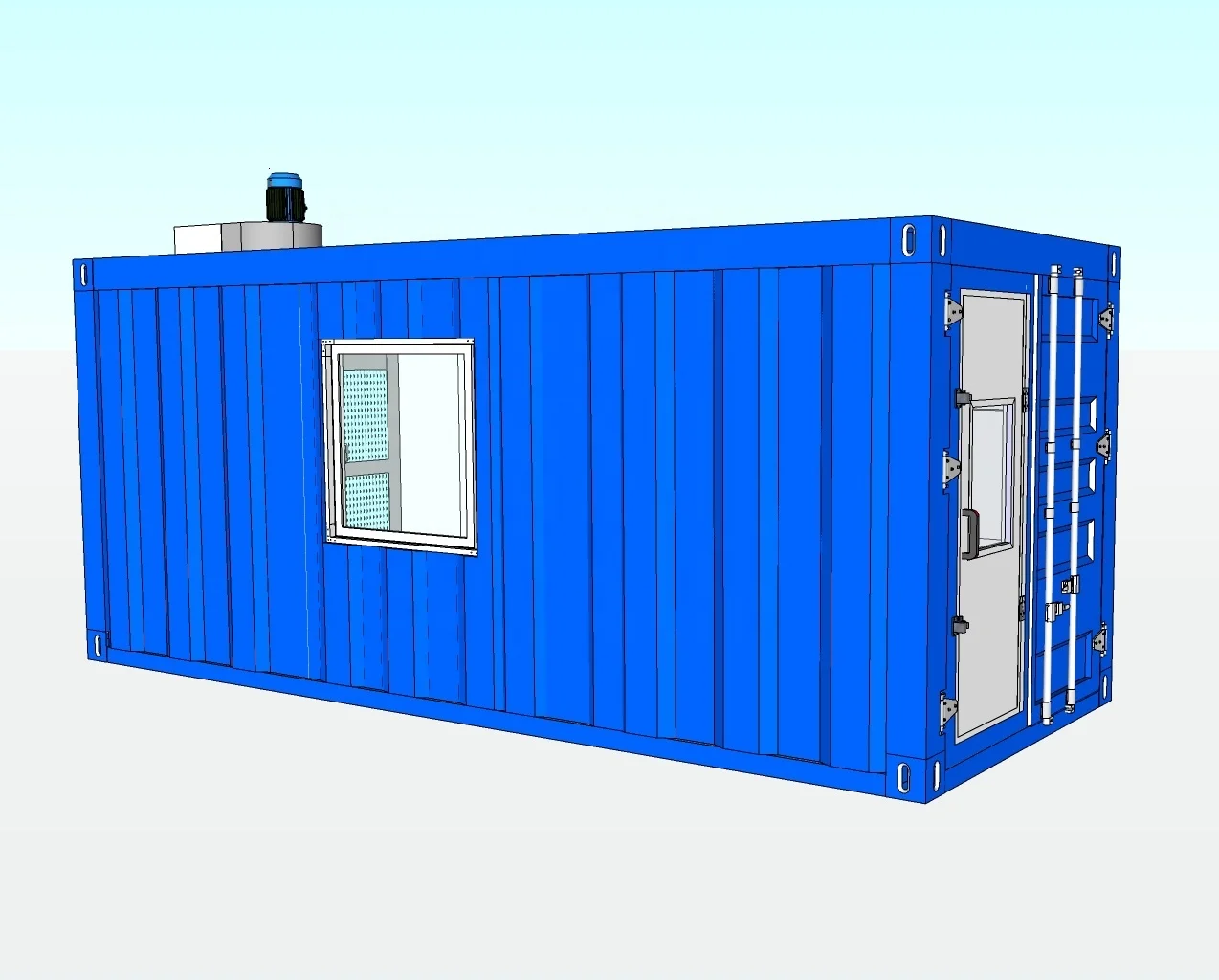

Designed for the application of paint, glue, varnish or other solvent-based products. The layout possibilities are endless Perfectly suited for liquid application and for powder application, as well as for paint storage, while respecting current standards. | ||||
Inside Dimensions (L-W-H) | 5000×2250×2300 mm(L×W×H) | |||
Outside Dimensions (L-W-H) | 6058×2438×2591 mm(L×W×H) | |||
Air exhaust fan | one set 3 kW centrifugal fan | |||
Air flow | 5000-8000 m3/h | |||
Average suction speed | 0.7 m/s | |||
Inside height | 2000mm | |||
Inside width | 2000mm | |||
Window | 1300x1190mm | |||

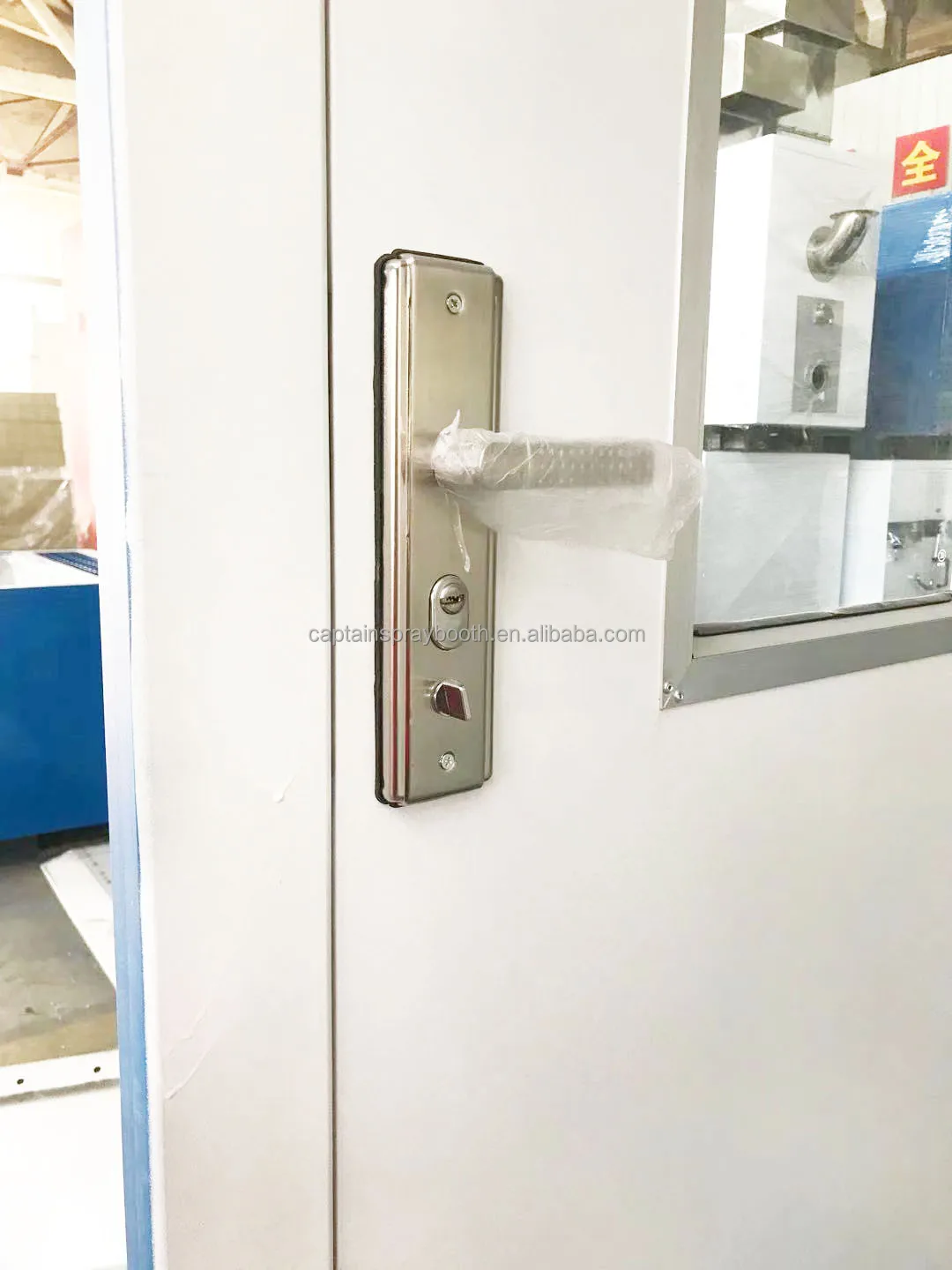

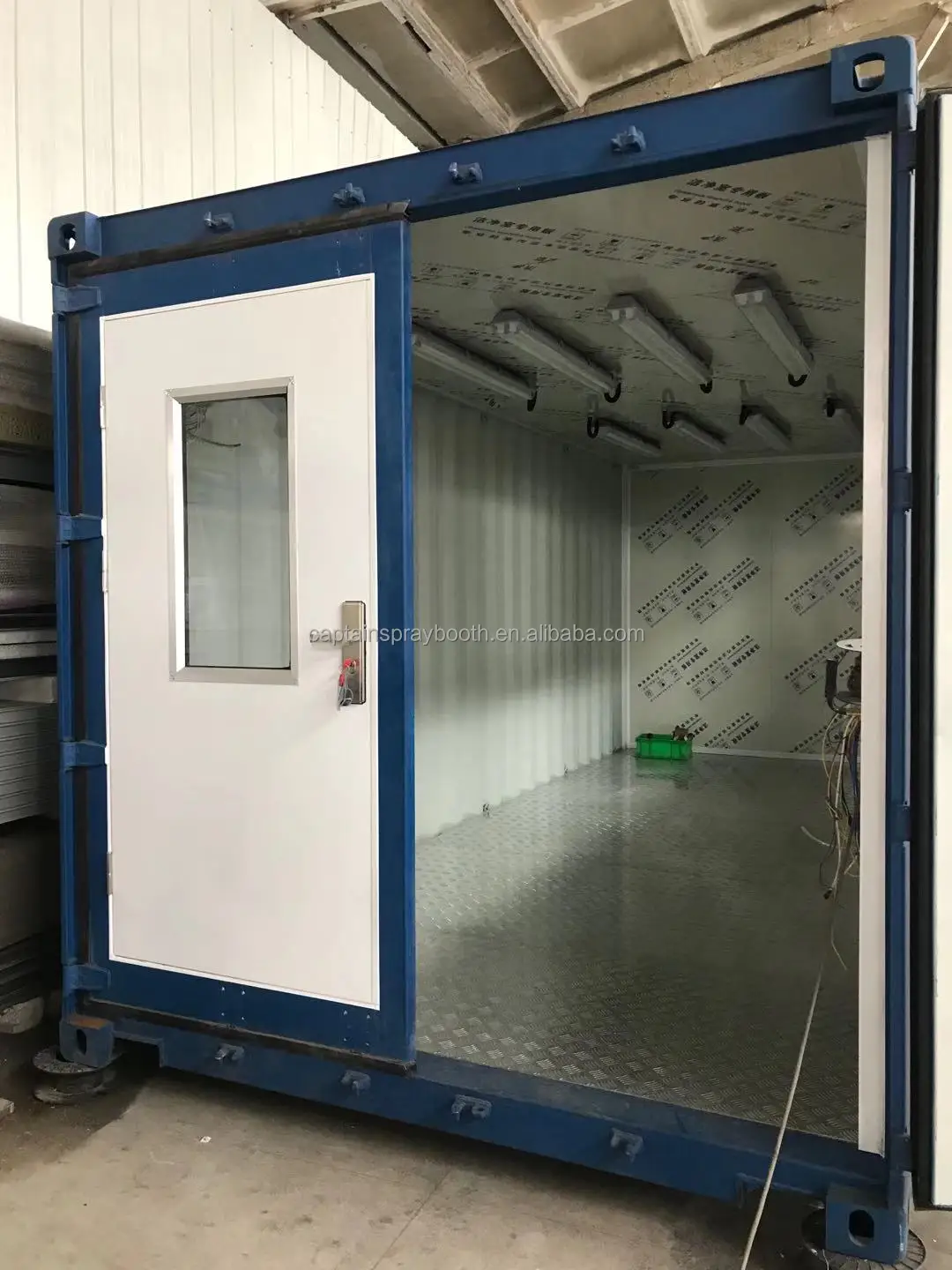

Service door | 1950x940mm | |||
Outside Height without fan | 2591 mm | |||
Voltage | 220v-240v,1ph ;380v-400v,3ph | |||

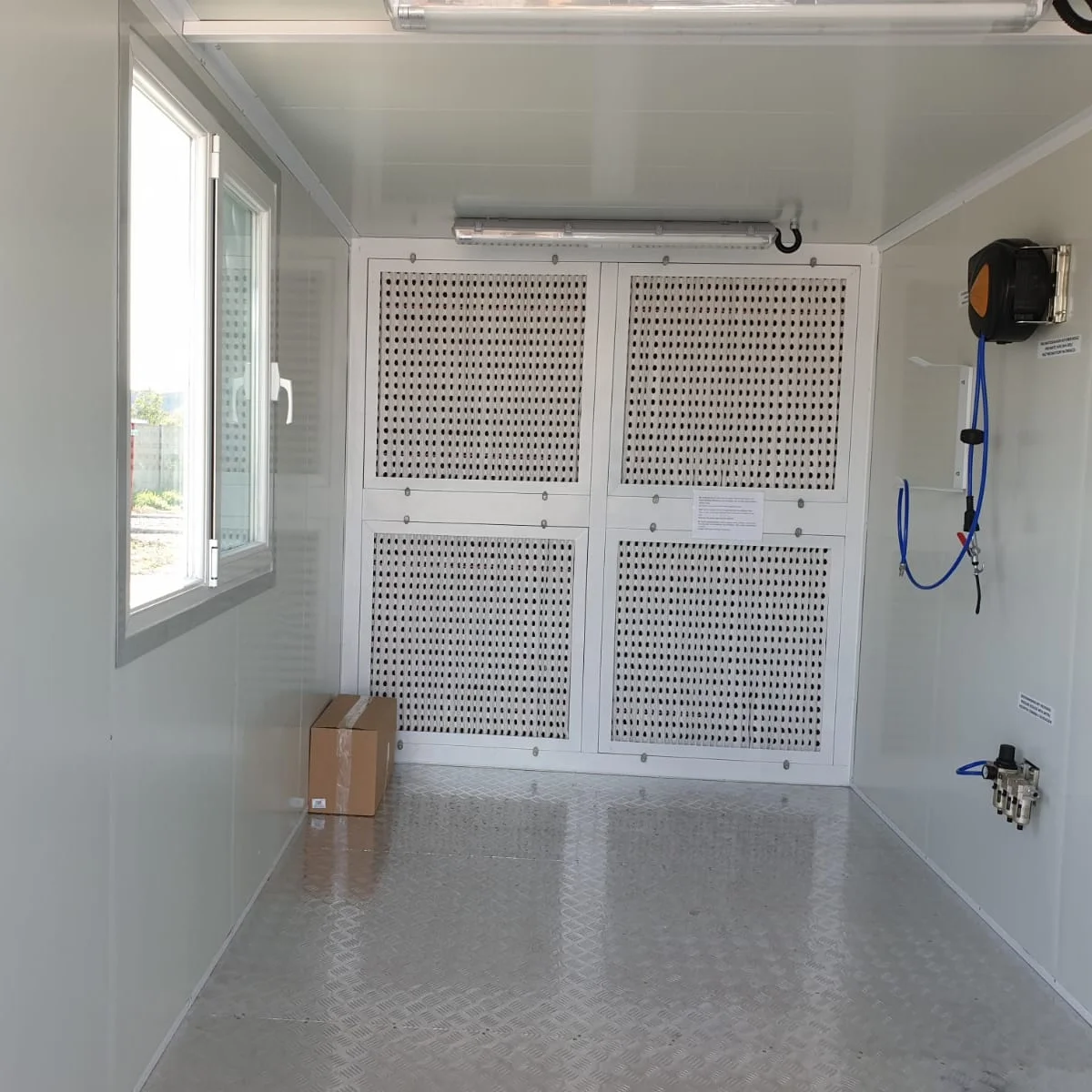

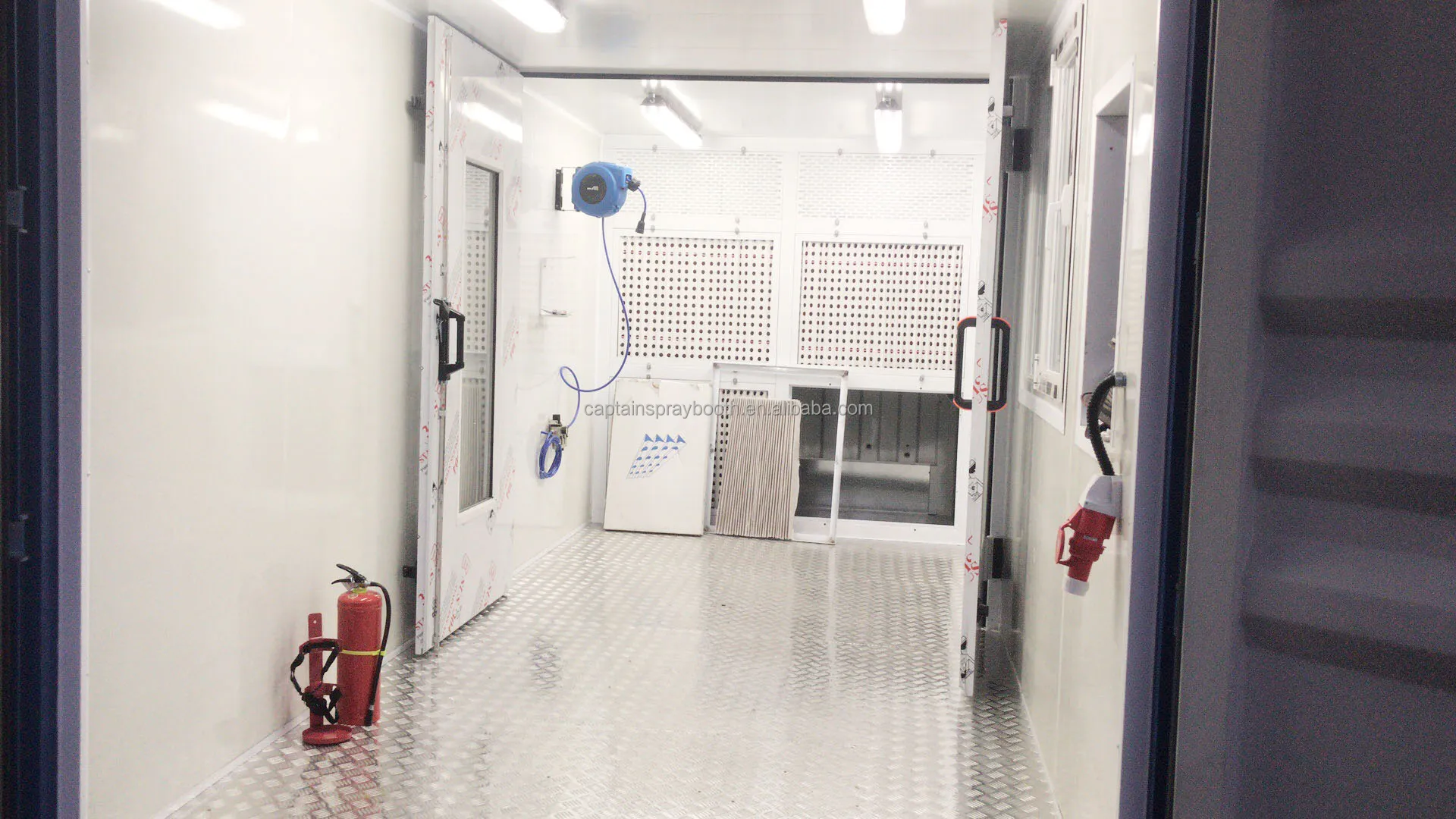

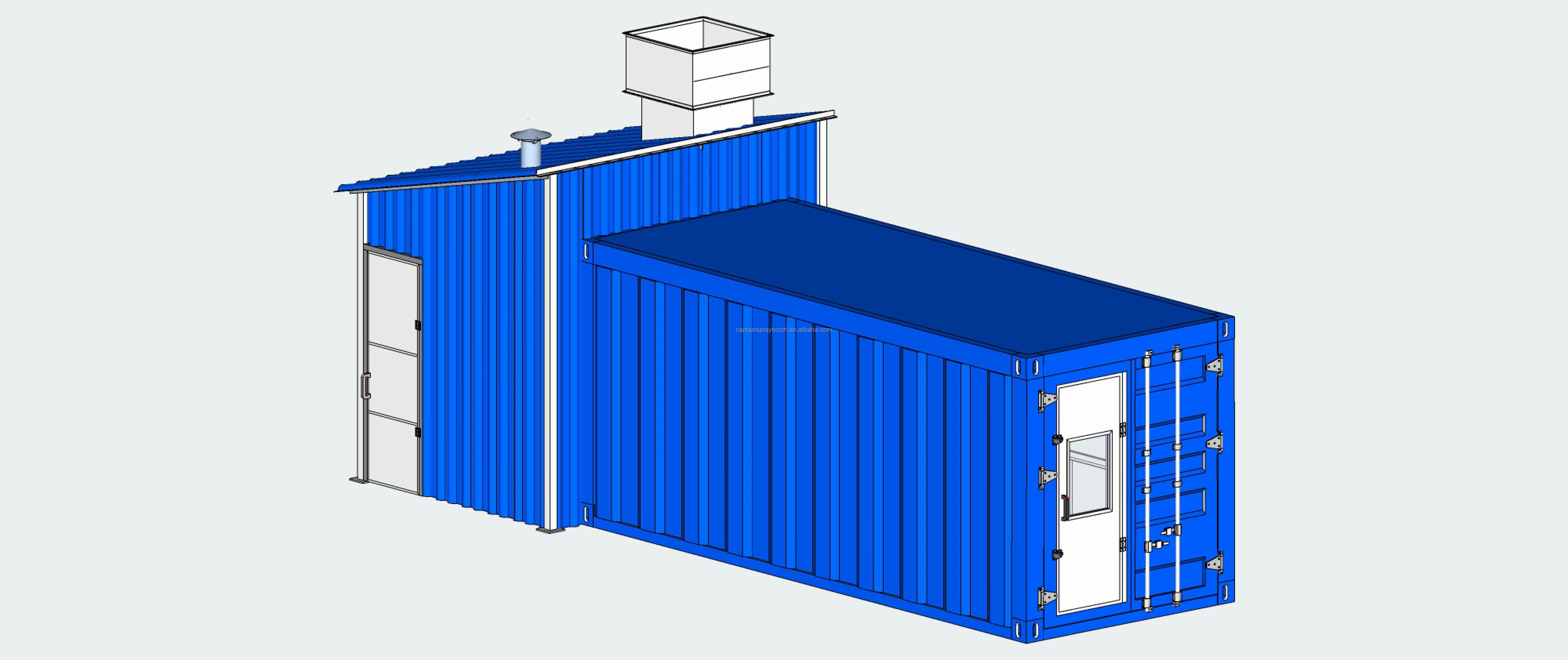

Advantage: • Modular, providing many equipment • Triple filtration (Ceiling filter + Folded dry-type filter paper + Fiber-glass filter ) • Front door with filter cotton frame to filter the dust • One set 3kw centrifugal fan with strong air flow 5000-8000 m3/h (fan motor with rain protection,with one piece air duct ) • Control box with filter blockage control • Service door and window • Galvanized non-slip floor • 3 sides rock wool wall panels • Atex LED lighting • Equipped with air treatment and compressed air reel • Equipped with hot air blower , can be used in winter and can be used for heating | ||||
Payment terms | 50% PAYMENT IN ADVANCE , 50% AGAINST OF BILL OF LADING | |||
Delivery | 3-4 weeks after receievd the deposit | |||
Warranty | 12 months | |||
Note: | ||||

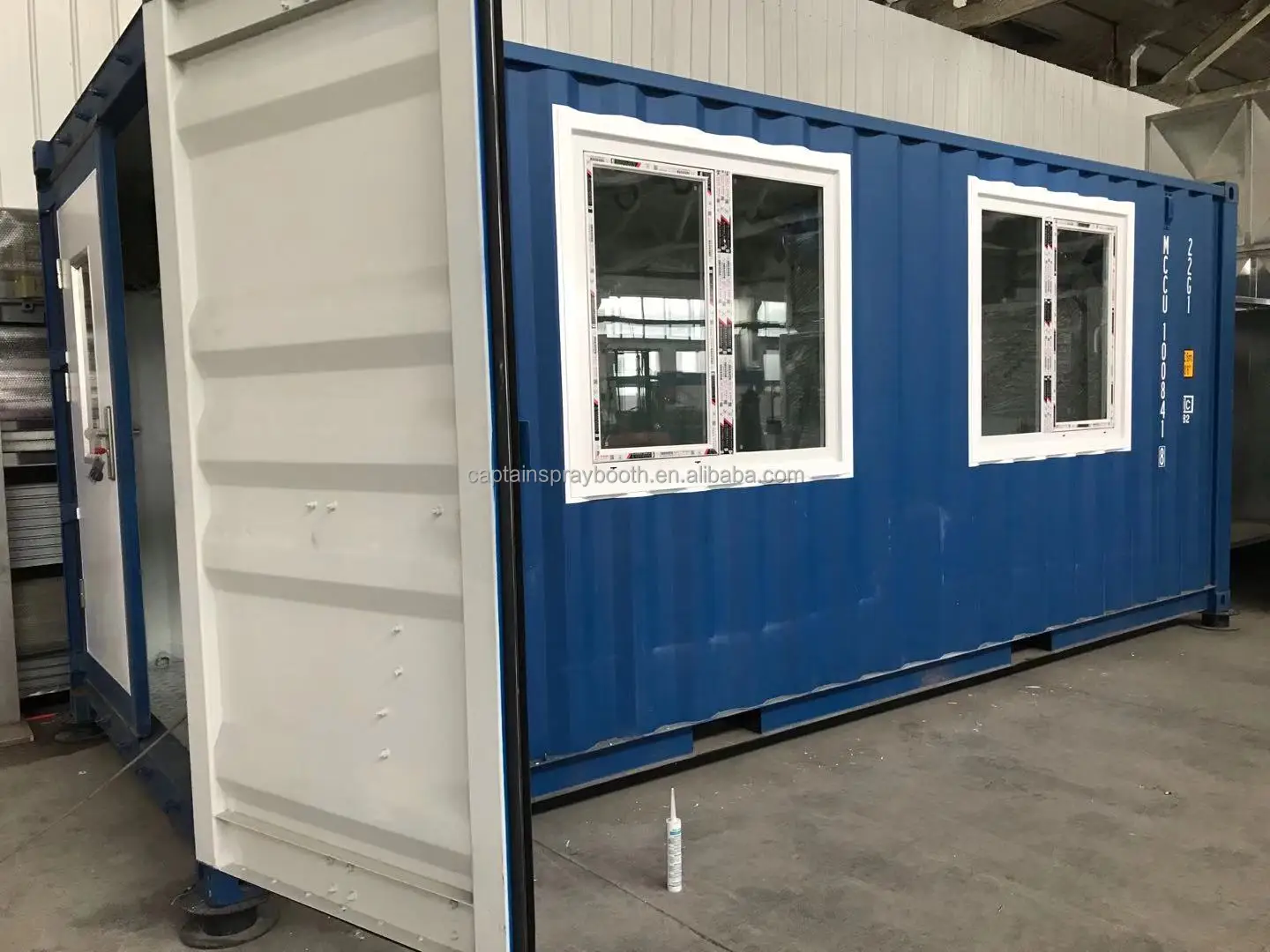

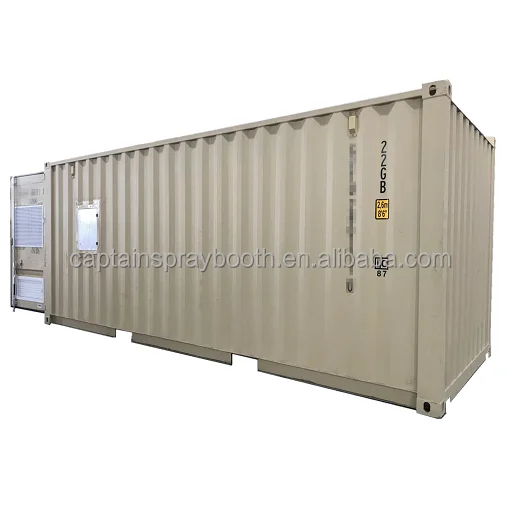

1. The outside color of container is blue or yellow | ||||

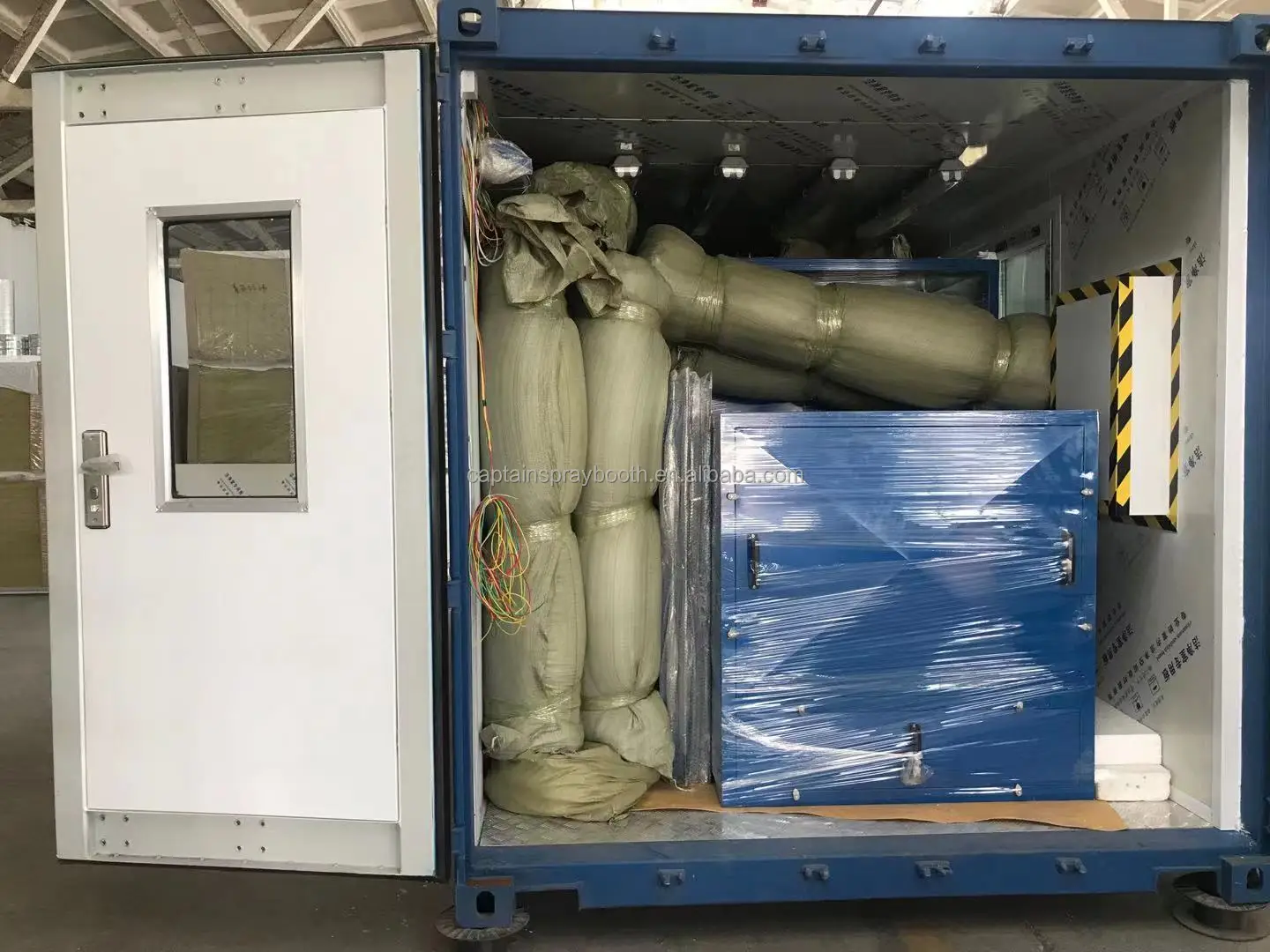

2. Can be shipped as the SOC (Shipper's Own Container) | ||||
3 .Optional: Not equipped with fire extinguisher, can provide a fire extinguisher shelf (because the fire extinguisher may explode during container transportation, it is recommended to buy a fire extinguisher locally) | ||||
