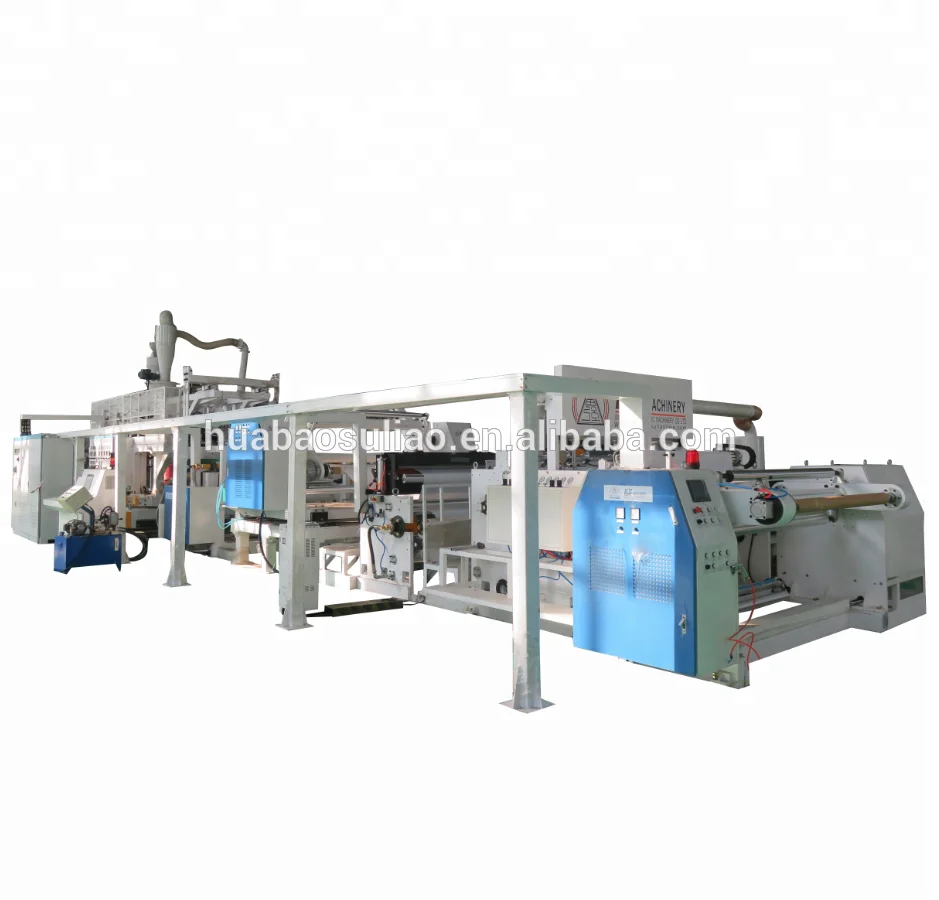

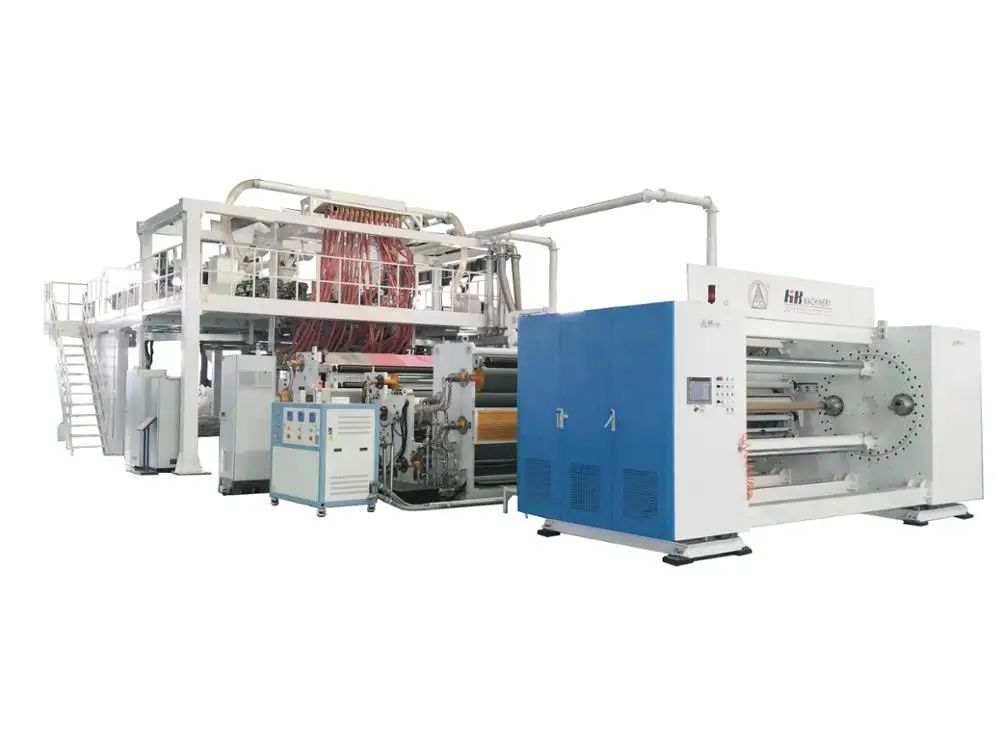

CPE film for packaging cast extruder machine production line HB
- Category: >>>
- Supplier: Xinle Huabao Plastic Machinery Co. Ltd.
Share on (1600545997655):
Product Overview
Description
Product Description
Product Application
This line can produce multi-layer co-extrusion CPE high transparent packaging film by using LLDPE, MLLDPE, LDPE and HDPE etc.
SPECIFICATIONS FOR CPE Transparent FILM LINE(five-layer) | ||||||
Model(mm) | 2500 | 2800 | ||||
Screw Diameter(mm) | 90/110/110/90 | 90/110/110/90 | ||||
L/D Ratio of Screw(mm) | 35:1 | 35:1 | ||||
Width of Die(mm) | 2500 | 2800 | ||||
Width of Film(mm) | 2200 | 2500 | ||||
Thickness of Film(mm) | 0.03-0.12 | 0.03-0.12 | ||||
Structure of Film(mm) | A/B/C/B/D | A/B/C/B/D | ||||
Max.Extrusion Capacity(kg/h) | 800 | 800 | ||||
Design Line Speed(m/min) | 150 | 150 | ||||
Total installed Power(kw) | 650 | 700 | ||||
Overall Dimensions(m) | 21*10*6 | 21*10*6 | ||||
Weight(T) | 55 | 60 | ||||
Features of Machine:
◆ Screw usesing special mixing function and high plasticizing capacity design, guarantee better plasticizing. Match the
long-acting screen changer, extent and machine running time, reducing fish eyes and dirty point efficiently, reduce the change times.
◆Fully automatic adjustable die and auto control thickness contrller by APC, on-line detect film thickness, auto adjust die.
◆Thin wall cooling forming roller, using special spiral runner design, guarantee the consistency of film forming in high speed.
◆Equipped with negative pressure double chamber vacuum box and static edge locking system , which guarantee film melt stably.
◆High stablecorona treatment device,low fault rate, can change direction as per requirements, treating the film front and back side.
◆ Film edge can be recycled on-line ,reduce the production cost.

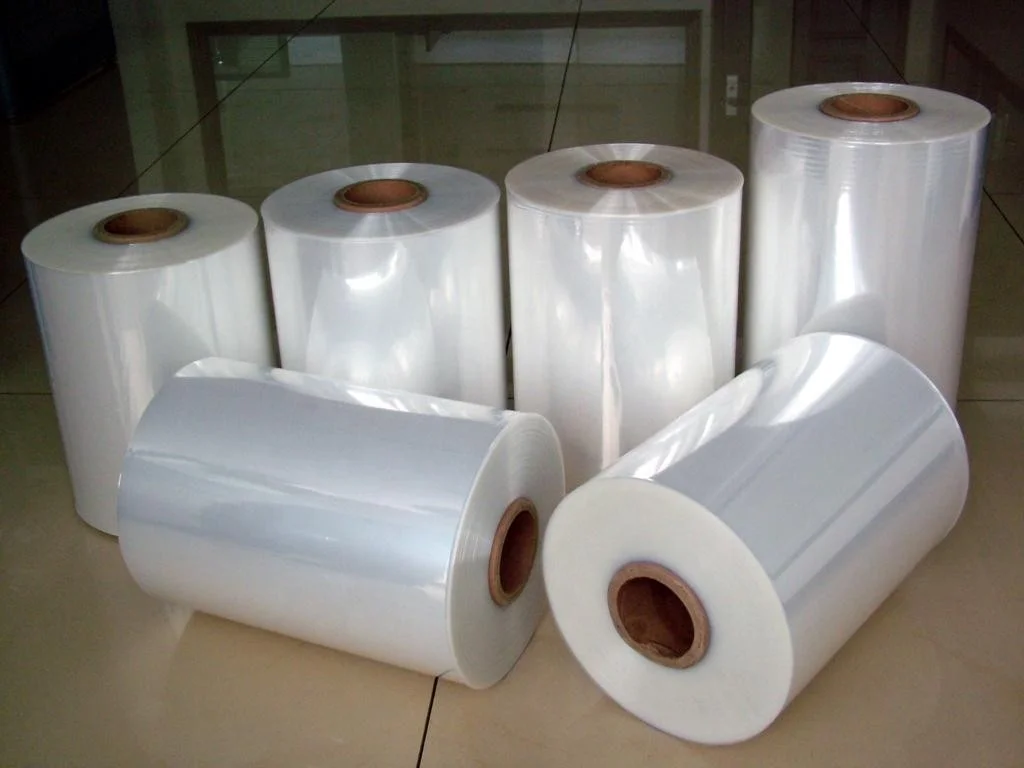

Features of Product:
1)The conventional thickness of hte cpe film is 0.025-0.16mm, because the usage of the CPE is widespread , the final use width is different, generally in the majority width 2400mm and 3200mm, slitting to different width according to requirements
2)CPE film width high transparency, low haze; and good flexible, good cold resistance, especially suitable for refrigerated
packing.
3) CPE fillm with good heating sealing performance because of the low orientation.
◆ Screw usesing special mixing function and high plasticizing capacity design, guarantee better plasticizing. Match the
long-acting screen changer, extent and machine running time, reducing fish eyes and dirty point efficiently, reduce the change times.
◆Fully automatic adjustable die and auto control thickness contrller by APC, on-line detect film thickness, auto adjust die.
◆Thin wall cooling forming roller, using special spiral runner design, guarantee the consistency of film forming in high speed.
◆Equipped with negative pressure double chamber vacuum box and static edge locking system , which guarantee film melt stably.
◆High stablecorona treatment device,low fault rate, can change direction as per requirements, treating the film front and back side.
◆ Film edge can be recycled on-line ,reduce the production cost.
Features of Product:
1)The conventional thickness of hte cpe film is 0.025-0.16mm, because the usage of the CPE is widespread , the final use width is different, generally in the majority width 2400mm and 3200mm, slitting to different width according to requirements
2)CPE film width high transparency, low haze; and good flexible, good cold resistance, especially suitable for refrigerated
packing.
3) CPE fillm with good heating sealing performance because of the low orientation.
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Company
FAQ
Q: Can we make both manual grade and machine grade film?
A: Yes
Q: Is this machine full automatic?
A: Yes. This machine is fully automatic one.
Q: Can we also use recycled material in this machine?
A: Yes. You can use recycled material. But the more recycled material you add.
Q: Can you help us to install the machine?
A: Yes. We can arrange the technician to install the machine after it arrives in your factory.
Q: What's the delivery date?
A:150 days since the receipt of down payment
