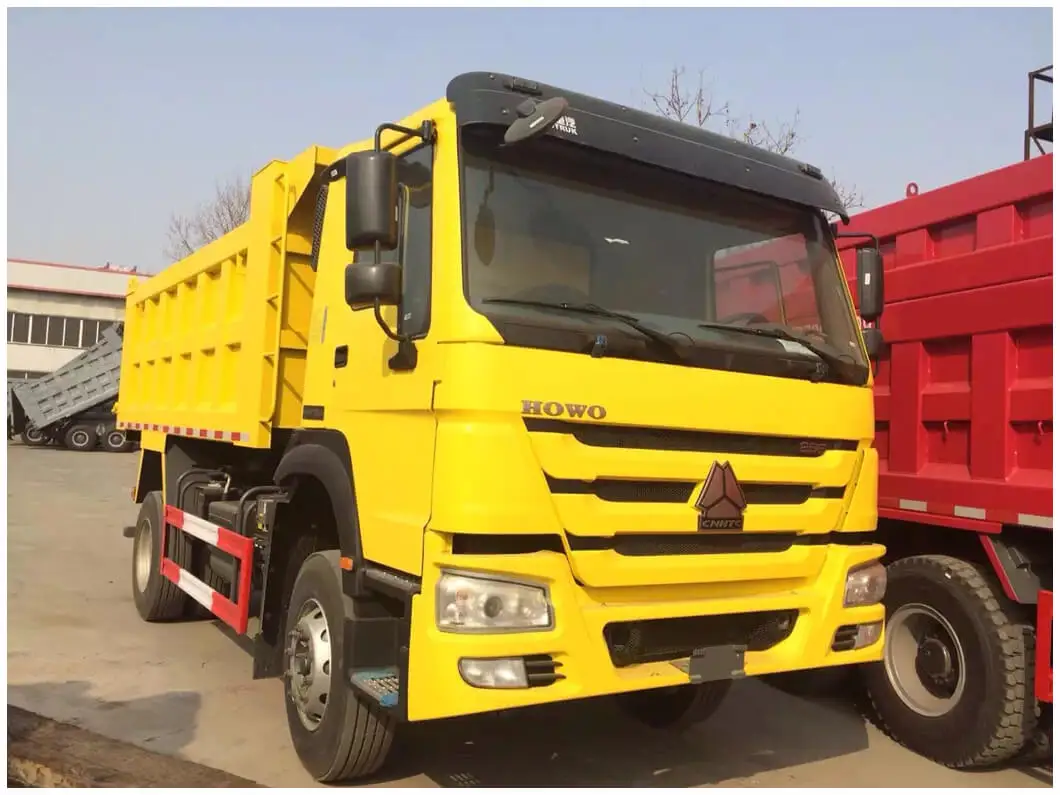

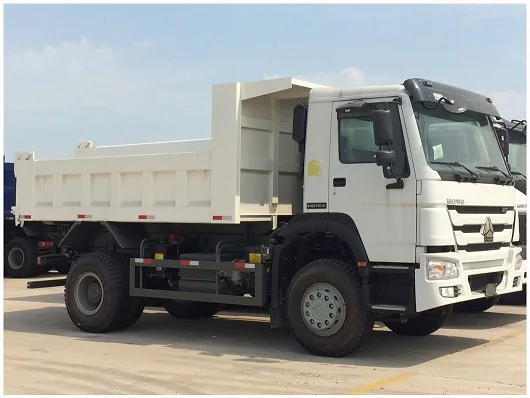

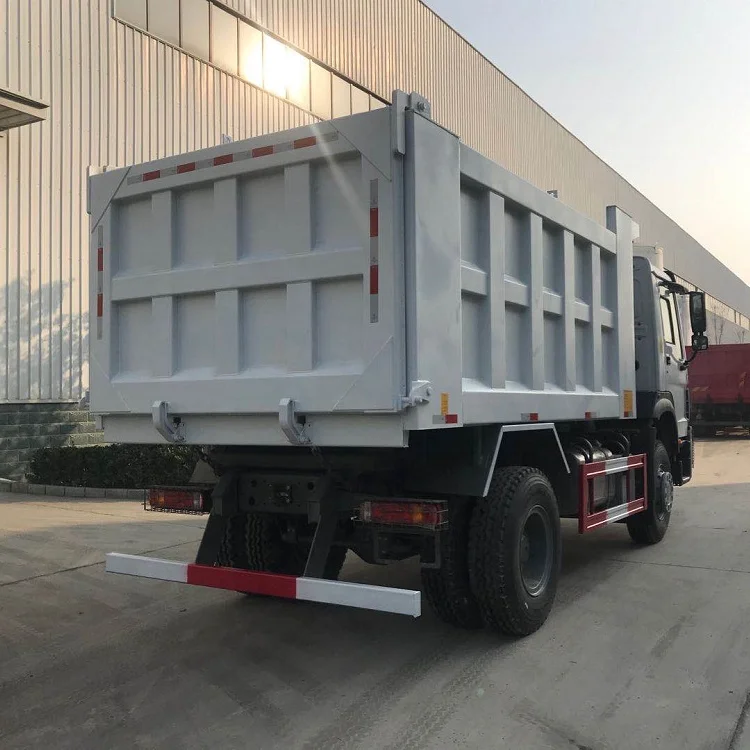

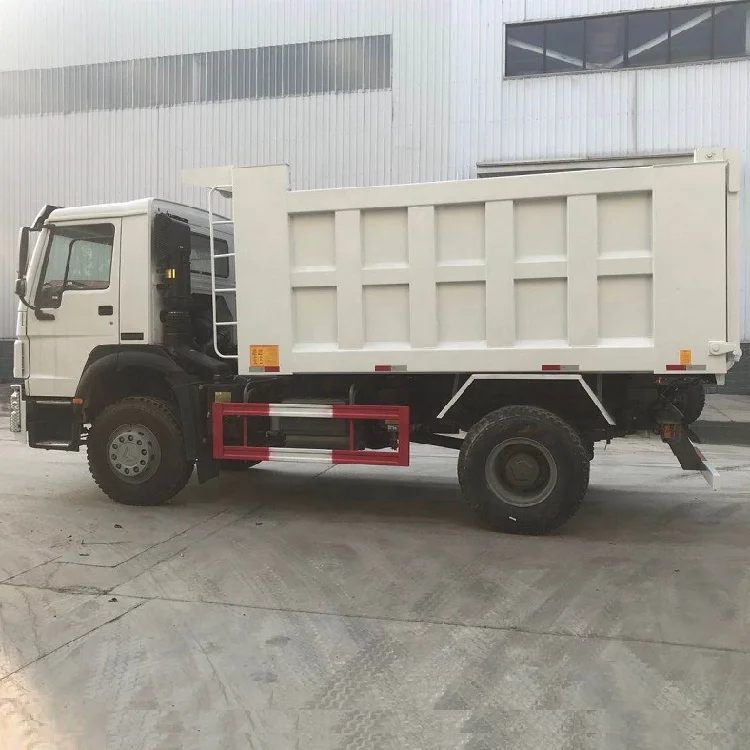

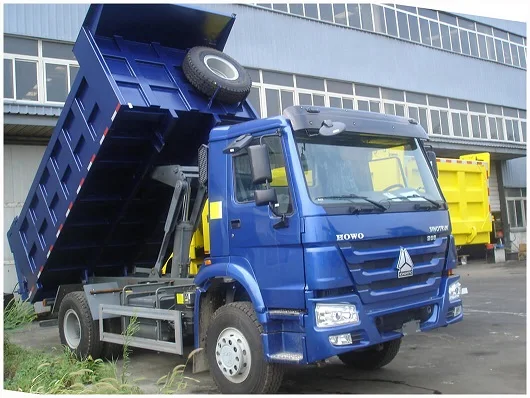

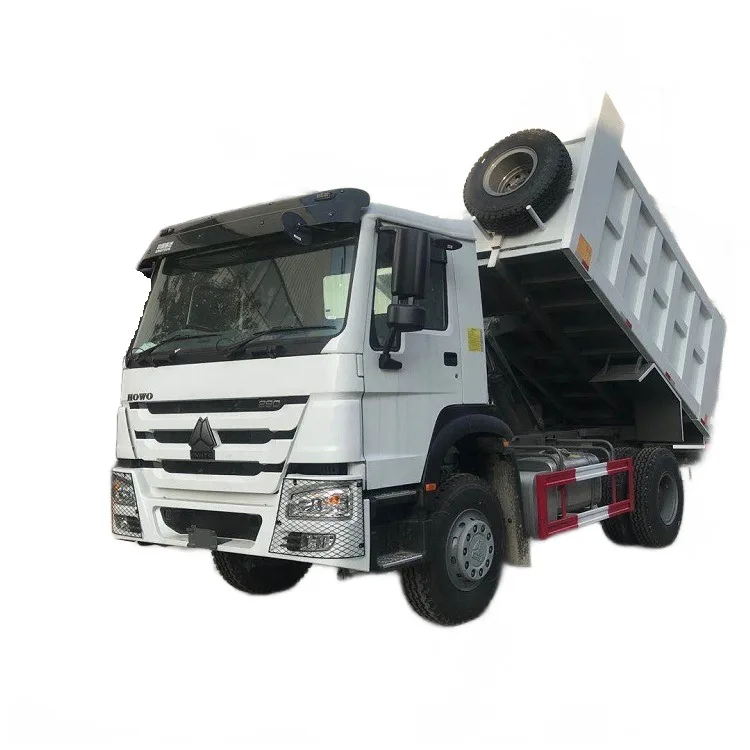

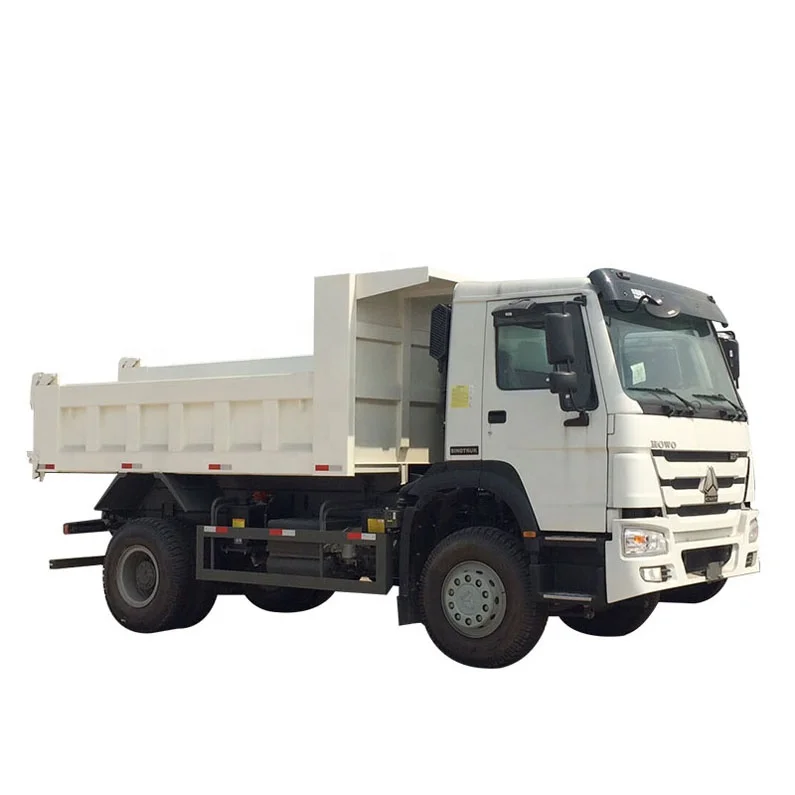

SINOTRUK HOWO 4x2 Single Row 266HP 290HP 6 cylinders LHD 10 25ton DUMP Truck TIPPER
- Category: >>>
- Supplier: Ningbo Zhongsheng Ruida International Trade Limited Company
Share on (1600546002927):
Product Overview
Description
Products Description
Specification
Chassis Model ZZ3167M3811,ZZ3167M3811 | Drive model 4X2 |
Color:optional | Tire:8.25R16 |
Cab | HW70 -- HOWO standard cab. The basic configuration is no sleeper, new seats; Up and down, front and rear adjustable steering wheel; European new type integral heater; VDO instruments synchronized with the world's top-grade heavy trucks; Four point full floating suspension (front coil spring, rear air spring) + damping device is used for road vehicles, and four point full floating spring suspension + damping device is used for off-road vehicles. Each type of cab is equipped with lateral stability device and double locking structure safety belt; External sunshade; The fourth generation air conditioner, the air conditioner control panel is LCD with LED lighting; Cruise; Audible warning system for abnormal generator voltage (to prevent damage to electronic devices); Electric doors and windows. |
Engine | sinotruk Diesel engine four stroke direct injection diesel engine |
wd615.62, 266Hp; WD615.87,290HP Emission standard: Euro 2 In line six cylinder water-cooled turbocharged intercooler Displacement:9.726 L | |
Transmission | HW19710, 10F & 2R, with PTO steering system ZF power steering model zf8118, power assisted hydraulic steering |
front axle | HF9,1x9000 KGS Double section beam steering |
rear axle | HC16, 1x16000 KGS The pressure shaft housing, the central single reduction and the hub reduction, and the differential lock between the wheel and the axle. |
chassis Frame | there are 300x80x8mm parallel ladders and subframe beam reinforcement cold riveted |
Front suspension | 10 semi elliptical leaf springs, hydraulic telescopic double acting shock absorber and stabilizer |
Rear suspension | 12 leaf semi elliptical spring, bogie spring and stabilizer |
braking system Braking | double circuit pneumatic braking Parking brake (emergency braking): spring energy, compressed air works on the front axle and rear wheel. |
Auxiliary braking | engine exhaust braking |
Power system Operating voltage | 24 V, negative grounding |
Starter | 24 V, 5.4 kw |
Battery | 2 × 12V, 165ah |
Generator | three phase, 28 V, 1500 W |
tyre | 11.00R20 with a spare tire |
Cargo box Length | 4.2m, 5.4m; Width: 2.3m; Height: 0.8-1.5m |
vehicle size | 7250*2550*3450mm |
Details Images
Company Profile
Ningbo Zhongsheng Ruida International Trade Limited Company is an export enterprise mainly engaged in Engineering vehicles and special vehicles.
Our main products are dump truck, crane mounted truck, road sweeper truck, tractor truck, fire truck, garbage compactor truck, etc.
With a wide range, good quality, reasonable price and dressy design ,our products are exported to many countries. The company professional for customer demand to provide feasible Suggestions and solutions, dedicated to provide each customer with the best quality product transportation. Our vision is dedicated to be a world most influential supplier for vehicles.
Our main products are dump truck, crane mounted truck, road sweeper truck, tractor truck, fire truck, garbage compactor truck, etc.
With a wide range, good quality, reasonable price and dressy design ,our products are exported to many countries. The company professional for customer demand to provide feasible Suggestions and solutions, dedicated to provide each customer with the best quality product transportation. Our vision is dedicated to be a world most influential supplier for vehicles.
Product packaging
Certifications
FAQ
Q: How about the delivery time?
A: 60 days after confirming the order and receiving the down payment during the valid time of the price, full payment for delivery.
Q: What’s the payment terms?
A: By T/T, (30%deposit + 70% balance), other payment terms can be negotiate.
Q: How is the quality of the machine exported from your country?
A: All of the machines we export are in excellent condition, brand new and ready to work.
Q:What is your warranty?
A: We provide one year maintenance for our clients.
A: 60 days after confirming the order and receiving the down payment during the valid time of the price, full payment for delivery.
Q: What’s the payment terms?
A: By T/T, (30%deposit + 70% balance), other payment terms can be negotiate.
Q: How is the quality of the machine exported from your country?
A: All of the machines we export are in excellent condition, brand new and ready to work.
Q:What is your warranty?
A: We provide one year maintenance for our clients.
