Small Intergrated Sensing Equipment Vibration Temperature Wired Transmission RS485 Vibration Sensor For Industrial Equipment
- Category: >>>
- Supplier: Chengdu Liangzhuo Technology Co. Ltd.
Share on (1600546003489):
Product Overview
Description
Product Description
Vibration + Temperature + Wired Transmission
Specification
● Focus on vibration trend analysis
● Focus on longtime on-line monitoring.
● Focus on longtime on-line monitoring.
Material | Matel | |
Size | 42*42*99mm | |

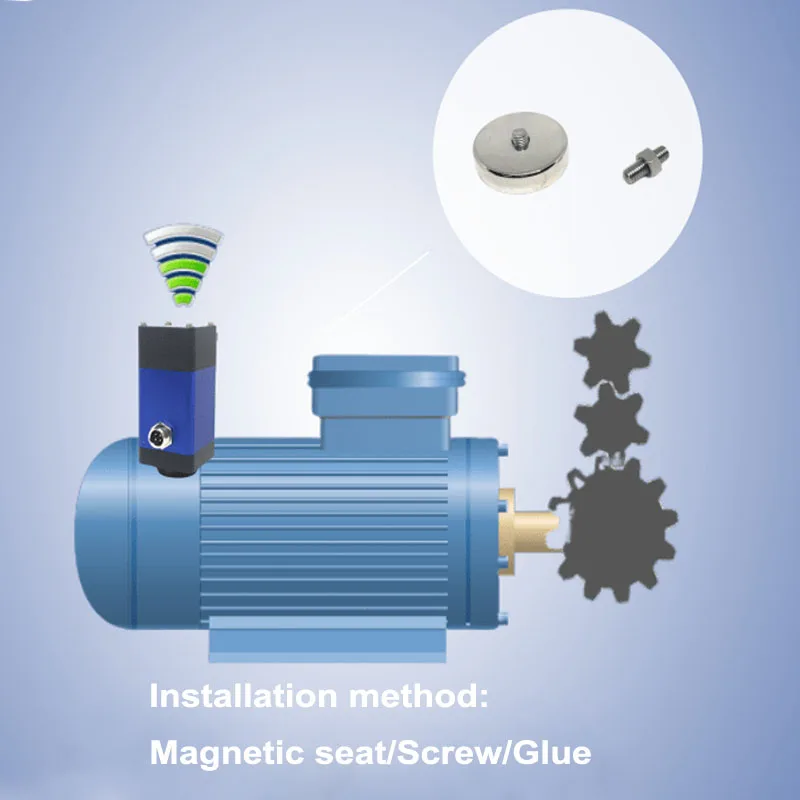

Installation method | Magnetic seat/Screw/Glue | |
Degree of protection | IP67 | |
Communication | Output | RS485 |
Protocol | MODBUS | |
Interface Type | Aviation plug | |
Power parameters | Power Supply | DC12-24V |
Acceleration/ Velocity/ Amplitude characteristics | Measure Vibration Parameters (optional) | 3-axis (optional) |
Velocity Measurement Range | 70 mm/s (customizable) | |
Acceleration Accuracy | 1.5%FS | |
Acceleration Measurement Range | ±4g(customizable) | |
Acceleration Accuracy | 1.5%FS | |
Amplitude Range | 800um(customizable) | |
Amplitude Accuracy | 2%FS | |
Frequency Response | 10-1000Hz(customizable) | |
Temperature Characteristics | Resolution | ±0.1℃ |
Measurement Range | -40~120 ℃ | |
Condition | Shock limit | 35g |
Ambient/Operating Temperature Range | -40~85 ℃ |
Details Images
Product Paramenters
1. One step to complete the deployment work, support magnetic base installation, external power supply, wired data
transmission.
2. Support Eigenvalves and original value transmission, convenient for various application scenarios
3. The shell is light, beautiful and easy to use.
4. Dual watchdogs, dynamic switching, stable online
5. Interface overcurrent overvoltage protection, and the interface is equipped with overvoltage and reverse connection
protection measures, which has high reliability and anti-interference ability.
6. The detection data can be sent to the Cloud Computing Platform by wired or wireless, and the mobile phone and computer can be remotely viewed and received the alarm information.
7. Wireless transmission.
8. With firmware upgrade function.
9. With internal logic calculation, it can actively judge alarm abnormality.
10. Support software platform to view data, mobile phone SMS and WeChat can receive alarm information.
transmission.
2. Support Eigenvalves and original value transmission, convenient for various application scenarios
3. The shell is light, beautiful and easy to use.
4. Dual watchdogs, dynamic switching, stable online
5. Interface overcurrent overvoltage protection, and the interface is equipped with overvoltage and reverse connection
protection measures, which has high reliability and anti-interference ability.
6. The detection data can be sent to the Cloud Computing Platform by wired or wireless, and the mobile phone and computer can be remotely viewed and received the alarm information.
7. Wireless transmission.
8. With firmware upgrade function.
9. With internal logic calculation, it can actively judge alarm abnormality.
10. Support software platform to view data, mobile phone SMS and WeChat can receive alarm information.
Application

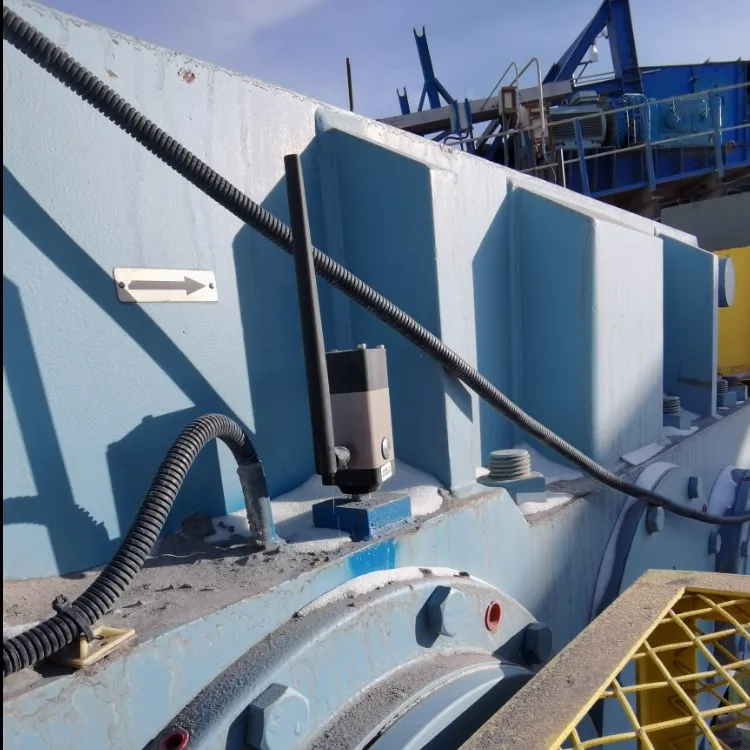

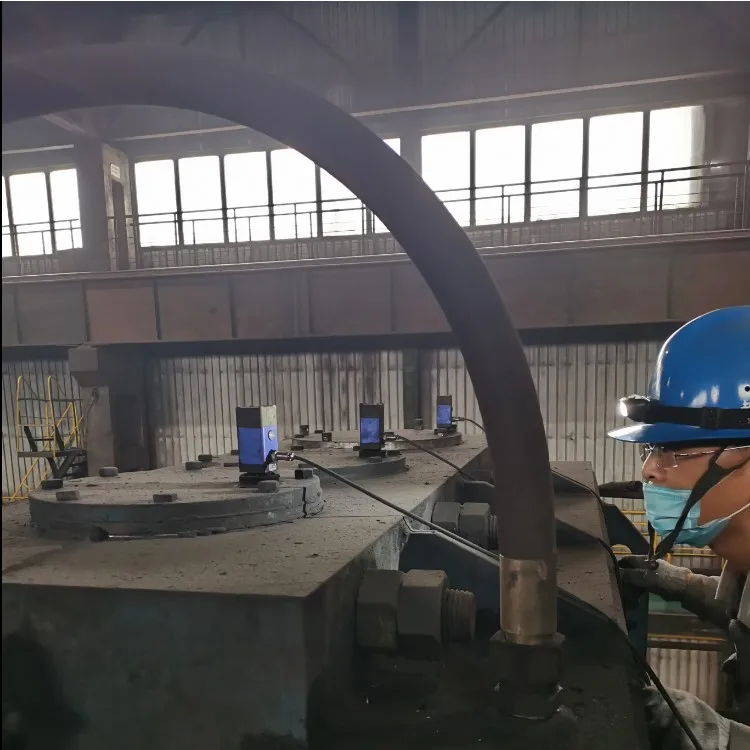

The sensor is mainly designed for vibration detection of industrial, commercial, mine and oilfield equipment. Applicable to all kinds of large and medium rotating machinery and sports equipment, such as draught fans, water pumps, reducers, Bearing pedestal, rolling friction bodies, etc. for direct measurement of vibration safety and temperature safety.
Wired transmission, using bus topology, can connect multiple nodes in series, so that the field data can be monitored and sorted in a unified manner. Support MODBUS protocol, which is convenient for data exchange and transmission between devices.
Company Profile
Chengdu Liangzhuo Technology Co., Ltd. is a manufacturer and exporter specializing in the development and production of sensors.
Our company has experienced design team, industry-leading R & D capability and strong manufacturing strength. In addition to independent research and development, we have also cooperated with many universities and factories in various aspects, and have obtained a number of patents and certifications. Unique technology enables our products to be widely used in various manufacturing plants, railways, bridges and environmental protection and many other fields.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us, we sincerely hope to establish friendly business relations with customers from all over the world.
Our company has experienced design team, industry-leading R & D capability and strong manufacturing strength. In addition to independent research and development, we have also cooperated with many universities and factories in various aspects, and have obtained a number of patents and certifications. Unique technology enables our products to be widely used in various manufacturing plants, railways, bridges and environmental protection and many other fields.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us, we sincerely hope to establish friendly business relations with customers from all over the world.
Certifications
FAQ
Q: Are you a manufacturer or trading company?
A: We are A manufacturer with Professional R&D team, and providing OEM & ODM services.Q: How do you make our business long-term and good relationship?
A1: We keep good quality and competitive price to ensure our customers benefit .
A2: We respect every customer as our friend and we sincerely do business, no matter where they come from.
Q: What kind of payment do you accept ?
A:We accept T/T(Wire transfer), Western Union and Paypal.
Q : What about your delivery time?
A: The stock goods delivery within 5-7 days, customized goods delivery within 20days.
Q : How to ship my order? Is it safe?
A1: For small package, send it by Express, such as DHL, FedEx ,UPS,TNT,EMS.That's a Door to Door service .
A2: For big packages, can send them by Air or By sea.We use standard export carton.will be responsible to any product damage caused on delivery.
Q : Can you make customized products?
A: Yes. We made a lot of customized products for our customer before.
