Product Overview
Description
Product Description
Machine description of big bag unloading station
This unloading system is also called bulk bag unloader, which is specially designed to provide a simple, clean and economical way to unload the entire contents of bulk bags and semi-bulk bags. It is suitable for almost any unloading or weighing application that uses bulk bags. Can be unloaded from bulk bags, jumbo bags, super bags or FIBC. The actual unpacking speed can be 5-8 times higher than the manual unpacking speed. The large baggage unloading system can achieve a high emptying rate of over 99.9%. For some materials with good fluidity, the emptying rate can reach more than 99.95%.

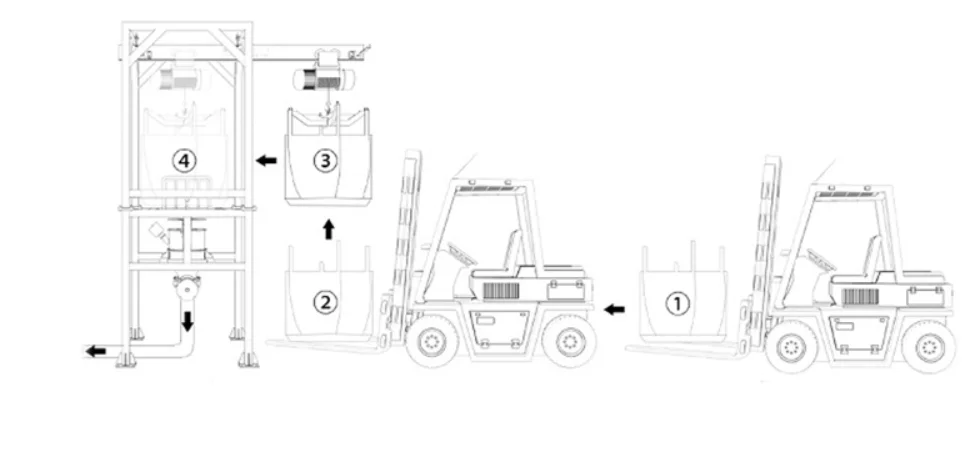

-Lift the big bag to the equipment inlet by forklift or electric hoist;
-Manually or automatically open the discharge port of the ton bag;
-Open the flow valve and assisted by the vibration device to push the powder or granular materials (in the ton bag) by gravity into the hopper to complete the unpacking and unloading work.
-Manually or automatically open the discharge port of the ton bag;
-Open the flow valve and assisted by the vibration device to push the powder or granular materials (in the ton bag) by gravity into the hopper to complete the unpacking and unloading work.
Application of bulk bag dischargers
The unloading system can handle powder, granular and sheet materials. It is widely used in plastics, rubber, food, medicine, chemical industry, raw materials, carbon black, mining, cement and other fields
Model | Electric hoist power | Unloading Speed | Rotary valve power | Hight | Frame Material | |||||
CWTB | 3 kw | 1-4 t/h | 0.75-1.5kw | 4.6-4.9m | Carbon steel, 304,304L / 316L stainless steel | |||||
Customizable parts: conveying equipment (screw conveyor, vacuum feeder, pneumatic conveying system, etc.) | ||||||||||

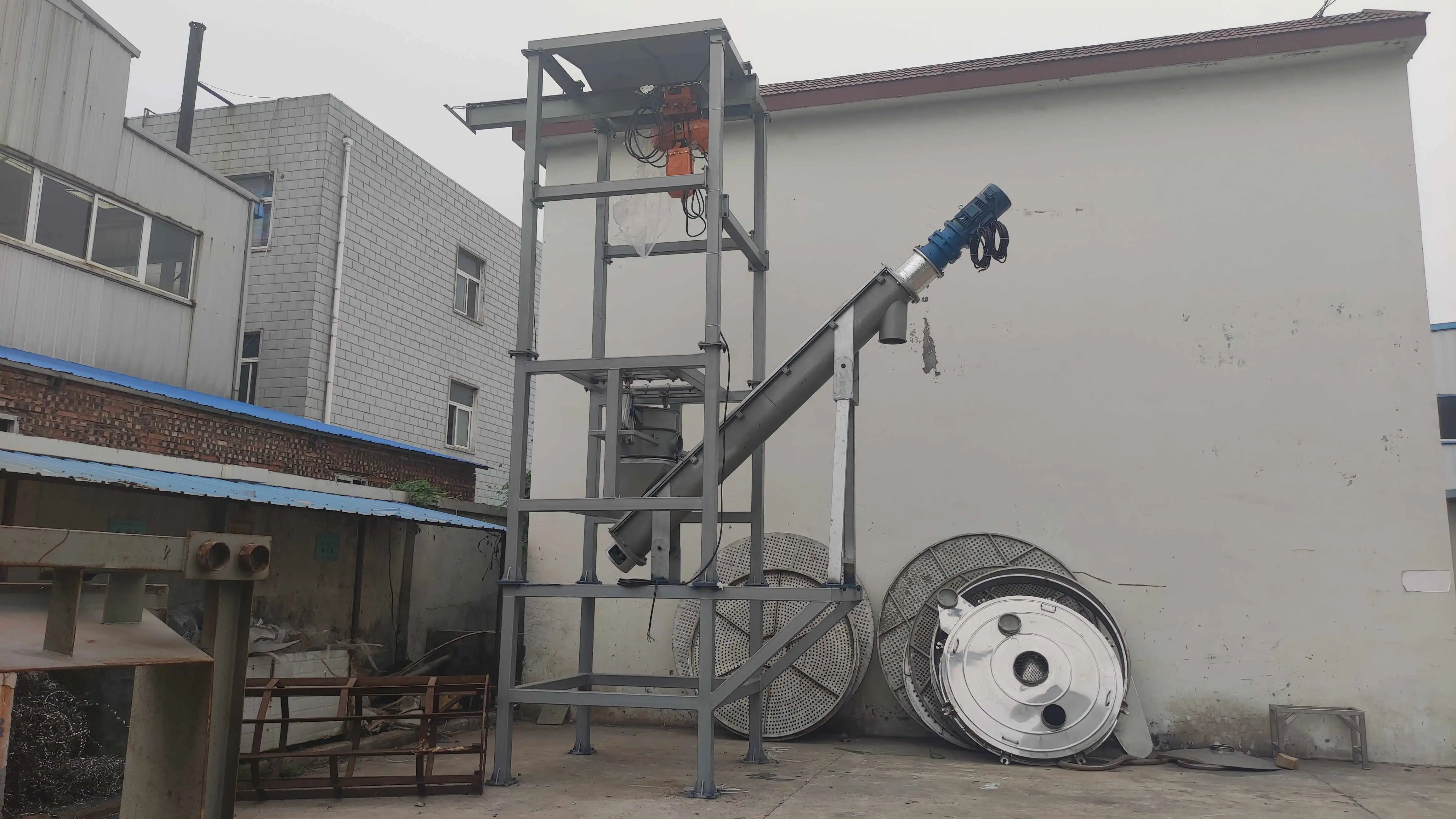

Detailed Images
Closed production system to
prevent dust from flying
The overall height is between 2-5 meters
and customization is also acceptable
Driven telescopic filling tube
Screw conveyor
Connection system
Electric hoist
Packing & Delivery
Our Company
Xinxiang Chenwei Machinery Co., Ltd is a manufacturer of vibrating screens, centrifugal sifters, tumbler screens, gyratory screens and aluminum foil tape with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mining, pharmacy, food, chemical, metal powder and other industries.
Our Service
-Guarrantee and after sale service :
--One year guarantee for the whole machine
--24hours technical support by email
--24 hours online service
--Instruction in English language
--User manual in PDF and Printed copy
--Installation videos
--24hours technical support by email
--24 hours online service
--Instruction in English language
--User manual in PDF and Printed copy
--Installation videos
Six free services including regular follow up services:
1.FREE technical enquiries
2.FREE repairs during warranty
3.FREE special services for key projects
4.FREE inspection upon delivery
5.FREE operation and repair training
6.FREE period follow-up and maintenance service
2.FREE repairs during warranty
3.FREE special services for key projects
4.FREE inspection upon delivery
5.FREE operation and repair training
6.FREE period follow-up and maintenance service
FAQ
Q: How can I get the price quickly ? Please let us know
A1: Material bulk density
A2：Length and angle of conveying
A3：Material of machine (carbon steel Q235A, stainless steel SUS304 or SUS316, etc.materials)
A4：voltage and frequency (Hz) also need accurate quotation.
Q: What is the actual delivery time of your factory?
A: 7-15 days for general series products, 30-60 days for batch products and customized products according to different situations.
If you have any request, you can contact us at any time.
A1: Material bulk density
A2：Length and angle of conveying
A3：Material of machine (carbon steel Q235A, stainless steel SUS304 or SUS316, etc.materials)
A4：voltage and frequency (Hz) also need accurate quotation.
Q: What is the actual delivery time of your factory?
A: 7-15 days for general series products, 30-60 days for batch products and customized products according to different situations.
If you have any request, you can contact us at any time.
