Wholesale 100W Power Supply 12V 8.33A 220V AC DC Switching Din Rail Power Supply MDR 100 12
- Category: >>>
- Supplier: Zhejiang Junlin Electric Technology Co. Ltd.
Share on (1600546012456):
Product Overview
Description
Product Description
Specification
MDR-100 100W Rail Type Switch Power Supply | ||||||||
Model | Technical index | |||||||
Output | DC Voltage | 12V | 24V | |||||
Rated Current | 7.5A | 4A | ||||||
Rated Power | 90W | 96W | ||||||
Ripple and noise ① | ＜120mV | ＜150mV | ||||||
Voltage Precision | ±1% | ±1% | ||||||
Output Voltage regulation Range | ±10% | |||||||
Load adjustment rate | ±1% | ±1% | ||||||
Linear adjustment rate | ±1% | |||||||
Input | Voltage Range | 85-264VAC 47Hz～63Hz (120VDC～370VDC) | ||||||
Efficiency(typical) ② | ＞83% | ＞86% | ||||||
Working Current | PF≥0.95/230VAC PF≥0.98/115VAC (full load) | |||||||
Working current | ＜1.3A 110VAC ＜0.8A 220VAC | |||||||
Impulse current | 110VAC 35A， 220VAC 70A | |||||||
Start, rise, hold time | 3000ms、50ms、20ms ：110VAC 3000ms、50ms、50msms ：220VAC | |||||||
Protuct | overload protection | 105%-115% Protection type: burping mode, automatic return to normal after removing abnormal conditions | ||||||
Output short circuit protection | ≥135% protection type: close output, restart and automatically return to normal | |||||||
Function | Storage temperature and humidity | -20℃～+70℃；20%～90RH | ||||||
Withstand voltage | -40℃～+85℃；10%～95RH | |||||||
Safety regulations | Leakage current | Input output: 3kvac input shell: 1.5kvac output shell: 0.5kvac for 1 minute | ||||||
Isolation resistance | Input output, input shell,output shell: 500VDC / 100M Ω 25 ℃ | |||||||

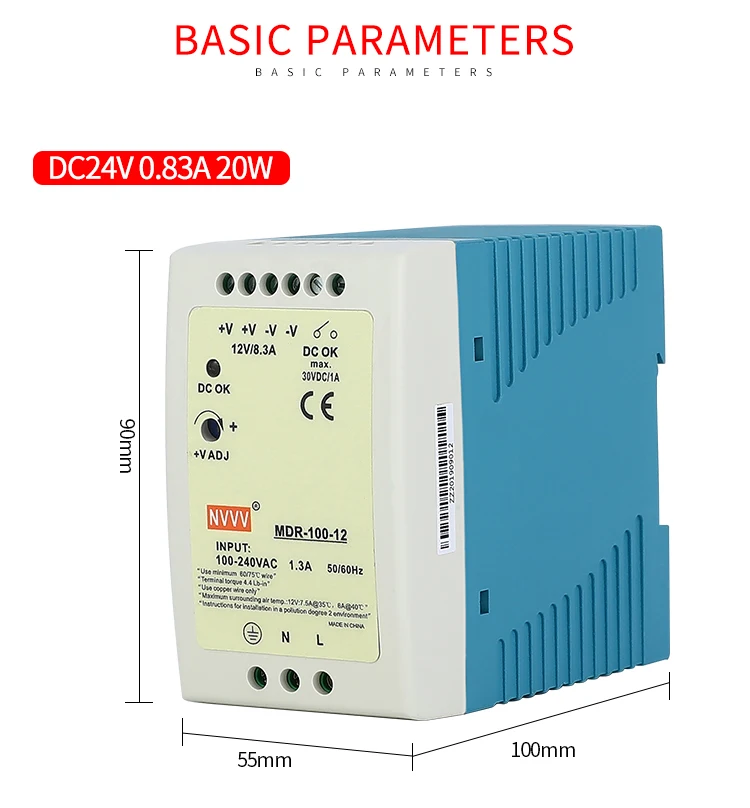

Other | Size | 55*90*100mm | ||||||
Net /Gross Weight | 420/450g | |||||||
