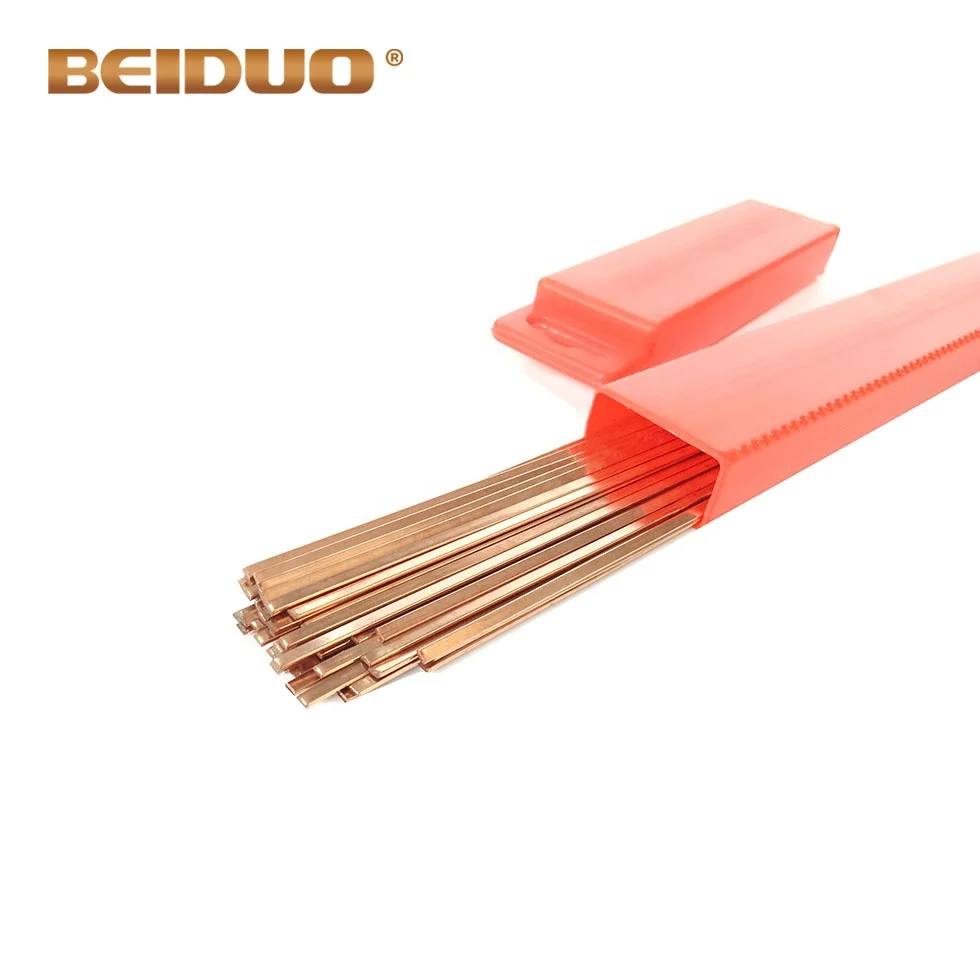

High quality CP202 brazing alloy BCuP 2 copper Brazing rods for copper tube
- Category: >>>
- Supplier: Jinhua Beiduo Import & Export Co. Ltd.
Share on (1600546014052):
Product Overview
Description
Products Description
BCuP-2
Brazing alloy rod BCuP-2
Phos-Copper brazing alloys are easy-flow, low cost ones and shows perfect perfomance in contact brazing, oxy-acetylene brazing,induction brazing and furnace brazing. The joint strength is higher and the conductivity is better. A flux is required while brazing brass to brass. Phos-Copper-Sliver brazing alloys have good wettability, higher strength and toughness of brazing seam and lower melting point. The beating speed should be as quick as possible while brazing. The joint is to be bright grey and will return to the orginal color of bronze while dipped into 10% sulphuric acid.
ance is excellent.
| Standard | Alloy | Chemical Composition(%) | Melting Range | Application | |
| Solidus | Liquidus | ||||
| AWS A5.8 | BCuP-2 | Cu:Bal. P:6.5-7.5 | 710°C | 790°C | For brazing of copper and copper alloys. |
| AWS A5.8 | BCuP-3 | Cu:Bal. P:5.7-6.1 Ag:5.0-5.2 | 643°C | 816°C | For brazing of copper and copper alloys. |
| AWS A5.8 | BCuP-5 | Cu:Bal. P:4.8-5.3 Ag:14.5-15.5 | 643°C | 800°C | For brazing of copper,copper alloys,silver and molybdenum etc. |
| AWS A5.8 | BCuP-6 | Cu:Bal. P:6.8-7.5 Ag:1.8-2.2 | 643°C | 790°C | For brazing of copper and copper alloys. |
| BCu86PSn | Cu:Bal. P:6.5-7.5 Sn:6.5-7.5 | 640°C | 680°C | For brazing of copper and copper alloys. | |
Note: The link is for BCuP-2
Size: 0.05"x1/8"x18" or 0.05"x1/8"x500mm 0.8-4.0mm x 500mm
BCuP-2
Brazing alloy rod BCuP-2
Phos-Copper brazing alloys are easy-flow, low cost ones and shows perfect perfomance in contact brazing, oxy-acetylene brazing,induction brazing and furnace brazing. The joint strength is higher and the conductivity is better. A flux is required while brazing brass to brass. Phos-Copper-Sliver brazing alloys have good wettability, higher strength and toughness of brazing seam and lower melting point. The beating speed should be as quick as possible while brazing. The joint is to be bright grey and will return to the orginal color of bronze while dipped into 10% sulphuric acid.
ance is excellent.
| Standard | Alloy | Chemical Composition(%) | Melting Range | Application | |
| Solidus | Liquidus | ||||
| AWS A5.8 | BCuP-2 | Cu:Bal. P:6.5-7.5 | 710°C | 790°C | For brazing of copper and copper alloys. |
| AWS A5.8 | BCuP-3 | Cu:Bal. P:5.7-6.1 Ag:5.0-5.2 | 643°C | 816°C | For brazing of copper and copper alloys. |
| AWS A5.8 | BCuP-5 | Cu:Bal. P:4.8-5.3 Ag:14.5-15.5 | 643°C | 800°C | For brazing of copper,copper alloys,silver and molybdenum etc. |
| AWS A5.8 | BCuP-6 | Cu:Bal. P:6.8-7.5 Ag:1.8-2.2 | 643°C | 790°C | For brazing of copper and copper alloys. |
| BCu86PSn | Cu:Bal. P:6.5-7.5 Sn:6.5-7.5 | 640°C | 680°C | For brazing of copper and copper alloys. | |
Note: The link is for BCuP-2
Size: 0.05"x1/8"x18" or 0.05"x1/8"x500mm 0.8-4.0mm x 500mm

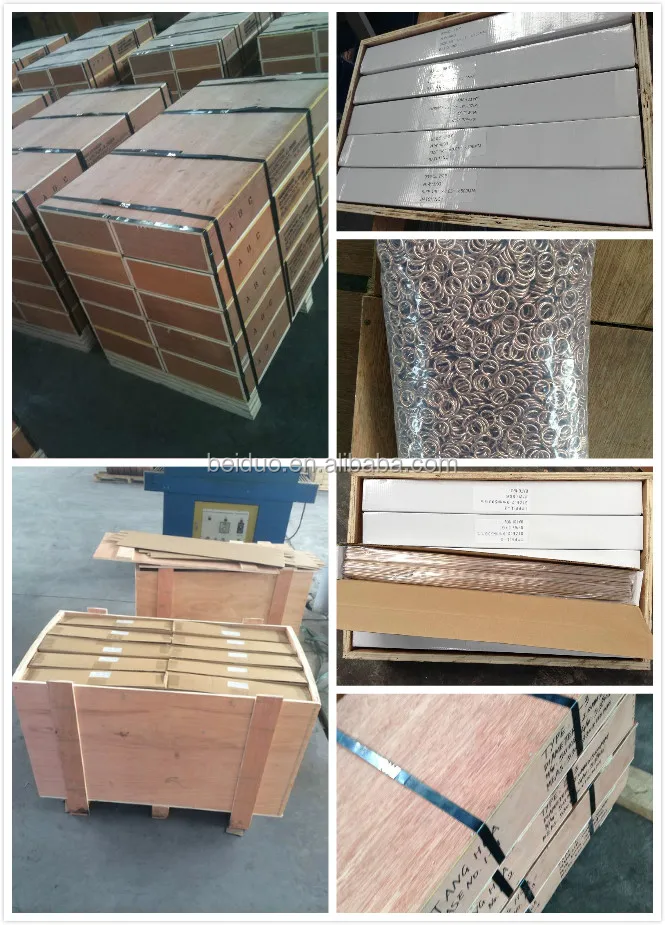

Product packaging
Our normal packing is 5kg or 10kg/polybag, 50kg/wooden case, 1000kgs/pallet.

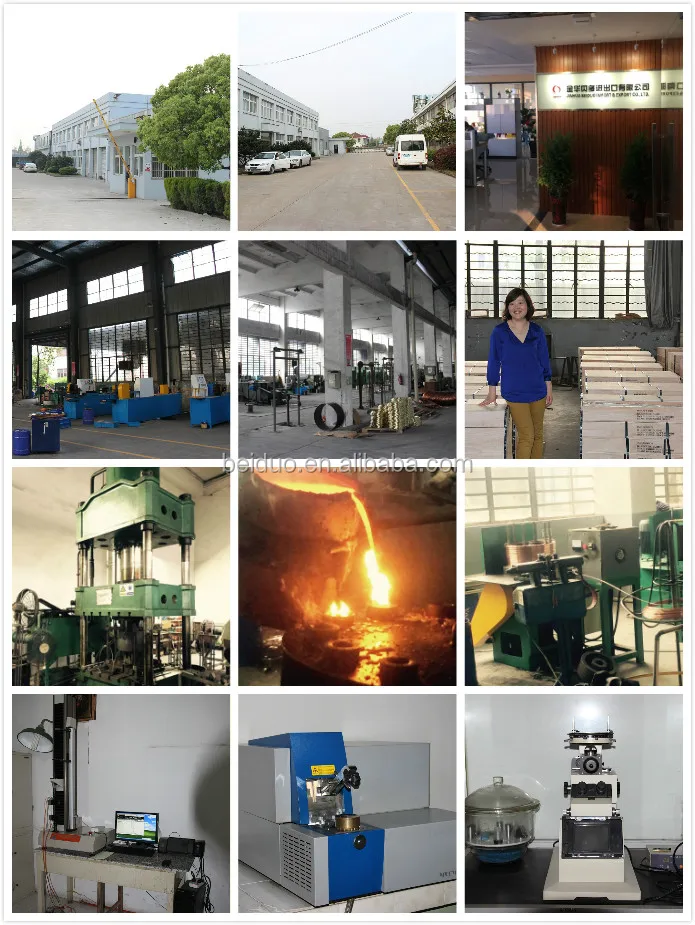

Company Profile
As a manufacturer and exporter with more than 13 years exporting experience, we know which products can meet different markets requirement. We are confidence for our quality and competitive price.
