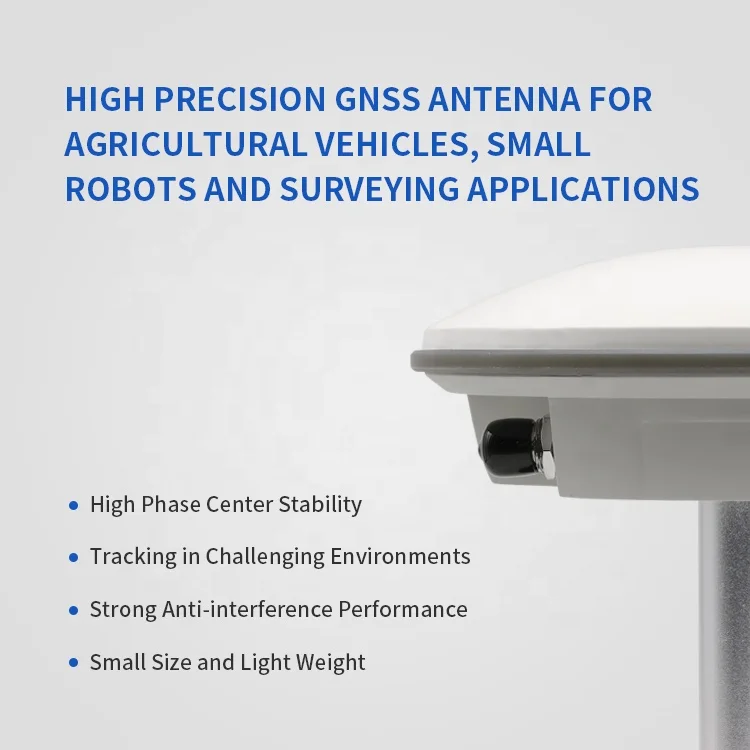

High Gain High Precision GNSS Surveying Antenna TNC K Connector Magnetic Base Survey Antenna
- Category: >>>
- Supplier: Harxon Corporation
Share on (1600546109055):
Product Overview
Description
Product Description
Specification
PERFORMANCE | |
Signal Received | GPS L1/L2/L5 BDS B1I/B2I/B3I/B1C/B2a/B2b GLONASS L1/L2/L3 GALILEO E1/E5a/E5b/E6 QZSS L1/L2/L5/L6 IRNSS L5 SBAS L1/L5 L-Band |
Nominal Impedance | 50Ω |
Polarization | RHCP |
Axial Ratio | ≤3dB |
Azimuth Coverage | 360° |
Output VSWR | ≤2.0 |
Gain at Zenith (90°) | 5.5dBi |
Phase Center Error | ±2mm |
LNA | |
LNA Gain | L2: 40±2dB L1: 38±2dB |
Noise Figure | ≤2dB |
Output VSWR | ≤2.0 |
Passband Ripple | ±2dB |
Operation Voltage | +3.3～+12VDC |
Operation Current | ≤45mA |
Group Delay Ripple | ＜5ns |
MECHANICAL | |

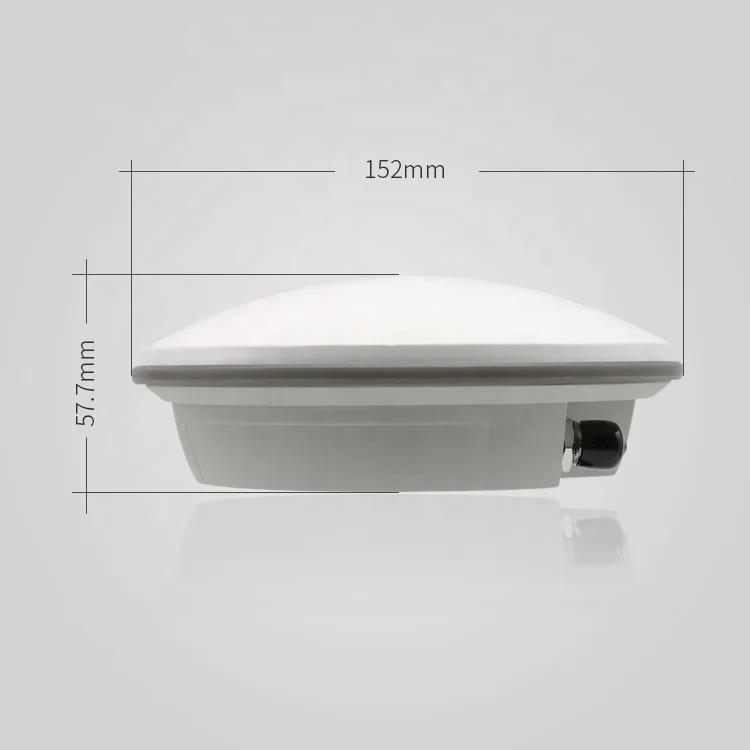

Dimensions | Φ152*57.7mm |

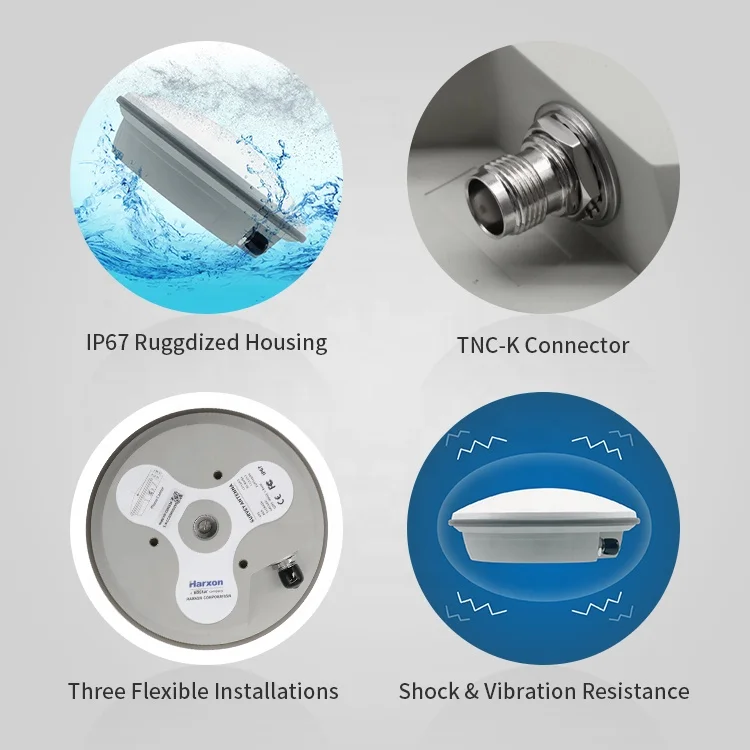

Connector | TNC-K |
Weight | ≤700g |

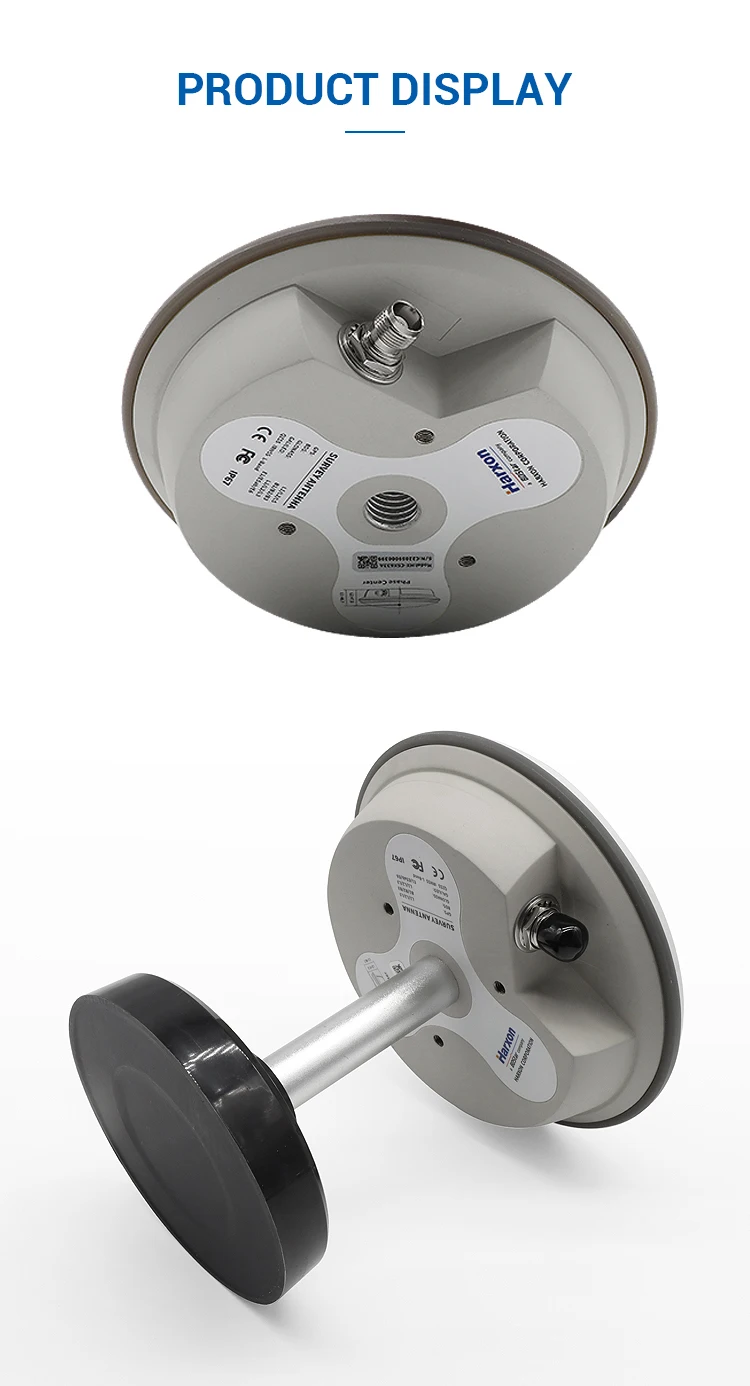

Mounting | Magnetic mount 3 x M5 screws mount BSW5/8''-11 screw, 12-14mm |
ENVIRONMENTAL | |
Operating Temperature | -40℃ to +85℃ |
Storage Temperature | -55℃ to +85℃ |
Humidity | 95% non-condensing |
Shock | MIL-STD-810-F to survive a 2m (6.56 ft) drop onto concrete |
Vibration | MIL-STD-810-F on each axis |
Water/Dust Resistance | IP67 |
EMC (RF Input Static) | Connected: 8KV, Air: 15KV, 10 times |
Regulatory Compliance | NGS、FCC、CE、RoHS |
