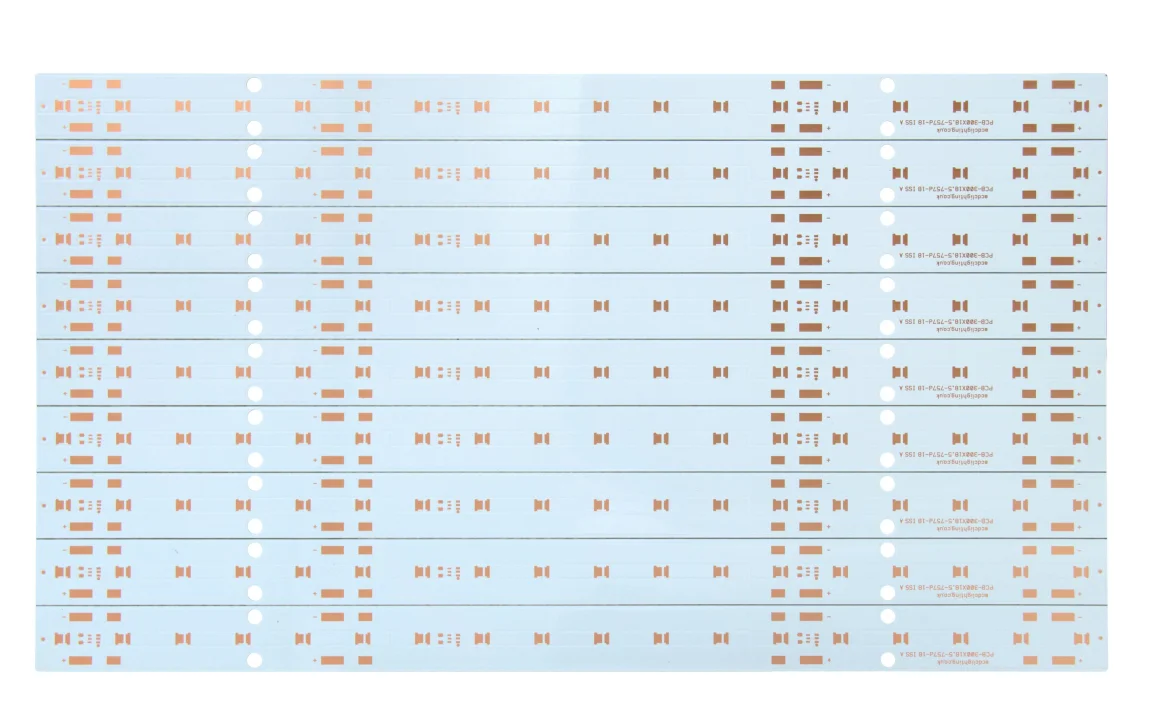

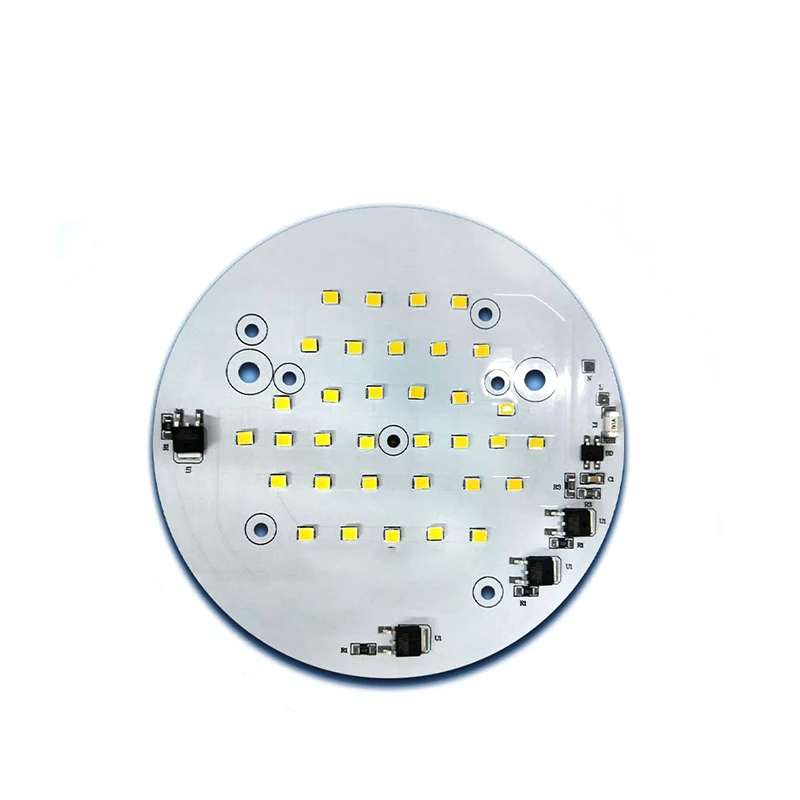

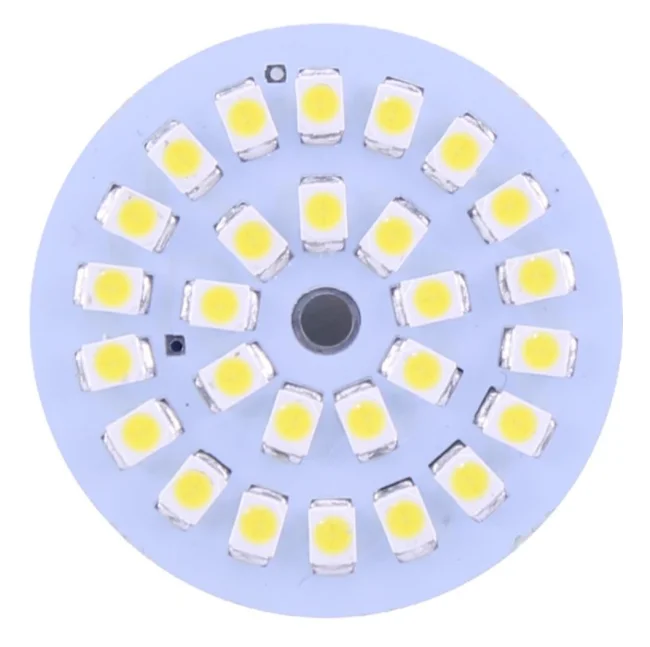

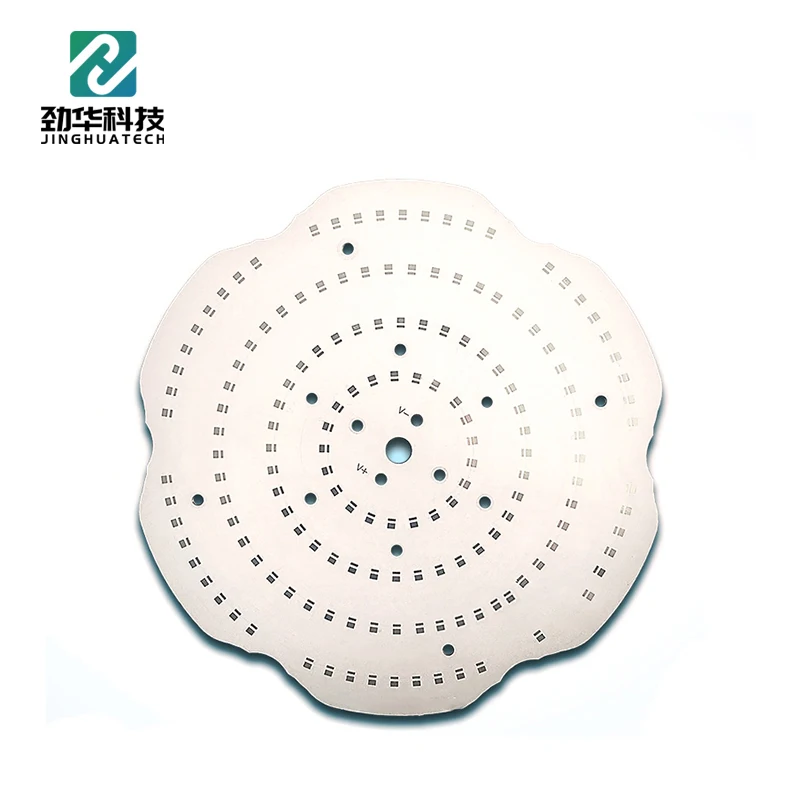

Разработка дизайна и сборки 2 Слойная алюминиевая подложка печатная плата для светодиодов
- Category: >>>
- Supplier: Jinhua Technology (shenzhen) Co. Ltd.
Share on (1600546120568):
Product Overview
Description
Why JH-PCBA for MCPCB Fabrication?
.For regular MCPCBs, we can customize the thermal conductivity within the 1W/M.K to 5W/M.K range.
.We grasp the core technology of Heat-electric separation for copper MCPCBs.
.We've already achieved fully automatic fabrication for mass production of 1.5m ultra-long Alu PCBs.
.Jinhua also support other substrate materials,such as copper and FR4 substrate PCB, copper and ceramic substrate PCB, etc.
.Provide design-to-finish assembly services, plus conformal coating, IC programming, mechanical boxes, and box-built.
Product Description
| Jinhua Alu PCB Capability | ||
| Item | Process | Capability |
| 1 | Layers | 1-4L |
| 2 | Board Thickness | 0.4-5.0mm |
| 3 | Copper Thickness | 0.5oz-4oz |
| 4 | Material | Aluminum Base, BoYu, PTTC, Bergquist, TOTKING, Taiyo Ink, Resin filled |
| 5 | Thermal conductivity | 1-5W/M.K |
| 6 | Heat-electric separation | Can reach 200W/M.K |
| 7 | Board Size | Max: 650*1500mm, Min: 10*10mm |
| 8 | Min trace width/spacing | 8/8mil for 1oz copper |
| 9 | Hole to line or pad spacing | Min 0.3mm |
| 10 | Drilling | Min finished hole size 0.5mm |
| 11 | Soldermask | Thickness 25-30um |
| 12 | Color: Green, White, Black, and so on | |
| 13 | Reflectivity 85%, Mirror Aluminum boards reach 95% | |
| 14 | Silkscreen | Color: White, Black, Yellow, Red...etc |
| 15 | Profiling | Tolerance of outline: +/-0.1mm |
| 16 | V-CUT Angle: 30 degree & 45 degree | |
| 17 | V-CUT remain thickness 0.4+/-0.05mm | |
| 18 | Surface treatment | ENIG, HASL & HASL-LF, Immersion Tin, Immersion Silver, OSP |
| 19 | Bow and Twist | ≤0.03mm |
| 20 | Standard | ISO9001, ISO14001, IPC-600,6012, Class II amd III |
Production Process
Related Products
Company Information
Exhibition
Packaging
Bubble package, EPE package, ESD Bag,Vacuum bag
FAQ
Q1. What does Jinhua Tecenology can do?
We can support you PCB Design, PCB board manufacturing, Components or Parts Source, Surface Mount (SMT), Thru-Hole (THT),hybrid of both, Functional Test, Wire Soldering etc one stop PCB&PCBA service
Q2. For PCB quotation, what files format do JINHUA need?
Gerber, Protel 99SE, DXP, PADS 9.5, AUTOCAD, CAM350 are OK.
| Bare PCB Prototype | |
| Layer | Quick Turn |
| 2 | 24 hours |
| 4 | 48 hours |
| 6-8 | 72 hours |
Q3. What will I get from you? Are my files safe?
You will get the free DFM feedback for PCB gerber files, BOM list components feedback, Quotation feedback within 2 hours. NDA can be signed for extra security issue.
Q4. MOQ?
There is no MOQ in Jinhua Tecenology. We can offer prototype, expedite prototype, small&medium amount, big amount pcb & pcba service.
