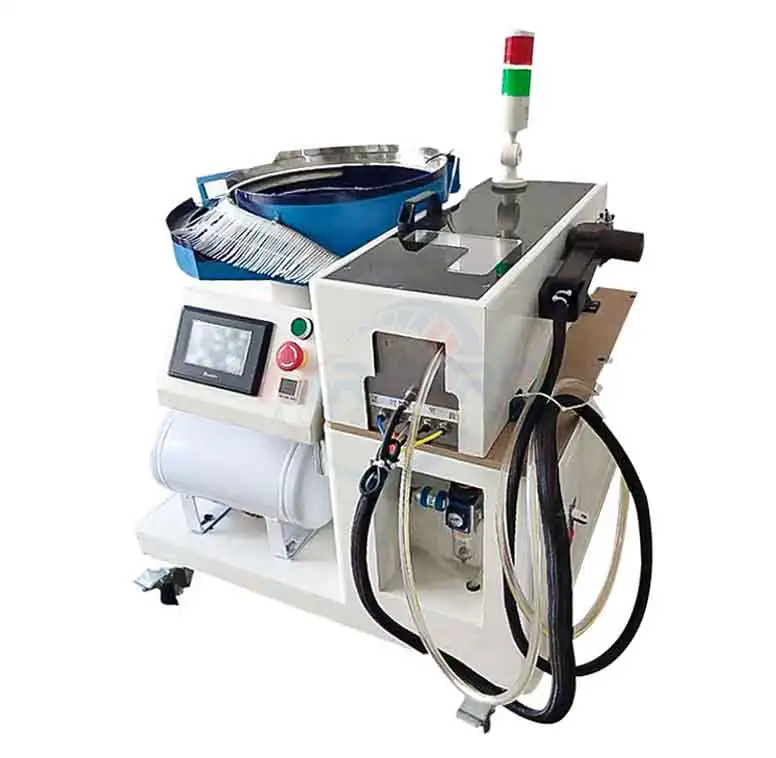

HB C20 Hand hold gun self locking nylon zip cable tie bundling machine
- Category: >>>
- Supplier: Wirepro Automation Technology Co. Ltd.
Share on (1600546161108):
Product Overview
Description
WIREPRO Automation Focus on Machines & Solutions for Wire Processing & Harness Assembly, welcome you to check more equipment on our website. If you need any support, welcome contact us anytime ^_^ |
Product Description
Technical Data
| Model | HB-C20 |
| Cable tie length | 80/100/120/150 mm (can be customized) |
| Cable tie width | 3 – 5 mm |
| Tying Diameter | 2 – 30 mm |
| Tail length | 0 – 3mm |
| Production speed | 110/220VAC,50/60Hz |
| Power | 700W |
| Dimensions | Max 180mm |
| Winding Cycles | Adjustable |
| Winding Speed | 1-8cycle/s |
| Power Supply | 110/220VAC,50/60Hz |
| Power | 1500W |
| Dimensions | 650 * 650 * 720 mm |
| Weight | 130kg |
Description

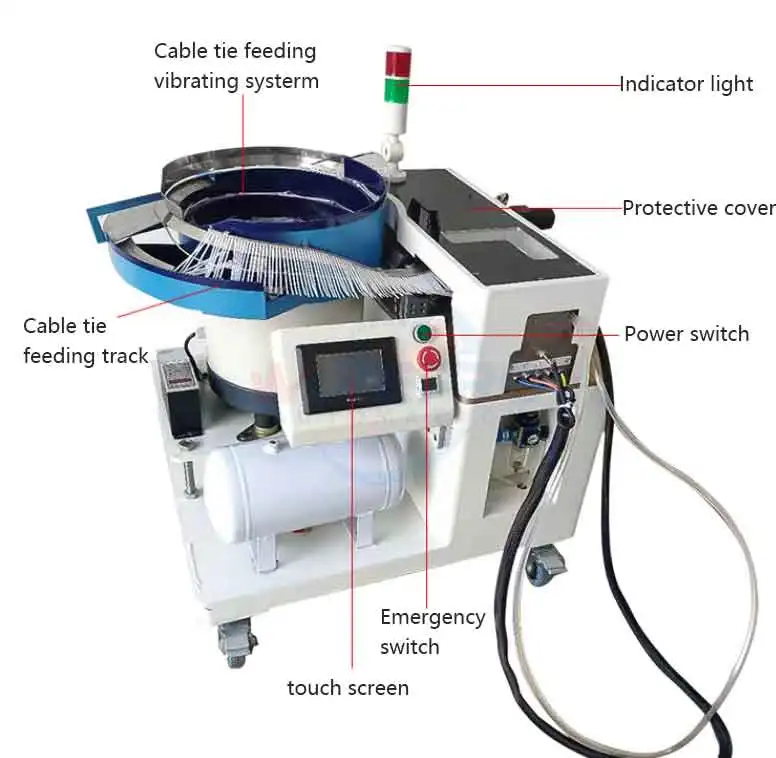

It adopts the vibration plate to feed the nylon cable ties to the nylon cable tie gun automatically, the hand-held nylon tie gun can work 360 degrees without a blind area. The operator only needs to simply pull the trigger, then it will finish all tying steps.
Features
1. It can finish pulling the trigger, automatic feeding, tightening, cutting, collecting wastes, and all other actions
3. 0.7 seconds to complete all actions, the whole cycle a total of about 1.3 seconds including auxiliary time. A machine can replace 7-8 workers. A year can save wage costs over 20 million
4. Waste is collected automatically in a waste box via a dedicated recovery system (optional)
5. Handheld tip lightweight, compact design grip, easy to hold, long-term use will not feel tired
6. Tying the intensity or tension can be adjusted by the knob
7. Host body's own PLC control system, touch screen Chinese /English display, simple operation
8. An automatic production line can be in conjunction with a robot to achieve a fully automatic cable tie. It can be fixed to the table using the desktop cable tie machine
Application

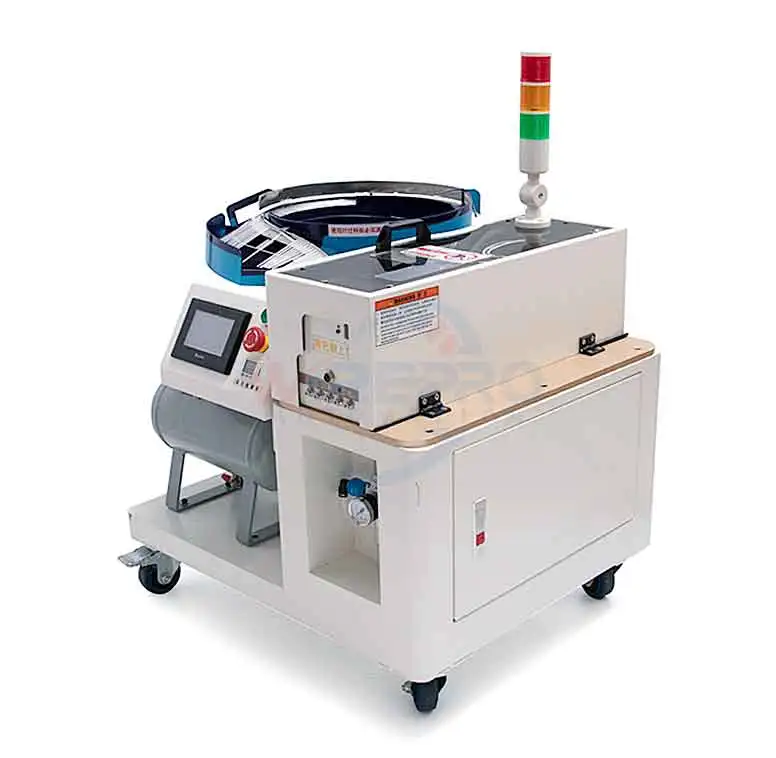

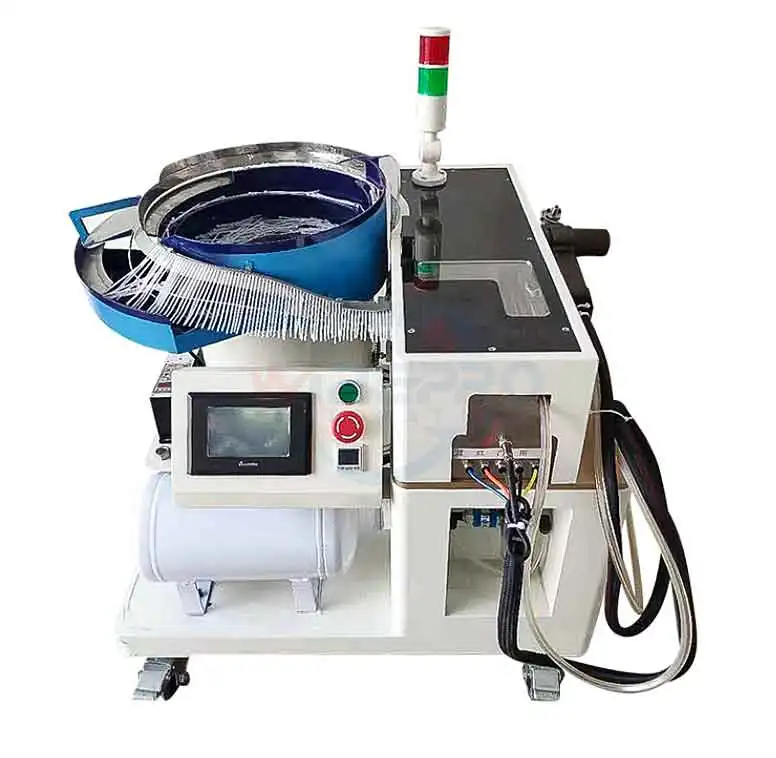

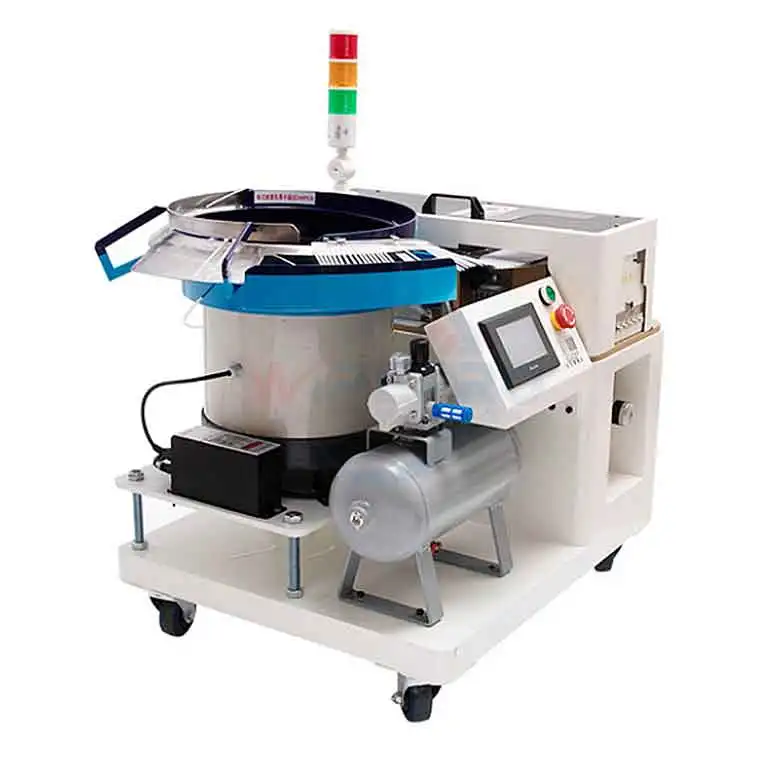

More machine pictures
Related Products
Wire winding machine HB-W25
|
Wire tying machine HB-T40
|
wire winding and bundling machine HB-D40
|
Desktype wire metering cutting winding bundling machine HB-M01 |  Desktype wire metering cutting winding machine HB-M02
|
Floor standing wire metering cutting winding machine HB-M01 |
Packaging & Shipping
Samll size machines: Standard carton
Medium size machines: Thickened cartons and wooden pallets
Big size machine: Plywood wooden cases
Company Information
FAQ
| 1. What are the optional accessories and wearing parts? Optional accessories: Wire spool pre feeder, Wire collector, wire coiler or wire stacker. Wearing parts: Generally blade and belt. For More info, please contact WIREPRO. |
| 2. Operation panel and user manual language? English and Chinese are optional. |
3. How long is the lead time? Ready time: Generally the standard machine will be ready in 2-3 workdays, the customized machine please check with us again when placing an order.
Packaging: The machine is packed in a carton or wooden box according to the size. Sufficient cushioning material will protect the machine intact during long-distance transportation.
Transportation: Support shipping via air, sea, and railway many transportation modes. |
4. How do we install and operate the machine?
Small Machine: The user can install and adjust the machine according to the Manual and video of how to install and set the machine. If you have any questions, please contact our technical support (Email: support at wireproauto.com) to provide online, video, and other support. If customers really need we can make exceptions on-site service (expense will be borne by customers).
Large full automatic machine: We will arrange engineers on-site installation, testing, and adjustment of equipment. Please check with us about the details.
We also welcome you to come to our factory for more training. |
| 5. What after-sales service is provided? WIREPRO has an experienced technical support team to be responsible for troubleshooting for customers via phone calls, emails, videos, etc. If you need spare parts, DHL generally could deliver them in about 3-5 days. |
