1000l 1500l 2000l beer brewing equipment brewery system micro brewery brew for sale
- Category: >>>
- Supplier: Shandong Hulk Equipment Co. Ltd.
Share on (1600546199099):
Product Overview
Description
1000l 1500l 2000l beer brewing equipment brewery system micro brewery brew for sale
-----Hulk Brewtech-----

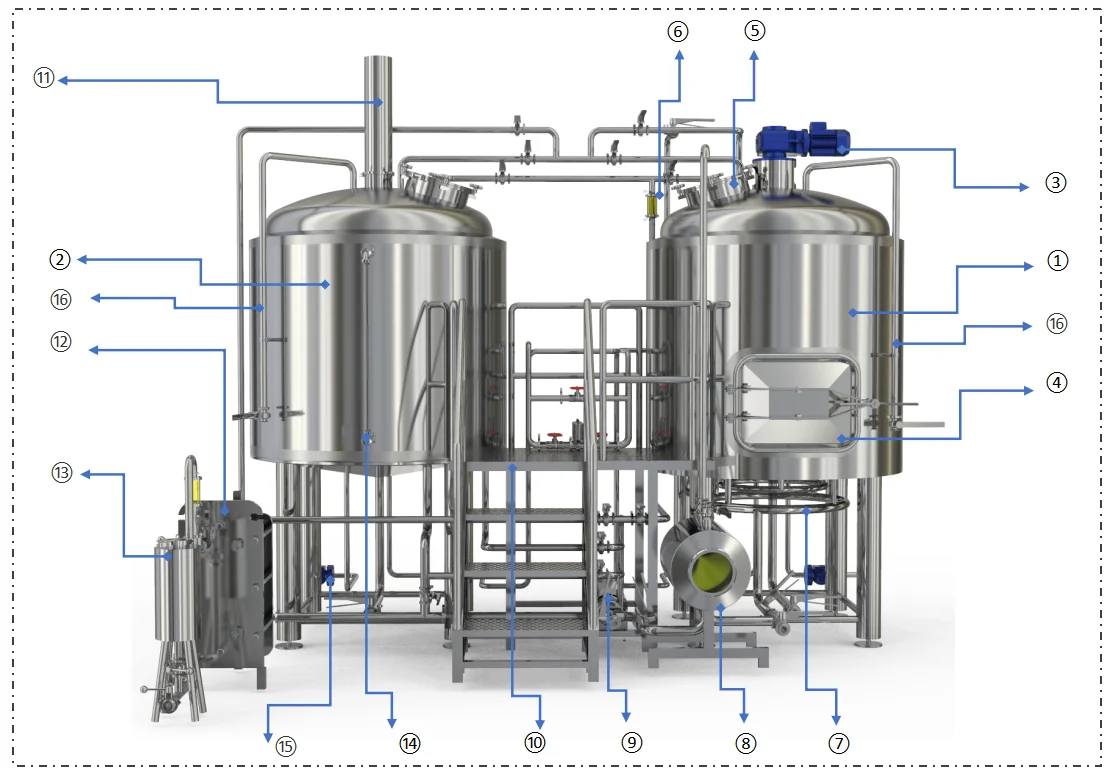

Mashing System

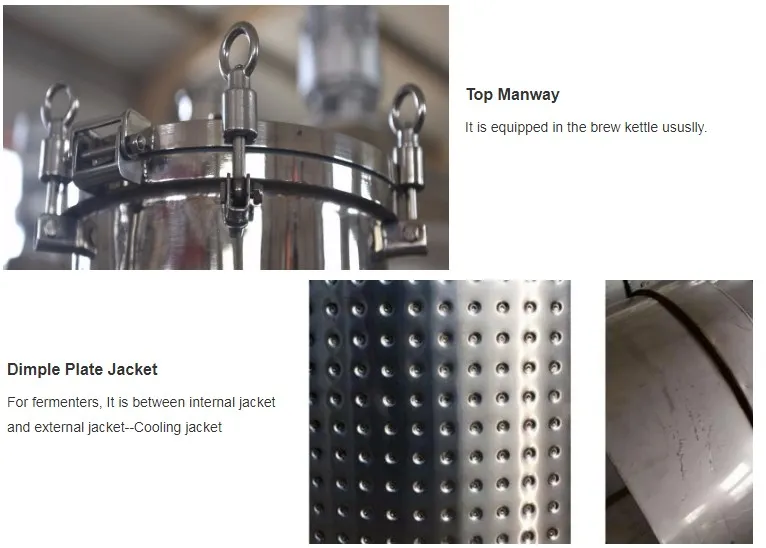

1500L fermenter | 1. Effective volume: 1500L 2. Inner-jacket (SUS304), TH=3.0mm, pickling and passivating polish 3. External-Jacket(SUS304), TH=2.0mm, ink wires drawing plate 4. Dish head (SUS304), TH= 3.0mm 5. Dimension: φ1160mm*2600mm 6. Insulation: PU-thickness: 80mm 7. Glycol jacket: dimpled plate on cone and side 8. Cooling media: glycol water 9. 60°degree cone bottom 10. CIP arm with 360°coverage CIP spraying ball 12. Side flange manway 13. Dry hops port on the top of tanks with solid end cap 14. Sample valve 15. Carbonation stone and titanium bar 16. Spunding valve on CIP arm 18. Shockproof pressure gauge on CIP arm 19. Rotating racking arm and port on cone with butterfly valvel 20. Design pressure 0.3MPa 21. Working pressure 0.15Mpa 22. 100% TIG welded joints 23. Interior finish: Overall polishing to 0.6μm without dead corner. 24. 4pcs completely SUS304 heavy duty legs with leveling pad and legs support 25. Complete valves, fittings and all parts 26. Temperature measurement way: PT-100 |

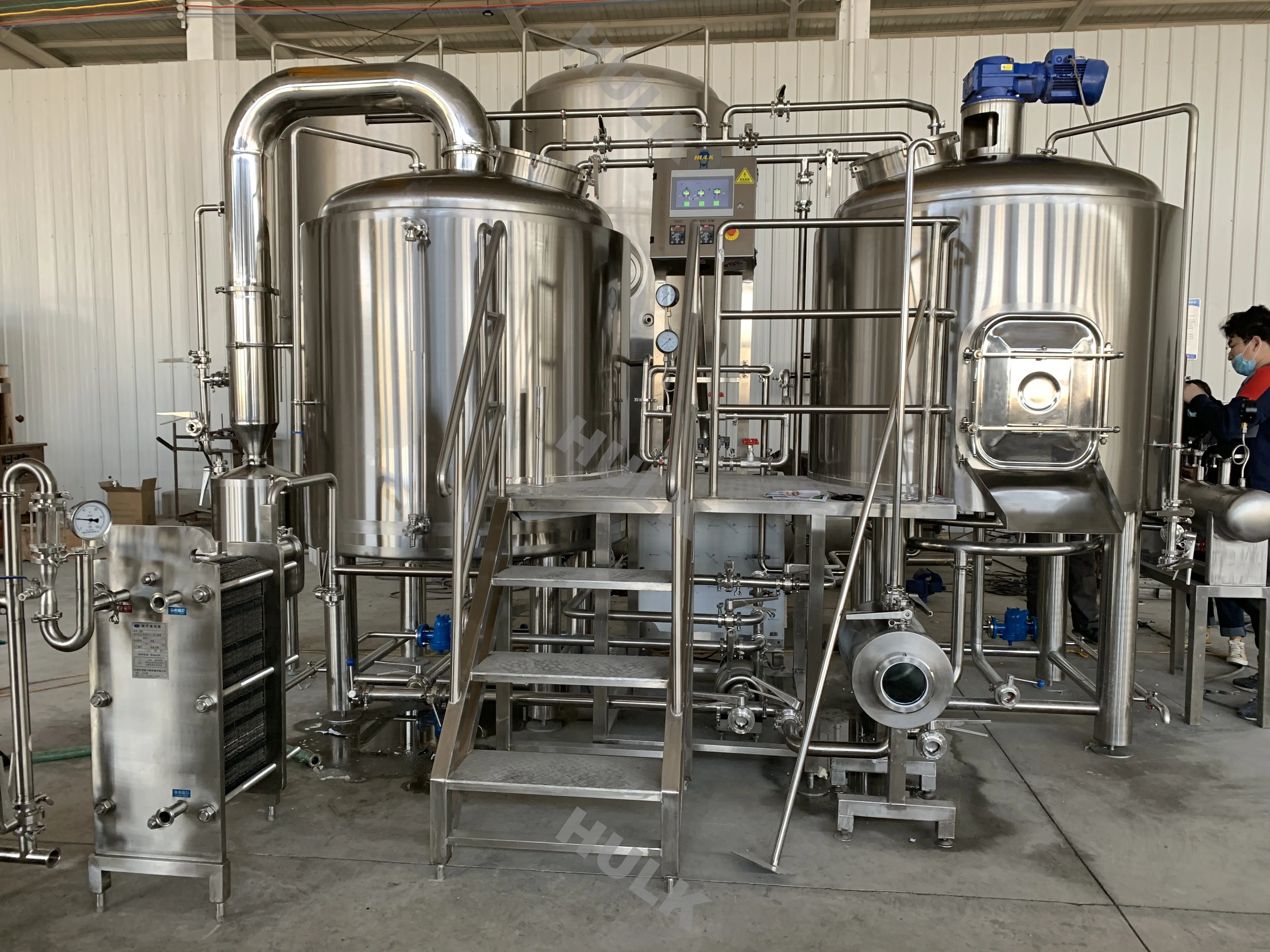

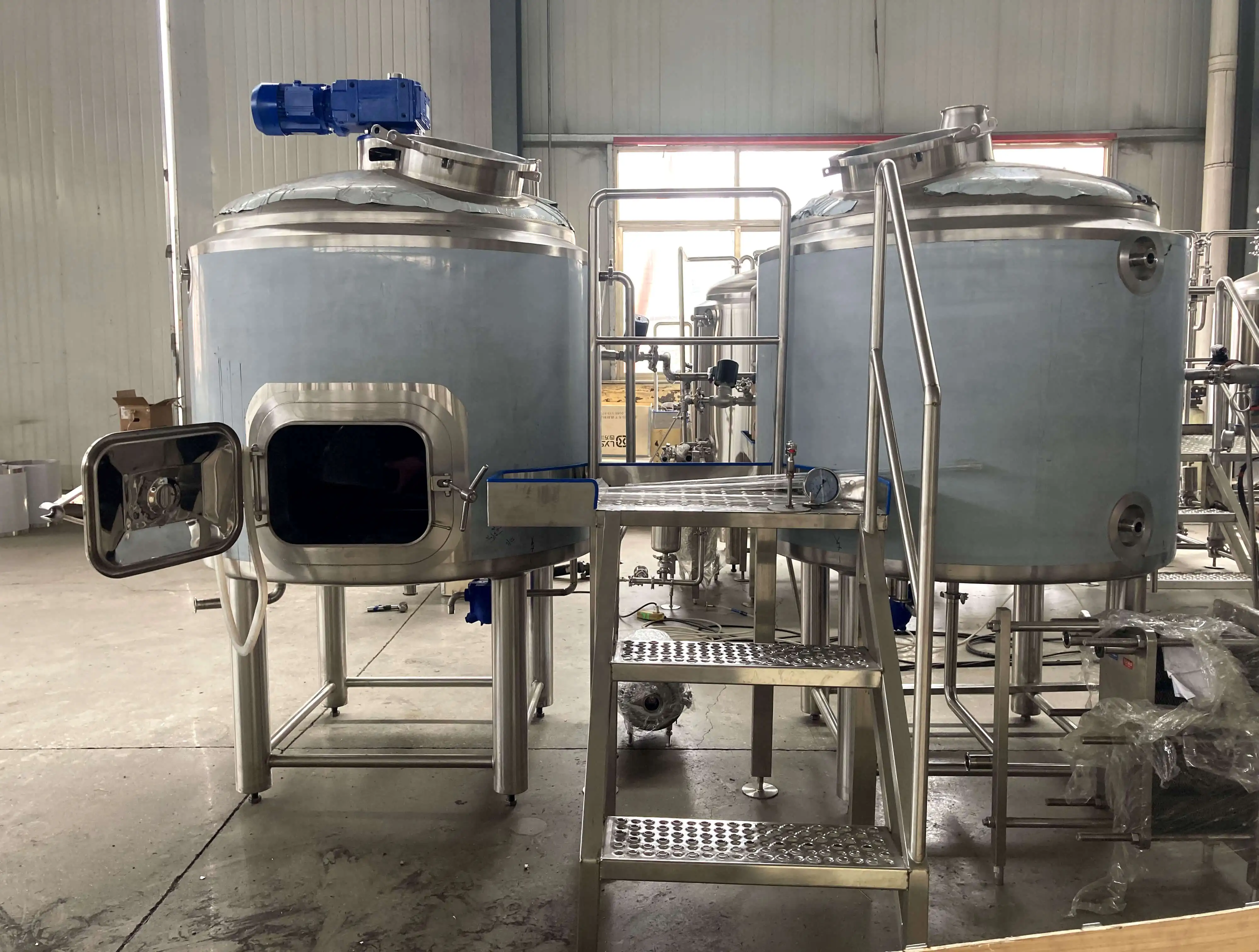

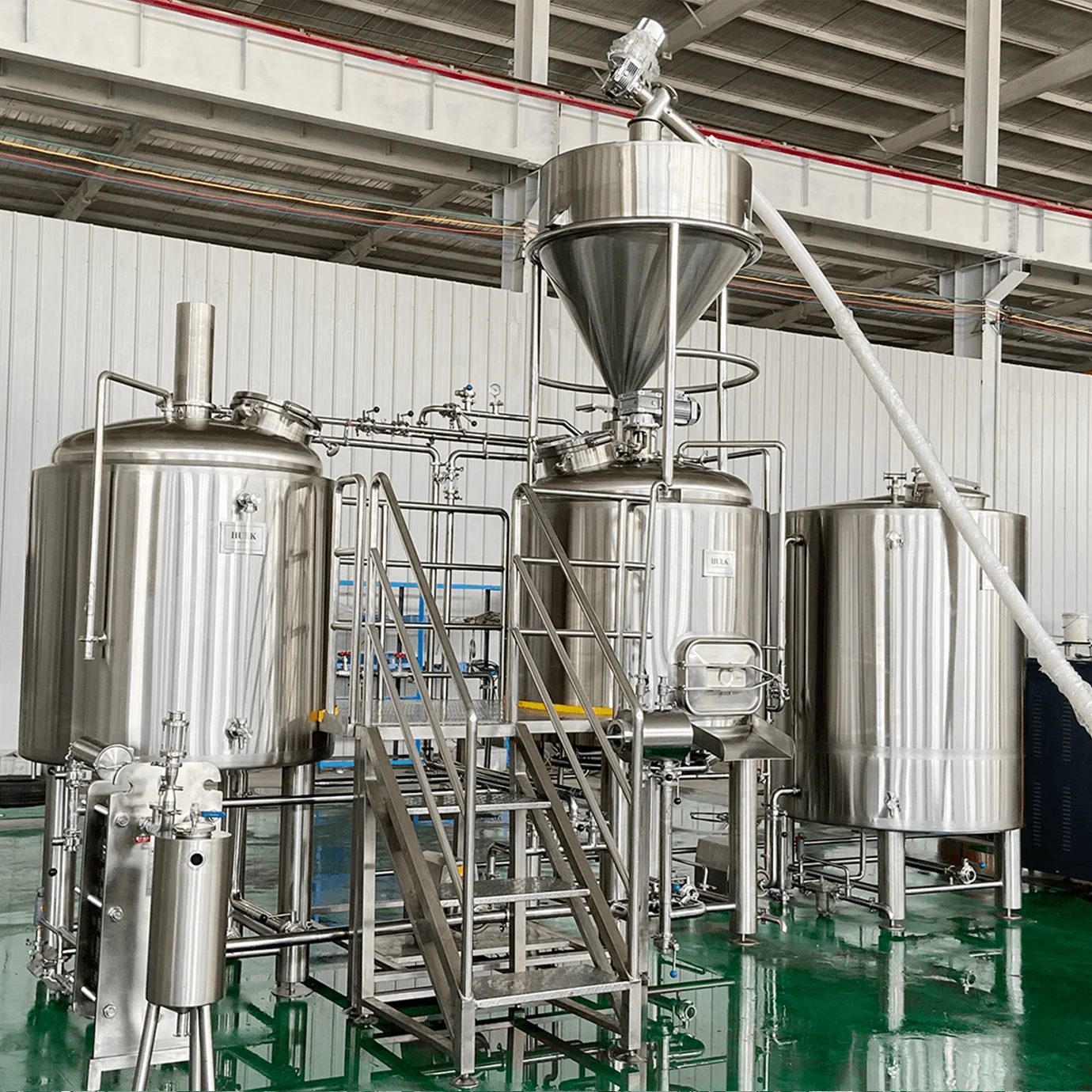

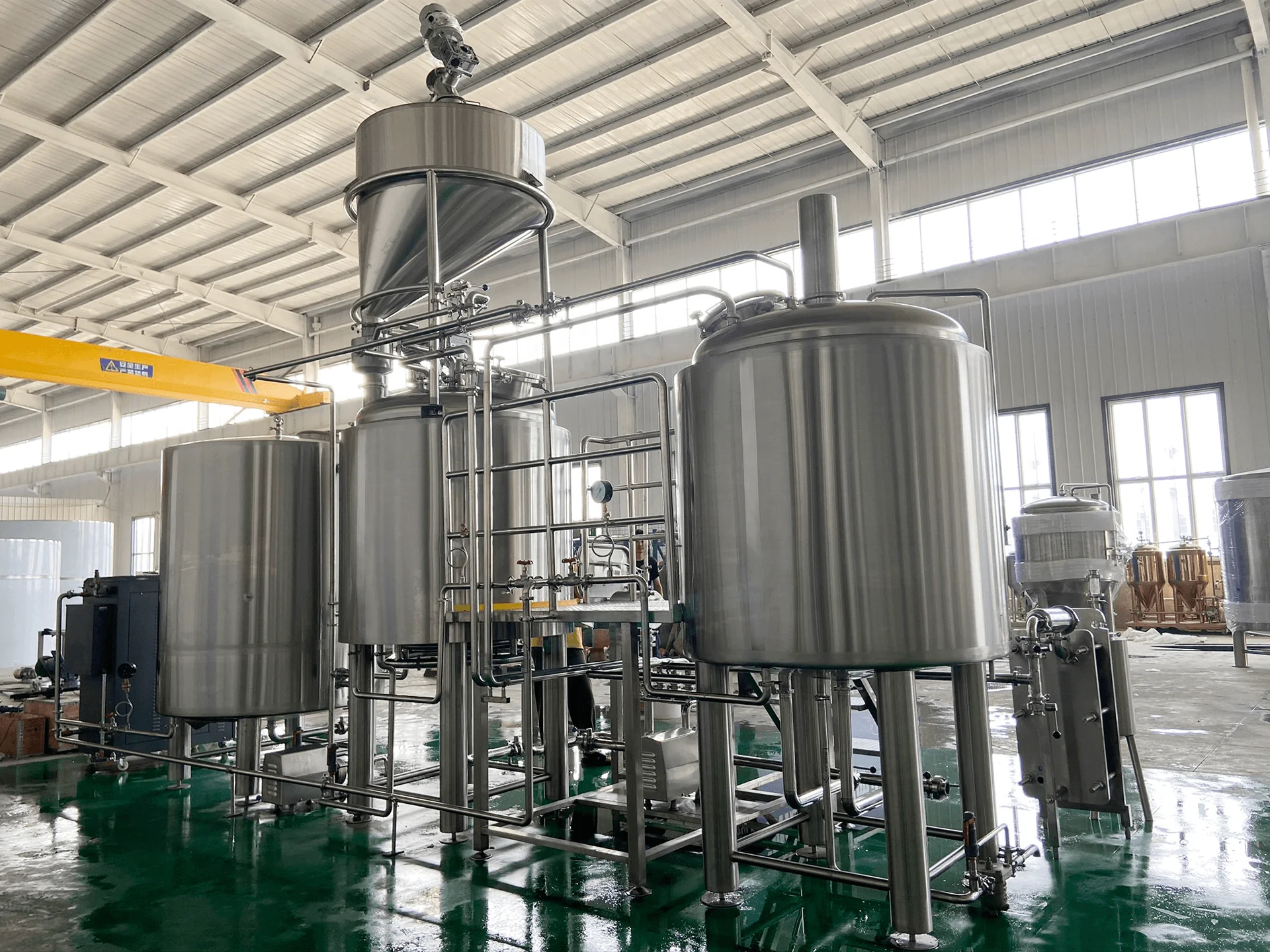

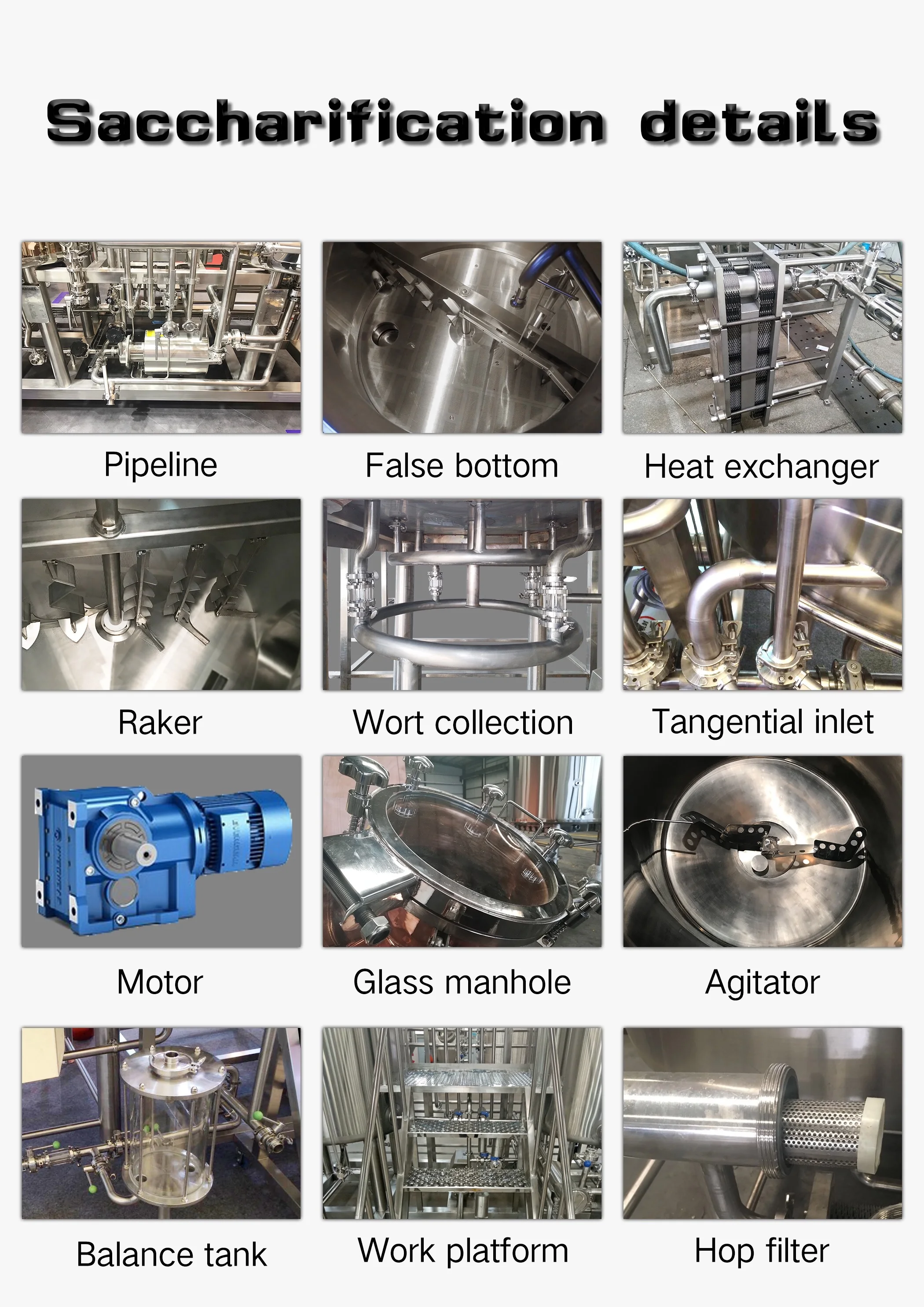

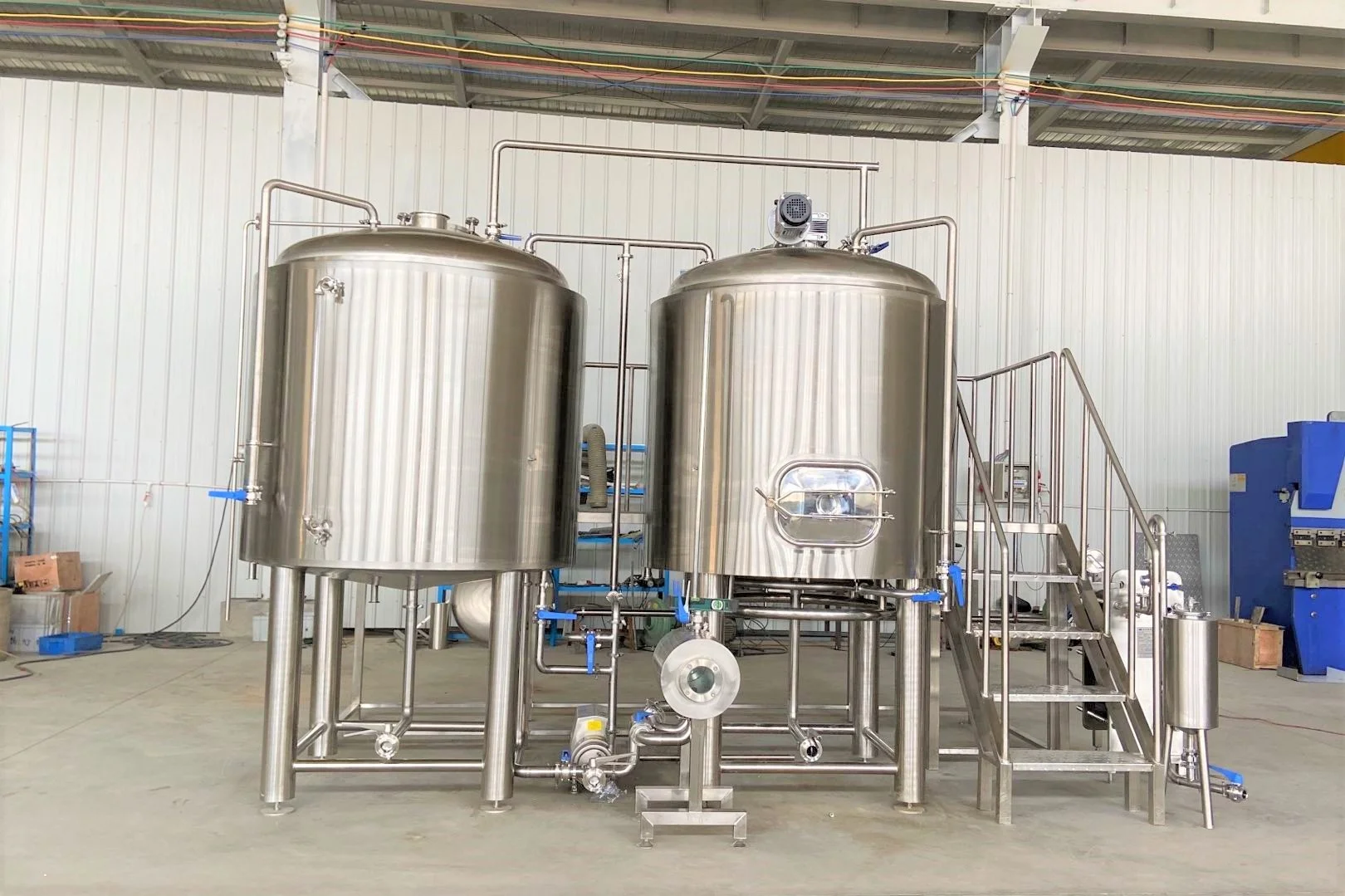

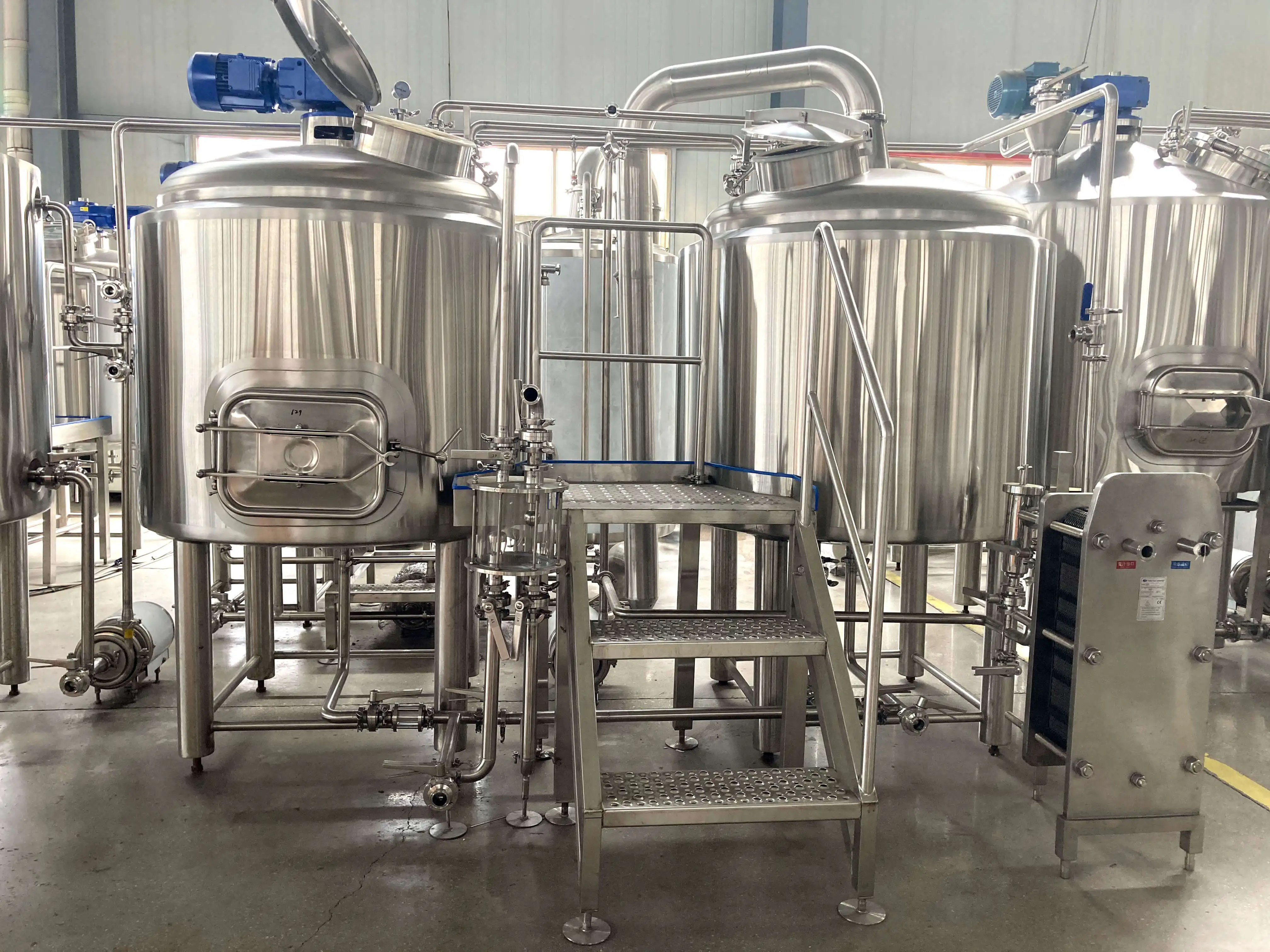

Detailed Images
Customer Feedback
Packing & Shipping
Inner stretching membrane and PE paper and outer steel frame, and other packaging for shipping.
1. Main tanks, vessels and machines will be packaged with plastic paper firstly then with painted steel frames.
2. All spare parts, accessories and fittings will be packaged with wooden box.
3. All items wrapped with soft package for protection.
Company Information
Shandong Hulk Equipment Co., Ltd was located in Jinan city, Shandong province, is a professional beer brewery equipment manufacturer and exporter.
We are specialized in the professional design, manufacture, installation and commissioning of beer equipment and supporting facilities.
We have passed ISO9001: 2000 international management system certification, CE certification, and other professional certification at home and abroad.
Chinese beer brewing equipment leader, is our strategic goal.
Customizing high-performance beer equipment for brewing brewers is our mission.
Realize your craft beer brewing dream, create more profit for you.
Contact Us
We welcome your inquiry and will gladly supply information packages, quotes and any other assistance necessary for helping you in the planning of your project!
