YUHUA lab distillation vacuum small rotary evaporator price with vacuum controller
- Category: >>>
- Supplier: Gongyi Yuhua Instrument Co. Ltd.
Share on (1600546221655):
Product Overview
Description
YUHUA lab distillation vacuum small rotary evaporator price with vacuum controller
Products Description
Product Description
Rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biopharmaceutical industries.
The principle is: under the vacuum condition, constant temperature heating makes the rotating bottle rotate at a constant speed, the material forms a large area film on the bottle wall, and evaporates efficiently.
Solvent evaporation is cooled by high-efficiency glass condenser, recycled and collected in bottles, greatly improving the evaporation efficiency, especially suitable for the concentration and purification of high-temperature and easily decomposed biological substances.
The principle is: under the vacuum condition, constant temperature heating makes the rotating bottle rotate at a constant speed, the material forms a large area film on the bottle wall, and evaporates efficiently.
Solvent evaporation is cooled by high-efficiency glass condenser, recycled and collected in bottles, greatly improving the evaporation efficiency, especially suitable for the concentration and purification of high-temperature and easily decomposed biological substances.
Details Images
Model | YRE-2000A | YRE-2000B(Default) | YRE-2000E | ||
Glassware material | GG-17 | ||||
Frame material | Aluminum alloy | ||||
Rotating power | 40W | ||||
Rotating speed | 0-200 rpm | ||||
Heating power | 1.2KW | ||||
Temperature control accuracyl | ±1℃ | ||||
Lifting power | 15W | ||||
Lifting distance | 0-140mm | ||||
Speed adjustment | Continuously variable | ||||

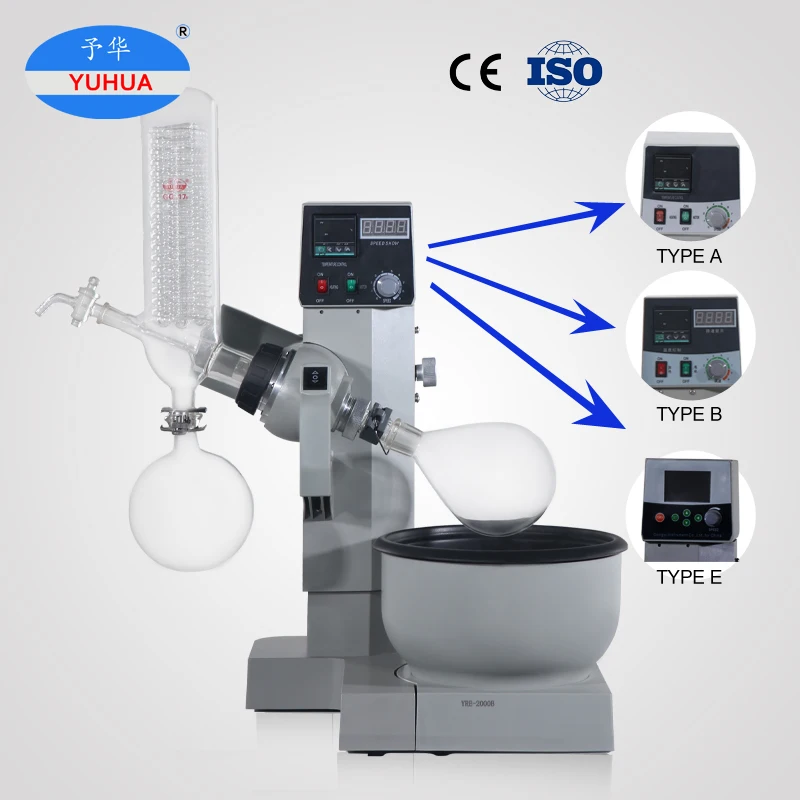

Speed display | No speed display | Digital display | Liquid crystal display | ||
Temperature display | Digital display | Digital display | Liquid crystal display | ||
Sealing method | Viton vacuum seal | ||||
Lifting method | Main body automatic lifting | ||||
Condenser | Vertical condenser 85*375 | ||||
Continuous feeding | 19# Standar port feeding valve | ||||
Vacuum degree | 0.1Mpa | ||||
Glass parts temperature range | -80 to 250 ℃ | ||||
Heating bath size | 285x260x210H(mm) | ||||
Temperature control method | PT100 sensor intelligent temperature control | ||||
Inner pot material | Polytetrafluoroetylene compound pot；Enclosed heating；285x140 | ||||
Collection bottle capacity | 1L Φ131mm/35# ball mill mouth | ||||
Rotation bottle capacity | 1L Φ131mm/Φ29mm Flange | ||||
Voltage/Frequency(V/Hz) | 220V/50Hz(Optional 110V/60Hz) | ||||
Heating bath temperature range | 0-90℃ (Water & Oil available) | ||||
Heating bath volume | Φ285x140H(mm)5.6L(Optional:Organic transparent cover) | ||||
Machine dimension(LxWxH)mm | 625x400x600 | ||||
Packing size(LxWxH)mm | 675x545x655 | ||||
Gross weight(KG) | 23KG | ||||
FAQ
1. The period, scope and condition of the warranty?
We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing &quality problem,
we offer replacement, maintenance service.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to
solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shipping by Express.
4.Could you do customized for us?
We are a manufacturer that can provide all kinds of customized service
We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing &quality problem,
we offer replacement, maintenance service.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to
solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shipping by Express.
4.Could you do customized for us?
We are a manufacturer that can provide all kinds of customized service
