ODM 16x Digital Zoom USB Plug and Play SDI LAN HM POE Power Supply Video Cameras 4K Professional Digital
Model: UVC20

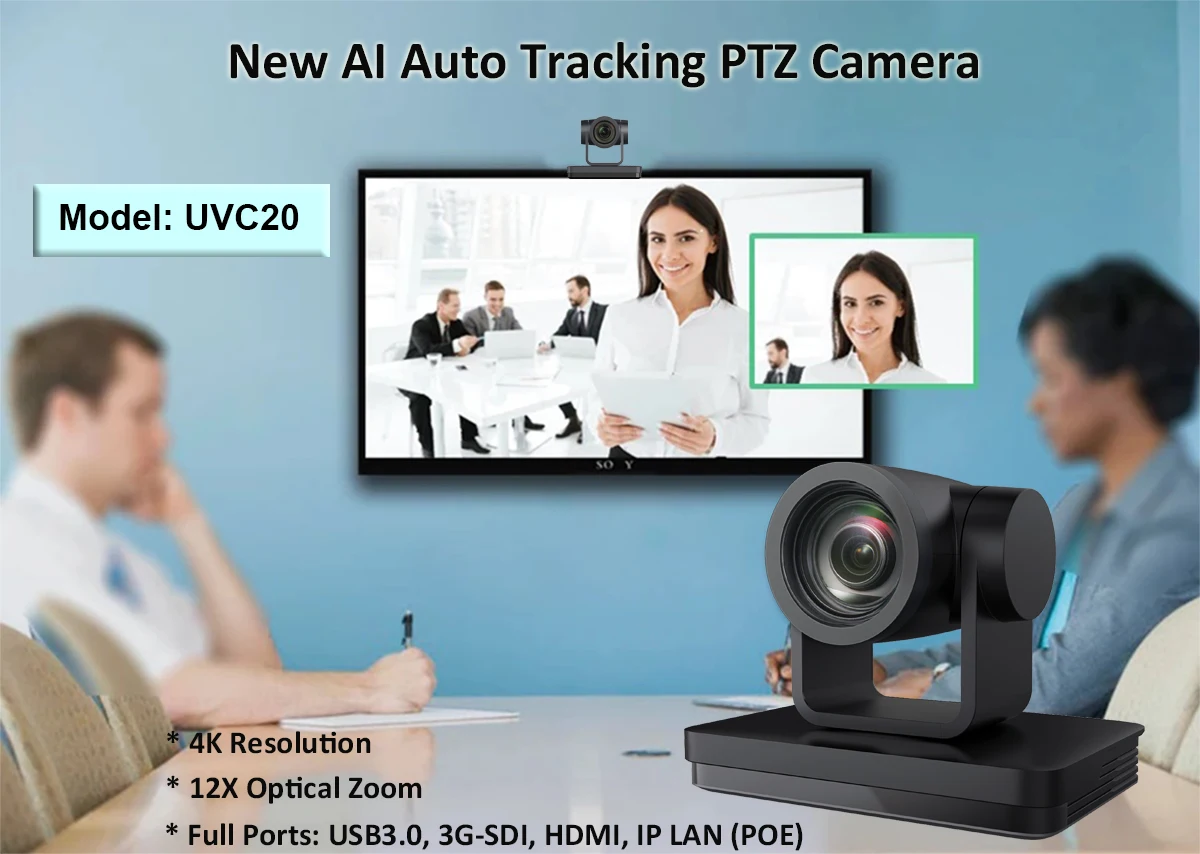

UVC20 Selling Points:1. 4K UHD Resolution, 12x Optical Zoom.
2. Multiple Video Output Interfaces: USB3.0, 3G-SDI, HM, IP, NDI.
3. POE Power Supply supported.
4. Low Light Performance. The video image is same good at night and day.
5. AI Auto Tracking Function.
2. Multiple Video Output Interfaces: USB3.0, 3G-SDI, HM, IP, NDI.
3. POE Power Supply supported.
4. Low Light Performance. The video image is same good at night and day.
5. AI Auto Tracking Function.
Details Images
UHD Video Quality 4K Camera
4K Video Output by USB3.0, HM, 3G-SDI, IP LAN Port. 3840×2160 Resolution.
Wide View Angle
83 Degree FOV, 12x Optical Zoom, 16x Digital Zoom
AI Auto Tracking
The camera can auto track people who is moving in the room.
Low Light Performance
The video image is still good even in the evening or dark environment.

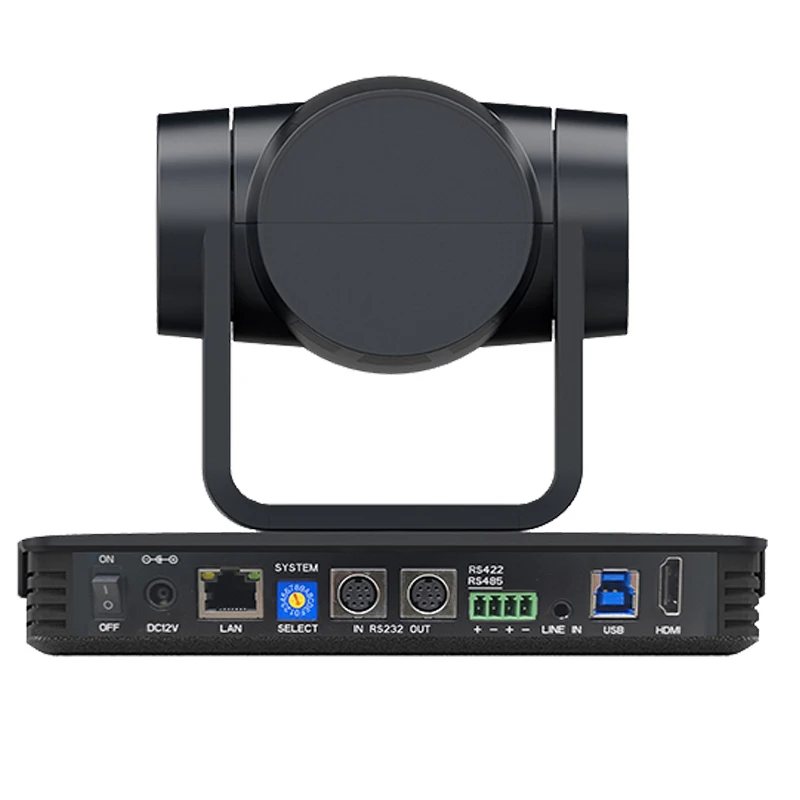

4K AI PTZ Camera Back Interfaces:
Video Output: USB3.0(Type C), HM, 3G-SDI, IP LAN ports. Audio input: Line in. Control ports: RS232, RS485
Support NDI Protocol and POE Power Supply.
Support NDI Protocol and POE Power Supply.

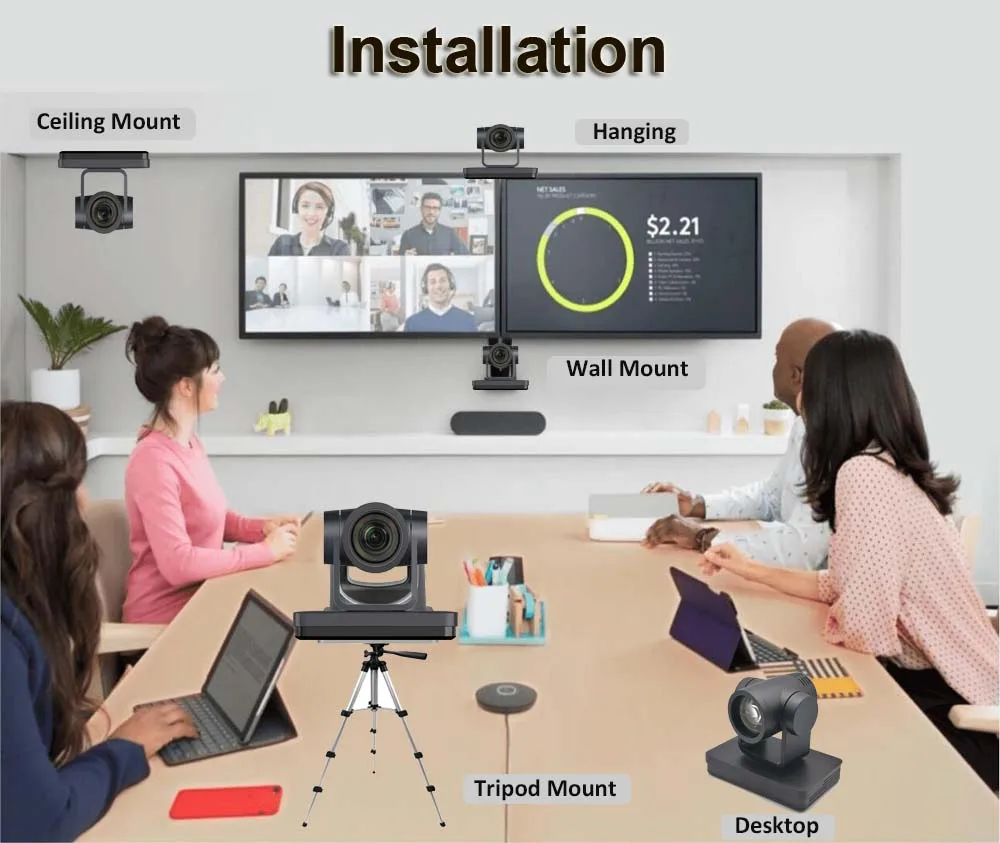

4K Video Conference Equipment Installation
Support Wall Mount, Ceiling Mount, Tripod Mount or Desktop. Wall Mount Bracket and Ceiling Mount Bracket is free.
4K NDI PTZ Camera for Video Conferencing

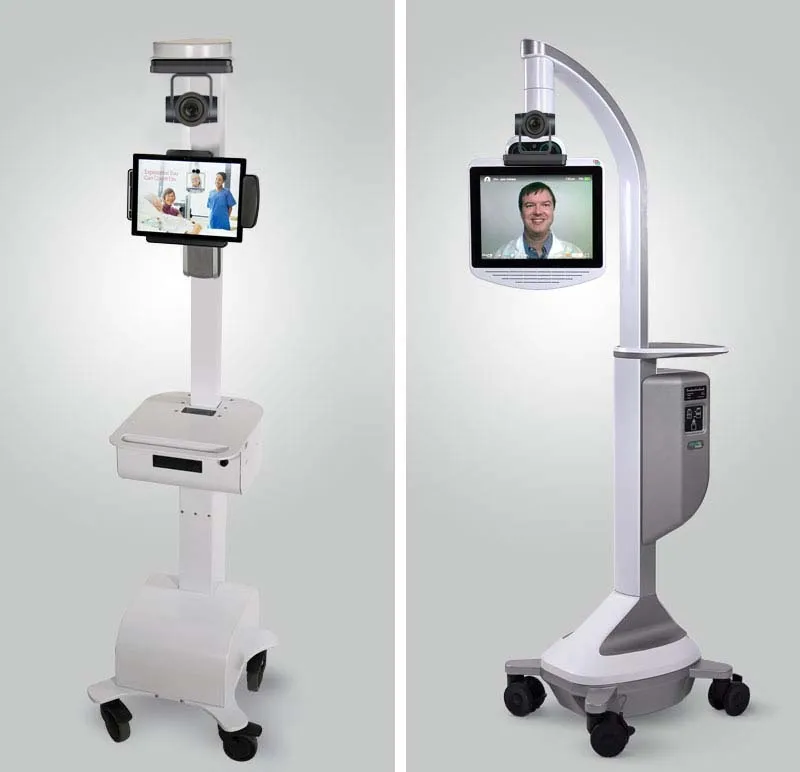

4K UHD Auto Tracking POE PTZ Camera for Tele medicine
Specification
Model | UVC20 | |
Product Name | 4K AI NDI PTZ Camera | |
Camera | ||
Effective Pixels | 8.51MP | |
Video Format | 4K@60fps,4K@59.994fps, 4K@50fps,4K@30fps, 4K@25fps, 4K@29.97fps, 1080P@60fps, 1080P@50fps, 1080I@60fps,1080I@50fp, 1080P@30fps,1080P@25FPS.1080P@59.94fps,1080I@59.94fps, 1080P@29.97fps, 720P@60fps,720P@59.94fps.720P@50fps | |
Lens | 12X Optical Zoom | |
View Angle | 83° | |
WDR | OFF/ Dynamic level adjustment | |
Digital Zoom | 16X | |
Minimal Illumination | 0.5Lux(F1.8, AGC ON) | |
White Balance | Auto / Manual/ One push | |
Digital Noise | 2D, 3D digital noise reduction | |
SNR | ≥55dB | |
Pan Rotation | -162.5°+162.5° | |
Tilt Rotation | -30° +90° | |
Preset Number | 255 presets (10 presets by remote controller) | |
UVC PTZ | Supported | |
H & V Flip | Supported | |
Image Freeze | Supported | |
PoE | Supported | |
AI Function | Auto Tracking | |
Interfaces and Key Features | ||
Video Interface | USB3.0 (Type C), 3G-SDI, HM, IP NDI, RS232 ( input & output), RS485, Line-IN | |
Control Protocol | VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps | |
Video Compression Format | H.265/H.264/MJPEG | |
Support protocols | NDI®|HX2, SRT, TCP/IP, HTTP, RTSP, RTMP(s), Onvif, DHCP, Multicast and so on | |
Audio input | 1-ch, 3.5mm Audio Interface, Line In； | |
Audio Compression Format | AAC/MP3/PCM Audio compression | |
Others | ||
Dimension | 223mm*154.8mm*165mm | |
Weight | 1.8kg | |
Accessory | Power supply, USB3.0 cable, Remote controller, User manual | |
Warranty | 3 years | |
Certification | CE, FCC, ROHS, UL | |
Application | Video Conference, Broadcast, Education, Tele-medicine | |
Compatible with various video conference software
