Erbium Doped Fiber Amplifier DWDM Model

Product Overview

Description

10g dwdm xfp 80km 15xx xxnm optical transceiver

Dense wavelength division multiplexer(DWDM) is based on the membrane filter technique and proprietary non-flux metal bonding micro-optics packaging design, within ITU wavelengths to achieve uplink and downlink. It provides ITU channel center wavelength, low insertion loss, high channel isolation, low power consumption, wide passband characteristics, no glue loop, excellent thermal stability and reliability and so on. In a telecommunications network system, it can be used for uplink or downlink optical signa



 Features
Low Insertion Loss
High Channel Isolation
Optical path epoxy free
Excellent thermal stability and reliability
telcordia GR-1221 Compliance and RoHS Environmental Protection Standard

Application

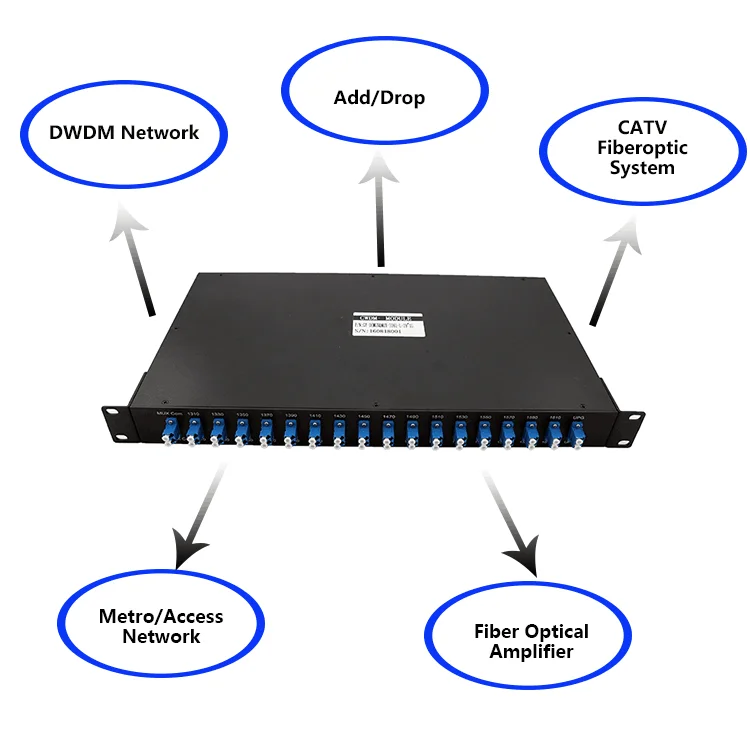

DWDM Network
Add/Drop System
CATV Fiberoptic System
Metro/Access Network
Fiber Optical Amplifier



Technical Specifications

Parameter		4 Channel			8 Channel				16 Channel
		Mux	Demux		Mux		Demux		Mux		Demux
Channel Wavelength(nm)		1270~1610
Center wavelength Accuracy(nm)		±0.5
Channel Spacing(nm)		20
Channel Pass band(@-0.5dB bandwidth (nm)		>14
Insertion Loss(dB)		≤1.4			≤2.6				≤5.0
Channel Uniformity (dB)		≤0.5			≤0.5				≤0.5
Channel  Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	>30		N/A		>30		N/A		>30
	Non-adjacent	N/A	>40		N/A		>40		N/A		>40
Insertion Loss Temperature Sensitivity (dB/℃)		<0.005
Wavelength Temperature Shifting (nm/℃)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (PS)		<0.1
Directivity (dB)		>50
Return Loss(dB)		>45
Maximum Power Handling(mW)		500
Operating Temperature(℃)		-5~+75
Storage Temperature (℃)		-40~85
Package dimension(mm)		1.     L100 x W80 x H10 ( 2 CH~8CH Module)
		2.     L120xW800xH18  (9 CH~18CH Module)

Remark: Above is without connectors,if with connectors,add more 0.2dB



Order Informations

Configuration	Channel No.	Channel	Pigtail Type	Fiber length	Dimensio(mm)	Connector
M=Mux D=Demux	04=4 Channel 08=8 Channel 16=16 Channel   N=N Channel ……	27=1270nm 47=1470nm 49=1490nm  …… 61=1610nm SS=special…	0=250um 1=900um 2=2.0mm 3=3.0mm	1=1m 2=1.5m 3=others	1=L100 x W80 xH10 2=L120xW80xH18 3=19 1U Rack	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=o



Relative Products

The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or Foclink brand are available

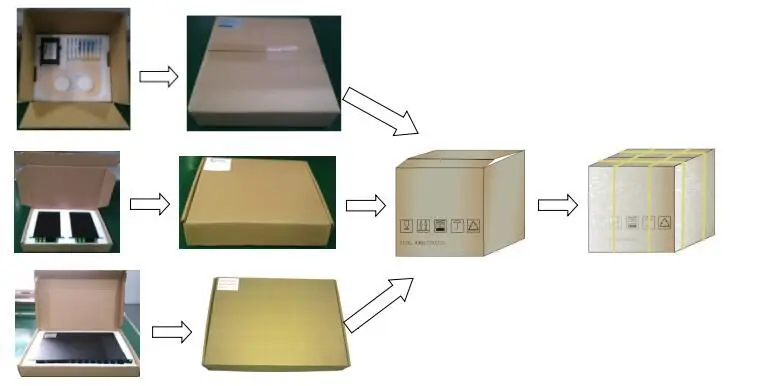

Inner packing: 1pcs in a plastic box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.

The transportation : By air ,by sea ,by DHL ,Fedex TNT ,UPS ...

1.What is your MOQ?
Foclink: Normally is 1pcs/item,could be coordinated if you have detail requirements.
2.How about your delivery date?
Foclink: Delivery date is about 3-5days, it depends on the order quantity.
3.Can you supply sample for customers?
Foclink: of course, however the delivery cost will be charged on customer's account
4.How about your price?
Foclink: We are supplying products with very competitive price based on good performance.
5.Do you offer OEM Service ?
Foclink: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description;
