GSS 200L drum filling machine for chemical petrochemical food and agrifood industry
- Category: >>>
- Supplier: GSS Scale (Suzhou) Co. Ltd.
Share on (1600546607604):
Product Overview
Description
100-300L/kg automatic liquid filling machine for chemical & food industry
Products Description
Applying range:
• Short nozzle type: general materials such as coating, paint, resin, curing agent, lubricant, ink, diluent, edible oil, chemical liquid, etc.
• Long nozzle type: foamable and explosive liquid materials such as detergent, tetrahydrofuran, cyclopentene, N-pentane, methyl acetate and explosive
solvent, etc.
solvent, etc.
100-300L/kg automatic liquid filling machine for chemical & food industry
Main Function Configuration :
● English display
● Intelligence and high efficiency
● Professional nozzle
● Easy operation
● Function conversion
● Accuracy and quickness
● Branded configuration
● Explosion-proof and protection
Main Features:
• The system is controlled by PLC programmable controller, positioned by the photoelectric switch and operated automatically.
• Professional filling nozzle, integral process production, no drip leakage, anti-splash, quick connector, easy to disassemble and wash
• With double ball valves set and the machine nozzle, big, small, and microflows three-stage filling perform perfectly. The filling is accurate and fast.
• Net/Gross Weight, Automatic/Manual Filling Mode for free selection.
• Automatic tare deduction, intelligent anti-fool, fault detection, instant display of equipment information, intelligent and efficient.
• Filling stability is good, wastage is reduced, the cost is saved, and operational efficiency and product qualification rate are improved.
• The one-press operation is easy to use, multi-window display filling volume, barrel quantity, cumulative measurement and other information.
Optional configuration :
• The system is controlled by PLC programmable controller, positioned by the photoelectric switch and operated automatically.
• Professional filling nozzle, integral process production, no drip leakage, anti-splash, quick connector, easy to disassemble and wash
• With double ball valves set and the machine nozzle, big, small, and microflows three-stage filling perform perfectly. The filling is accurate and fast.
• Net/Gross Weight, Automatic/Manual Filling Mode for free selection.
• Automatic tare deduction, intelligent anti-fool, fault detection, instant display of equipment information, intelligent and efficient.
• Filling stability is good, wastage is reduced, the cost is saved, and operational efficiency and product qualification rate are improved.
• The one-press operation is easy to use, multi-window display filling volume, barrel quantity, cumulative measurement and other information.
Optional configuration :
Dual gun, dual calculating / Filling Nitrogen / reflow valve / filter / gather-gas cover / other customization.
Main Parameter :
Main Parameter :
Power | AC110V~380V 50/60HZ 0.1kw | Speed | 30-60 bbl/Hr (Single metering) |
AC110V~380V 50/60HZ 0.2kw | 60-120 bbl/Hr (Dual metering) | ||
Air | 0.5~0.7 Mpa | Accuracy | :s 0.05% F. . |
Fill Range | 100-300kg | Fill Head Material | SUS304/316/PTFE (Optional) |
Division | 0.1kg | Ex Grade | ExdllBT6 (Optional) |
Company Profile
GSS® ---1-2500L Smart Liquid Filling Machine Manufacturer in China
Our company GSS®(Taiwan-enterprise), committed to designing and manufacturing of liquid filling machines for chemical, petrochemical, food & agrifood industry over 20+ years.
OEM/ODM Factory | Agent distributors wanted.
--- As a professional smart liquid filling machine manufacture & factory in China, Our filling machine can fill 1-2500L liquid products such as General liquid: Paint Resin Lubricant Thinner Ink Curing agent Toluene Acetone Trimethyl ester Antifreeze Grease,
Corrosive liquid: Sulfuric Acid Nidrochloric Acid Lye ,
High Viscosity liquid: Coating Emulsion Butter Lotion,
Foamable and static electricity liquid: Detergent Tetrahydrofuran Cyclopentane N-pentane Methyl acetate Methanol Formaula Butanediol Explosive Solvents,
Some other liquid: Acrylic Acid Diether Silane Phenol Paint Paste Solvent Conductive Oil Hot Glue Cool Glue Acid Alcohol Ethanol Diluent Crude Oil Flavour/Perfume Fragrance Spice/Essence Phosphoric Acid Gear Oil Epoxy Resin Edible Oil Polyurethane Corn Oil
Dyeing Auxiliaries.
Shyrocket your business, please contact us to get detail documents.
Corrosive liquid: Sulfuric Acid Nidrochloric Acid Lye ,
High Viscosity liquid: Coating Emulsion Butter Lotion,
Foamable and static electricity liquid: Detergent Tetrahydrofuran Cyclopentane N-pentane Methyl acetate Methanol Formaula Butanediol Explosive Solvents,
Some other liquid: Acrylic Acid Diether Silane Phenol Paint Paste Solvent Conductive Oil Hot Glue Cool Glue Acid Alcohol Ethanol Diluent Crude Oil Flavour/Perfume Fragrance Spice/Essence Phosphoric Acid Gear Oil Epoxy Resin Edible Oil Polyurethane Corn Oil
Dyeing Auxiliaries.
Shyrocket your business, please contact us to get detail documents.
Whatsapp:+86 150 6238 8928
Certifications
Delivery&Packaging
Packing and shipping team:
We do fast and professional shipping, and deliver your machine as fast as we could!
Lead time:30-45 daysWe do fast and professional shipping, and deliver your machine as fast as we could!
Packaging:Steel wire, cardboard, protective cotton, wooden box and other fixed protection.
Shipping
According to customer requirements by sea, land, air.
Our Advantages
Why choose us?
Why is GSS Liquid Filling Machine Trusted by 1000 Importers?
1, Smart Liquid Filling
Automatic container moving, Automatic alignment of the filling lance and the bunghole, Automatic filling.
2, Safety & Productivity
We always guarantee optimum filling process safety and never concession safety and security in favour of productivity.
3, Adaptability & Factory Price
Our design and manufacturing processes are adaptable and we adjust each project to your needs. Factory price,No middleman.
4, With CE RoHS ISO9001 EMC Approved
With CE. EMC. ISO9001 Quality Management System Certification.
5, Excellent Service
One-stop solution, Remote assistance, training, maintenance and spare parts services.
1, Smart Liquid Filling
Automatic container moving, Automatic alignment of the filling lance and the bunghole, Automatic filling.
2, Safety & Productivity
We always guarantee optimum filling process safety and never concession safety and security in favour of productivity.
3, Adaptability & Factory Price
Our design and manufacturing processes are adaptable and we adjust each project to your needs. Factory price,No middleman.
4, With CE RoHS ISO9001 EMC Approved
With CE. EMC. ISO9001 Quality Management System Certification.
5, Excellent Service
One-stop solution, Remote assistance, training, maintenance and spare parts services.
Contact us
Know more information please contact us
Our technician team will help you customized & choose the suitable model.If you have any questions , please feel free to contact with us, send us an inquiry ,leave a message,thank you!
FAQ
1, Q: How to find a filling machine suitable for my product?
A: Tell us about your product details and filling requirements.
* What is your filling material name?

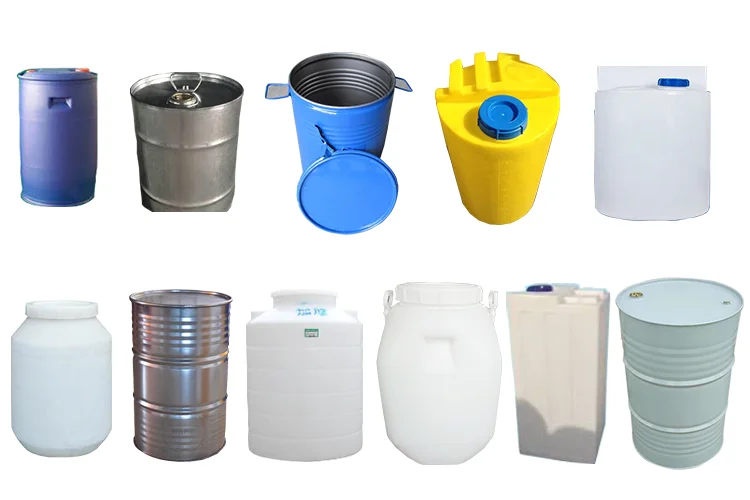

* What is your barrel capacity,10L/30L/300L/1000L, or else ?
* What is your expected filling capacity per hour?
2, Q: Is engineer available to serve oversea?
A: Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
3, Q: How can we make sure about the machine quality after placking the order?
A: Before delivery, we will send you the pictures and videos for you to check the machine quality.And also you can arrange for quality checking by yourself or by your contacts in China.
4, Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use Alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
5, Q: Can you explain me the whole transaction process?
A: 1.Sign the Contact
2.Arrange 50% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
6, Q: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
* What is your filling material name?
* What is your barrel capacity,10L/30L/300L/1000L, or else ?
* What is your expected filling capacity per hour?
2, Q: Is engineer available to serve oversea?
A: Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
3, Q: How can we make sure about the machine quality after placking the order?
A: Before delivery, we will send you the pictures and videos for you to check the machine quality.And also you can arrange for quality checking by yourself or by your contacts in China.
4, Q: We are afraid you won't send us the machine after we send you the money?
A: We have our business license and certificate. And it is available for us to use Alibaba trade assurance service,guarantee your money, and guarantee your machine's on-time delivery and machine quality.
5, Q: Can you explain me the whole transaction process?
A: 1.Sign the Contact
2.Arrange 50% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
6, Q: Will you provides the delivery service?
A: Yes. Please inform us of your final destination, we will check with our shipping agent to quote the shipping cost for your reference before delivery.
Recommend Products
Related products
GSS® Smart Liquid Filling ----1-2500 L liquid filling machines for choice.
Series | GAF-10 (Current Series) | GAF-30 | GAF-300 | GAF-1000 |
Air | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa |
Fill Range | 1-10kg | 10-30kg | 100-300kg | 100-2500kg |
Division | 5/10g | 10/20g | 0.1kg | 0.1/0.2kg |
Accuracy | ⩽0.05%F.S. | ⩽0.05%F.S. | ⩽0.05%F.S. | ⩽0.05%F.S. |
Fill Head Material | SUS304/316/PTFE (Optional) | SUS304/316/PTFE (Optional) | SUS304/316/PTFE (Optional) | SUS304/316/PTFE (Optional) |
Ex Grade | ExdllBT6(Optional) | ExdllBT6(Optional) | ExdllBT6(Optional) | ExdllBT6(Optional) |
