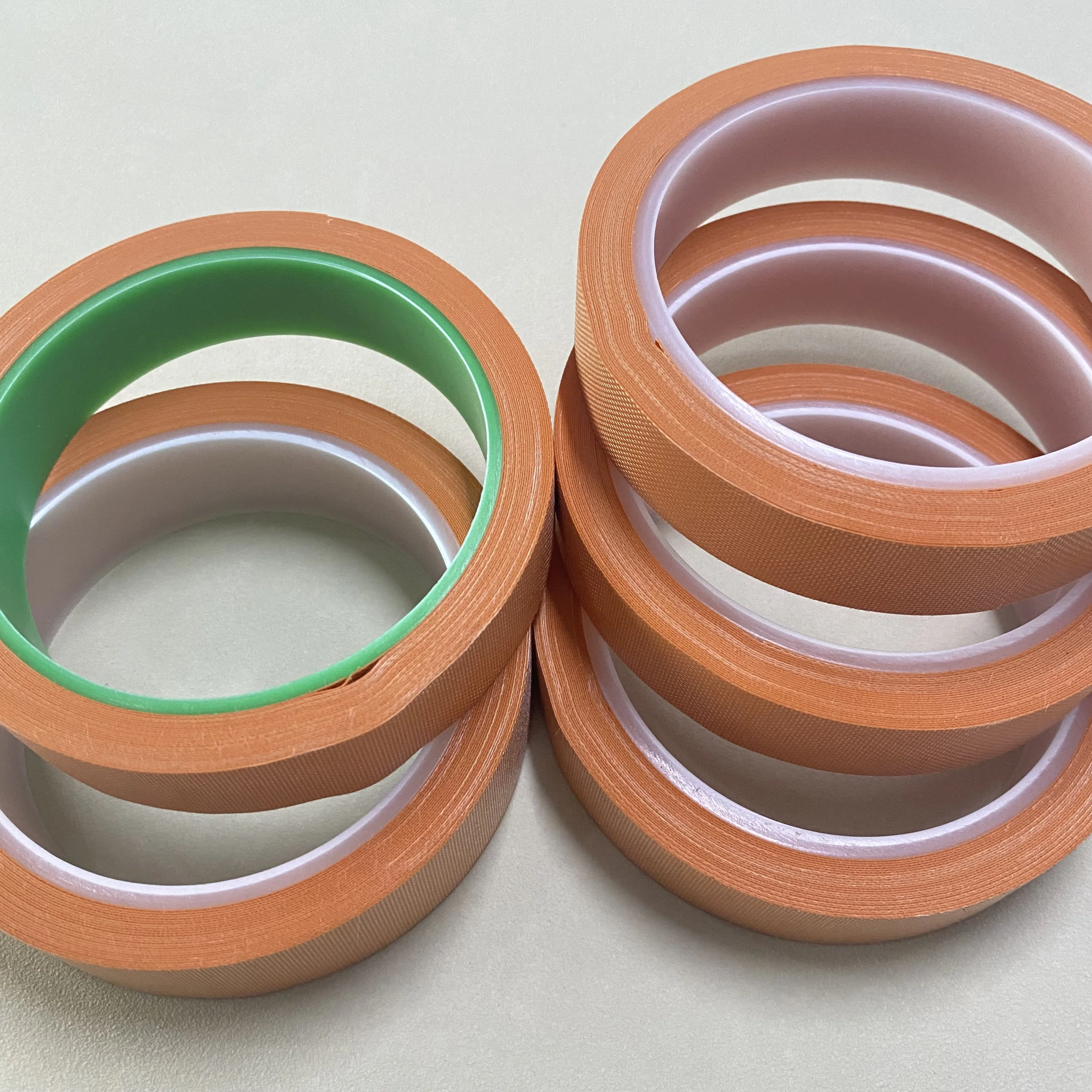

New material High Temperature Resistant Heat Resistance Silicone Coated Fiberglass Fabric Silicone Adhesive Tape
- Category: >>>
- Supplier: Shenzhen Laimeisi Silicon Industry Co. Ltd.
Share on (1600546709911):
Product Overview
Description
Material data sheet
Test Item | Typical Vale | Unit | Standard |
Density | 1.45~1.5 | g/cm³ | ASTM D792 |
Tensile Strength | 3.5 | mpa | IEC 60811 |
Tear strength | 20 | KN/M | IEC 60811 |
Volume resistance | 1015 | .cm | IEC 60093 |
Breakdown voltage | 30 | kv/mm | IEC 60060 |
Smoke toxicity | ZA1 | / | GB/T 20285 |
Flammability rating | V0 | / | UL94 |
Water absorption | 0.75 | / | ASTM D570 |
Product Description
Product description

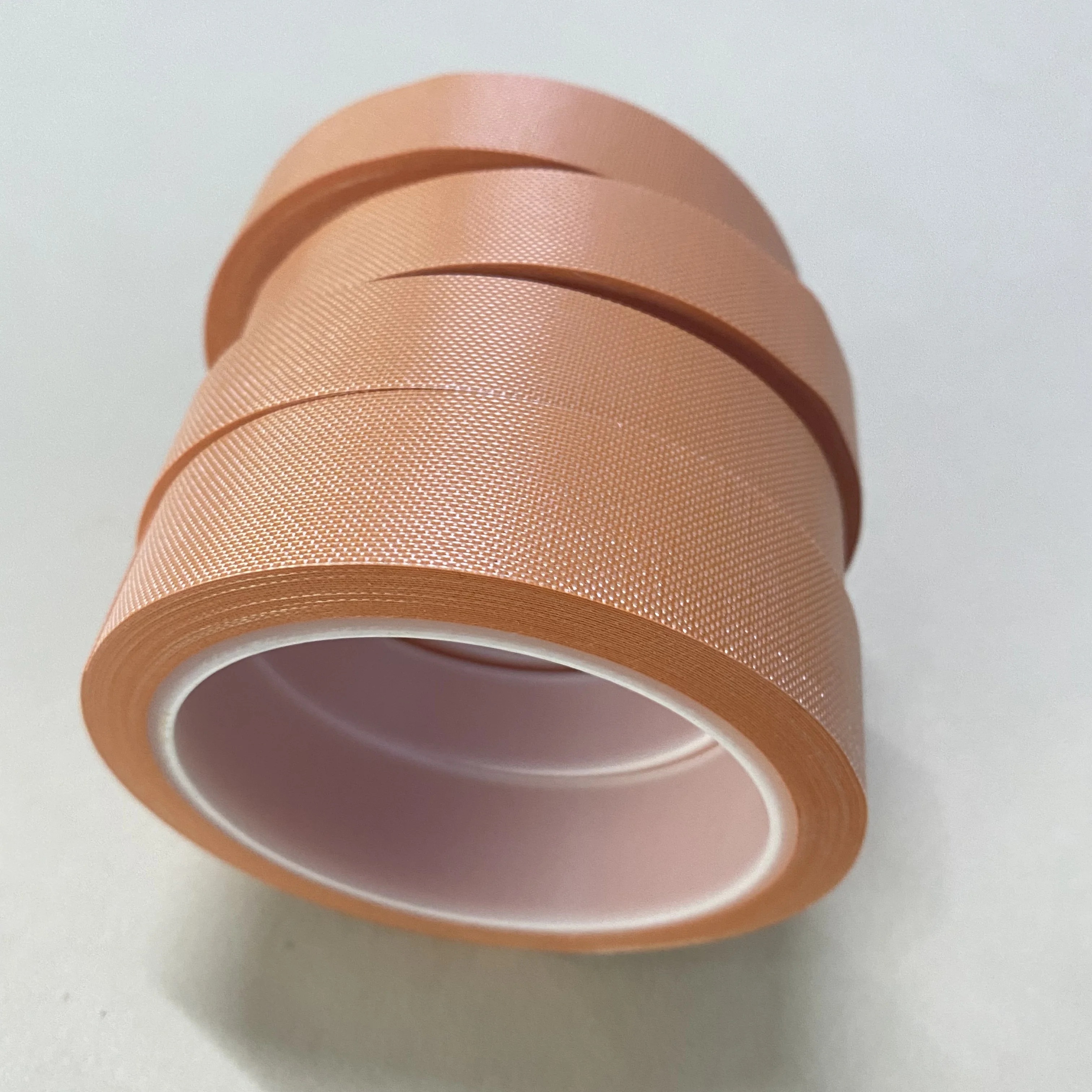

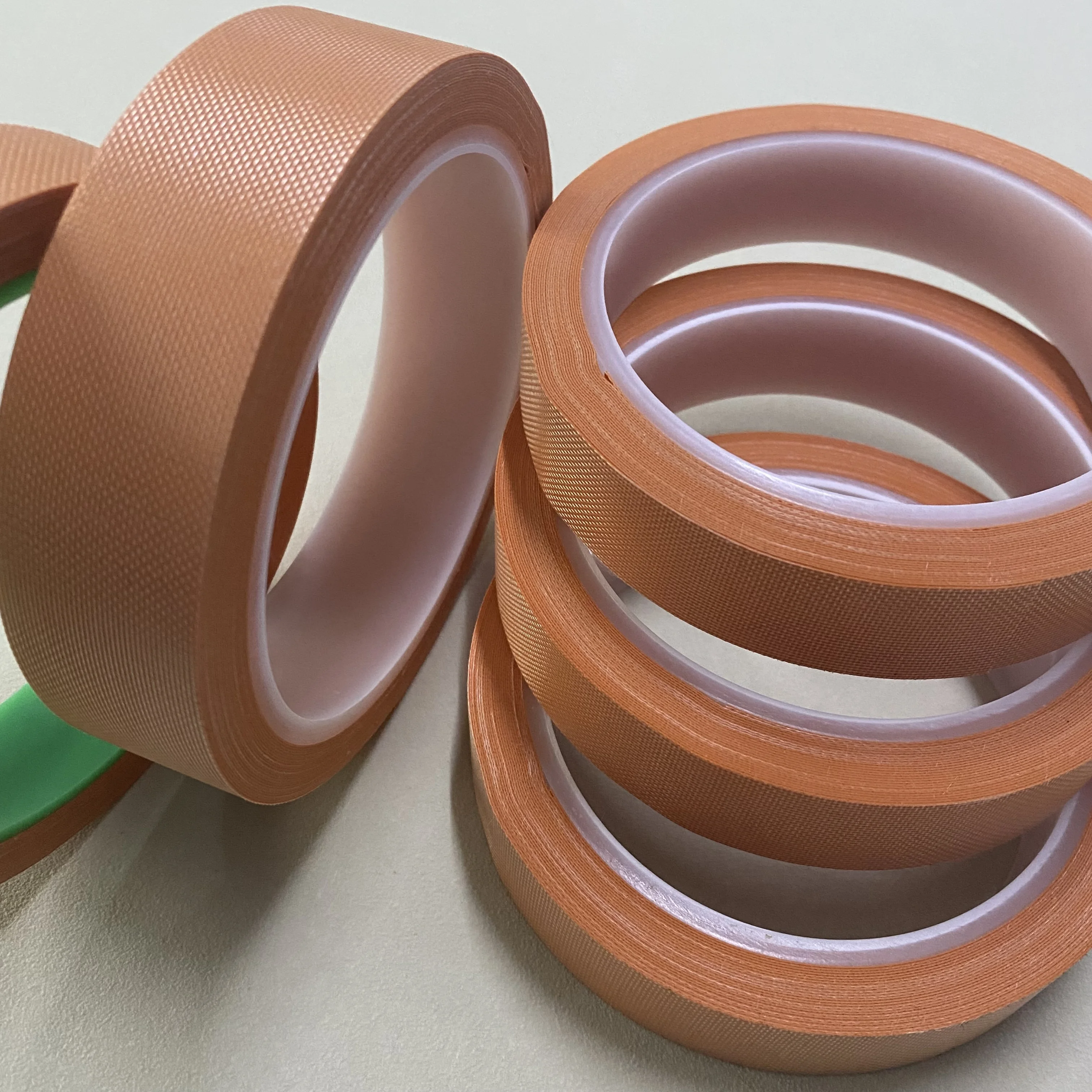

Name: Ceramic fireproof silicone tape (with adhesive surface)
Material: Fire-resistant silicone rubber and fire-resistant glass fiber cloth
Size:0.35mm*20mm*25m
Material: Fire-resistant silicone rubber and fire-resistant glass fiber cloth
Size:0.35mm*20mm*25m
or customization
Introduction

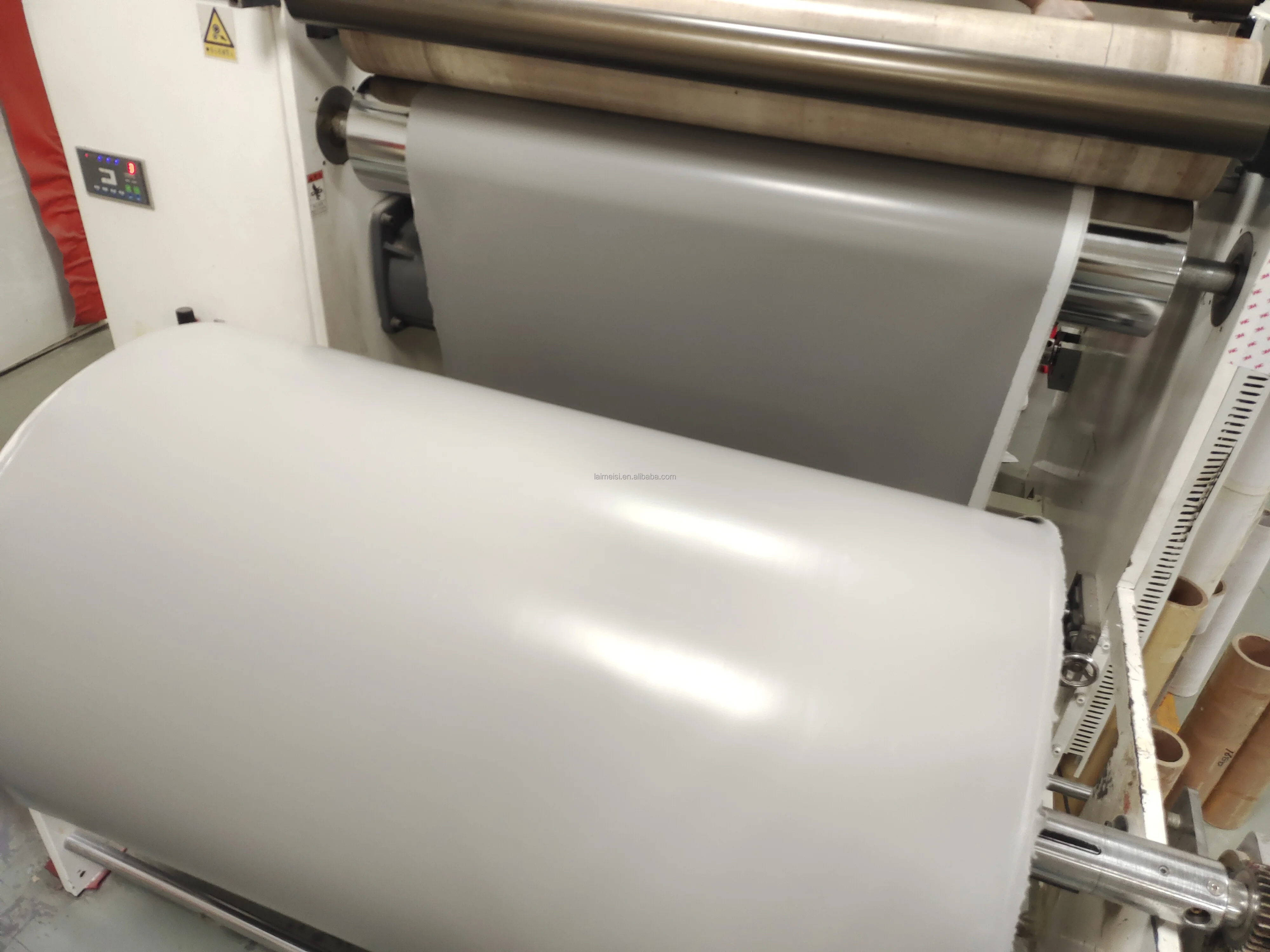

Laimesi ceramicized fire-resistant and fire-resistant composite tape is made of high-quality ceramicized fire-resistant and fire-resistant silicone rubber and fire-resistant glass fiber cloth after rolling and compounding, and then precision slitting.

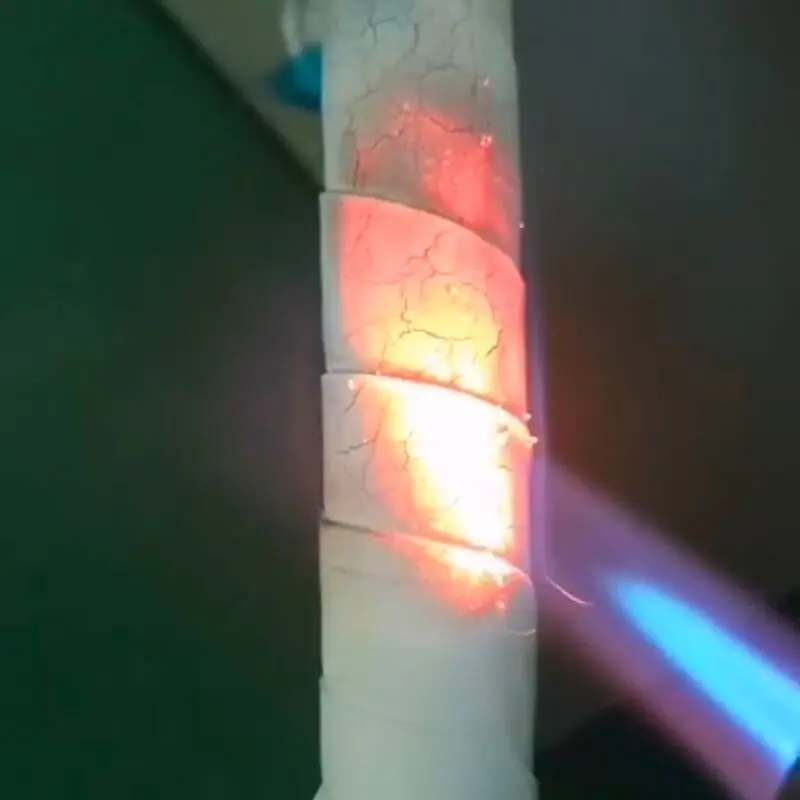

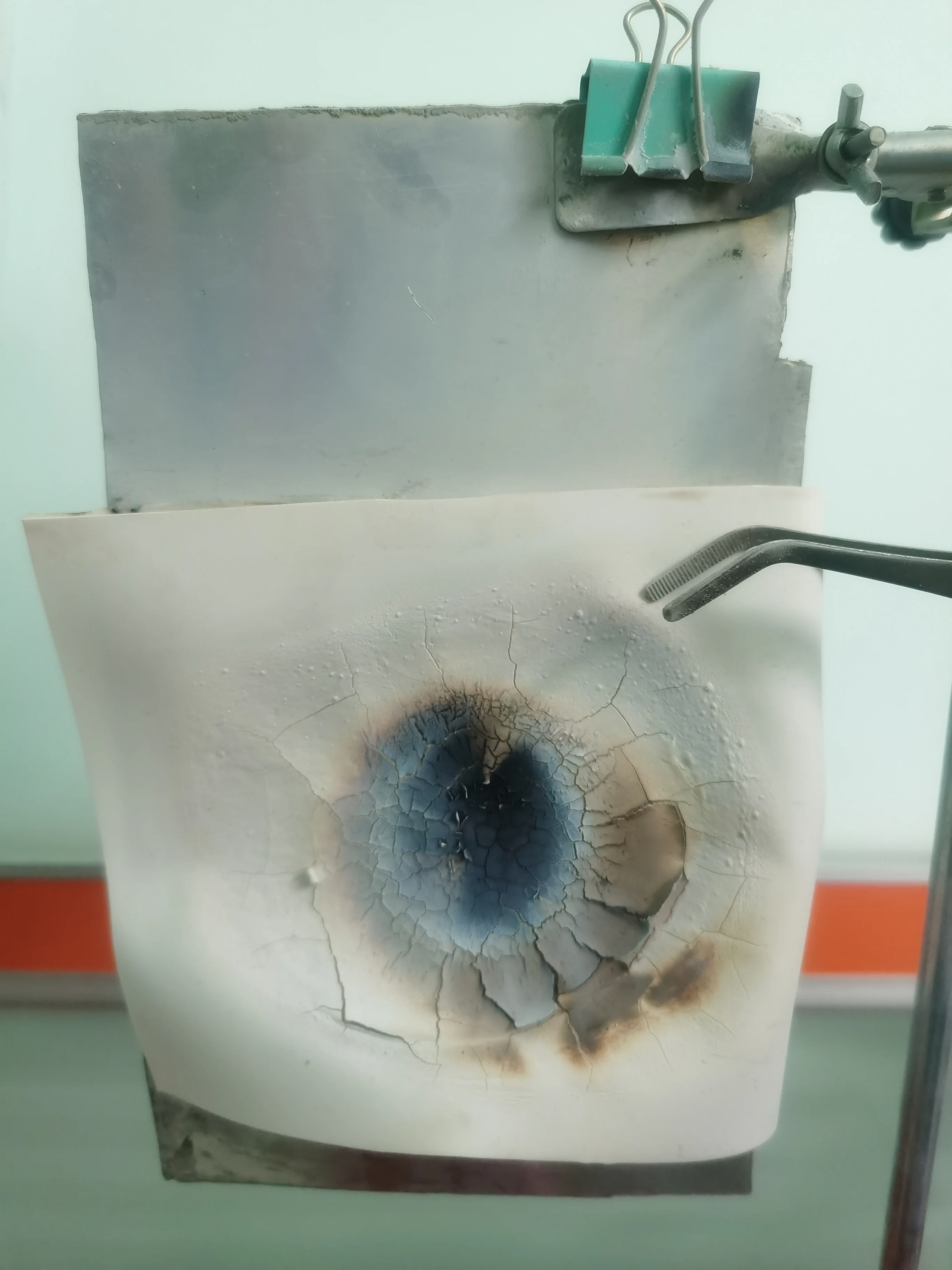

Under 450C or above high temperature or flame, it quickly hardens and forms a hard shell. This kind of shell plays a very good role in protecting the line or cable insulation, and is an environmentally friendly new material with comprehensive performance that replaces the traditional mica tape.
Under 450C or above high temperature or flame, it quickly hardens and forms a hard shell. This kind of shell plays a very good role in protecting the line or cable insulation, and is an environmentally friendly new material with comprehensive performance that replaces the traditional mica tape.
Feature
✔1. The ceramicized fire-resistant and fire-resistant composite tape can form a hard shell under high temperature or flame conditions of 450°C or above, ensuring that the line can still be unblocked in the event of a fire.
✔2. The ceramicized fire-resistant and refractory composite tape has good flexibility, can be wrapped and longitudinally wrapped, is simple and efficient to use, and can greatly reduce costs.
✔3. The ceramicized fireproof and refractory composite tape does not absorb moisture or water, and does not need to be pre-dried during use. The storage period is up to two years.
✔4. The ceramicized fireproof and refractory composite belt is low-smoke and halogen-free, does not contain sulfur, phosphorus, nitrogen, does not contain heavy metals, and does not melt. It is a non-toxic and harmless environmentally friendly new material.
✔5. The ceramicized fire-resistant and fire-resistant composite tape is used for wire and cable, which can be used as a fire-resistant layer and an insulating layer. The fire resistance level can reach the GB/T12666 Class A standard, and it can pass the CWZ water drench vibration fire resistance test of BS6387 Test.
✔2. The ceramicized fire-resistant and refractory composite tape has good flexibility, can be wrapped and longitudinally wrapped, is simple and efficient to use, and can greatly reduce costs.
✔3. The ceramicized fireproof and refractory composite tape does not absorb moisture or water, and does not need to be pre-dried during use. The storage period is up to two years.
✔4. The ceramicized fireproof and refractory composite belt is low-smoke and halogen-free, does not contain sulfur, phosphorus, nitrogen, does not contain heavy metals, and does not melt. It is a non-toxic and harmless environmentally friendly new material.
✔5. The ceramicized fire-resistant and fire-resistant composite tape is used for wire and cable, which can be used as a fire-resistant layer and an insulating layer. The fire resistance level can reach the GB/T12666 Class A standard, and it can pass the CWZ water drench vibration fire resistance test of BS6387 Test.
Application
● Replace mica tape.
● Medium, high and low voltage fire-resistant and fire-resistant wires and cables.
● Fireproof and fireproof protective cover for chemical cable.
●Cable and cable accessories busbar or busbar coating. use.
● Fireproof and fireproof protective cover for chemical cable.
●Cable and cable accessories busbar or busbar coating. use.

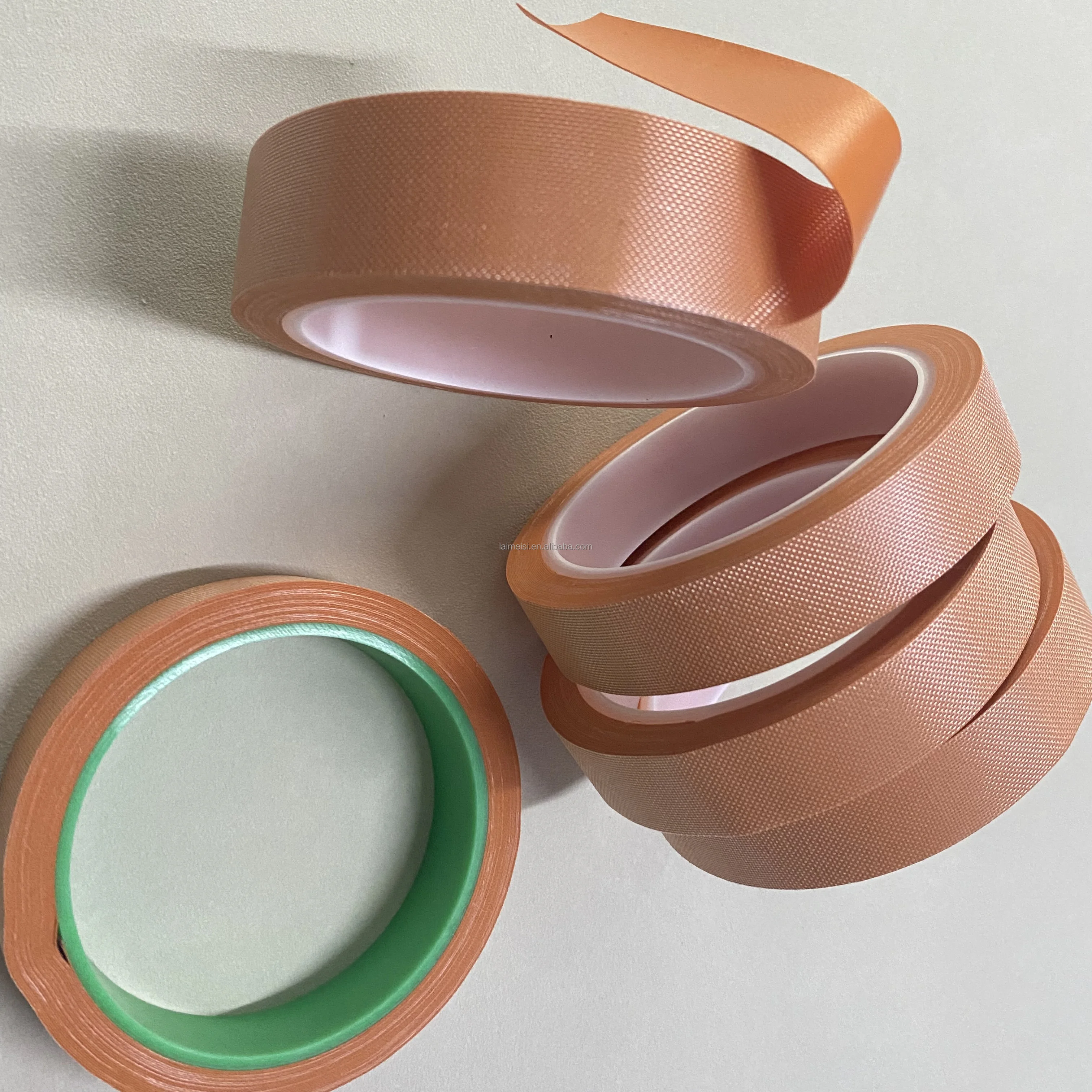

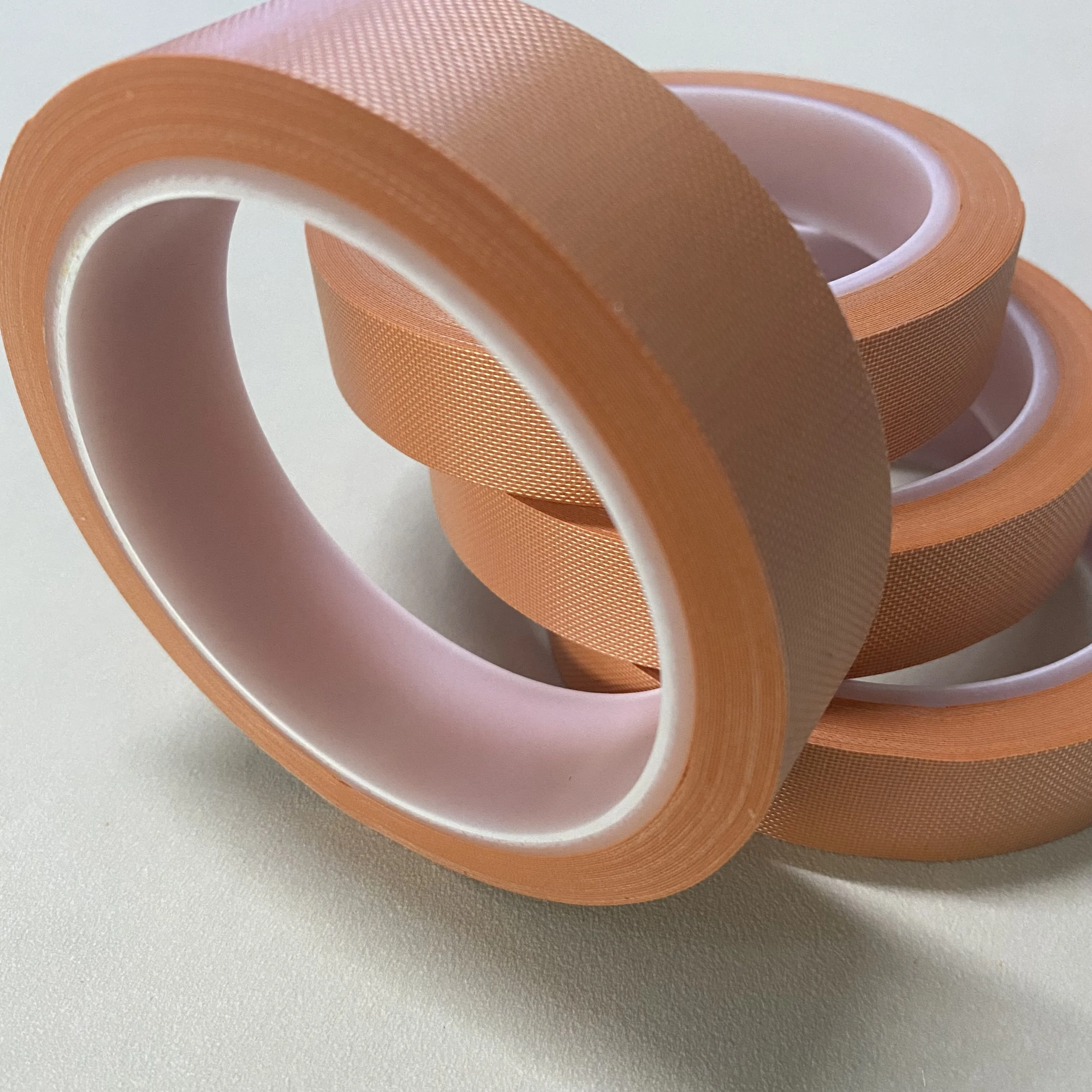

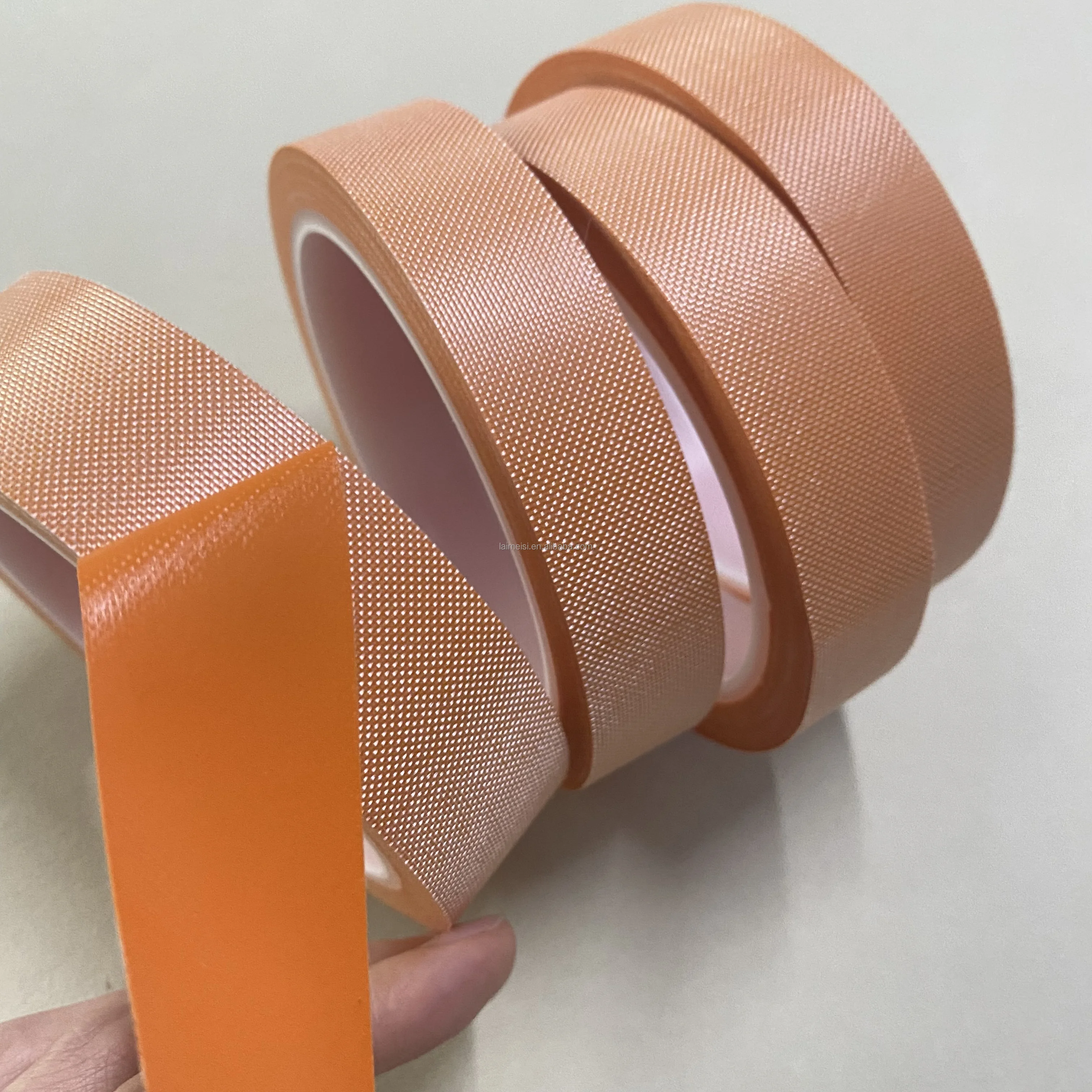

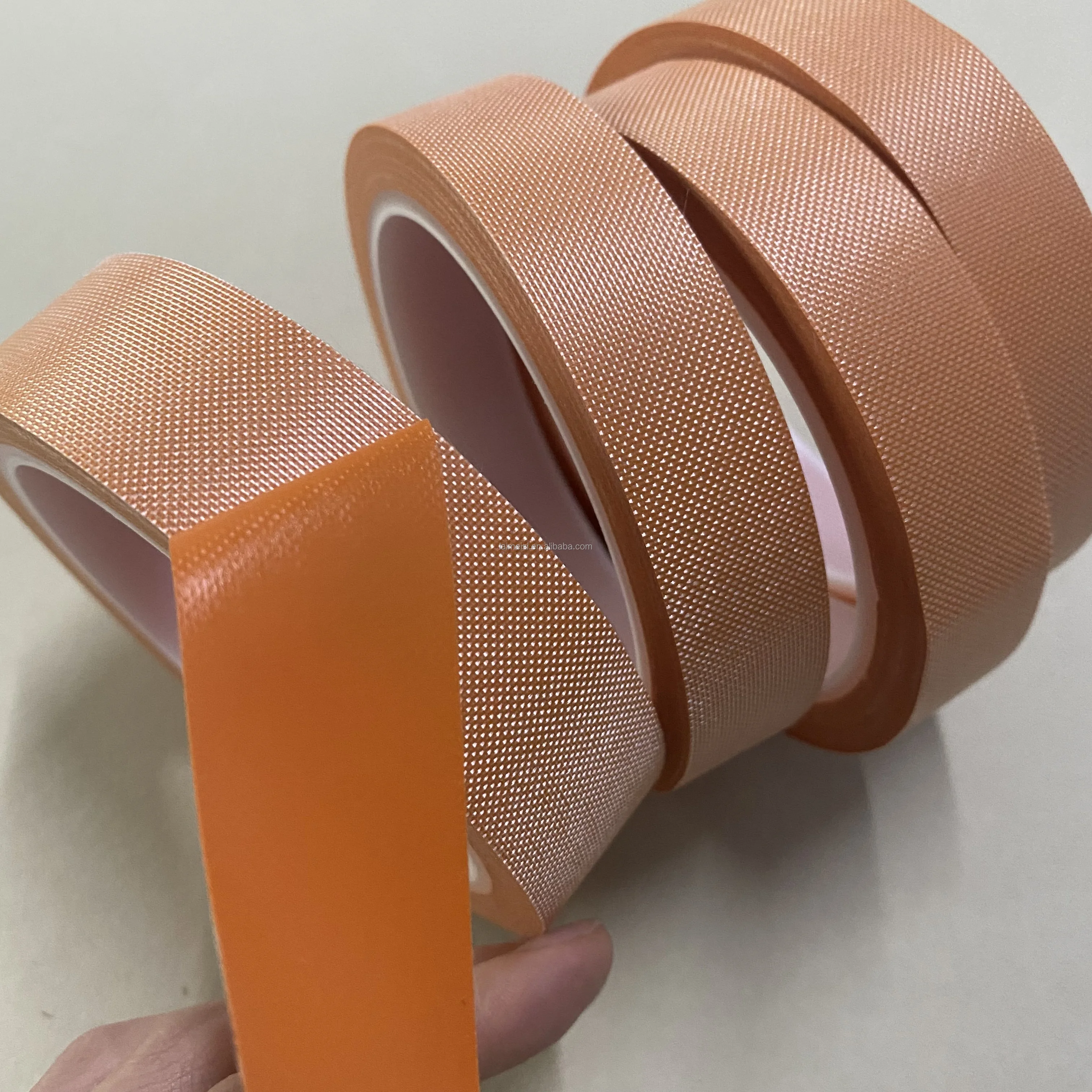

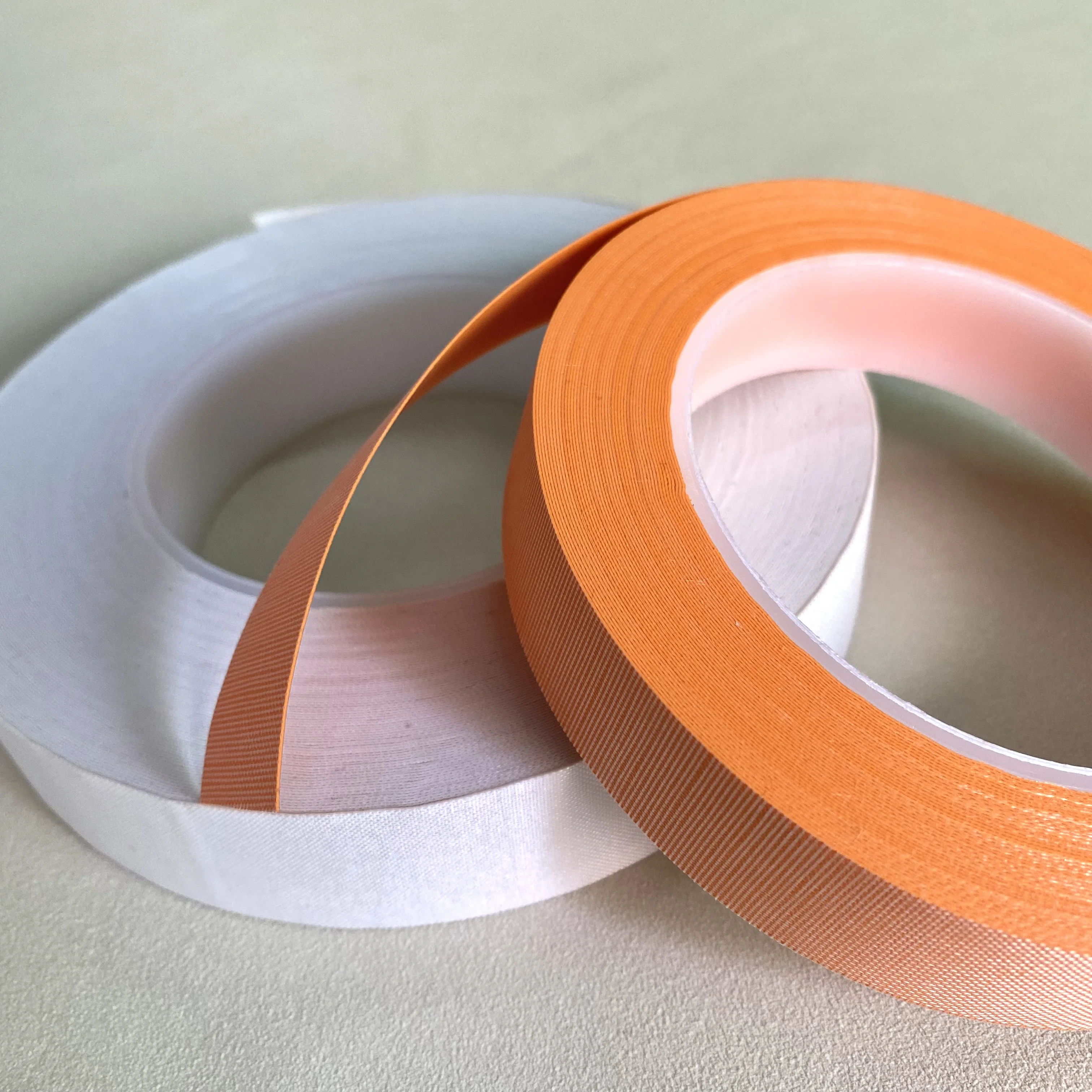

Pictures Show
