Mini 600Mbps 150M USB Wifi Adapter 5.8GHz 2.4GHz USB2.0 WI FI Receiver Wireless Network Card Lan Wi Fi High Speed Antenna

Product Overview

Description

Product Description:

This Dual Band Adapter delivers powerful wireless technology to your desktop or notebook computer. Simply plug the adapter into an available USB port and connect to a wireless network to access a secure, high-speed internet connection – 2.4GHz (150Mbps) or 5GHz (up to 433Mbps).And with integrated Dual Band technology.

Features:

•

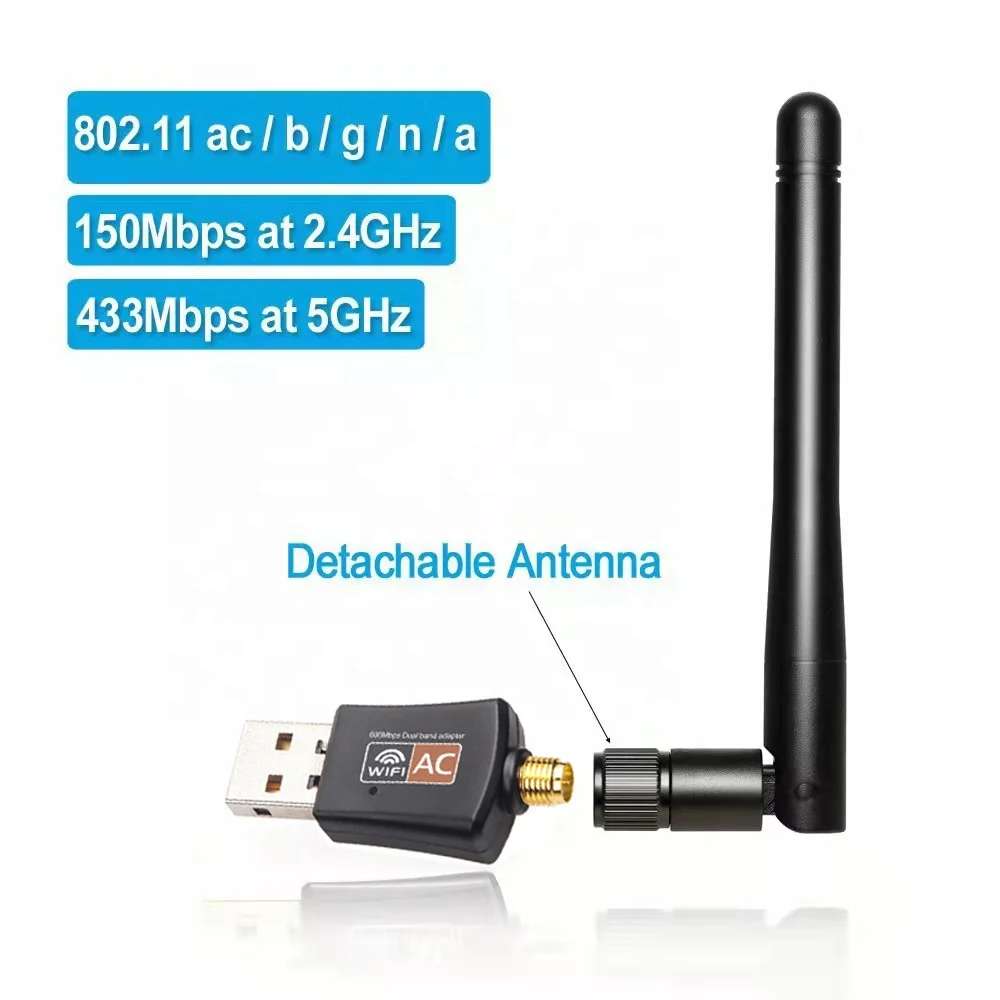

  Dual-band selection, high transmission rate (2.4GHZ/150Mbps, 5.8GHZ/433Mbps)





•


  USB2.0 interface, faster transmission rate





•


  External high gain 2dBi antenna, stronger signal and easy to disassemble





•


  Using RTL8811CU high-performance chip, more efficient and energy saving





•


  Support WFA,WPA,WPA2, WPS2.0,WAPI encryption





•


  Support Windows Vista/XP/2000/7/8/10, Linux, MAC OS system




Package includes:

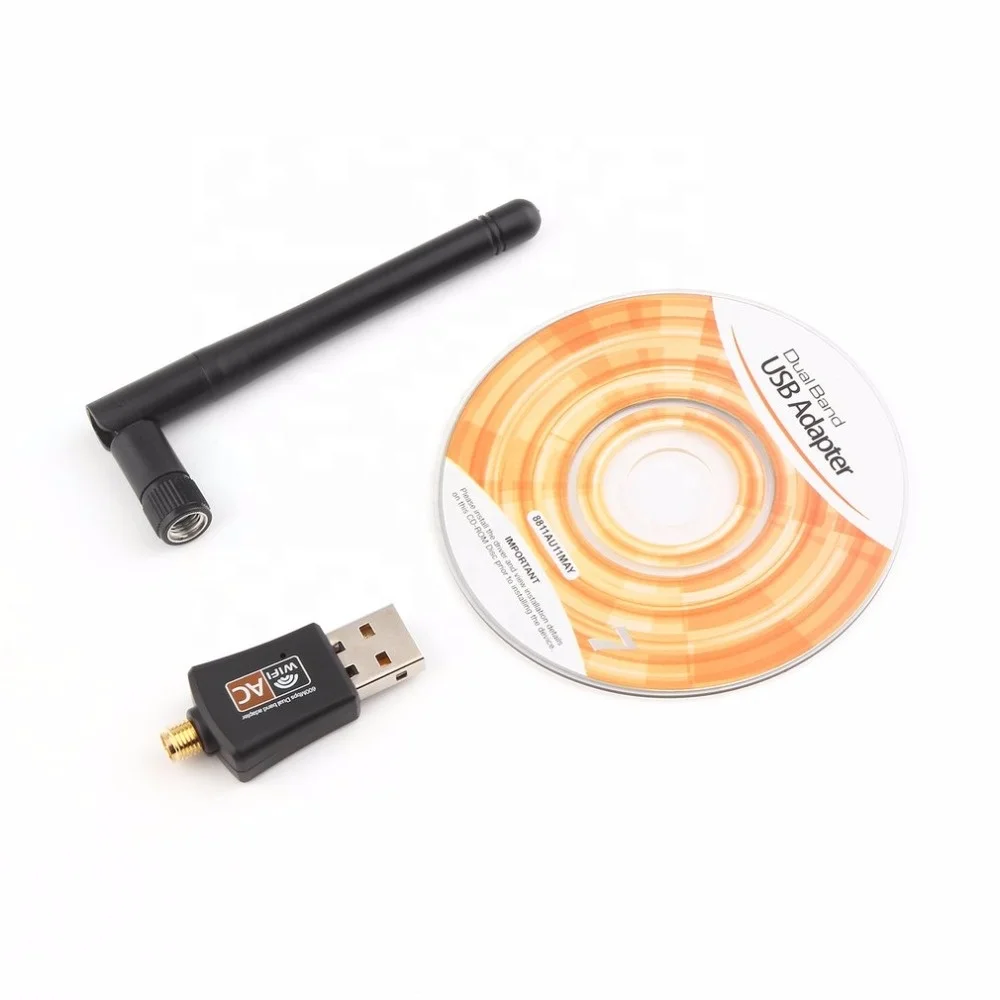

1 x USB Dongle1 x Antenna

600Mbps 11ac wireless network card usb dual-band 2.4G/5.8G WIFI receiver external antenna

Mini 600Mbps Wireless Card 11ac usb External Antenna Dual Band 2.4G/5.8G WIFI Receiver

Support wireless network connection in 2.4GHz and 5GHz frequency band;
External high-efficiency dual-band antenna;
Follow IEEE 802.11a/b/g/n/ac standard;

Support WPS, support wireless direct connection;

Wireless transmission rate: 2.4G frequency band up to 150Mbps; 5G frequency band up to 433Mbps, the wireless rate can be automatically adjusted according to the network environment;

Support USB 2.0 interface;

Built-in power management;

There is a status indicator on the front, which will keep on after the software and hardware installation is completed; it has good anti-interference ability;

Support Windows XP/7/8/10, Linux, Mac and other operating systems.

Electronic parameters

Main chip: RTL8811AU

Interface: USB 2.0

Protocols and Standards: IEEE802.11/b/g & 802.11n & 802.11ac

Working frequency band: 2.412GHz—2.4835GHz, 5.15GHz—5.825GHz

Antenna: External built-in dual-band antenna

Security encryption method: WFA, WPA, WPA2, WPS2.0, WAPI

transmit power

802.11a: 14—16dBm@54Mbps (OFDM)

802.11b: 16—20dBm@11Mbps

802.11g: 14—16dBm@54Mbps

802.11n: 14—16dBm@150Mbps

802.11ac: 12.5~13.5dBm@433Mbps (AC80)

Receive sensitivity

802.11a: -66+/-1dBm

802.11b: -80+/-1dBm

802.11g: -73+/-1dBm

802.11n: -70+/-1dBm (HT20); -64+/-1dBm (HT40)

802.11ac: -80+/-1dBm (MCS0); -56+/-1dBm (MCS9), (AC80)

Operating Voltage

5.0VDC±5%

Power consumption

Transceiver status: 220mA (max)

TX state only: 220mA (max)

RX state only: 180mA (max)
