  • 200mg/h with dry air ozone generator module transformer for ozone generator
200mg/h with dry air ozone generator module transformer for ozone generator
200mg/h with dry air ozone generator module transformer for ozone generator
200mg/h with dry air ozone generator module transformer for ozone generator
200mg/h with dry air ozone generator module transformer for ozone generator
200mg/h with dry air ozone generator module transformer for ozone generator
200mg/h with dry air ozone generator module transformer for ozone generator
200mg/h with dry air ozone generator module transformer for ozone generator

200mg/h with dry air ozone generator module transformer for ozone generator

Share on (1600546955131):


Price:$12.00 - $13.00

Quantity:


Product Overview

Description





Product Description






Advantage
1.High performance and compact size
2.Very stable performance
3.Very easy installation and very reasonable design
4. fan cooling mode with a big cooling fins area
5.Quartz tube can be easily cleaned ,should it become contaminated.
6.High ozone concentration with dry air source
7.100% check ozone concentration
8.100% burn-in test
9.100% 316 S.S and ozone compatible material
10.Suitable for water/air/medical treatment
11. 200mg/h-300mg/h ozone output available
Function
1.Ozone output: 0.2g/h at 1L/min<20%RH at 25℃ dry air

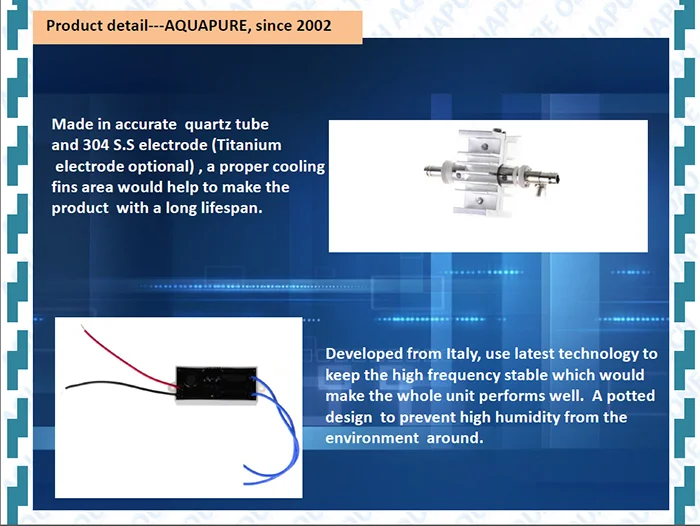

2.Ozone generator:Quartz Tube and 316 SS electrode (Titanium electrode optional )
3.High ozone concentration:>4.0mg/l at 0.5 l？LMIN GAS flow
4.Weight :only 0.25kg
5.Technology:German corona discharge
6.Low power consumption :6w
7. Voltage :12V DC
8.High Voltage :4.12Kv
9.High frequency :24Hz
10.life span:>10,000 hour non stop working

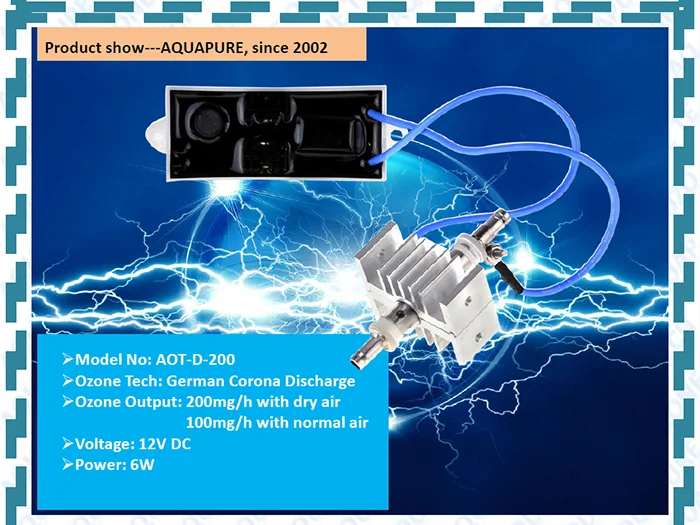

Model Number
AOT-D-200
Keyword
ozone generator parts

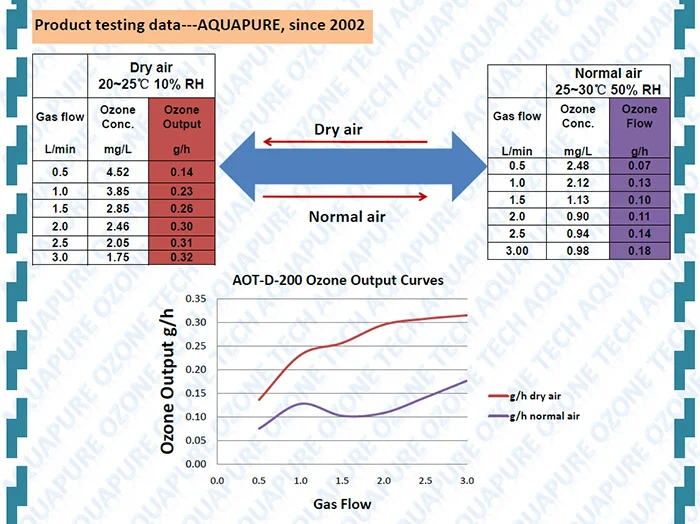

Ozone output
200mg/h at 1L/min dry air and normal air flow
Rated voltage
12V DC
Power
6w
Technology
Corona discharge

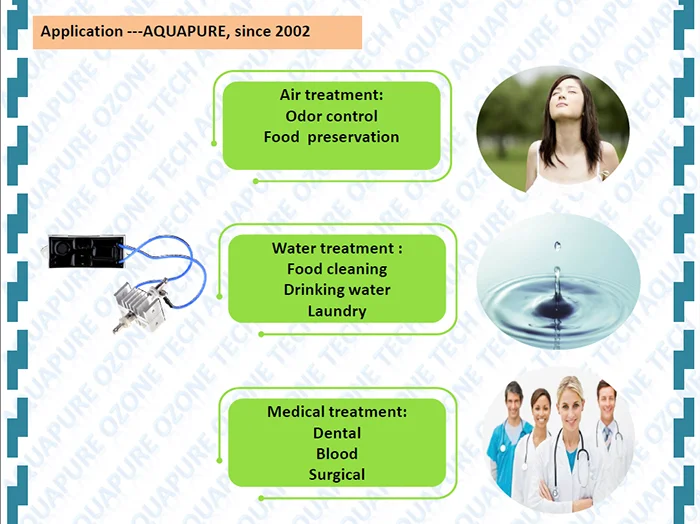

Application
Air /Water/Medical
Material
Quartz tube and 316SS electrode (Titanium electrode optional)

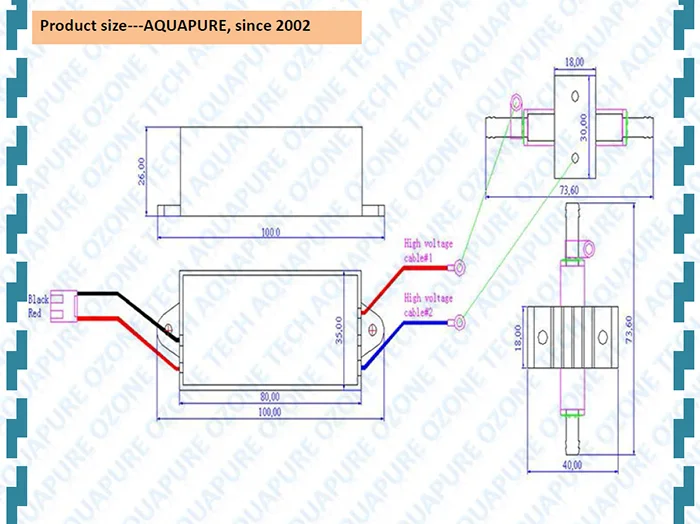

Electronic Size
100 x 35 x 26 mm
Generator size
73.6 x 40 x 30 mm
Package
60PCS/carton
Life span
> 10,000 hours (non-stop working)
Continuous operation
Air cooling with cooling fins
Ozone concentration
>4mg/L at 0.5L/min flow




Application






Recommend Products








Company Profile




AQUAPURE's core technology is from Germany and was invested by German since 2002. We are mainly manufacture ozone generators, plasma generators and anion generators in China. We Committed to the standardization of the ozone market, Our group is making great effort in the high quality and stable performance. To combine the high technology from Germany with low labor cost from China, we set up AQUPAURE ASIA LIMITED and AQUAPURE (Shenzhen) Ozone Technology CO.LTD for production and shipment managements in 2009 and 2015. We have more than 10 years' experience in the production and development of ozone generator .




FAQ


1. who are we?
We are based in Guangdong, China, start from 2015,sell to Southern Europe(40.00%),North America(40.00%),South Asia(10.00%),Central America(5.00%),Eastern Europe(2.00%),Africa(2.00%),Mid East(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Ozone module,plasma generator,ozone water purifier,ozone generator,medical ozone generator

4. why should you buy from us not from other suppliers?
Reliable quality
German tech
Development service
OEM serivce
Small order accpetable

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish


Contact us




Contact: Erika Wang
Email: info(at)aquapureasia.com
Wechat: erika774097543
Mobile: 86-13725514432
www.aquapureozone.com
