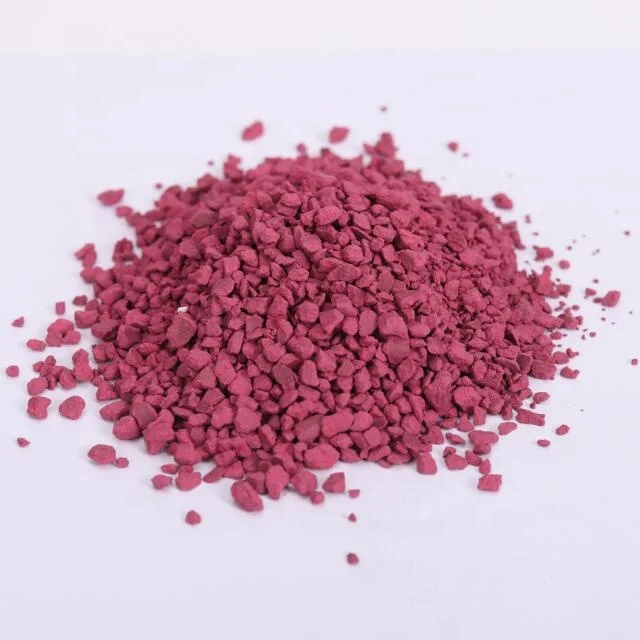

  • Bakelite Powder PF2D1 8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,

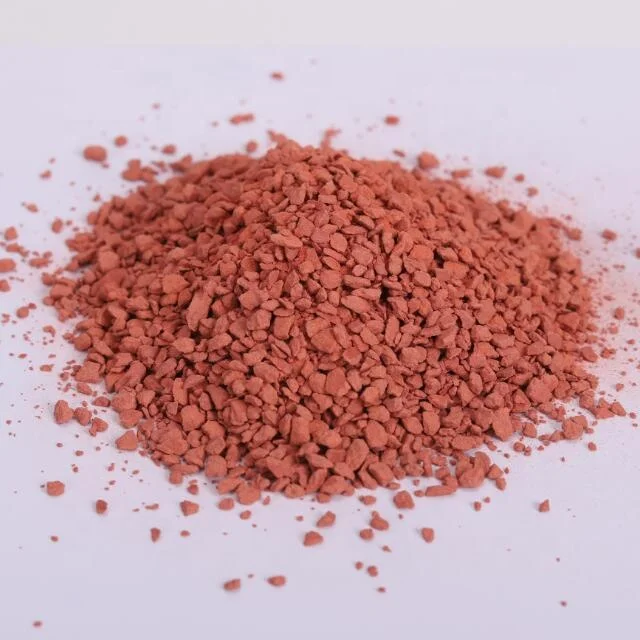

Bakelite Powder PF2D1 8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,
Bakelite Powder PF2D1-8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,
Bakelite Powder PF2D1-8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,
Bakelite Powder PF2D1-8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,
Bakelite Powder PF2D1-8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,
Bakelite Powder PF2D1-8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,
Bakelite Powder PF2D1-8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,

Bakelite Powder PF2D1 8558J excellent mechanical properties and dimensional stability, good heat and moisture resistance,

Share on (1600546990516):


Price:$1.50 - $1.62

Quantity:


Product Overview

Description



Product Description




Specification


Property
Test method
Unit
Index
Physical properties
Specific gravity
GB/T 1033.1
g/cm3
1.75-1.85
Molding shrinkage
ISO 2577
%
0.10-0.30
Water absorption
GB/T 1034
mg
≤50
Mechanical properties
Tensile fracture stressσB
GB/T 1040
MPa
≥80
Flexural StrengthσfM
GB/T 9341
MPa
190
Compressive strengthσfcu
GB/T 1041
MPa
≥220
Impact Strength(notched) acA
GB/T 1043.1
KJ/m2
≥4.5
Electrical properties
Dielectric loss factor（tanδ1M ）
GB/T 1409
-
≤0.1
Volume resistivityρv
GB/T 1410
Ωcm
1012
Surface resistivityρs
GB/T 1410
Ω
1011
Dielectorni StrengthEs2
GB/T 1408.1
Kv/mm
≥10
PTI
GB/T 4207
-
-
Heat resistance properties
Heat distortion temperature（Tf 1.8）
GB/T 1634.2
℃
≥210
Heat distortion temperature（Tf 8.0）
GB/T 1634.2
℃
-
Flammability (hot rod) BH
GB/T 2407
-
≤BH2-10
Flame Rating
UL 94
2.0mm
V-0


Mould temperature℃
Charging barrel ℃
Injection pressure
MPa
Back pressure
MPa
Dwell time
s/mm
Fix Mould
Moving Mould
Front barrel
Back barrel
165-175
170-180
90-100
70-80
80-160
1-3
10-20


Packing & Delivery

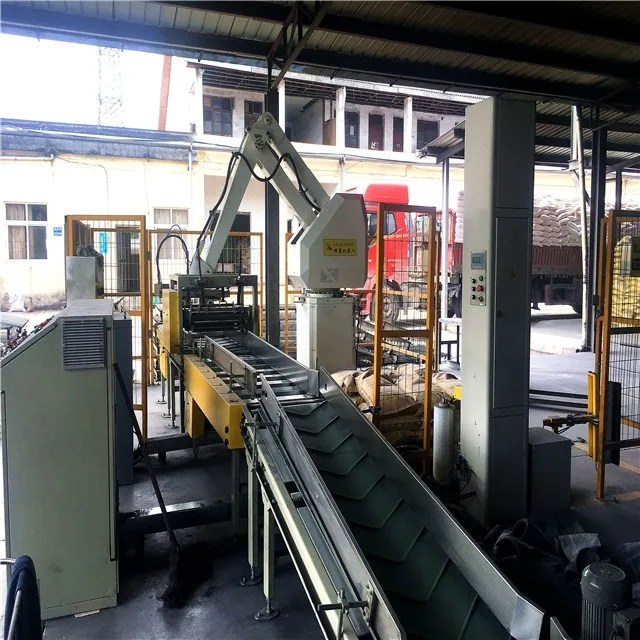

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


Company Profile

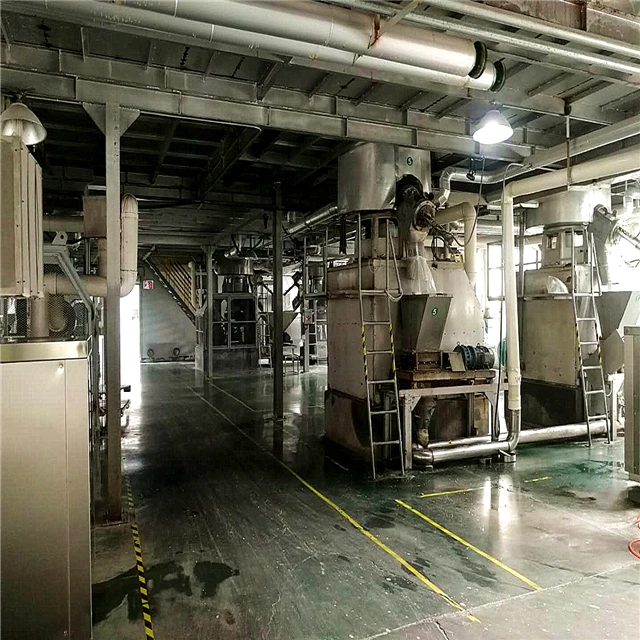

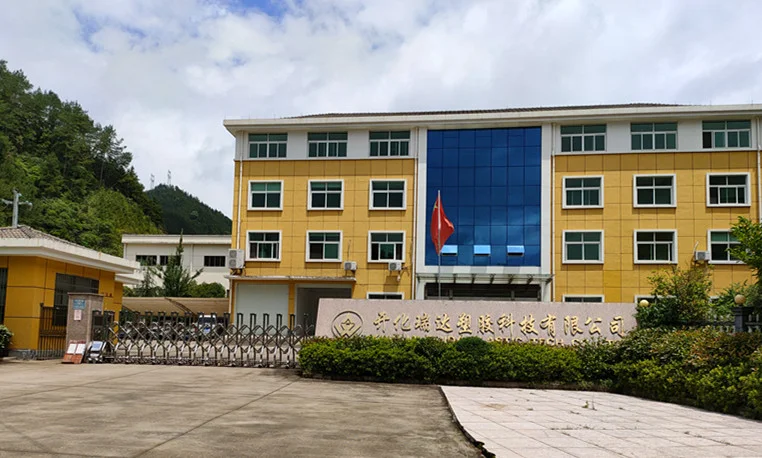

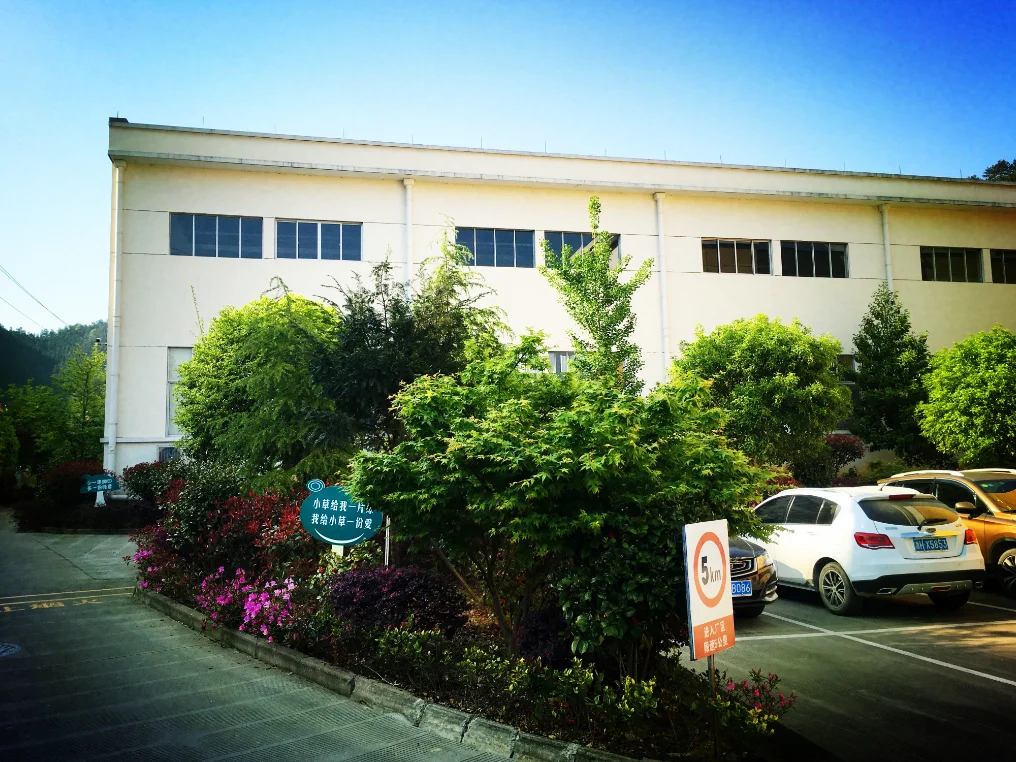

Kaihua Ruida Plastic-Tech Co., Ltd was founded in 1984, which is one of the main manufacturer of Urea moulding compound, Phenolic moulding compound and Melamine moulding compound in China. Within annual production capacity 45000 tons.


FAQ


1x20GP can load 21 tons, 840 bags, without pallet.
Delivery period: within 7 days.

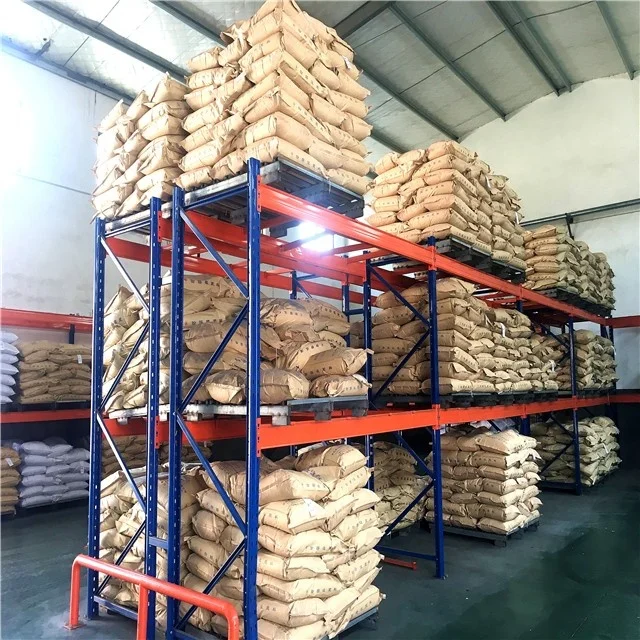

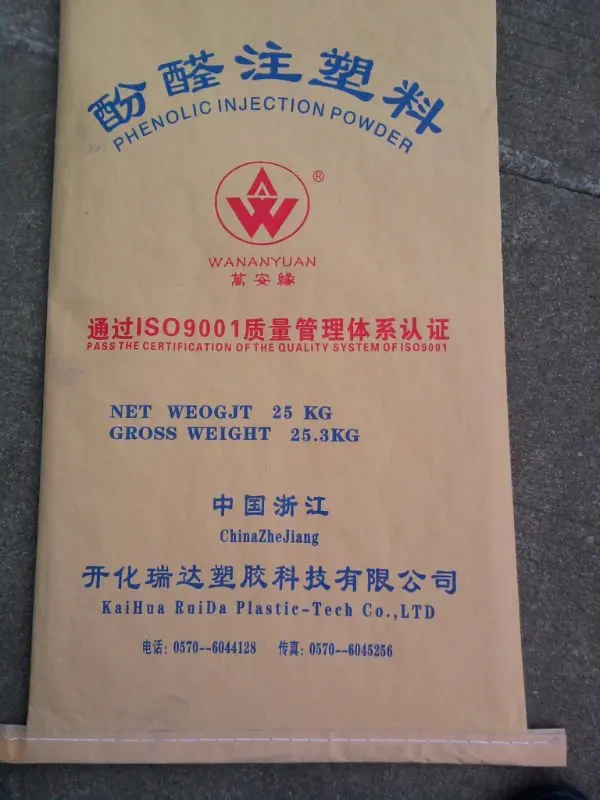

Packaging: PP/ Kraft bag with wet proof inner bag. 25kgs/bag
Storage period: 1 year kept in cool warehouse.
