304 винтовой конвейер для муки из нержавеющей стали

304 винтовой конвейер для муки из нержавеющей стали

Category: Conveyors >>>
Supplier: Xinxiang,Zhongchengyou,Machinery,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

304 stainless steel Screw feeder for powder

Description of screw conveyor:

The screw conveyor is a kind of machine which uses the motor to drive the screw to rotate and push the material to realize the purpose of conveying.It can be horizontal, oblique or vertical transport, has the advantages of simple structure, small cross-sectional area, good sealing, easy to operate, easy maintenance, easy to close the transport and so on.

Screw conveyor is widely used in grain industry, building materials industry, chemical industry, machinery manufacturing industry, transportation industry and other sectors of the national economy.


Technical parameters of screw conveyor

model Model	screw diameter (mm)	Screw pitch (mm)	rotational speed of screw (r/min)	convey measure (m3/h)	motor power (kw)	max dip angle (o )
LS-100	100	100	140 125 112 100 90 80 71 63 50 40	2.2	2.2~18.5	≤20
LS-125	125	125		4.0
LS-160	160	160		8
LS-200	200	200		11
LS-250	250	250		22
LS-315	315	315		34
LS-400	400	355		64
LS-500	500	400		95
LS-630	630	450		150
LS-800	800	500		210

Features of screw conveyor

1. Screw conveyor separates and transports material spirally. It is light because of no underwater bearing which makes its maintenance more convenient.
2. Screw conveyor adoption of new decelerator makes the structure very compact, the operation smooth and the installation more convenient.
3. Screw conveyor using of the flexible bars in tube, which are wear-resisting, makes the separator work with lower noise, and replace of these bars easily.

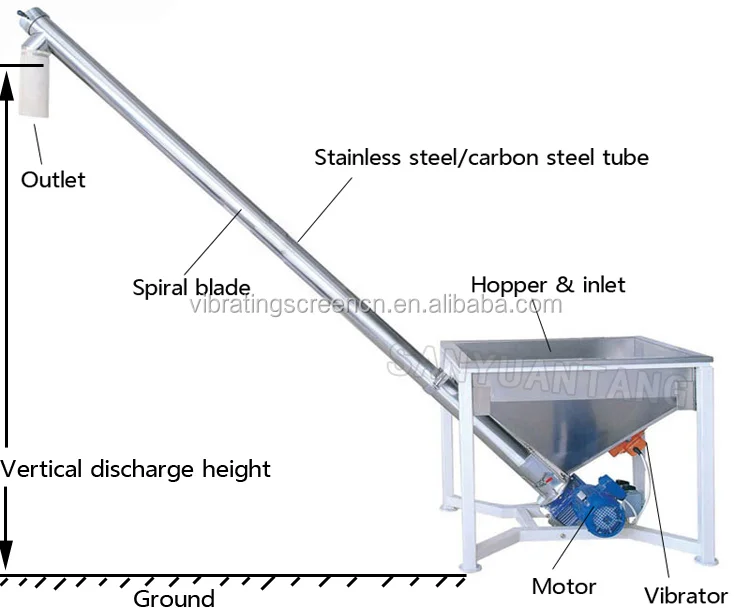

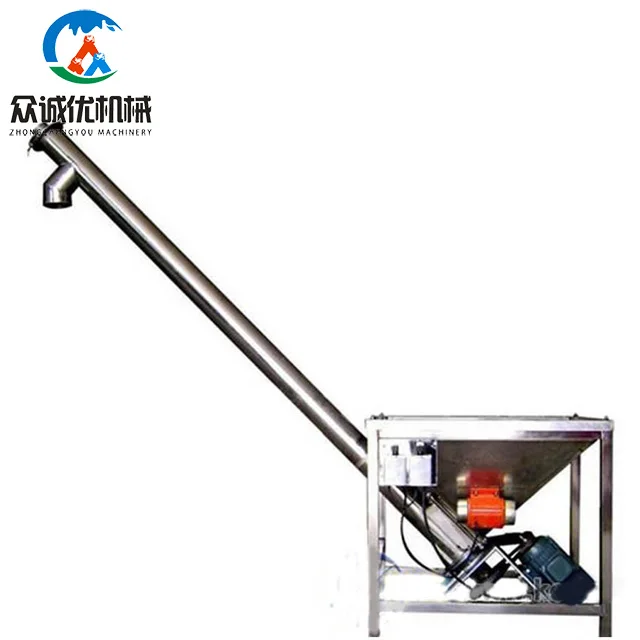

Photos of screw conveyor
