MST DP Displayport To HDMI and DP Displayport Splitter Adapter Box Black Support 2.1 8K 60Hz 4K 120Hz 7860x4320 Resolution

Remarks

1. Need external power supply: when using, please make sure to use USB cable to power the switch.

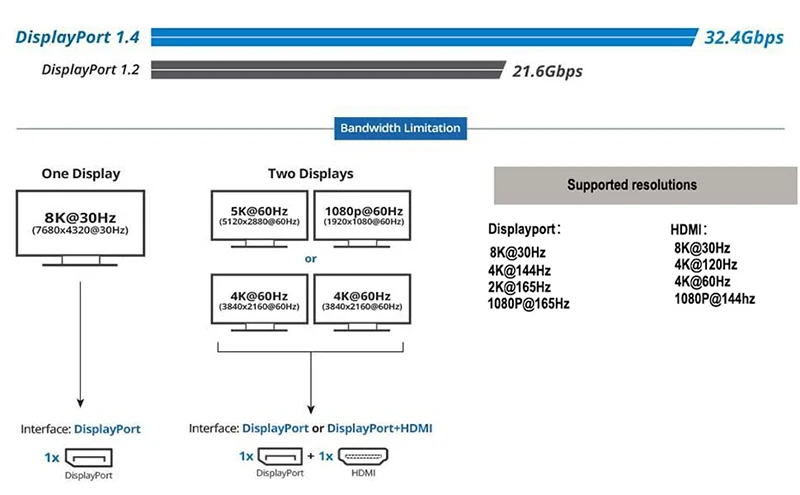

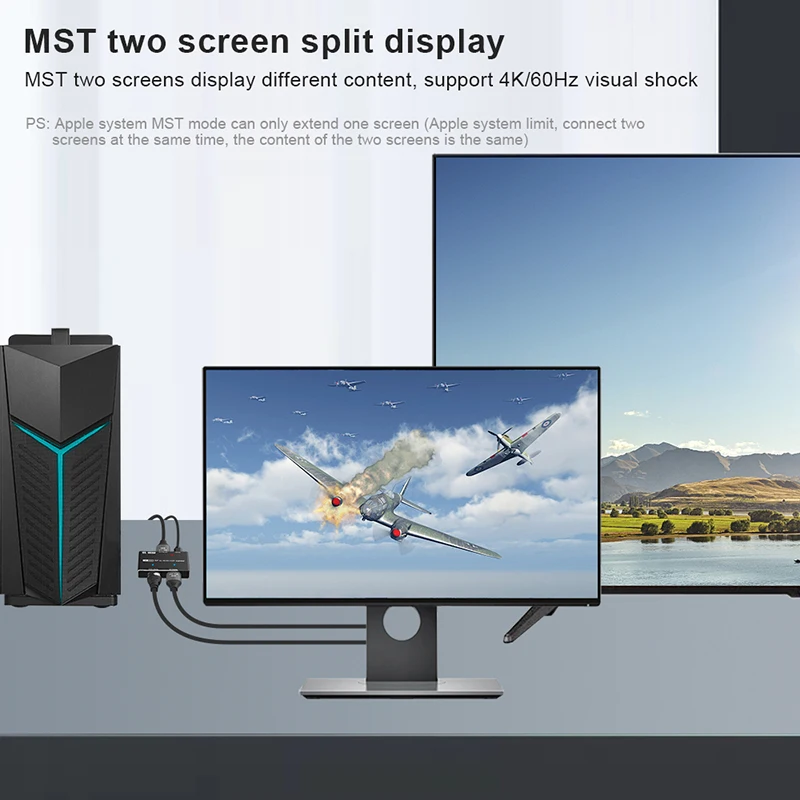

2. In MST expansion mode, the HDMI or DP single port output can reach 8K@30Hz 4K@120Hz, and the two ports output can reach 4K@60hz at the
same time.

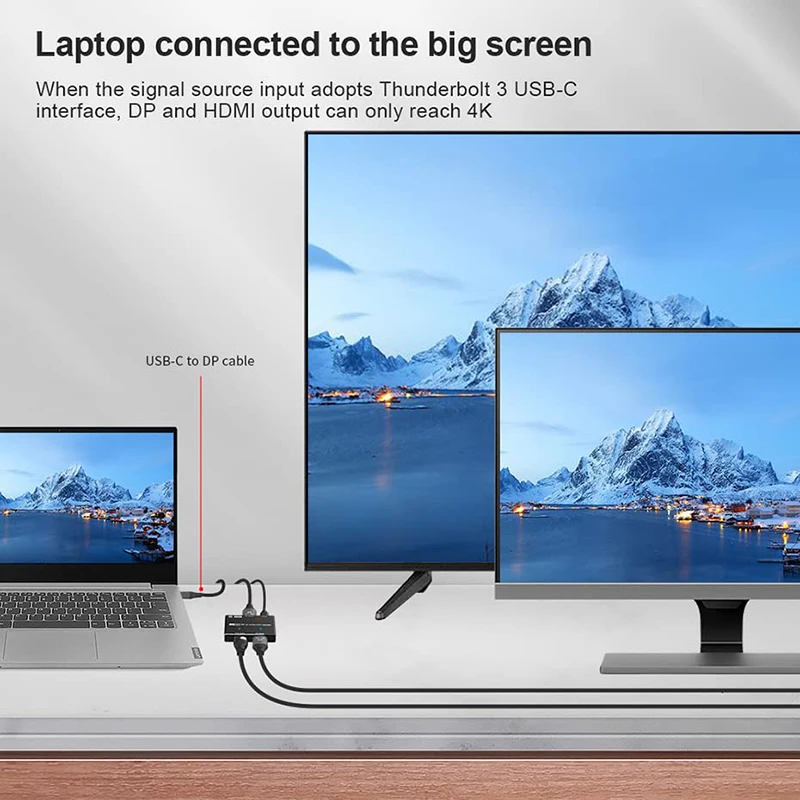

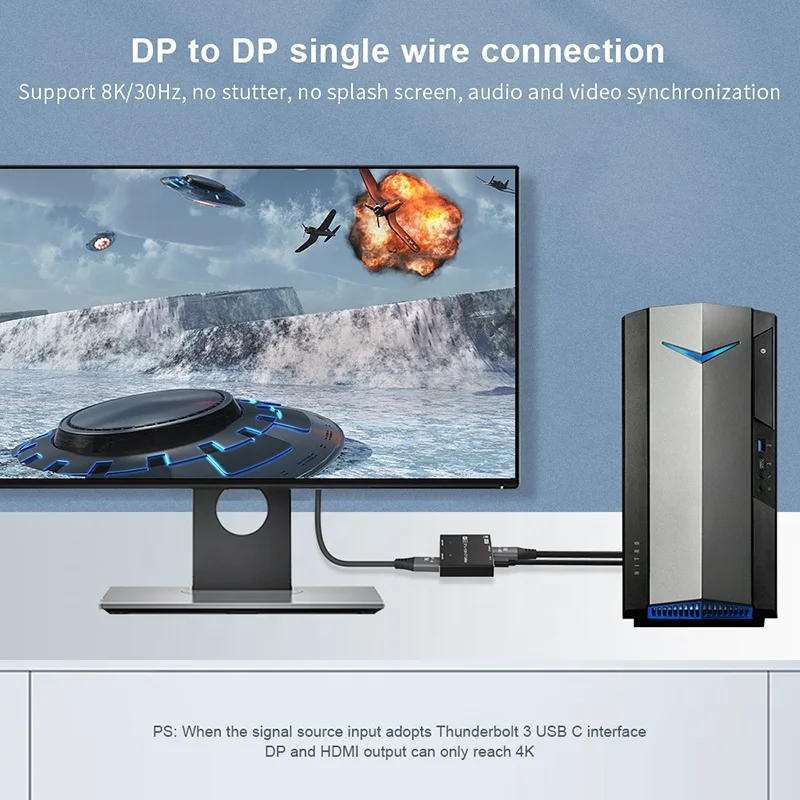

3. When the signal source input adopts Thunderbolt 3 USB C interface, DP and HDMI-Compatible output can only reach 4K.

4. MST mode of Apple system can only extend one screen (limited by iOS System).

5.The splitter does not include DP and HDMI-compatible cables, the cables need to be purchased separately!

INTRODUCTION

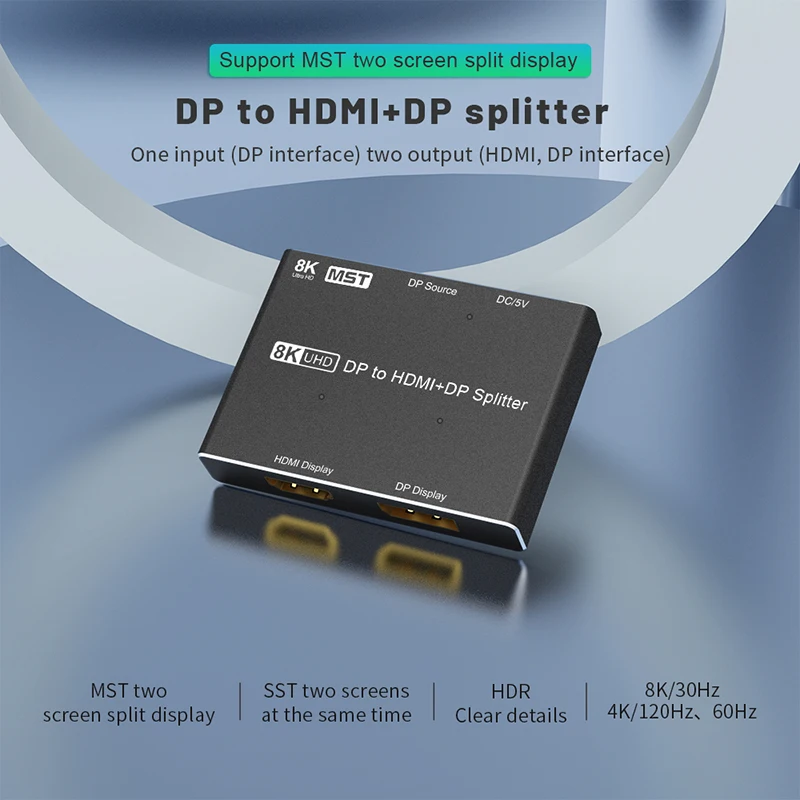

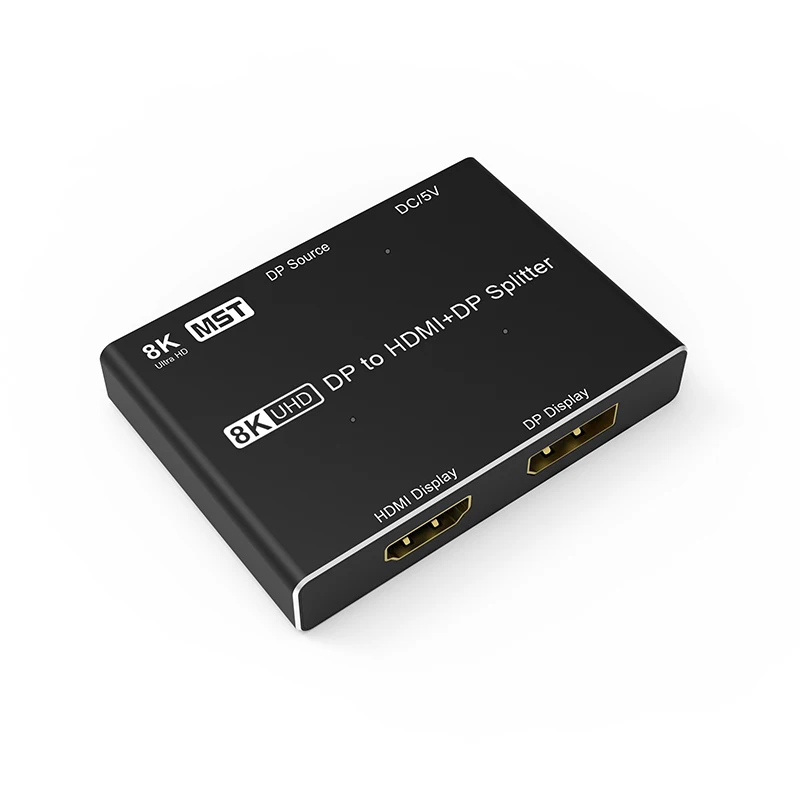

This super slim DP to DP+HDMI-Compatible splitter is compact and efficient.

It allows you to assign a high-definition source to one monitor and one TV at the same time without any signal los.

The system is compatible with DP 1 . 4 ,1 . 3 ,1 . 2 ,1 . 0 and HDMI-Compatible 2 . 1 ,2 . 0 ,1 . 4 ,1 . 3 , Support 3 Dand 4K ,8K ultra HD ,
Support SST and MST.

This splitter is ideal for home, office, school, hotel and any other installation that requires 2 ultra-high source display devices.

FEATURES

1. Compatible with all DP inputs and HDMI-Compatible,DP outputs.

2. Comply with DisplayPort 1.4, 1.3, 1.2 and 1.0 specifications.

3. Support Compatible resolution:

8K@30Hz 4K@120Hz,60Hz 1440P@165Hz ,144Hz,120Hz,60Hz(165hz, 144hz HDMI-Compatible output not supported)

1080P@240Hz ,165Hz,144Hz,120Hz,60Hz(165hz, 144hz HDMI-Compatible output not supported)

((Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI-Compatible cable support))

4. Support operating system: IOS system, windows system,Android system

5. Support HDR

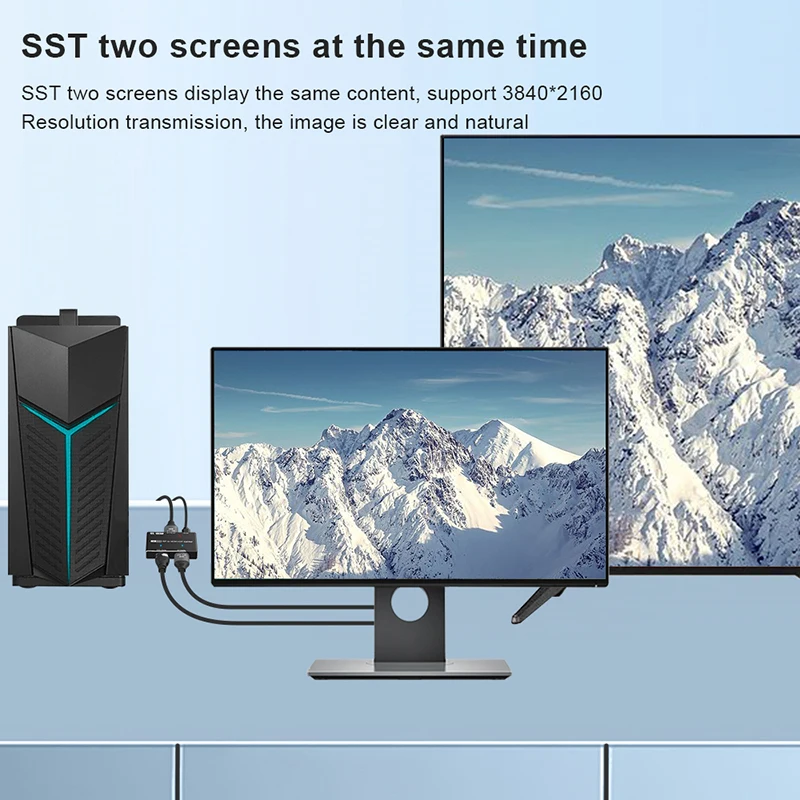

6. Support SST (mirror) and MST (Extended) mode

7. Support 4:4:4, 4:2:2, 4:2:0

SPECIFICATION

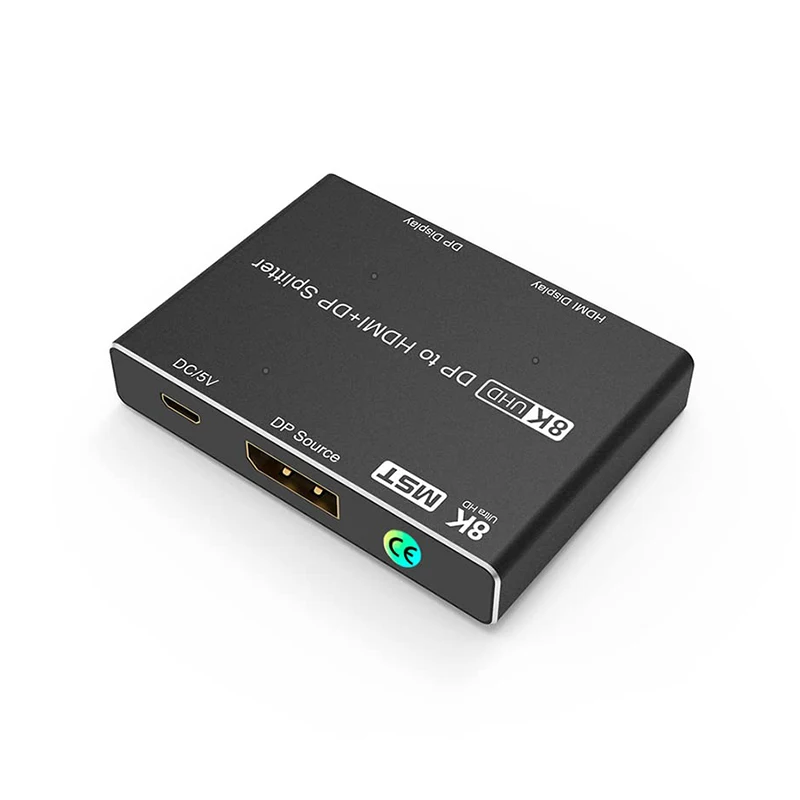

Input Port: 1 x DP Female, 1 x USB Micro B Female

Output Port: 1 x DP Female, 1 x HDMI-Compatible A Female

Bandwidth:32.4Gbps

Operating Temperature:-15℃~55℃/5°F~131°F

Deep Color:8bit/10bit/12bit

Chroma: 4:2:0 / 4:2:2 / 4:4:4

Chassis: Aluminium alloy Shell

Dimension:7.0mm(L)x51.7mm(W)x13.0mm(H)

Weight:83.0g

PACKAGE CONTENTS

1. 1 x DP to DP+HDMI-Compatible Splitter

2. 1 x USB a to USB micro B cable

3. 1 x User manual
