Changbao Double Jacket Direct Burial CAT5 Network Lan Cable 305m FTP CAT5E Outdoor Cable
- Category: >>>
- Supplier: Chang Bao Technology Co. Ltd.
Share on (1600547113139):
Product Overview
Description
Product Description

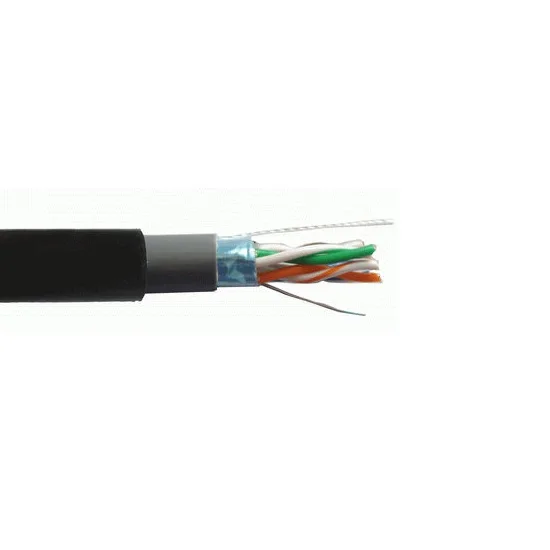

Changbao Double Jacket Direct Burial CAT5 Network Lan Cable 305m FTP CAT5E Outdoor Cable
- Features
* Suitable For UV And Water Proof Cat5e 350MHz Outdoor Network Installations
* Shielded with AL-foil Structure With Dual Jackets As Water Block Barrier
* With UV Resistant LLDPE Jacket to Bare the Bad Environment

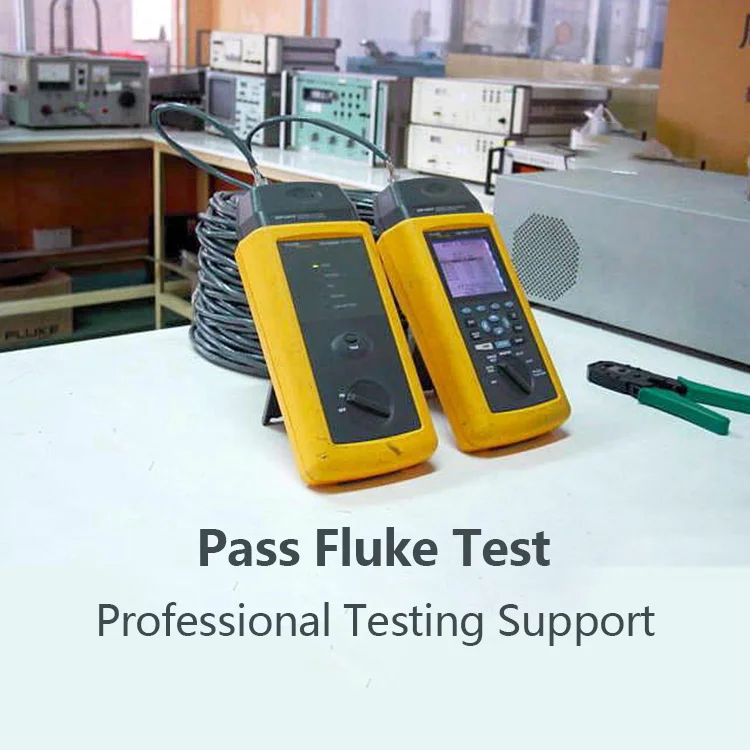

* Pass FLUKE Test High Performance Computer Networking Cable
* Digital Communication Applications of up to 350MHz Bandwidth
* Meet or Exceeds TIA/EIA 568-D.2 , ISO/IEC 11801 Standards

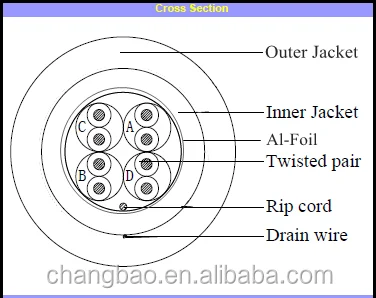

Construction Characters
Item Type | CAT5E |
Structure | FTP/STP |

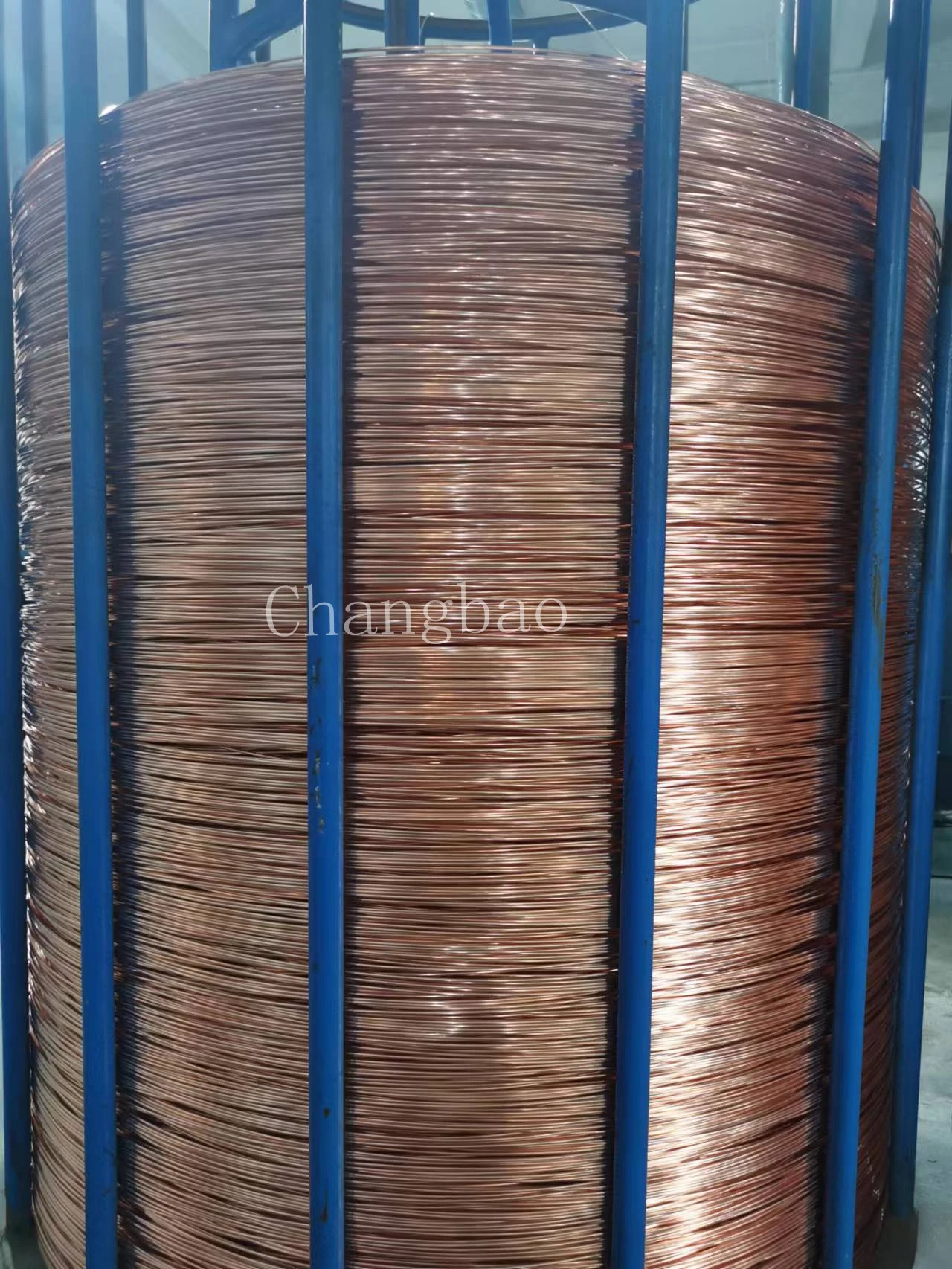

Conductor | Solid Bare Copper |
AWG | 24 |
Conductor Dia. (mm) | 0.51 |
Insulation | HDPE |
Insulation Dia.(±0.01mm) | 0.91 |
Inner Jacket | PVC |
Outer Dia.(±0.1mm) | 4.80 |
Rip Cord | Nylon |
Drain wire (TC) | 0.40mm |
Al-foil | YES |
Jacket | LLDPE |
Outer Dia.(±0.2mm) | 6.40 |

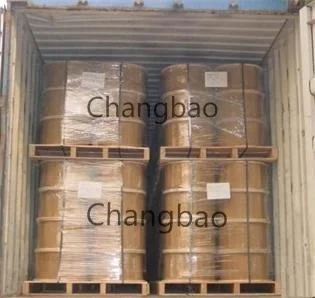

Package | Ply Wood Drum |
Package Length | 305m/1000ft Or as Required |
Electrical & Physical Characters | ||||||
Rating | 75℃ 30V | |||||
Conductor Resistance | Max 78.8ohm/km at 20℃ | |||||
Dielectric Strength | Min AC1.5KV | |||||
Spark Test | 5.0KV | |||||
AC Leakage Current Through overall Jacket | AC 1500V <=10mA | |||||
Insulation | Unaged | Tensile Strength | 16.5 Mpa | |||
Elongation | 500% | |||||
Aged | Tensile Strength | 14.2 Mpa(100℃ 168h) | ||||
Elongation | 250%(100℃ 168h) | |||||
Jacket | Unaged | Tensile Strength | 13.8 Mpa | |||
Elongation | 150% | |||||
Aged | Tensile Strength | 11.7 Mpa(100℃ 168h) | ||||
Elongation | 80%(100℃ 168h) | |||||
Cold Bend Test | -20℃ 4hours No Cracking | |||||
DC Resistance Unbalance | Max 5% | |||||
Pair-to-Ground Capacitance Unbalance | Max 3300pF/km | |||||
Characteristic Impedance | 1~500MHZ 100±15OHM | |||||
Propagation Delay | 500MHZ Max 536ns/100m | |||||
Delay Skew | 1~500MHZ Max 40ns/100m | |||||
FAQ：
Q1: Are you a trading company or manufacturer?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP CAT5E, CAT6,CAT6A,Mul-ti Pairs Telephone Cable, Coaxial Cable,Speaker Cable, Fire Alarm Cable,etc. Welcome OEM or ODM orders.
Q2.Where are you located? Is it convenient to deliver to overseas?
Yes, we are located in Foshan City, which is very famous for its manufacturer for household products and it is near the Guangzhou and Shenzhen Seaports, Which is very convenient for us to export our goods. For the samples, it is also convenient for us to ship it by Fedex, DHL, UPS etc to all over the world.
Q3: Why choose us?What is your advantage?
Our factory is located in Shunde district, Foshan City in Guangdong, China. We have produced various cables for 33 years
experience.You can get quality-assured products and a excellent buying experience from us!
Quality products: Strict Quality Control & High Quality Raw Materials.
Competitive Price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24 hours
Our core competency is network cables with Pure Copper conductors in 305meters/1000ft.
Q4.What exactly do you do?
We are the manufacturer for low voltage cables and especially specialized in network cables such as CAT5E, CAT6, CAT6A for UTP/FTP/SFTP structures for indoor or outdoor use including for the aerial use. Except the network cables, we also serve the audio/speaker cable, Telephone cable, Multi-pairs cable, fire alarm cable and security cables.
Q5: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.
Q6. How to know recycle and new jacket materials?
Except for conductor price, the jacket materials is another main factor affecting the price. How to make out Recycle material:
The jacket will have bubbles, especially tenacity will be very bad, and it's easy to tear. So the cable lifetime is short, and
fire retardant, cold resistance is also very bad. New material: Tenacity is very good, it's hard to tear. And with good fire
retardant, cold resistance. All of our jacket materials are new materials.
Q7. Can we print our own logo on the goods?
Yes, Customized words and numbers can be printed on the cable jacket as your request. Welcome to contact us for more other
information.
Q1: Are you a trading company or manufacturer?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP CAT5E, CAT6,CAT6A,Mul-ti Pairs Telephone Cable, Coaxial Cable,Speaker Cable, Fire Alarm Cable,etc. Welcome OEM or ODM orders.
Q2.Where are you located? Is it convenient to deliver to overseas?
Yes, we are located in Foshan City, which is very famous for its manufacturer for household products and it is near the Guangzhou and Shenzhen Seaports, Which is very convenient for us to export our goods. For the samples, it is also convenient for us to ship it by Fedex, DHL, UPS etc to all over the world.
Q3: Why choose us?What is your advantage?
Our factory is located in Shunde district, Foshan City in Guangdong, China. We have produced various cables for 33 years
experience.You can get quality-assured products and a excellent buying experience from us!
Quality products: Strict Quality Control & High Quality Raw Materials.
Competitive Price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24 hours
Our core competency is network cables with Pure Copper conductors in 305meters/1000ft.
Q4.What exactly do you do?
We are the manufacturer for low voltage cables and especially specialized in network cables such as CAT5E, CAT6, CAT6A for UTP/FTP/SFTP structures for indoor or outdoor use including for the aerial use. Except the network cables, we also serve the audio/speaker cable, Telephone cable, Multi-pairs cable, fire alarm cable and security cables.
Q5: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.
Q6. How to know recycle and new jacket materials?
Except for conductor price, the jacket materials is another main factor affecting the price. How to make out Recycle material:
The jacket will have bubbles, especially tenacity will be very bad, and it's easy to tear. So the cable lifetime is short, and
fire retardant, cold resistance is also very bad. New material: Tenacity is very good, it's hard to tear. And with good fire
retardant, cold resistance. All of our jacket materials are new materials.
Q7. Can we print our own logo on the goods?
Yes, Customized words and numbers can be printed on the cable jacket as your request. Welcome to contact us for more other
information.
