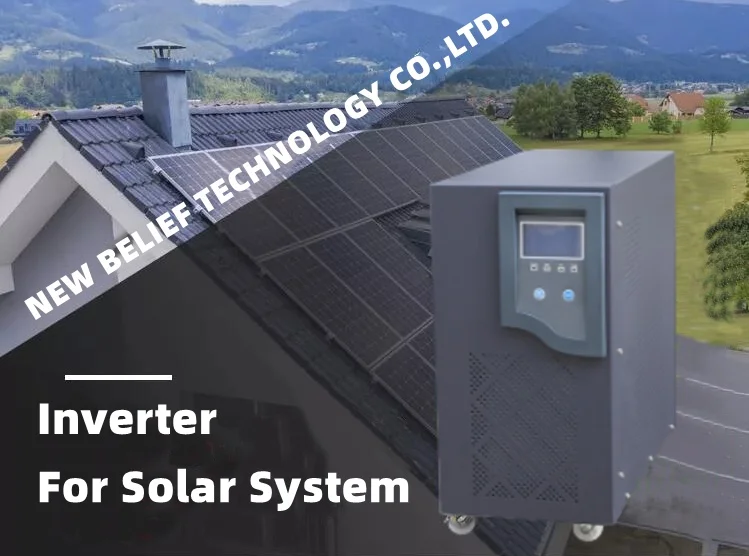

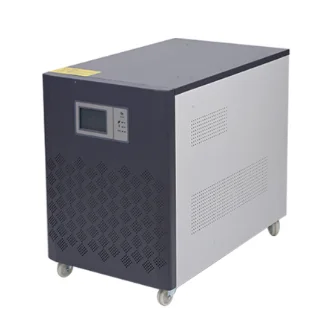

1kw 1.5kw 3kw hybrid inverter with charge controller power inverter generator pure sine wave solar inverter
- Category: >>>
- Supplier: Shenzhen New Belief Technology Co. Ltd.
Share on (1600547123664):
Product Overview
Description
Customers' Feedback
Product Description
Technical Parameters | ||||||||||
Inverter mode | AN200 | AN300 | AN400 | AN500 | AN600 | |||||
Inverter with controller mode | AP200 | AP300 | AP400 | AP500 | AP600 | |||||
Rated power | 2000W | 3000W | 4000W | 5000W | 6000W | |||||
Battery voltage | 24V/48V | 48V | ||||||||

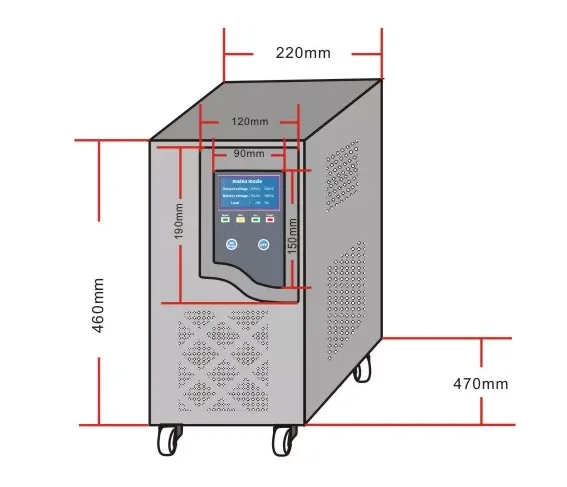

Size:(L*W*H mm) | 520*220*360 | 520*250*400 | ||||||||
Package Size:(L*W*H mm) | 560*265*400 | 580*310*450 | ||||||||
N.W.(KG) | 20 | 22 | 27 | 29 | 31 | |||||
G.W.(KG) | 23 | 25 | 30 | 32 | 34 | |||||
Input | ||||||||||
Phase | L+N+G | |||||||||
AC input range | 110V:85-138VAC; 220V:170-275VAC | |||||||||
Input frequency | 45Hz~55Hz | |||||||||
Output | ||||||||||
Output voltage | Inverter mode:110VAC/220±5% | |||||||||
AC mode:110VAC/220±10% | ||||||||||
Frequency range(AC mode) | Automatic tracking | |||||||||
Frequency range(inverter mode) | 50Hz/60Hz±1% | |||||||||
Over load capacity | AC mode:(100%~110%:10min; 110%~130%:1min; >130%:1s;) | |||||||||
Inverter mode:(100%~110%:30s; 110%~130%:10s; >130%:1s;) | ||||||||||
Peak current ratio | 3:1 MAX | |||||||||
Conversion time | <10ms(Typical loads) | |||||||||
Waveform | Pure sine wave | |||||||||
Efficiency | >85%(80% resistive wave) | |||||||||
Protection functions | Battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection,overtemperature protection,etc. | |||||||||
built in solar charge controller (adjust) | ||||||||||
Max charge current | 30A | 50A | ||||||||
PV input voltage range | 24V:30V—50V; 48V:60V—80V | |||||||||
Max PV input | 24V:720W;48V:1440W | 24V:1200W;48V:2400W | ||||||||
Cooling method | Fans colling | |||||||||
Environmental conditions | ||||||||||
Operating temperature | 0°C~40°C (Battery life decreases at ambient temperatures above 25 degrees Celsius) | |||||||||
Operating humidity | <95%(without condesing) | |||||||||
Operating altitude | <1000m(with increase of 100m,it will reduce output of 1%)max 5000m | |||||||||
Noise | <58dB(distance to machine 1m) | |||||||||
Management | ||||||||||
Display | LCD+LED | |||||||||
Computer communication interface | RS232(adjust) | |||||||||
*The abouve data is for reference.If there is any change,please refer to the real object. | ||||||||||
Features:
1 .Pure sine wave output: not damaging for load, inverter waveform is better than grid waveform
1 .Pure sine wave output: not damaging for load, inverter waveform is better than grid waveform
2.DSP control Chip: speed data processing ability, high speed data computing power,strong data storage.
3.Toroidal transformer: its loss is lower and higher efficiency, better load capacity.
4.Multiple protection: overload, overvoltage, undervoltage, high temperature, short circuit protection, etc
5.High-definition LCD display: adopted high quality LCD display,can clearly see the data from different angles.
6.Intelligent battery management system: a built-in battery overcharge protection, discharge protection, protect the batteries.
7.Power frequency solution structure: power frequency load ability is stronger, stronger impact resistance ability ,better stability.
8.Intelligent temperature control system: built-in temperature sensors, smart ventilation system for start and stop, save energy.
9.The first dual mode design, users can choose to use, mains priority mode or battery priority mode.
Buying Guides:
In order to have a better understanding of our product , please allow us to remind you with
following two tips :
following two tips :
01. We set up the price based on different power & quantity. Each products have more than
10 different types for options. Please contact our sales to get more details accordingly.
02. All of our products are support OEM & ODM service.Please tell us your requirements, we can provide you proper solutions andprices.
* Contact Supplier Get More OEM Details & Catalog, Just Click here.
10 different types for options. Please contact our sales to get more details accordingly.
02. All of our products are support OEM & ODM service.Please tell us your requirements, we can provide you proper solutions andprices.
* Contact Supplier Get More OEM Details & Catalog, Just Click here.

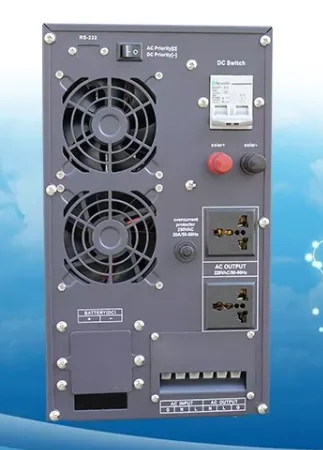

Inside Details
AC Priority[O]:
work priority by grid power, when grid power off, change to work by battery power, in this mode, battery is charged by grid power.
DC Priority[-]:
work priority by solar power as well as charging to the battery, when battery no power, automatically change to work under grid power, but solar power keep charging, when battery is charged full again, work by battery again. But in this case, grid power do not charge to the battery.
work priority by solar power as well as charging to the battery, when battery no power, automatically change to work under grid power, but solar power keep charging, when battery is charged full again, work by battery again. But in this case, grid power do not charge to the battery.

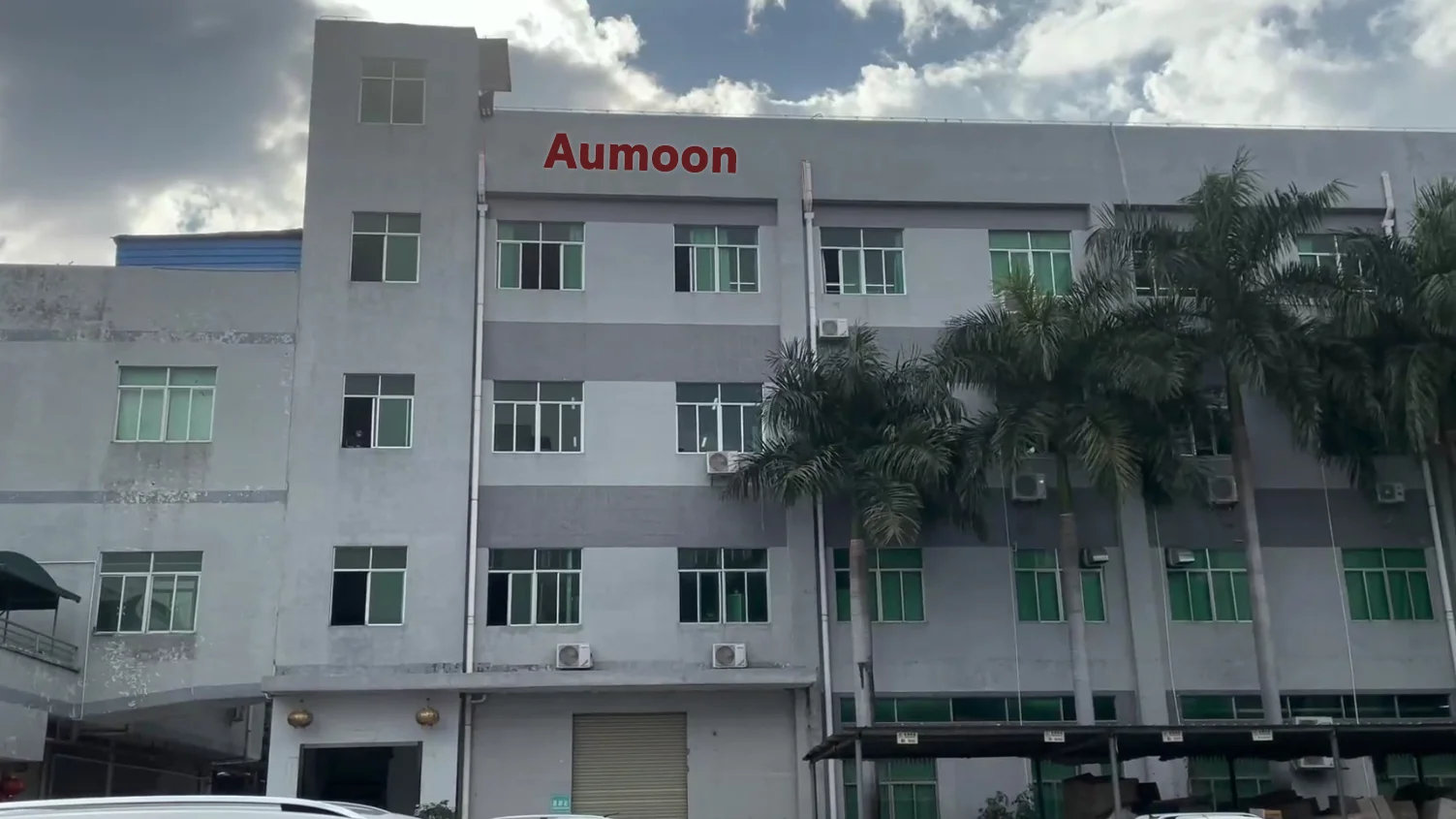

Company Profile
Shenzhen New Belief Technology Co., Ltd. is an Alibaba certified industry and trade enterprise integrating design,development, production and sales of solar charger applications and has more than 150 employees. Our all products have passed FCC, CE, Rohs,PSE and other certifications, and the establishment of a quality inspection department, our products have quality assurance. Our Factory has an annual output of more than 1 million us dollars . Our main market is selling to North America, Europe ,Asia and Africa. It has established long-term and stable cooperative relations with more than 60 countries. Our company has a research and development center, and R&D investment accounts for 25%. Constantly injecting new styles into the market, we support OEM and ODM customization and provide a one-stop package of services.
VR

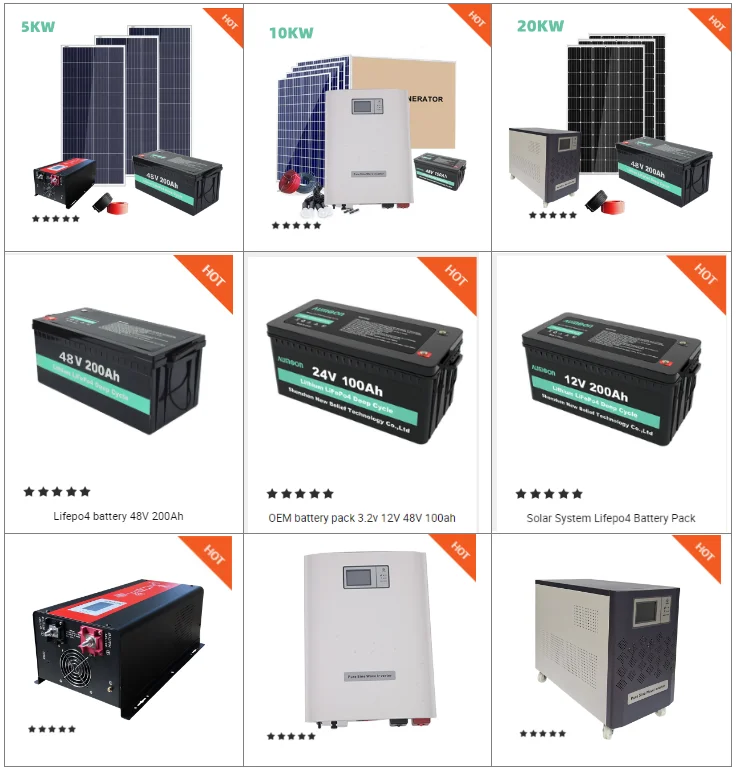

Recommend Products
Payment & Delivery
To ensure the satefy of the goods during transportantion, all of the products will well packed before ship out. If you want to know the shipping cost to your house, just click here to contact us~
FAQ
Q: How many days I can get goods after payment?
A: Usually, about the sample, we will ship the goods within 3 days after we receive the full payment. The bulk order will need 15 working days after we receive the deposit, and we will ship the goods after we receive the balance.
Q: Can you make our Customized Design or put our Company Logo on the product?
A: Usually, about the sample, we will ship the goods within 3 days after we receive the full payment. The bulk order will need 15 working days after we receive the deposit, and we will ship the goods after we receive the balance.
Q: Can you make our Customized Design or put our Company Logo on the product?
A: Sure,we can do this since we are the factory! : )
Q: What’s the payment terms?
A: We accept T/T, Paypal, western union and alipay.
Q: What’s the payment terms?
A: We accept T/T, Paypal, western union and alipay.
Q: Why Choose Our Products?
A: 1. High Quality.
2.Factory price.
3.Small MOQ.
4. With professional test standards, inspected by professional QC team
5. Various colors for preference, and OEM is avaliable.
A: 1. High Quality.
2.Factory price.
3.Small MOQ.
4. With professional test standards, inspected by professional QC team
5. Various colors for preference, and OEM is avaliable.
