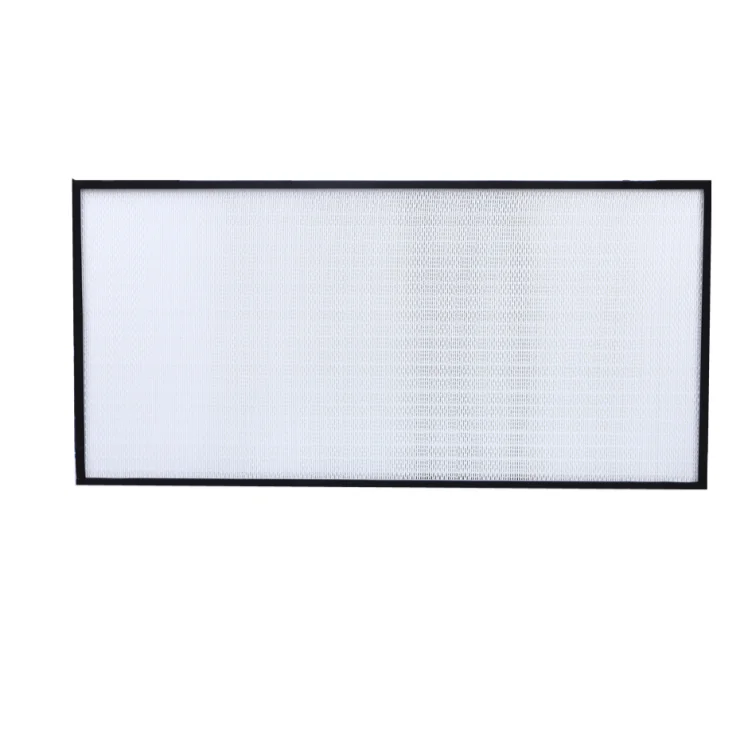

Customized Size Synthetic Fiber Custom Air Filter Hepa Material
- Category: >>>
- Supplier: Jaf Air Filter (suzhou) Co. Ltd.
Share on (1600547177208):
Product Overview
Description
Products Description
Product features:

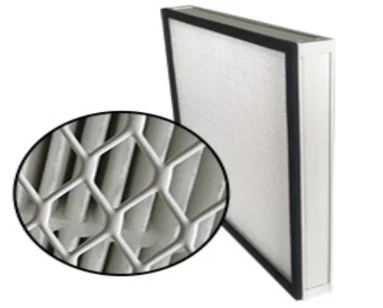

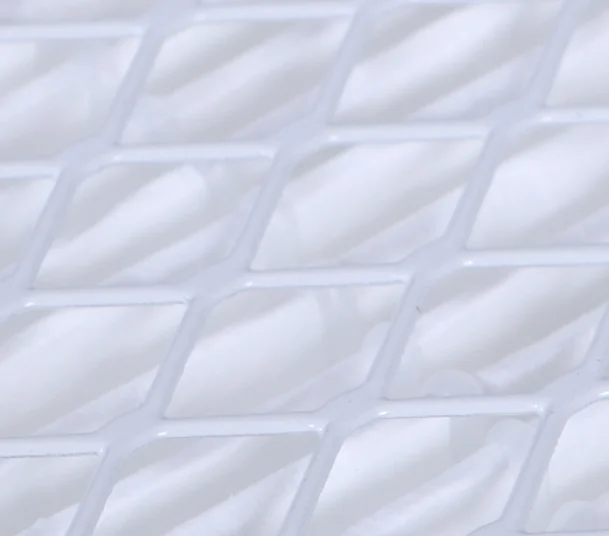

1.Dense pleated " V " type filter material structure , effective filtration area is large , small volume;
2.Low resistance , long service life , uniform airflow.
Application Scenario :
1.The final filter of clean room ventilation and air conditioning system ;
2.Air supply can directly meet the hundred / thousand / ten thousand / one hundred thousand air clean requirements;
3.Compact air purification equipmenta;
4.It can be used with FFU fan system.
Filter efficiency:
HEPA
MPPS : ≥95 % ( H11 ) , DOP : ≥99.5% @ 0.3μm
MPPS : ≥99 . 95 % ( H13 ) , DOP : ≥99 . 99 % @ 0.3μm
MPPS : ≥99 . 995 % ( H14 ) , DOP : ≥99 . 999 % @ 0.3μm
MPPS : ≥99 . 95 % ( H13 ) , DOP : ≥99 . 99 % @ 0.3μm
MPPS : ≥99 . 995 % ( H14 ) , DOP : ≥99 . 999 % @ 0.3μm
ULPA
MPPS : ≥99.995 % ( U15 ) , DOP : ≥99.9995% @ 0.1μm~0.2μm
MPPS : ≥99 . 99995 % ( U16 ) , DOP : ≥99 . 99995 % @ 0.1μm~0.2μm
MPPS : ≥99 . 999995 % ( U17 ) , DOP : ≥99 . 999995 % @ 0.1μm~0.2μm
MPPS : ≥99 . 99995 % ( U16 ) , DOP : ≥99 . 99995 % @ 0.1μm~0.2μm
MPPS : ≥99 . 999995 % ( U17 ) , DOP : ≥99 . 999995 % @ 0.1μm~0.2μm
Technical specification :
Product model | Size(mm) | Blowing rate | Efficiency | Initial Resistance | Final Pressure |
JAF-019 | 305*610*70 | 500m³/h | H13 99.99% @ 0.3μm | ≤220Pa | |
JAF-020 | 610*610*70 | 1000m³/h | |||
JAF-021 | 1220*610*70 | 2100m³/h | |||
JAF-022 | 1200*600*70 | 2000m³/h | |||
JAF-023 | 570*570*70 | 800m³/h | |||
JAF-024 | 1170*570*70 | 1500m³/h | |||
JAF-025 | 1170*1170*70 | 3000m³/h |
PS:Special size and specification can be made according to customer requirements.
Outer frame thickness : 50MM 70MM 90MM 96MM
Product Details

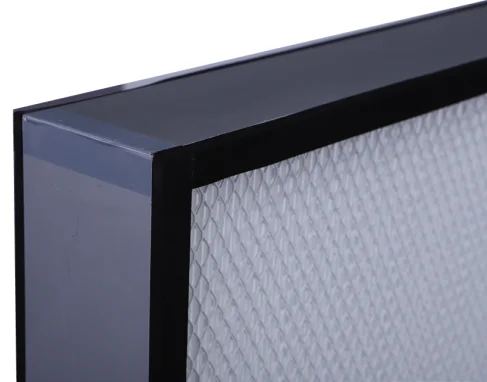

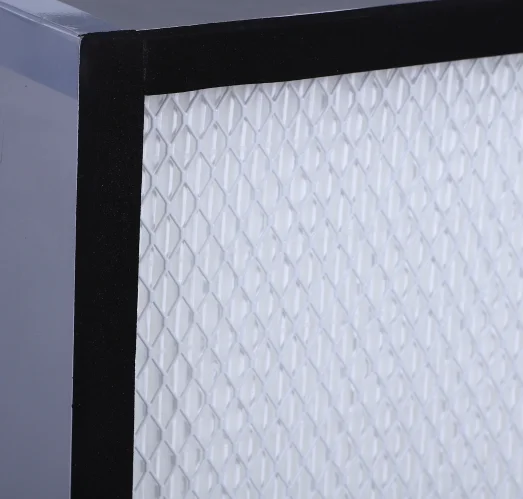

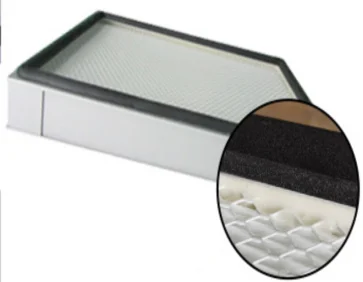

Aluminum alloy frame high temperature resistance ,no rust , no deformation ,durable.
