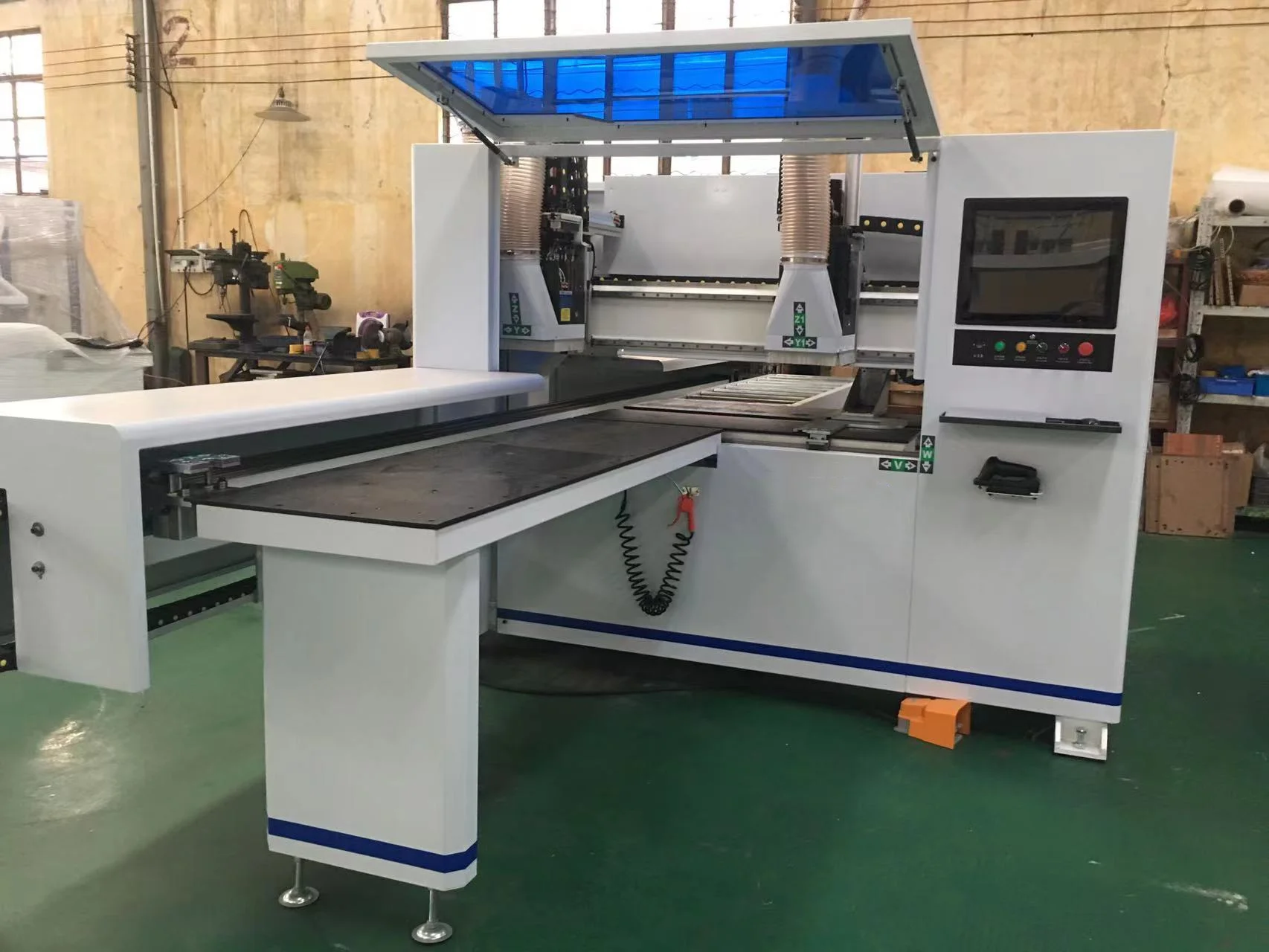

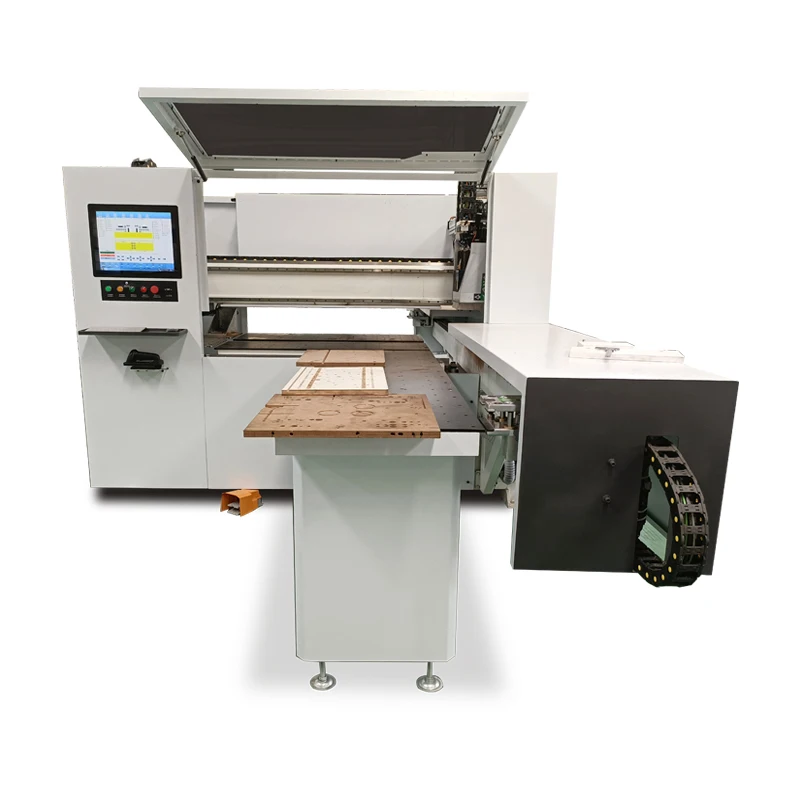

Automatic CNC Wood 6 Six Sides Boring Drilling Machine
- Category: >>>
- Supplier: Qingdao Sosn Machinery Co. Ltd.
Share on (1600547179483):
Product Overview
Description
Maximize your productivity, Improve your drilling precision, Save your labor cost,
Yes, this automatic CNC 6 sides drilling machine is your perfect choice.
scan code → put the plate → start →automatically complete the processing of the hole slot (six sides)

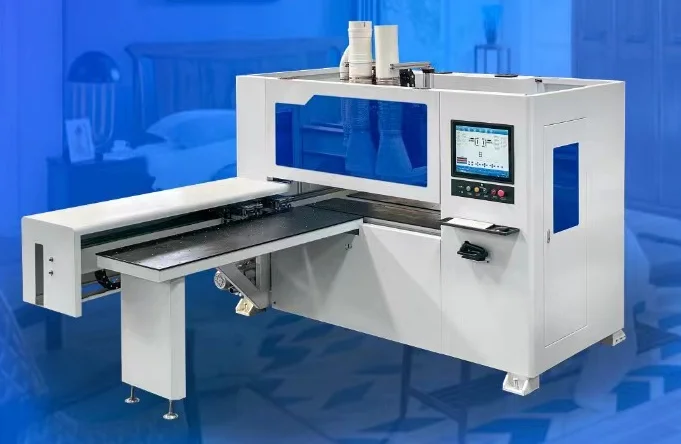

CNC Automatic 6 Sides Drilling Center Machine
It consists of customer dismantling software and our company's automatic CNC drilling and grooving machine, instead of manual row drilling and grooving. This machine adopts full
data processing mode, and optimizes the processing with customer software data, so that its parts can be processed normally on the equipment. The machine adopts the scanning bar code processing mode, which does not need manual calculation and works according to the diagram. It is easy to operate, stable, high efficiency, safe, high precision and long service life.
data processing mode, and optimizes the processing with customer software data, so that its parts can be processed normally on the equipment. The machine adopts the scanning bar code processing mode, which does not need manual calculation and works according to the diagram. It is easy to operate, stable, high efficiency, safe, high precision and long service life.
Technical Parameter
Working sides | 6 side |
Drilling group number | upper:2 ( one left, one right) bottom:1 |
Horizontal drill No. Of upper left drilling | 4 |
Vertical drill No. Of upper left drilling | 7 |
Horizontal drill No. Of upper right drilling | 4 |
Vertical drill No. Of upper right drilling | 7 |
Vertical drill No. Of bottom drilling | 6 |
power of drilling group | 2.2kw*3 |
X axis | 144M/min |
Y axis | 90M/min |
Z axis | 30M/min |
U axis | 144M/min |
V axis | 90M/min |
W axis | 30M/min |
A axis | 67.5M/min |
Y1 axis | 90M/min |
Z1 axis | 30M/min |
Spindle of upper/bottom | ER20 |
Diameter of shaft | 1/2mm |
Spindle motor power | 2.2kw+2.2kw |
Spindle speed | 18000prm/9000prm |
Panel working width | 40mm-1200mm |
Panel working length | ≥200mm |
Panel working thickness(max) | 45mm |
Worktable height | 930mm |
Total power | 28.2KW |
voltage | 380V 50HZ |
Working pressure | 0.8-1Mpa |
Weight | 3000KG |
Machine size | 4790*2280*1860mm |
Packing size | 1900*650*570mm 4900*500*320 2580*1300*2300mm |
Industrial computer, PLC control
Automatic scanning code
Air floating working table

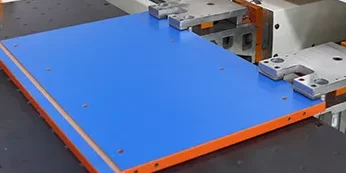

Pneumatic gripper, two group, easy for feeding

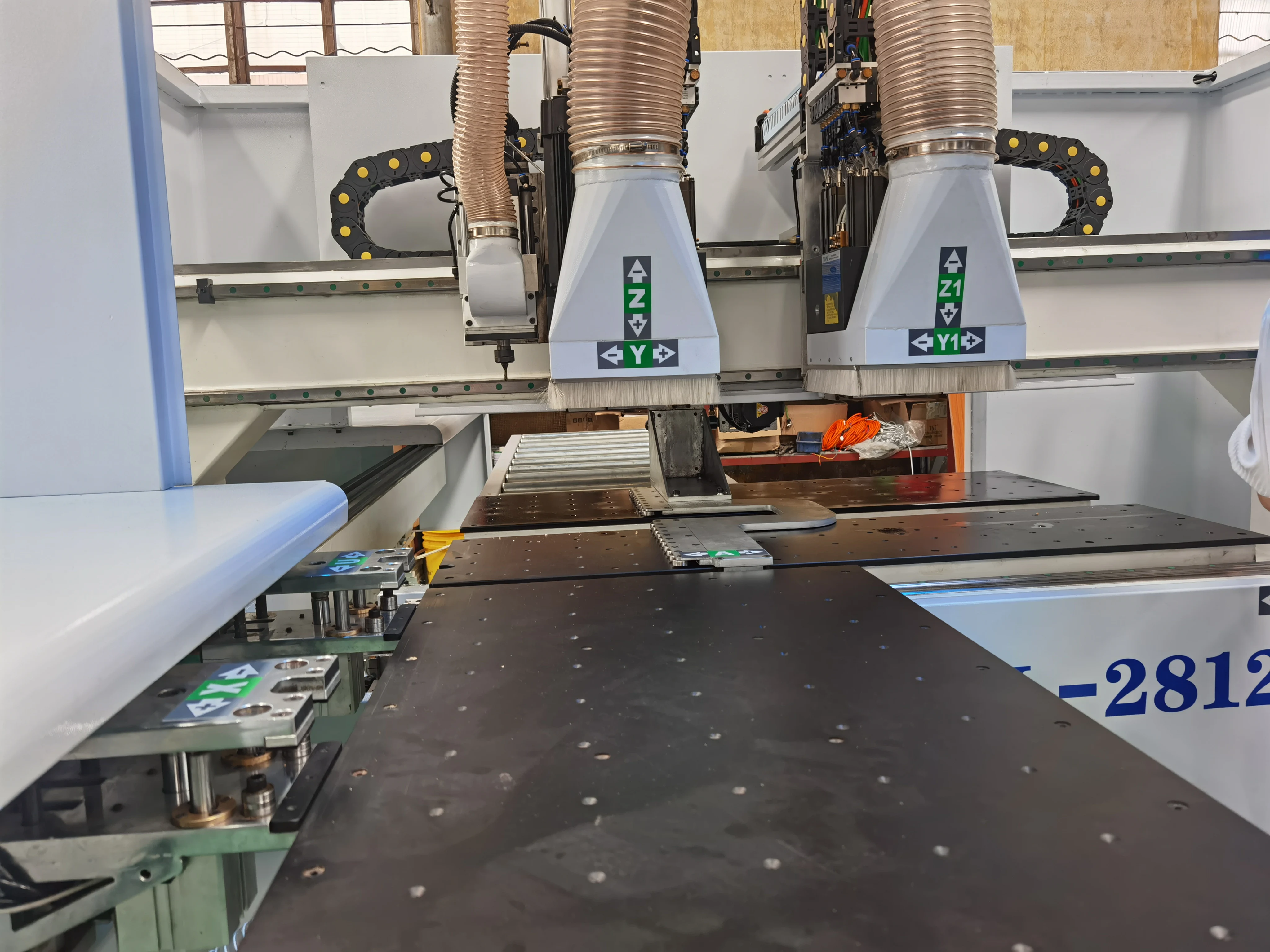

Drilling/milling unit, high precision
Drilling group from Taiwan
Side align device with fast speed
Unloading table at the back of the machine
NOTE:
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: strong stretch film.
4. Delivery time:20-25 days after getting the deposit.
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs.
2: quick delivery--timely and effective.
3: excellent after-sale services--no worries anymore.
4: friendly partner relationship--a win-win cooperation.
With professional experience for woodworking machines, we are your trusted supplier.
1. We can arrange shipment for you if you need.
2. We guarantee the machine body for one year, three months for easy-broken parts.
3. Package: strong stretch film.
4. Delivery time:20-25 days after getting the deposit.
Reasons to choose SOSN:
1: professional team--as much as possible to meet your needs.
2: quick delivery--timely and effective.
3: excellent after-sale services--no worries anymore.
4: friendly partner relationship--a win-win cooperation.
With professional experience for woodworking machines, we are your trusted supplier.
Contact me to upgrade your production, we are happy to support you for any information about this automatic door cutting machine line.
