Bldc Solar Pump 3Inch 4Inch DC Submersible Well Water Pump Solar Water Pump for Agriculture
- Category: >>>
- Supplier: Goldbell Electric (shenzhen) Co. Ltd.
Share on (1600547201175):
Product Overview
Description
Product Description

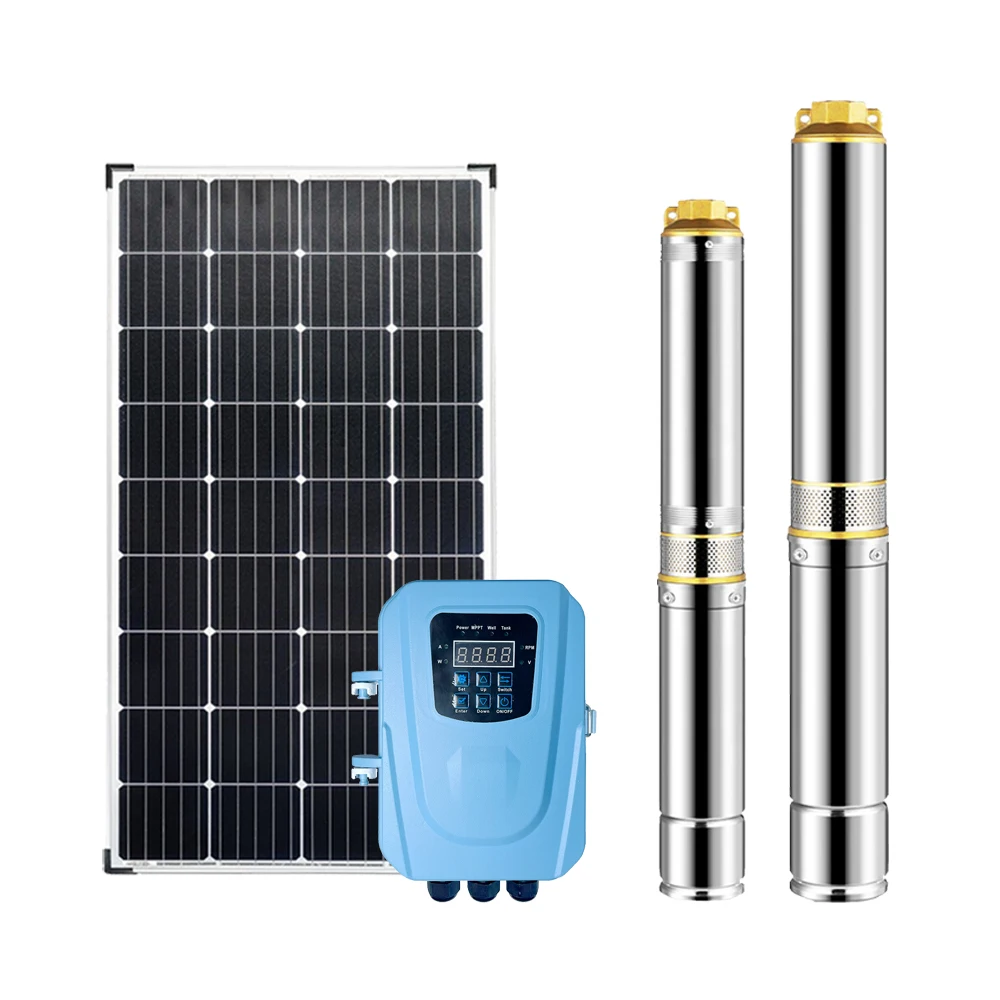

Solar Pump Irrigation System
As a professional manufacturer of complete solar water pump system, we offer practical, professional and affrodable AC and DC solar powered water pumping system to residential and commercial application.

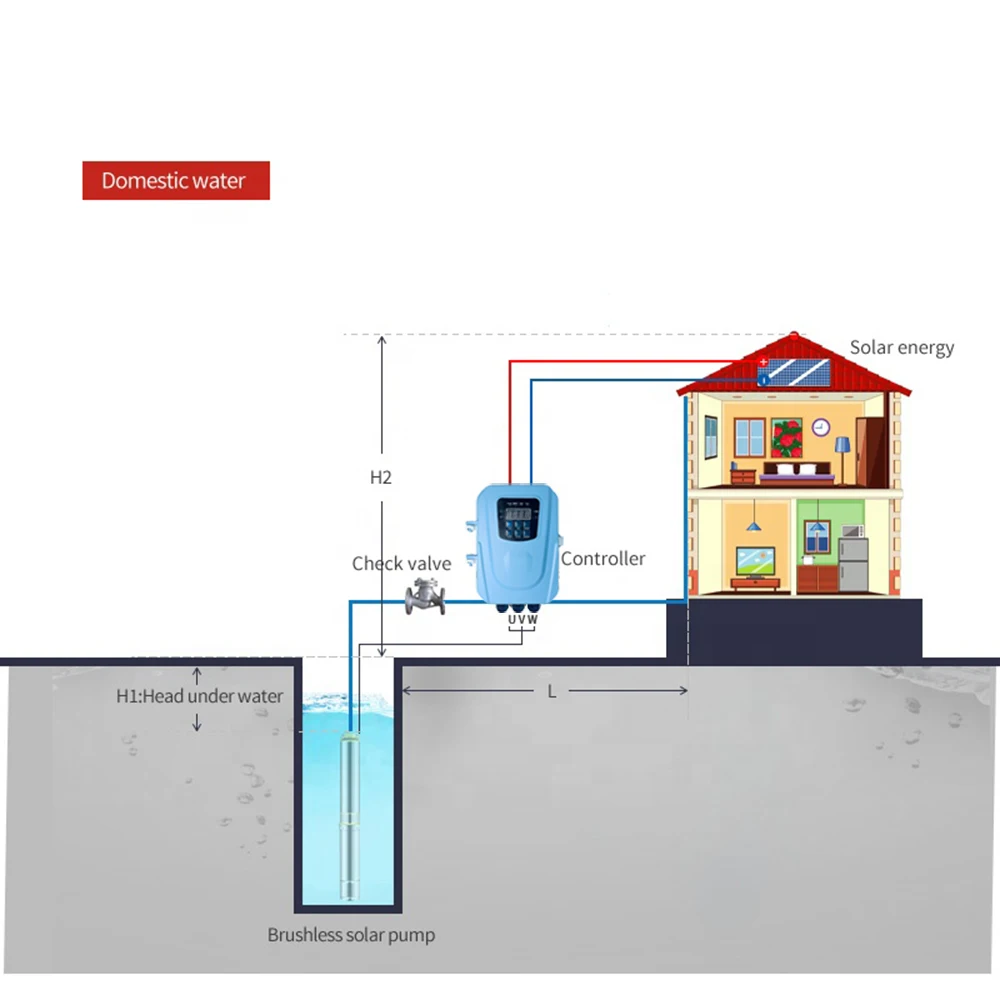

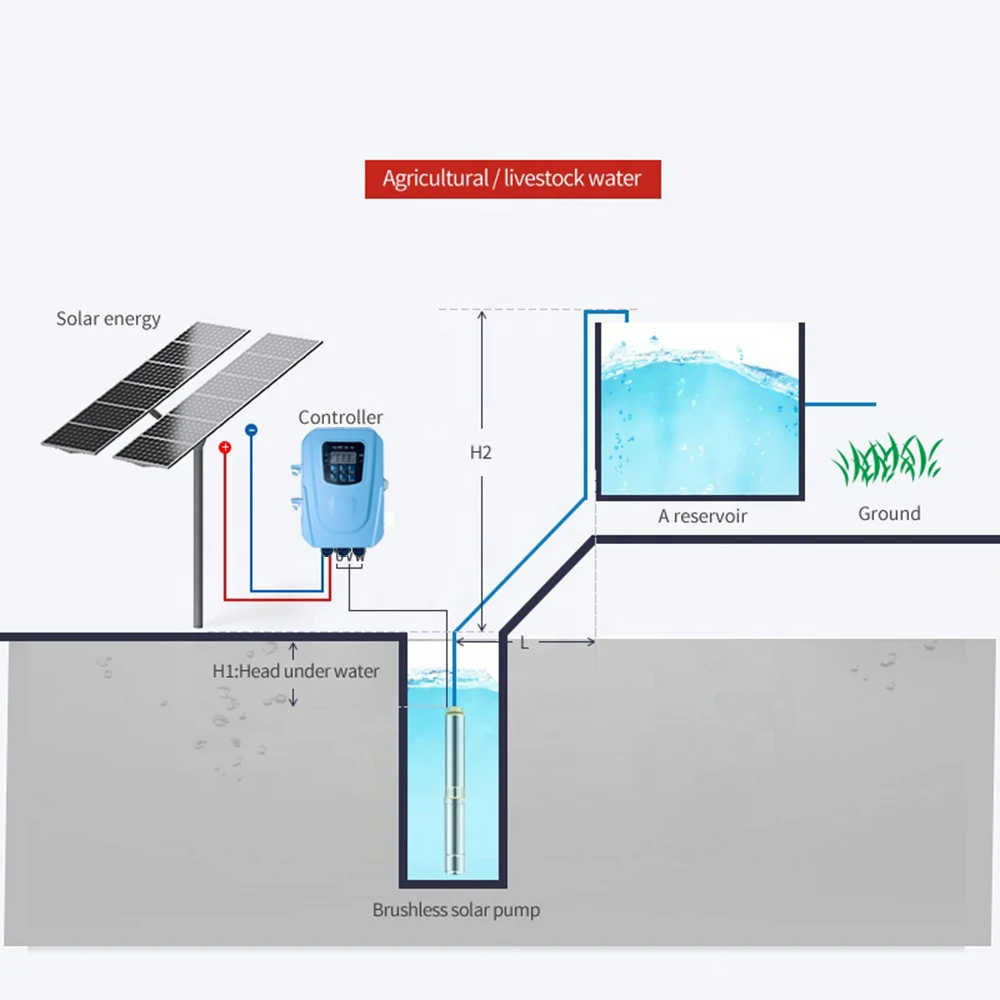

Our solar pumping system mainly consists of solar panels, the specialized pump inverter and water pump.
Our solar pumping system mainly consists of solar panels, the specialized pump inverter and water pump.
Extensive support: Solar DC input, 0.75KW-2.2KW, 3 inches & 4 inches optional, max head: 120m, max flow:
15 m³/h, meet all customer needs for solar pumps.
Multiple protection functions: dry running protection, reverse protection, overload protection, overcurrent protection, overvoltage protection, phase loss protection.
Multiple protection functions: dry running protection, reverse protection, overload protection, overcurrent protection, overvoltage protection, phase loss protection.

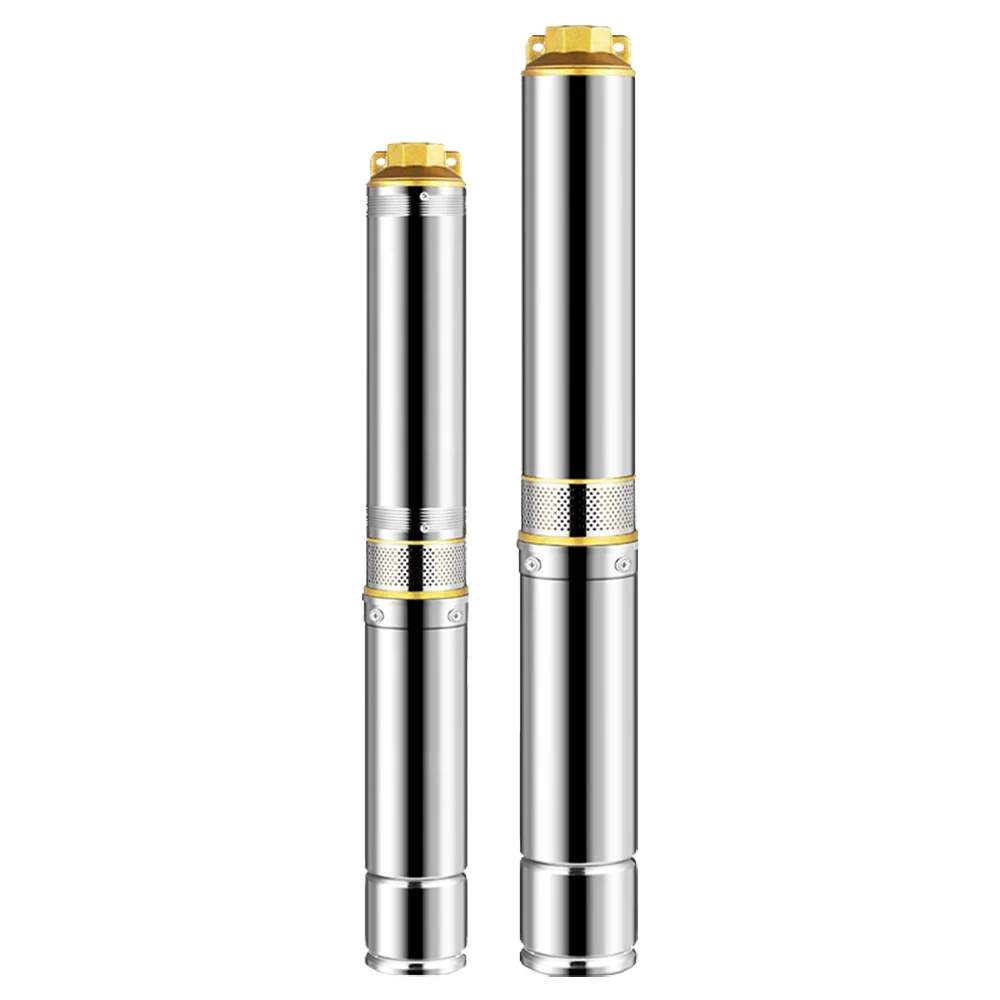

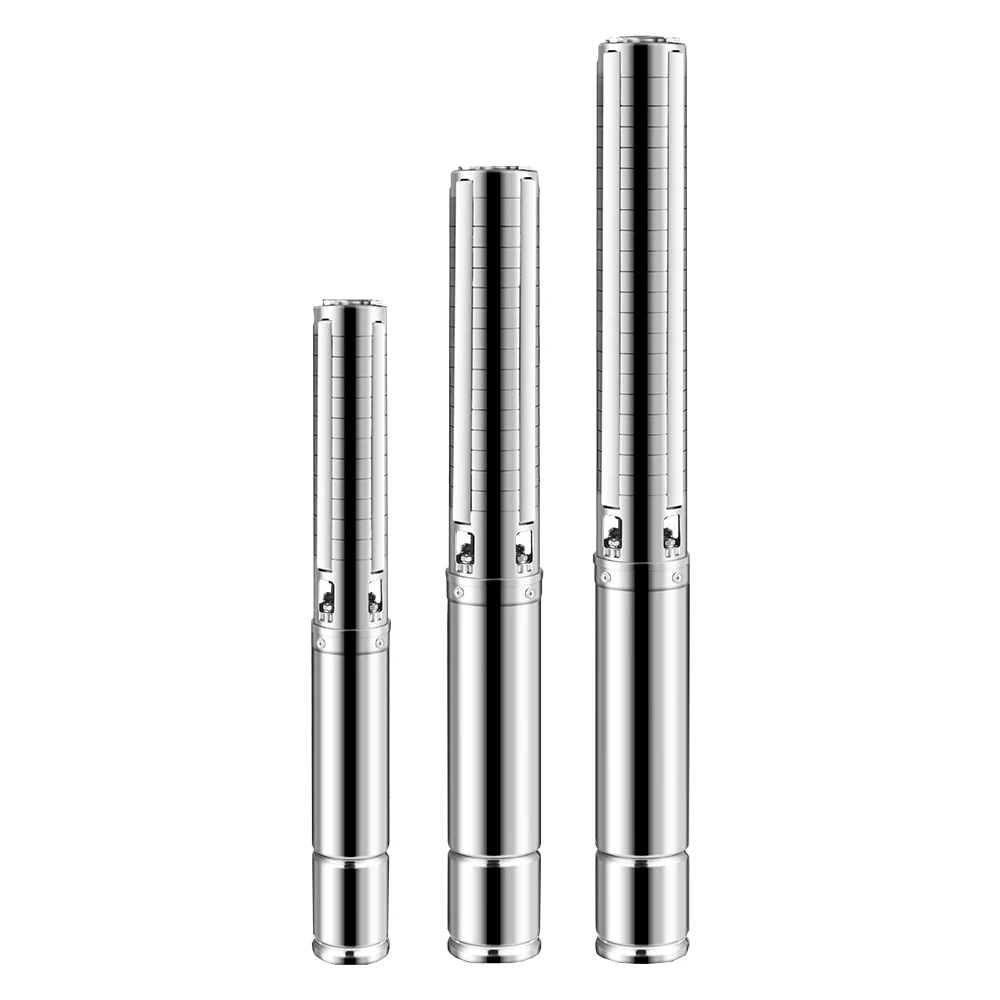

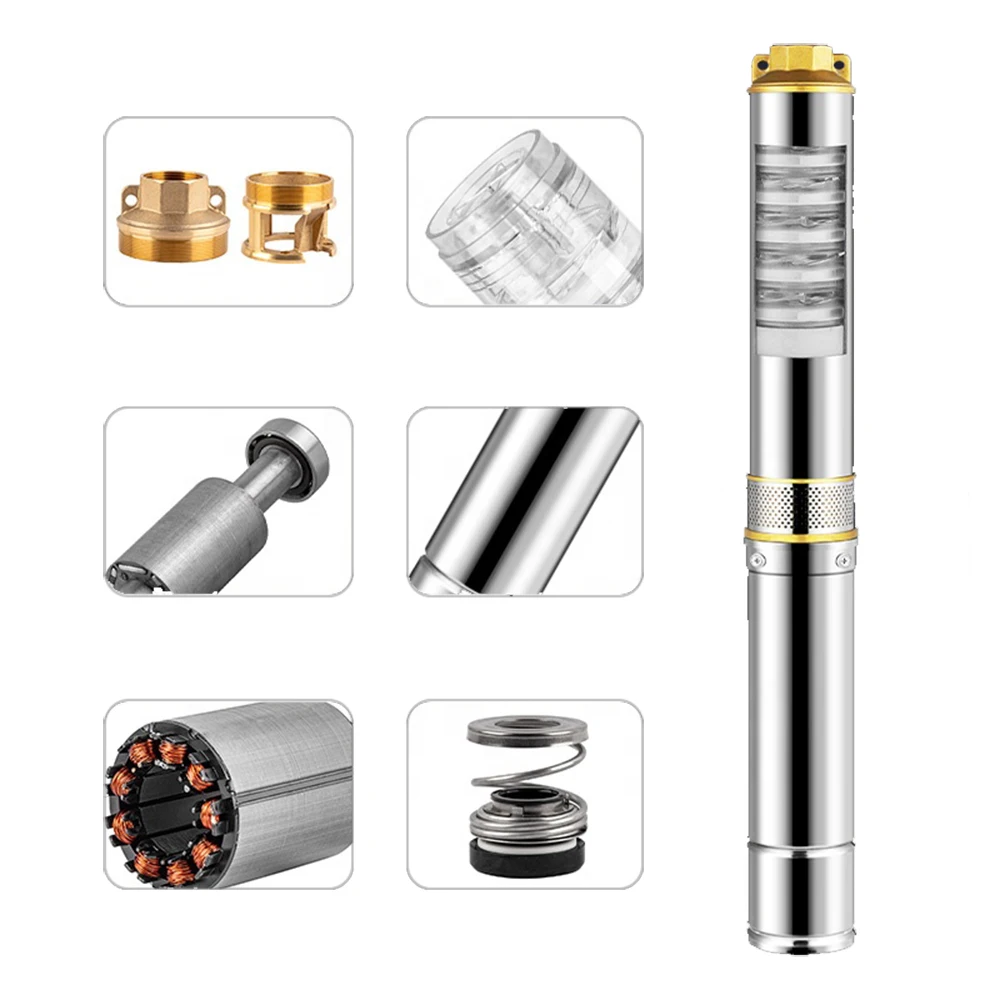

Water Pump Details
Water-cooled motor or oil-cooled motor, safe and reliable, stable and durable. 304 S/S pump shaft, high-quality bearing, alloy mechanical seal, durable and corrosion resistant.
Optional material for pump head and motor head: 304 stainless steel, brass, cast iron, durable quality and corrosion resistance.
Optional material for pump head and motor head: 304 stainless steel, brass, cast iron, durable quality and corrosion resistance.
Specification
Product | DC brushless Solar Water Pump |
Head Range | 10 m - 150m |
Flow Range | 1 m³/h - 15 m³/h |
Voltage | 24V 48V 72V 96V 110V |
Power | 200W - 1500W |
Pump Material | AISI 304 |
Motor Head | Brass / AISI 304 / Cast Iron |
Delivery Door | Brass / AISI 304 / Cast Iron |
Pump Impeller | Plastic / Stainless steel |
Pump Size | 3'', 4'' |
Pump Outlet Size | 1.25'', 1.5'', 2'' |

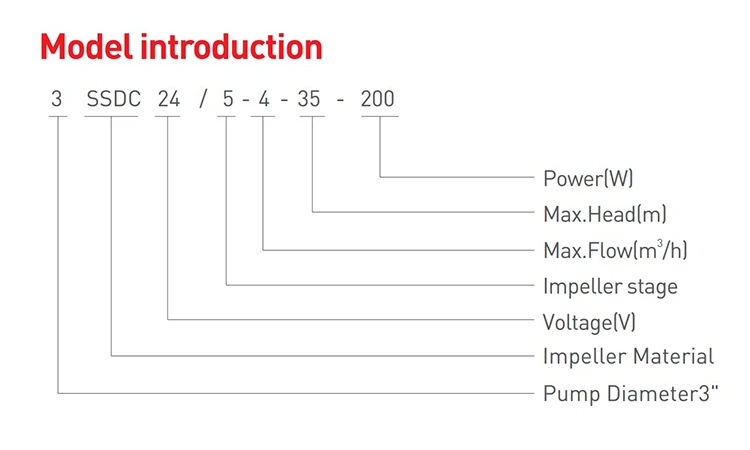

Name Rule

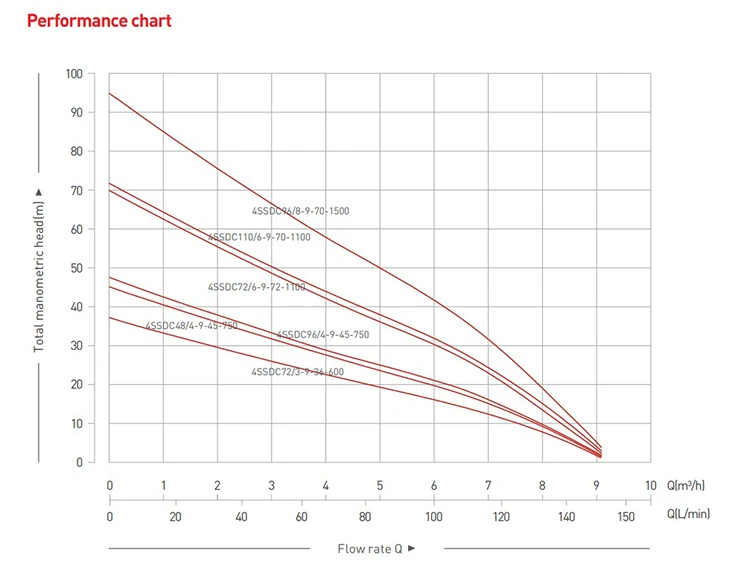

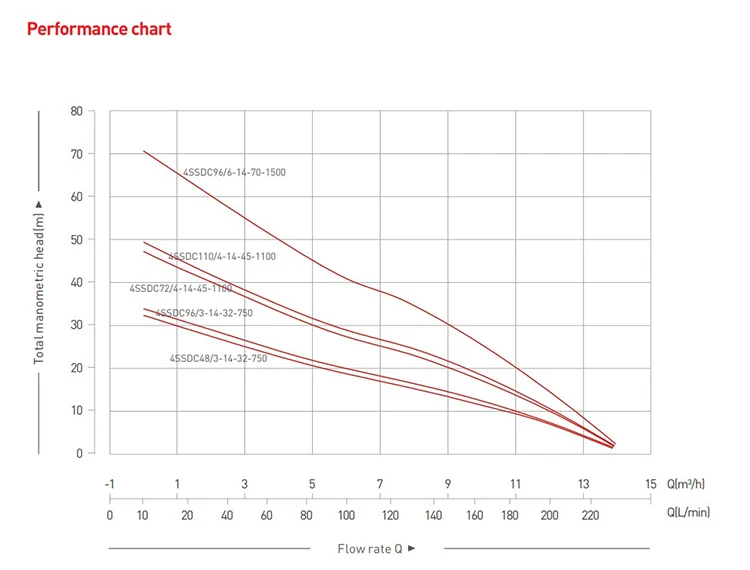

Model Selection
Cooperation Case
Project country | Mogadishu, Somalia | ||
Installtion place | Agriculture farm | ||
Solar pump system one-stop solution design | Water pump | Customer own pump, 55KW 3PH 380V surface pump. with rate 450 m3/h water flow, and 15m head | |
Solar pump inverter | GS500-75G/90P-4TB, 75KW 150A 3PH 380V MPPT solar inverter for water pump Lift time: more than 3 years | ||
Solar panel | 92KW total power solar panel 225PCS 410W/pcs mono half cell solar panel Connection: 15PCS series * 15 strings parallel Life time: more than 25 years | ||
Mounting structure | He supply by himself | ||
Customer before run his 55KW pump by diesel generator, after know it can change to be solar, so he use our 75KW solar pump inverter and 90KW solar panel to drive the system. Compared the diedel, he can save much cost. | |||
Benifits | As brazil is a rainforest country, and with amazon river flow through whole country,so brazil with abundant water resources.But because there are so many jungles and rivers, power supply is not very convenient. For most jungle residents, compared with diesel generators, they are more willing to use solar-powered pumps to pump water, which not only saves costs, but also better protects water resources and a green environment. | ||
Company Profile
GOLDBELL ELECTRIC (SHENZHEN) CO., LTD. is located in Shenzhen City, Guangdong Province. It is a national high-tech enterprise focusing on industrial automation control and new energy fields. Its products include frequency inverter, solar pump inverter, solar water pump, solar pump system, etc. After 10 years of industry technology precipitation, it has excellent software and hardware design, development, production and sales capabilities, and can provide customers with one-stop overall solutions.
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Over the years, we have obtained ISO9001:2015 quality system certification, CE certification. And won a number of honorary titles and patented technology certificates such as Shenzhen and national high-tech enterprises.
Through our unremitting efforts, the products have been sold to more than 30 countries and regions in the Middle East, Africa, Southeast Asia, North America, and South America. . In the future, distributors from all over the world are welcome to join hands with GOLDBELL!
Packing & Delivery
Outer Packaging: high-quality strong export wooden box.
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation.
Inner Packaging: bubble bag to protect the controller and water pump from damage during transportation.
FAQ
1.What can you buy from us?
Solar pump inverter, solar water pump, solar pump system and accessories, etc.
2. What differences between you and other suppliers?
We not only provide customers with products, but also provide customers with complete technical solutions, from system design, software development to equipment installation, one-stop solution to customer problems, meet customer needs, save customers time and cost.
3.How about your products quality inspection?
Products go through 5 quality inspections before leaving the factory: component test, safety test, power test, aging test, and load test. Ensure that the quality of the product is consistent and durable.
4.Where is our main market?
Our current main markets are concentrated in the Middle East, Africa, Southeast Asia, South America and North America.
The main countries currently serving customers are: Syria, Yemen, Afghanistan, Pakistan, Egypt, Sudan, Turkey, Morocco,
Philippines, Brazil, the United States, etc.
5.What is the payment term can we provide to you?
We accept T/T, L/C, Western Union, MoneyGram and Paypal
6.How long does it take to deliver the goods?
Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
7.Do you support the oem business?
Yes, we support OEM and ODM bussiness, you can tell us your custom ideas.
8.What is the warranty?
We provide more than 2 years of warranty for all the goods from us.
Solar pump inverter, solar water pump, solar pump system and accessories, etc.
2. What differences between you and other suppliers?
We not only provide customers with products, but also provide customers with complete technical solutions, from system design, software development to equipment installation, one-stop solution to customer problems, meet customer needs, save customers time and cost.
3.How about your products quality inspection?
Products go through 5 quality inspections before leaving the factory: component test, safety test, power test, aging test, and load test. Ensure that the quality of the product is consistent and durable.
4.Where is our main market?
Our current main markets are concentrated in the Middle East, Africa, Southeast Asia, South America and North America.
The main countries currently serving customers are: Syria, Yemen, Afghanistan, Pakistan, Egypt, Sudan, Turkey, Morocco,
Philippines, Brazil, the United States, etc.
5.What is the payment term can we provide to you?
We accept T/T, L/C, Western Union, MoneyGram and Paypal
6.How long does it take to deliver the goods?
Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
7.Do you support the oem business?
Yes, we support OEM and ODM bussiness, you can tell us your custom ideas.
8.What is the warranty?
We provide more than 2 years of warranty for all the goods from us.
