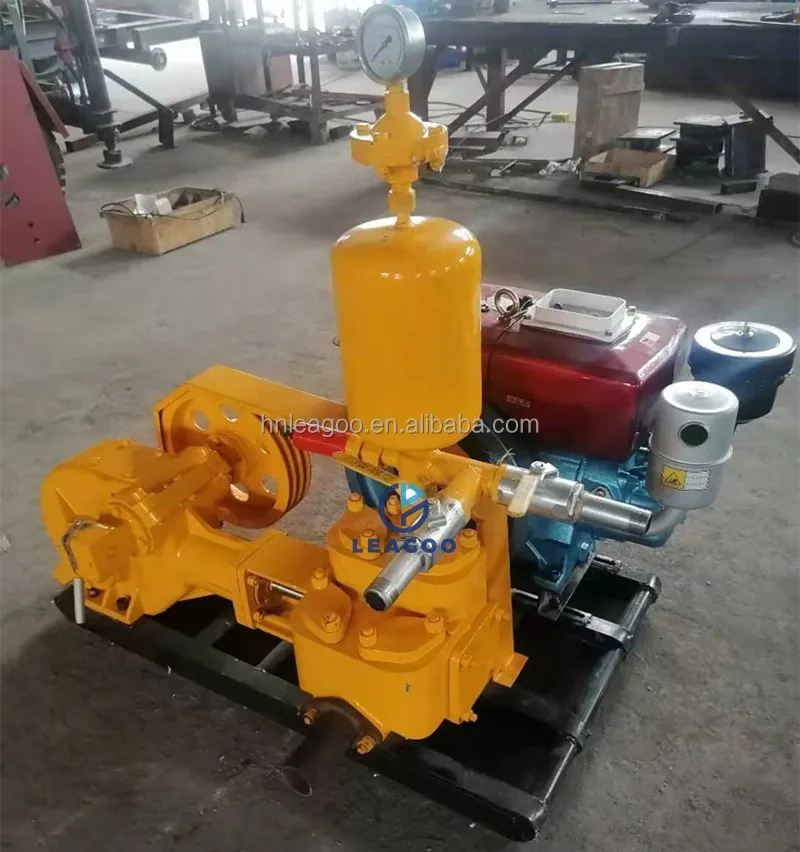

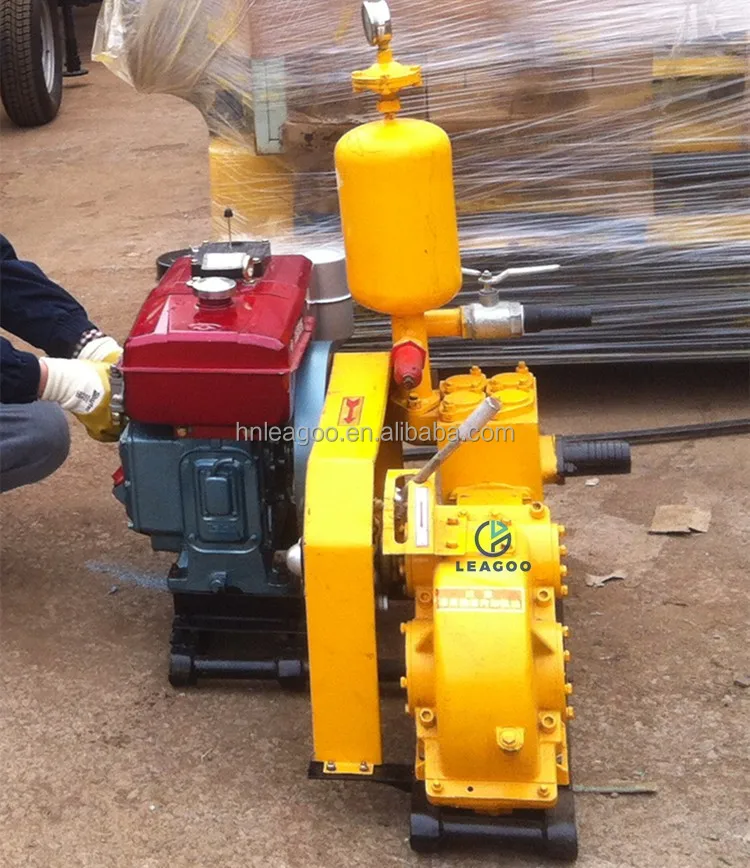

BW-160 Diesel Engine Drilling Mud Pump with Best Price
Model BW-160 mud pump is a kind of portable mud pump. The pump is a horizontal single cylinder reciprocating double acting piston pump, has four flow and four kinds of pressure, flow and pressure.
Technical Parameter
Diesel Engine Drilling Mud Pump with Best Price
No. | Name | Technical Parameters |
1 | Model | BW-160 |
2 | Number of cylinders | 1 |
3 | Cylinder diameter | 95mm |
4 | Piston stroke | 85mm |
5 | Frequency | 165 time/min |
6 | Theoretical flow | 160 L/min |
7 | Rated pressure | 1.3Mpa |
8 | Volume efficiency | 88% |
9 | Belt wheel speed | 951rpm |
10 | Power | 5.5kw/8HP |
11 | Inlet inside diameter | 42mm |
12 | Outlet inside diameter | 32mm |
Our Services
1.Professional pre-sale and after-sale technical support
2.Provide spare parts at cost price all year around.
3.Online service 24 hours* 7 days
4.One year guarantee for main machine
5.Operation video and manual are available.
Company Information
LEAGOO Company offers different capacity trailer/crawler/truck drilling rigs, Depth as 100m, 150m, 200m, 300m, 600m, 1000m etc. They're widely used for water well, geothermal wells, coring, geotechnical exploration,etc.
There are alloy bit, diamond bit, tricone bit, DTH bit, auger bit for different request, which works with mud pump or air compressor.
Pls kindly offer us: drilling depth (m), diameter (mm), project purpose, layer conditions, we will offer suitable models.
