Brackish Water Reverse Osmosis Desalination Pure Water Processing Machine
- Category: >>>
- Supplier: Guangzhou Vocee Membrane Technology Co. Ltd.
Share on (1600547234253):
Product Overview
Description
Product Description

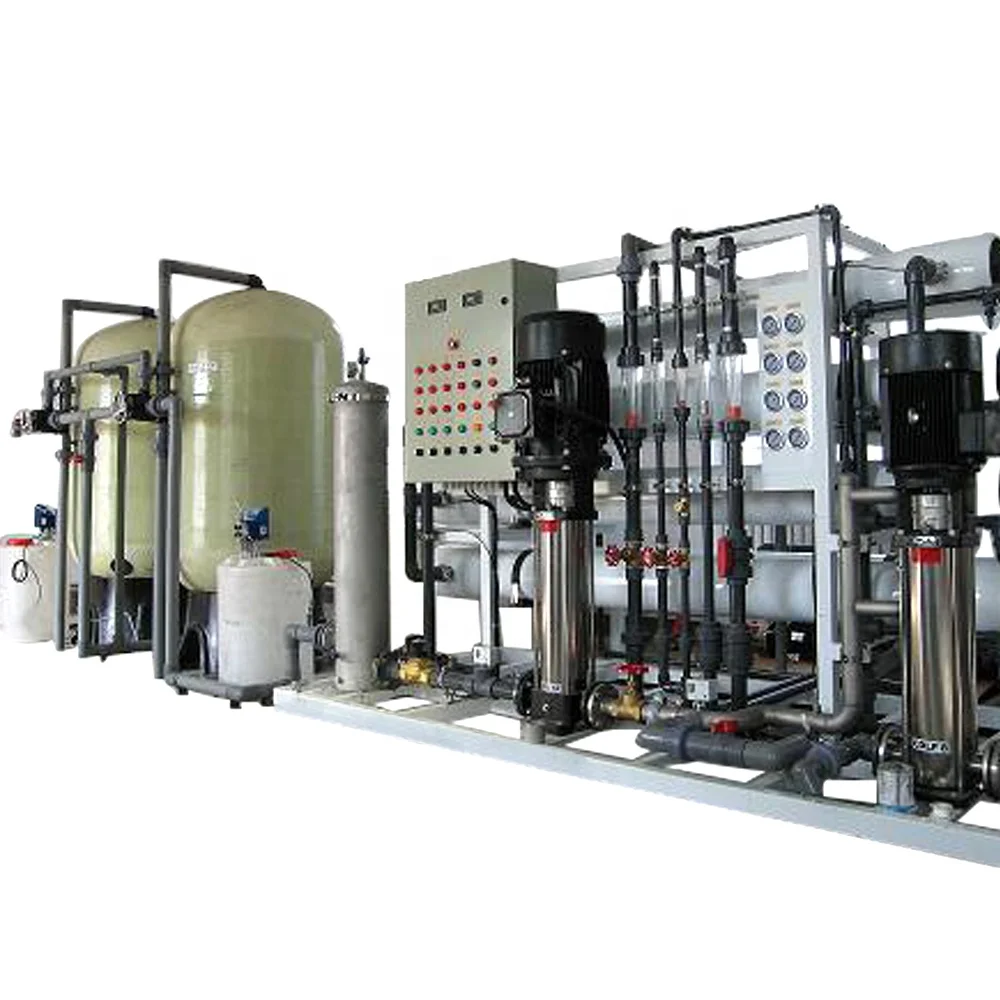

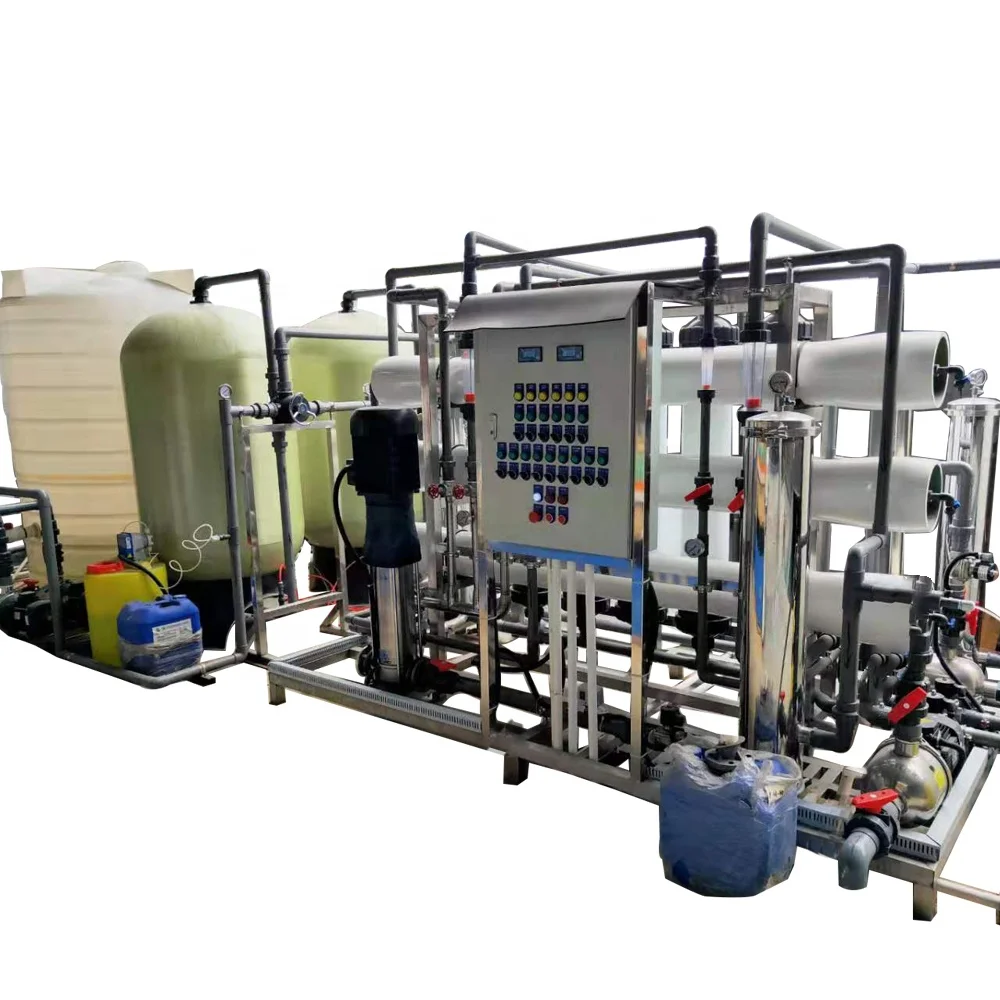

Brackish Water Reverse Osmosis Desalination Pure Water Processing Machine
The reverse osmosis method can adapt to all kinds of raw water with salt content, especially in the high-salt water treatment project, it can remove the most bacteria, colloids and large molecular weight organic substances while removing salt. which has good advantages of high salt rejection rate, high recovery rate, stable operation, small floor space and simple operation, obtain good technical and economic benefits.
| Model | WX-RO-3000LPH |
| Production Capacity | 3000Liter per hour |
| Power Supply | 220V/380V 50HZ |
| Raw Water Pump | CNP SS304 |
| Quartz Sand Filter | FRP |
| Activated Carbon Filter | FRP |
| Softener Filter | FRP |
| Cartridge Filter | SS304 |
| High Pressure Pump | CNP SS304 |
| RO Membrane | Vontron/Dupont |
| Membrane Housing | SS304 |
| Sterilizer Device | UV or Ozone |
What's the reverse osmosis water treatment plant?
Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogen, colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 0.9Mpa~1.5Mpa through reverse osmosis membranes. Water permeates the fine pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 96%-99% of total dissolved solids (TDS), 99% of organic matter, including pyrogen, and 99% bacterial in the feed water.
RO system is widely used in water treatment, purification for tap water, well water, underground water, borehole salty water, brackish water and seawater, pure water and ultra-pure water production. Application area such as, food processing, bottled drinking water, home use drinking water, power stations, electronic industries, cosmetics production, pharmaceuticals manufactories, and medical treatment(such as hemodialysis). It is a key equipment for pure water plant and ultrapure water equipment.
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter/softener.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, smell, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
2. Multi-medium filter--get rid of turbidity, suspended matter, organic matter, colloid, etc.
3. Active Carbon filter--Remove the color, smell, free chloride, organic matter, harmful matter, etc.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Security filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump--Provide the high pressure to RO membrane.
7. RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Wide Range of Applications
It can be widely used in food, beverage, Electroplating, electronics, optics, chemicals, semiconductors, cosmetics, thermal power plants, metallurgy, light industry, automobile manufacturing, pharmaceutical, medical, industrial water and other fields.
Related Products
WX-RO&EDI Machine
WX-RO&EDI Machine
WX-RO System
WX-UF&RO System
Company Information
Guangzhou Vocee Membrane Technology Co.,Ltd is a membrane separation technology-based enterprise with advanced ultra-filtration membrane, MBR membrane production technology and more than 10 years of product application experience, to provide you with high-performance membrane water treatment as the core of the overall technical solutions.We always put our service in our work,and provide quality services to our customers and partners. If you have questions or have any opinions in the process of cooperation, you can contact with us at any time.
Our Main Products:
Ultra-filtration & MBR membrane, UF plant, MBR system, Nanofiltration equipment, RO equipment, EDI ultra pure water equipment, waste water recycling,sea water desalination,sewage treatment,material concentration and separation equipment and other membrane filtration systems. Our products are widely applied in varies of industries such as food and beverage process water, textile and paper industry, brackish water desalination, electronics industry Ultra-pure water, pharmaceutical industry, chemical industry, boilers, and public water treatment systems, etc.
Certifications
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer?
A:We are the Top professional manufacturer in China, more than 10 years experience in the water treatment.
Q: What's your delivery time?
A:Normally,it need about 10-30 days.The exact time depends on your quantity.
Q:What about the machine’s capacity?
A:250L-500T per hour.
Q:What's the information we need to know?
A1: what's your raw water ?
B1: what's the capacity per hour of the equipment ?
C1: What's the application of purifier water ?
Q:What kinds of product you supply?
UF&MBR hollow fiber membrane
Reverse osmosis(RO) water purification system
EDI Ultra Pure Water System
Ultrafiltration(UF) System
Brackish Water Desalination System
Seawater Desalination System
Reclaimed-Water Recycling System
Wine Clarification Machine
Water Treatment Accessories
