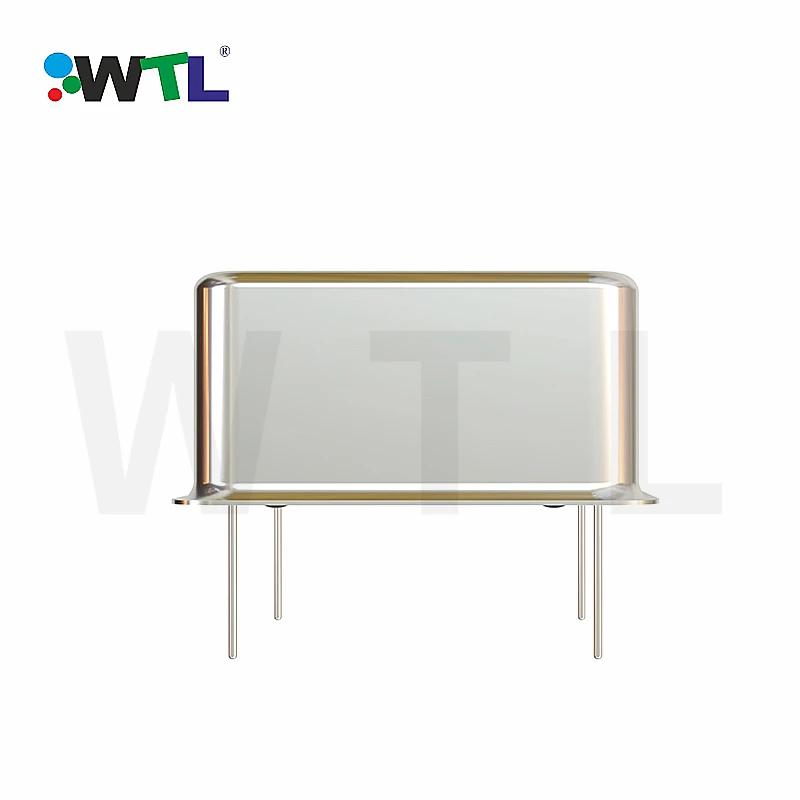

WTL OLH 25.4 x 25.4mm DIP 10 mhz 5V 0.1ppm OCXO
- Category: >>>
- Supplier: WTL International Limited
Share on (1600547247310):
Product Overview
Description
Product Description

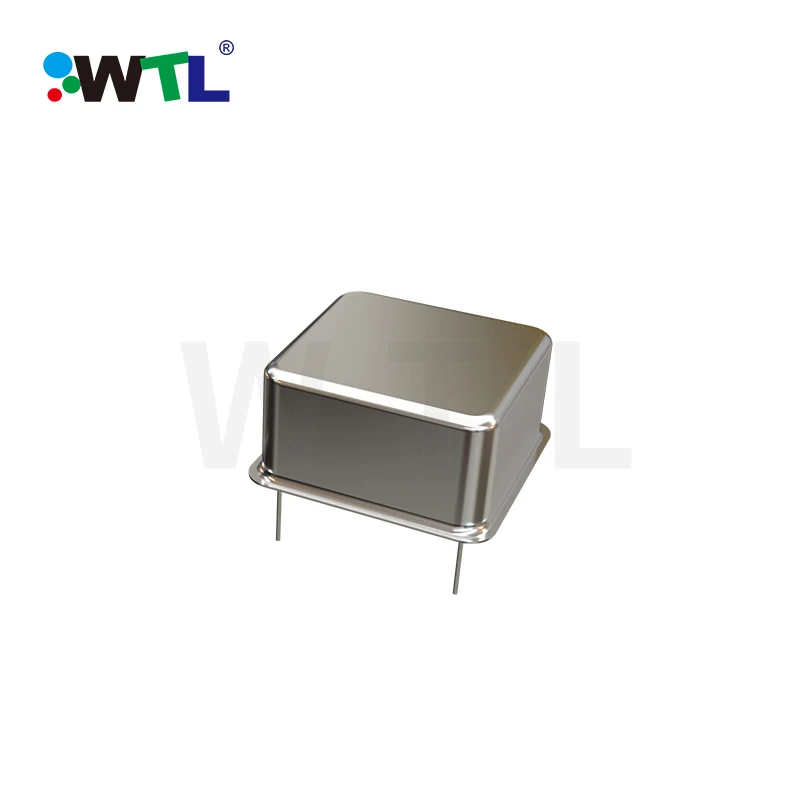

OCXO, Series OLH
DIP Oven Controlled Crystal Oscillator

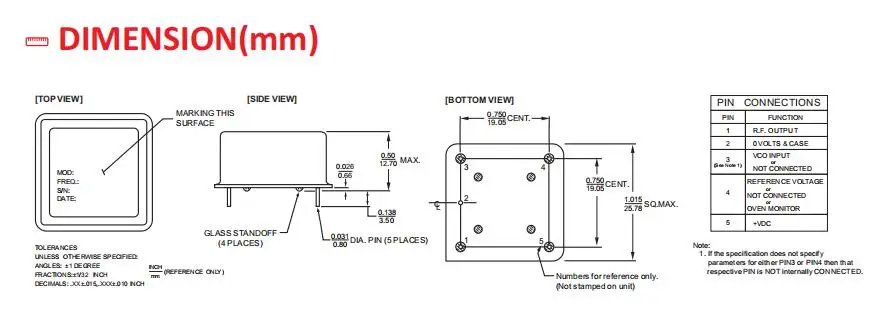

25.4×25.4×12.7mm
Feature
1.Typical 25.4 × 25.4 x 12.7mm
2.Hermetically Sealed DIP Package
3.Low power consumption and high reliability
4.SC Cut Crystal
Electrical Specifications
| Parameter | 5.0V | Unit | ||
| Min. | Max. | |||
| Suppliy Voltage Variation | 0 | 5.0 | V | |
| Frequency | 10.000 | MHz | ||
| Frequency stability | ±3 | ppb | ||
| Supply Current | - | 800 | mA | |
| Duty Cycle | 45 | 55 | % | |
| Control Voltage Range | 4 | 4.0 | V | |
| Output Level | Rectangular | 2.4 | 0.4 | V |
Phase Noise | 100Hz | -135 | dBc/Hz | |
| 1kHz | -145 | |||
| 10kHz | -155 | |||
| Aging(@25 1st year) | - | ±50 | ppb | |
| Storage Temp. Range | -55 | 125 | C | |
Our Advantages
1.Established: Year 2012.
2.Full range of frequency components including:
Quartz Crystal, Watch Crystal, Saw(ceramic) Resonator&Filter, Oscillator, TCXO,VCXO,VC-TCXO,OCXO and Dielectric Antenna etc.
3. Complete quality system including:
a)IQC,IPQC,FQC,OQC,QA
b)Whole ERP system control
c)ISO9001,ISO14001
d)RoHS &SGS,meet the export standards of EU
4. The professional team Such as:
a)365 days online serivce
b)Solid knowledge of English language,support you solving quality problems
c)Professional operating global courier
d)Salesman graduated from the domestic or overseas foreign trade university
e)Perfect training system,all team members have to be trained before working
5.Over 100+ Countries and Regions, 30+ Distributors.
Benefits for you if we cooperate
1.PCB VS Crystal Matching Test for Free
2.FAE Support
3.Provide A Full Set of Reliability Lab
4.Door to Door Service
5.Global 180 Days Return
6.Custom-made Frequencies Due to we have our own Wafer Production Line
