Office Voucher Documents Heat Binding Machine

Product Overview

Description

Features

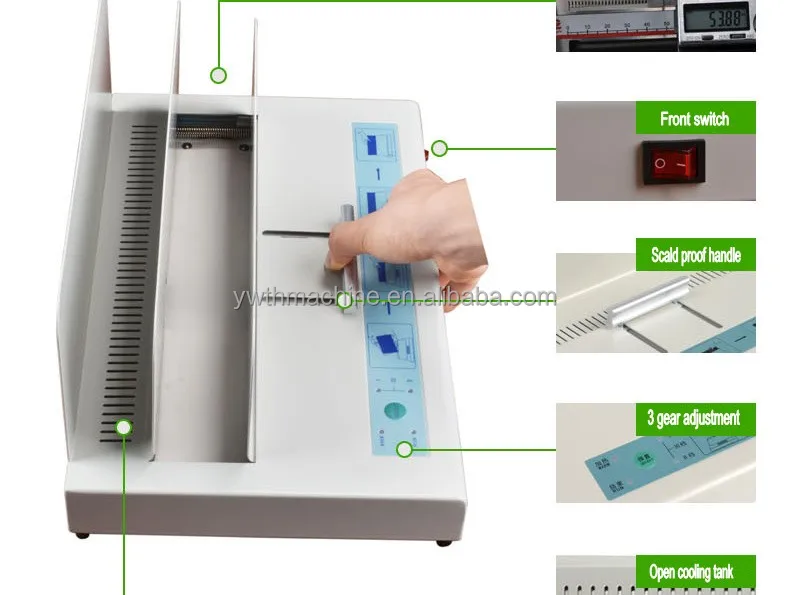

1.CPU program control: reflect the new concept of electronic binding
2.50MM thick binding: 1-500 paper any thickness
3.PTC ceramic heating: sustainable work, safe and reliable
4.Three time temperature control: tailor for different thickness of the document design
5.Manual rail clamping: to prevent the first page off
6.High-precision delay protection: absolutely threatening the overflow of plastic, energy conservation
7.Infrared photoelectric detection: save worry

Binding Thickness	1-50MM
Binding Capacity	500sheets
Max.Binding Length	320mm
Preheating Time	3-5min.
Applicable cover thickness	50-350g
Power	220V/100W
Overall Size	380*235*135mm
N.W	2.5KG

Machine color:Silver gray and black, if there is no remark after order,it will be shipped randomly.

Steps / methods
First turn on the thermal switch machine power switch, so that the binding machine began to warm up.
Approximately three minutes after the preheating machine is expected to finish, the green light.
Will be stapled pages into the hot melt stapler hot melt jacket, up and down left and right alignment, especially the ridge at the top and bottom knock Qi (below to push in the end, to determine the bottom of the envelope and the machine aluminum contact), the front gray The arc switch gently push the red, red light.
About 40 seconds after the green light and then on the hot stamping book, from the hot melt binding machine to take out the text on the cooling rack after two minutes of text forming.
