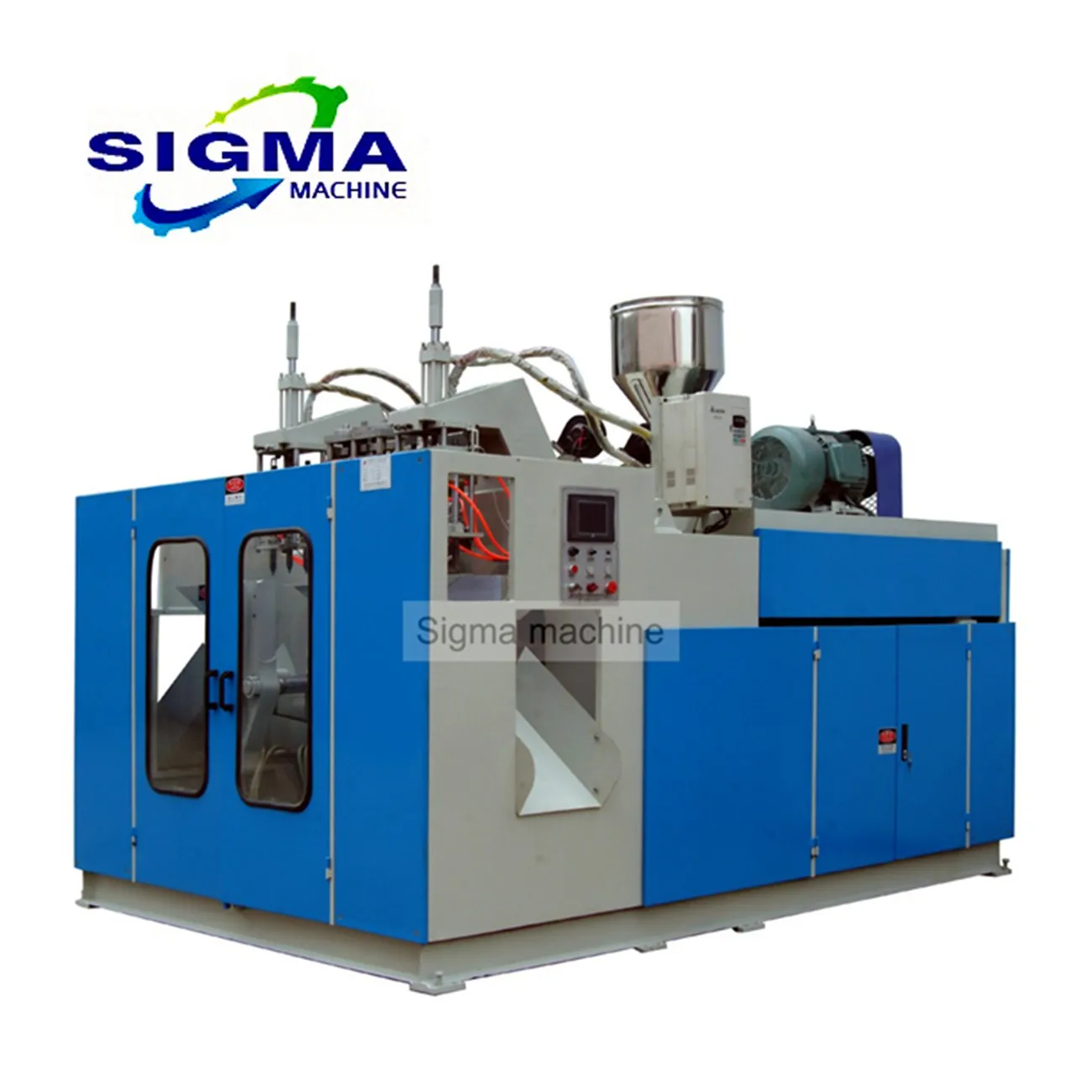

low price 2l 5l plastic jerry can jerrycan making machinery extrusion blowing blow molding machine
- Category: >>>
- Supplier: Zhangjiagang City Sigma Machinery Co. Ltd.
Share on (1600547604447):
Product Overview
Description
Product Description
Sigma series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages,medicines, chemical products, pesticides, detergents, etc with material of PE,PP,PVC from 5ml to 100L,such as water bottles,milkbottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
1. Reasonable structure design and solid frame manufacturing to insure running stability.
2. Good head material runner deisgn and precision metal process for changing color easily.
3. According to your specified request, our machine can be made with co-extrusion of 2~4 layers and view stripe line.
4. Colorful touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.
5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting,in-mould labeling, weight testing and leakage testing, product conveying & packing.
Final product of extrusion blowing molding machine
extruder blowing molding machine usually used for pvc pe pp abs.
Our factory extrusion blow molding machines have been exported to Germany, to Europe, to ensure the quality and reputation double.
Detailed Images

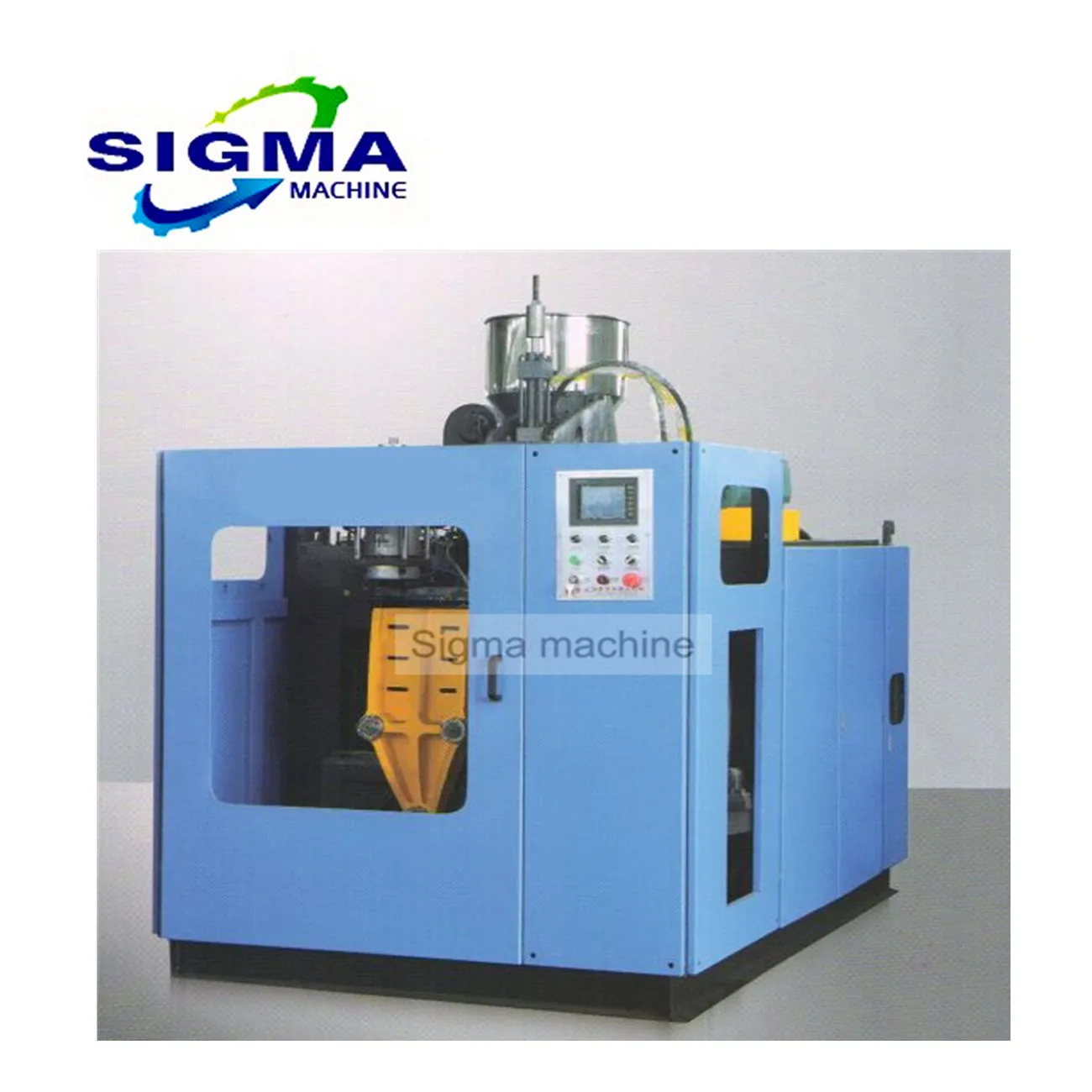

A:SG-single station blow moulding machine

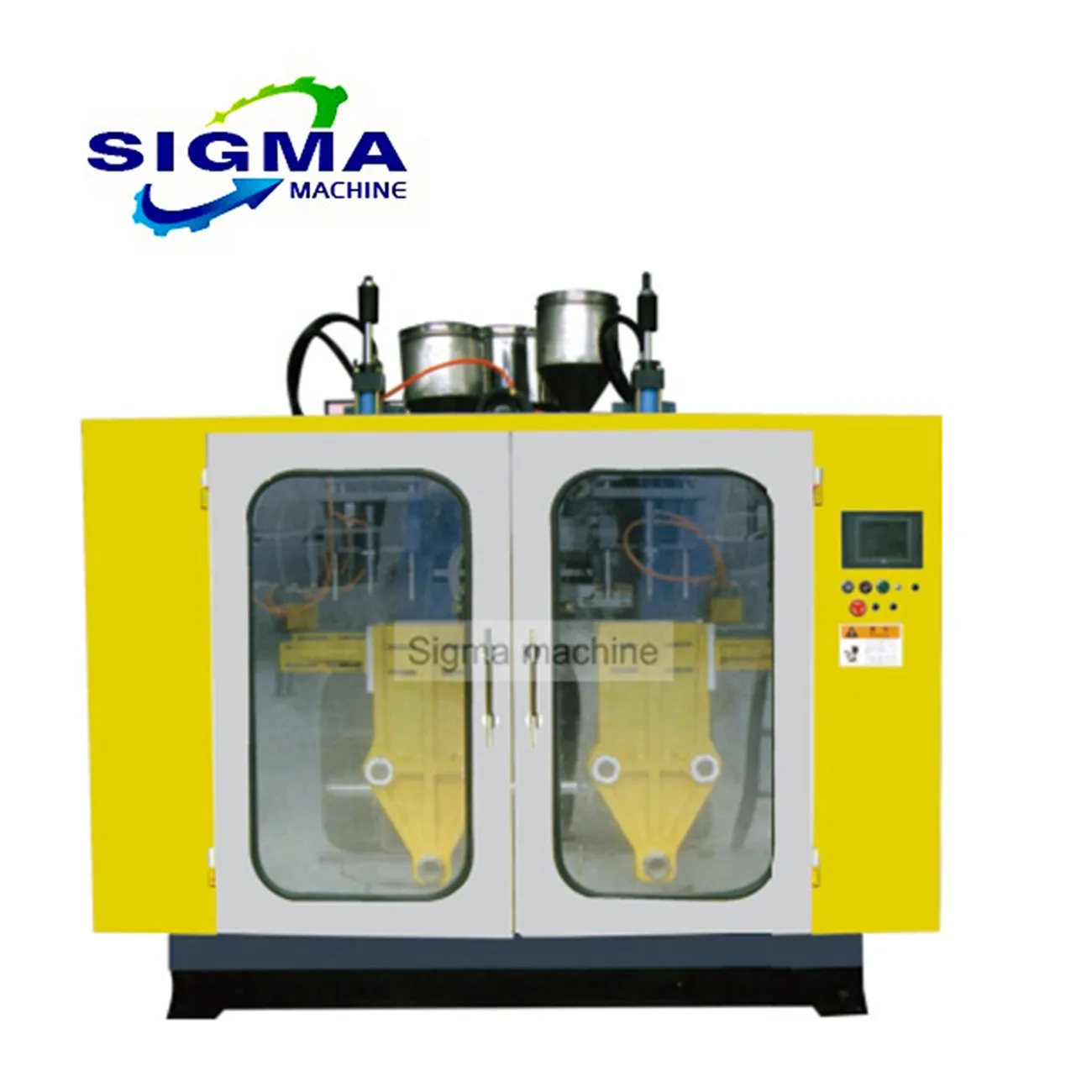

B:SG-Double station blow moulding machine

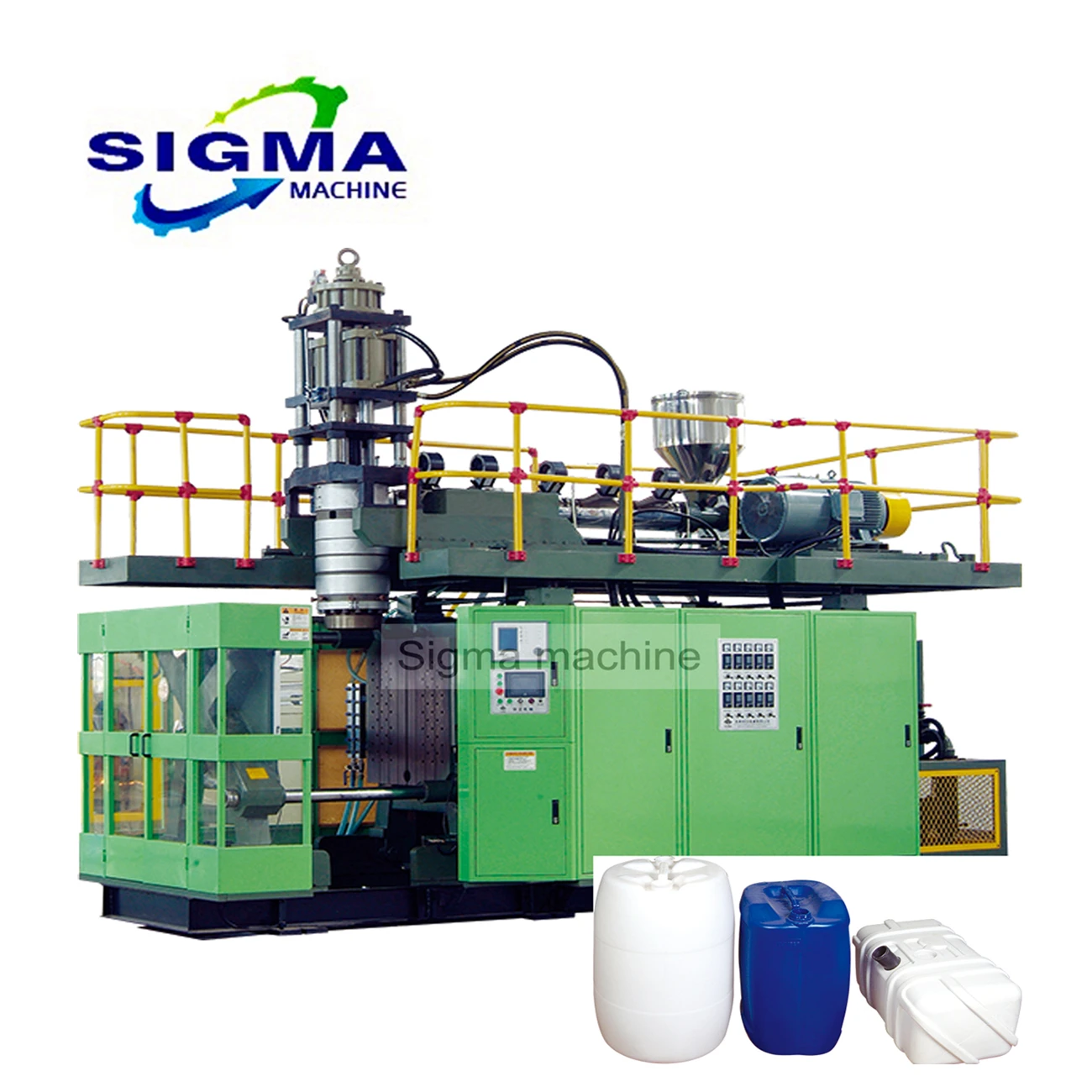

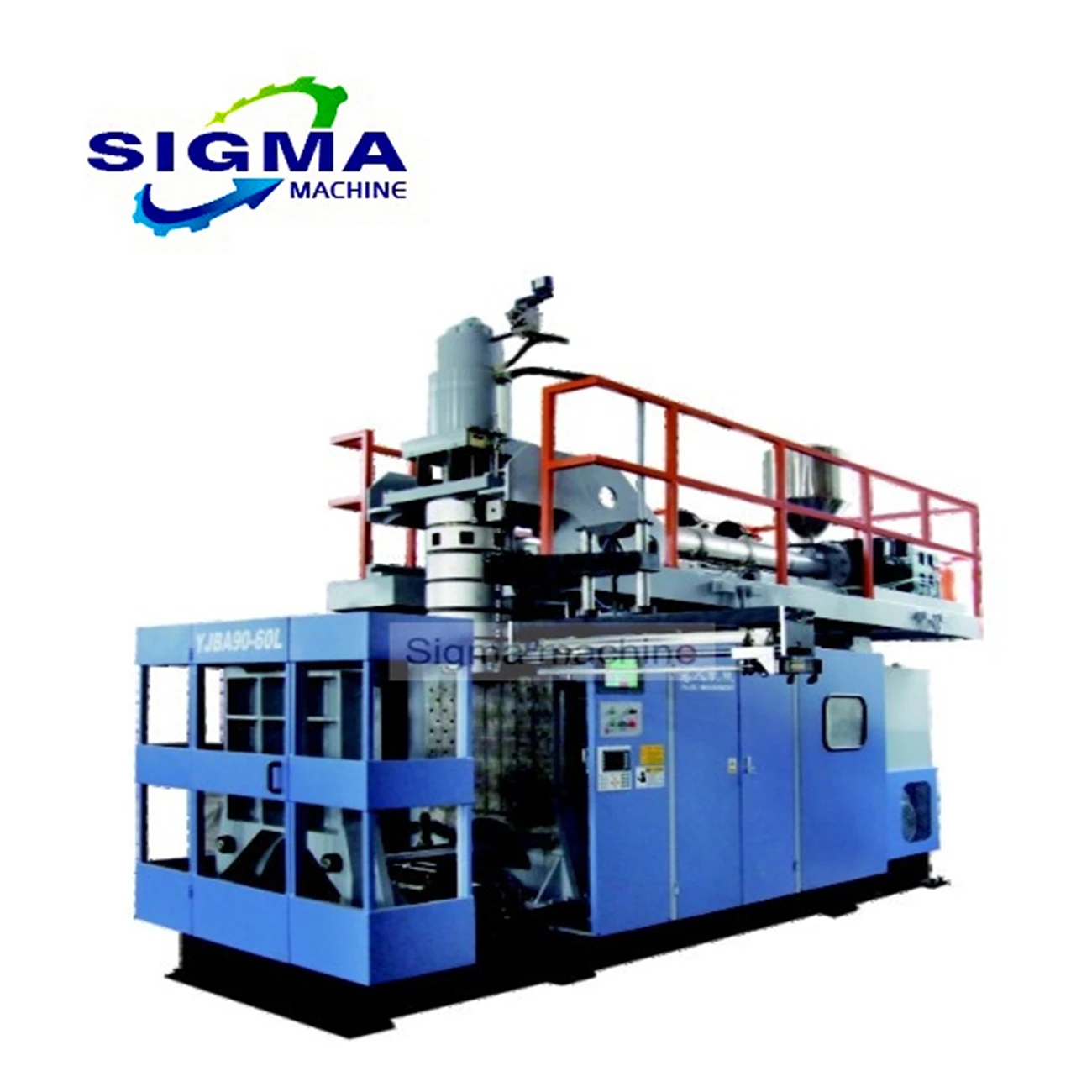

C:extrusion blow molding machine for big tank
The final product
The bottle of drink or others
Engineering Applications
Life application
Size Information
Tecnical parameter
specification | units | SG50 | SG60 | SG70 | ||||
Max container capacity | L | 2 | 5 | 12 | ||||
NUMBER OF DIE | set | 1.2.3.4 | 1.2.3.4 | 1.2.3.4 | ||||
Machine size | M | 3x1.7x2.3 | 3x1.7x2.5 | 3x1.7x2.7 | ||||
total weight | ton | 3.2 | 4.2 | 5.2 | ||||
Clamping unit | ||||||||
Clamping force | Kn | 40 | 65 | 120 | ||||
platen opening stroke | mm | 138-368 | 168-528 | 280-660 | ||||
platen size | mm | 300*320 | 320*380 | 520*540 | ||||
Max mould die(w*h) | MM | 1300*230 | 380*390 | 530*520 | ||||
MOULD THICKNISS | mm | 150-210 | 200-310 | 210-350 | ||||
power | ||||||||
max drive | kw | 16.5 | 26 | 37 | ||||
total power | kw | 22 | 32.5 | 58 | ||||
Air consumpyion | m³/min | 0.4 | 0.5 | 0.8 | ||||
Average energy consumpyion | kw | 12 | 17 | 20 | ||||
extruder unit | ||||||||
screw diameter | mm | 50 | 60 | 70 | ||||
Screw L/D ratio | L/D | 24 | 24 | 24 | ||||
Plasticsing capacity | kg/hr | 35 | 70 | 90 | ||||
power | kw | 11 | 15 | 22 | ||||
Die-head | ||||||||
number of heating zone | zone | 3 | 3 | 4 | ||||
power of die heating | kw | 1.8 | 2.5 | 3 | ||||
Max die pin diameter | mm | 100 | 160 | 230 | ||||
maSpecification | Units | SG80 series | SG90 series | SG120D-220L series | ||||
Material | pe pp abs... | pe pp abs... | pe pp abs... | |||||
Max container capacity | L | 30 | 60 | 220 | ||||
output (Dry cycle) | pc/hr | 360 | 360 | 280 | ||||
machine dimension(LxWxH) | M | 4.5x2.4x3.5 | 5.1x2.4x3.5 | 6.0x3.0x4.9 | ||||
Total weight | ton | 11 | 12.8 | 30 | ||||
Clamping unit | ||||||||
Clamping force | Kn | 180 | 350 | 900 | ||||
platen oopening stroke | mm | 400-900 | 500-1050 | 700-1600 | ||||
platen size | mm | 760x660 | 950x900 | 1350x1600 | ||||
max mould size (WxH) | mm | 600x700 | 700x900 | 1100x1600 | ||||
Mould thickness | mm | 450-510 | 460-600 | 700-1600 | ||||
power | ||||||||
max drive | KW | 41 | 52 | 90 | ||||
tatal power | KW | 52 | 66 | 112 | ||||
fan power for screw | KW | 0.18X4 | 0.18X4 | 0.18X5 | ||||
air pressure | MPA | 0.8 | 0.8 | 0.8 | ||||
air consumption | m³/min | 0.8 | 1 | 1.8 | ||||
average energy consumption | kw | 22 | 26 | 60 | ||||
motor power for pumps | 11 | 11 | 15 | 30 | ||||
screw diameter | mm | 80 | 90 | 120 | ||||
screw L/D RATIO | L/D | 24 | 24 | 25 | ||||
plasticsing capacity | kg/hr | 100 | 140 | 320 | ||||
number of heating zone | zone | 4 | 4 | 6 | ||||
extruder heating power | kw | 11.9 | 21 | 36 | ||||
extruder driving power | kw | 30 | 37 | 90 | ||||
Die-head | ||||||||
number of heating zone | zone | 4 | 4 | 6 | ||||
power of die heating | KW | 15.2 | 17 | 30 | ||||
max die pin diameter | MM | 250 | 350 | 580 | ||||
accumlator capacity | L | 4.4 | 6.6 | 25 | ||||
Other machine models, please contact customer service
Related Products
Packing&Shipping
Extrusion Blow molding machines are packed with wooden pallets, covered with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to you for reference.
The equipment Brand
Company Introduction
SIGMA machine Co.,ltd has several-year-skill-experience of researching and producing full-auto hollow plastics machine.SIGMA Brand blowing moulding machine can produce various kinds of bottles whose countaining volume form 5 ml-1000L,pots,barrels.tool bags,table surface,chair,surfing board and oyher hollow plastics produces.the multiple-layer multiple-mode head full auto hollow moulding machine developed newly can process several kinds of plastics raw materials . such as :PE\\PP\\PVC\\PA\\PA\\ABS\\PETG\\ TPU\\EVA\\EVOH\\TPE\\POM\\PPE. relying on its hard quality and excellent after-sale service,Sigma has opened up markets at home and abroad.The products are sold to philippines,malaysia,vietNam,the United Arab Emirates,Syria,Nigeria,South Africa,Pakistan,Algeria,Russia and other countries sand regions. To product good characteristics,steady and durable,simple operatio and cheep full auto hollow blowing moulding machine for our consumers is the aim for SIGMA machinery to work hard.
FAQ
For choosing proper machine and saving your time, please read below questions carefully and send your inquiry soon , thanks
1.what material you will use(PP PE or PET ?)
2.weight for plastic product
3.pictures for plastic product (including dimension for plastic product)
4.what output per hour do you need ?
5.Other requirements about the machine you want.
2.weight for plastic product
3.pictures for plastic product (including dimension for plastic product)
4.what output per hour do you need ?
5.Other requirements about the machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
By the way , Our company is about 110 km away from Shanghai(1.5 hour bus driving from shanghai airport) . Warmly welcome you to visit our factory at any time.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we can also provide the raw material to the customer if you need.
4. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. we are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
By the way , Our company is about 110 km away from Shanghai(1.5 hour bus driving from shanghai airport) . Warmly welcome you to visit our factory at any time.
