Product Overview
Description
Our Advantages
1. Factory direct sale, no agent, no agency fees, low price for high quality.Give you the best product and the best price.
2. Our products can be customized for various needs.And customizable unique company logo is available.
3. Cutting edge automation equipment adopted in the factory, improved quality from traditional production methods.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared with traditional manual ways.
4. Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process.
2. Our products can be customized for various needs.And customizable unique company logo is available.
3. Cutting edge automation equipment adopted in the factory, improved quality from traditional production methods.Steel is welded by automatic submerged arc process, connection spots look more flawless, more solid and durable compared with traditional manual ways.
4. Cover painting is more sustainable, corrosion-resistant, uniform and smooth, using sand blasting powder painting process.
What is the purpose of Skeleton Semi Trailer?
Usually, skeleton semi-trailers can be used to transport containers, such as in ships,ports, routes, highways, transfer stations, bridges, tunnels and other logistics systems, and can also be used to transport dangerous goods tanks.

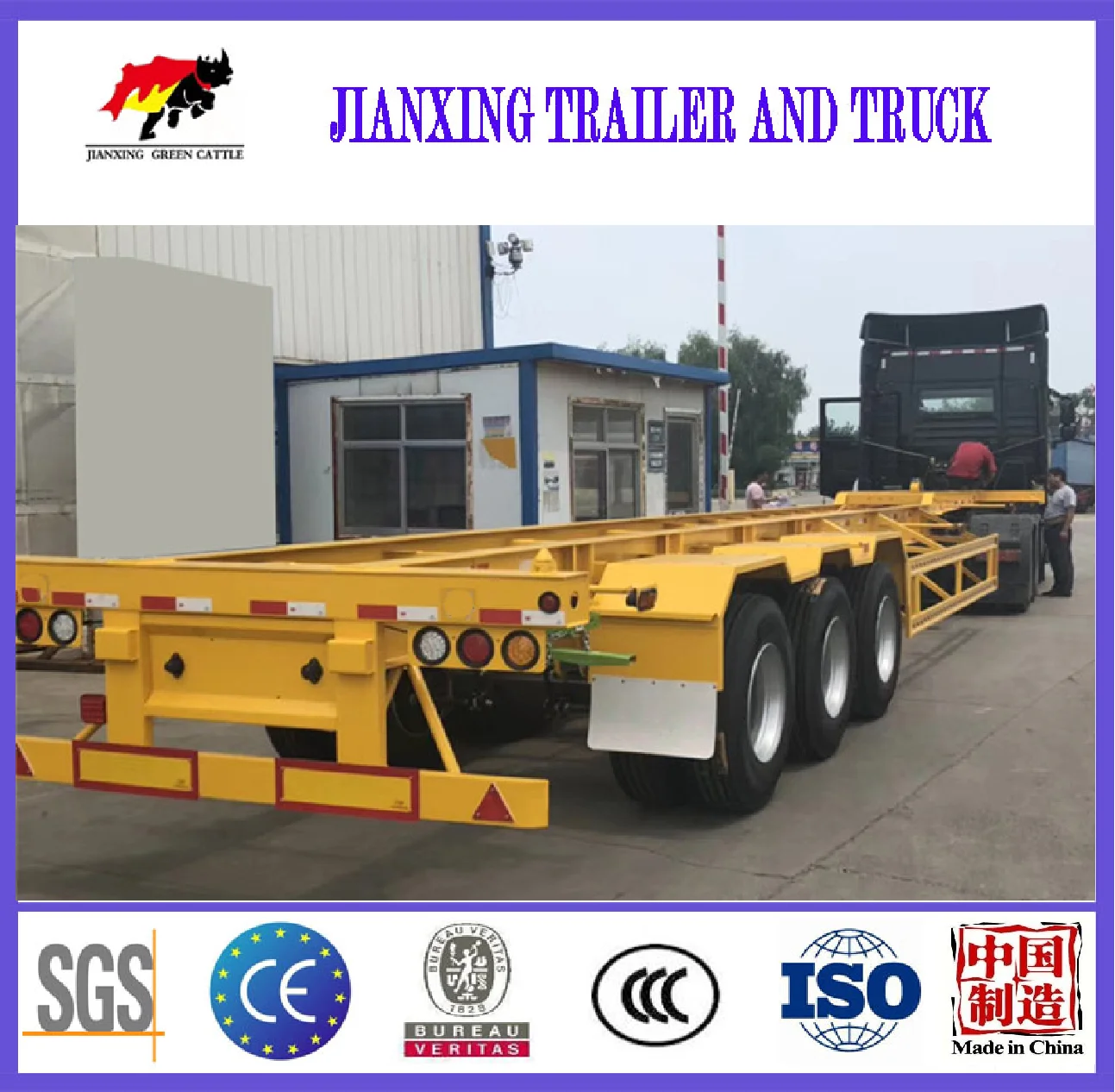

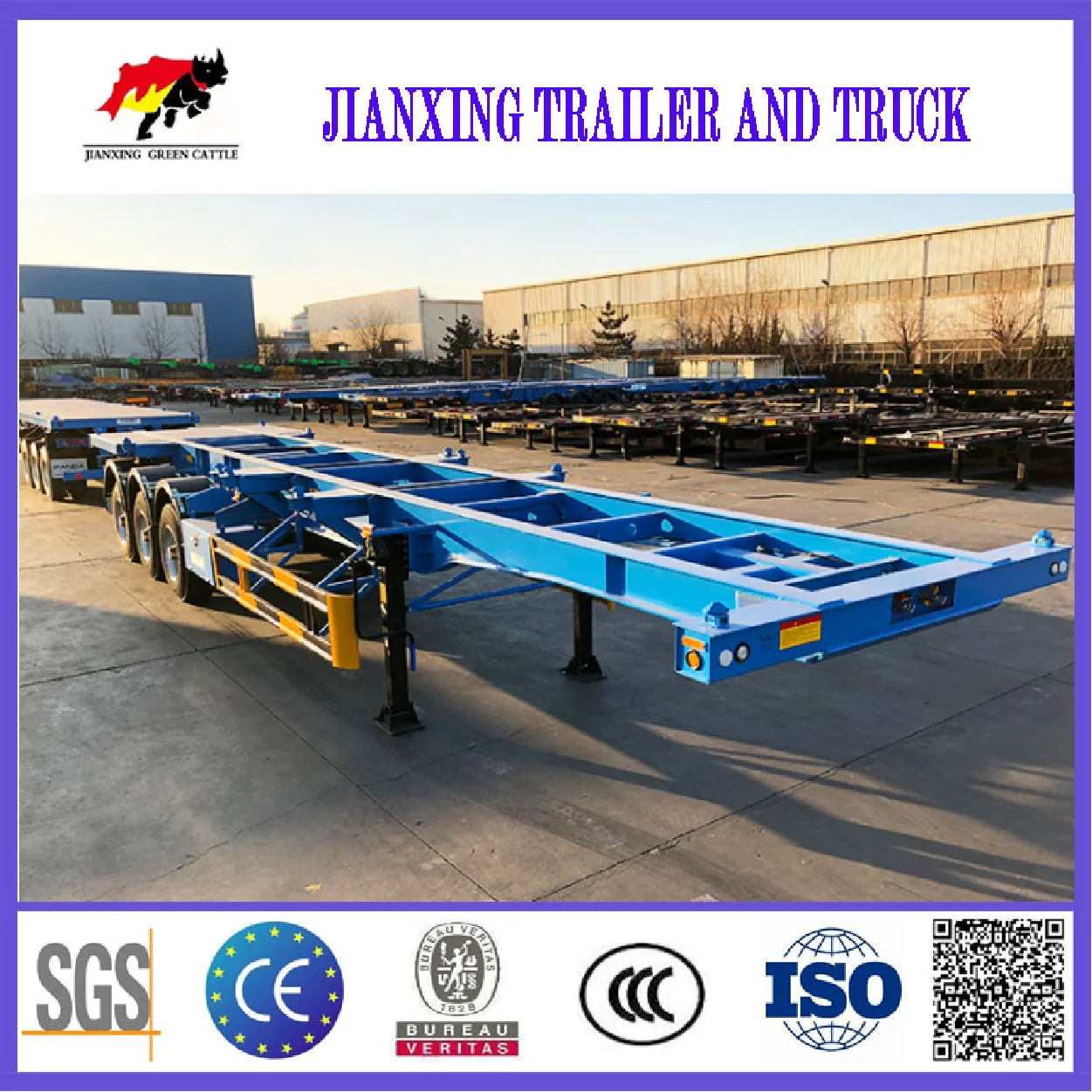

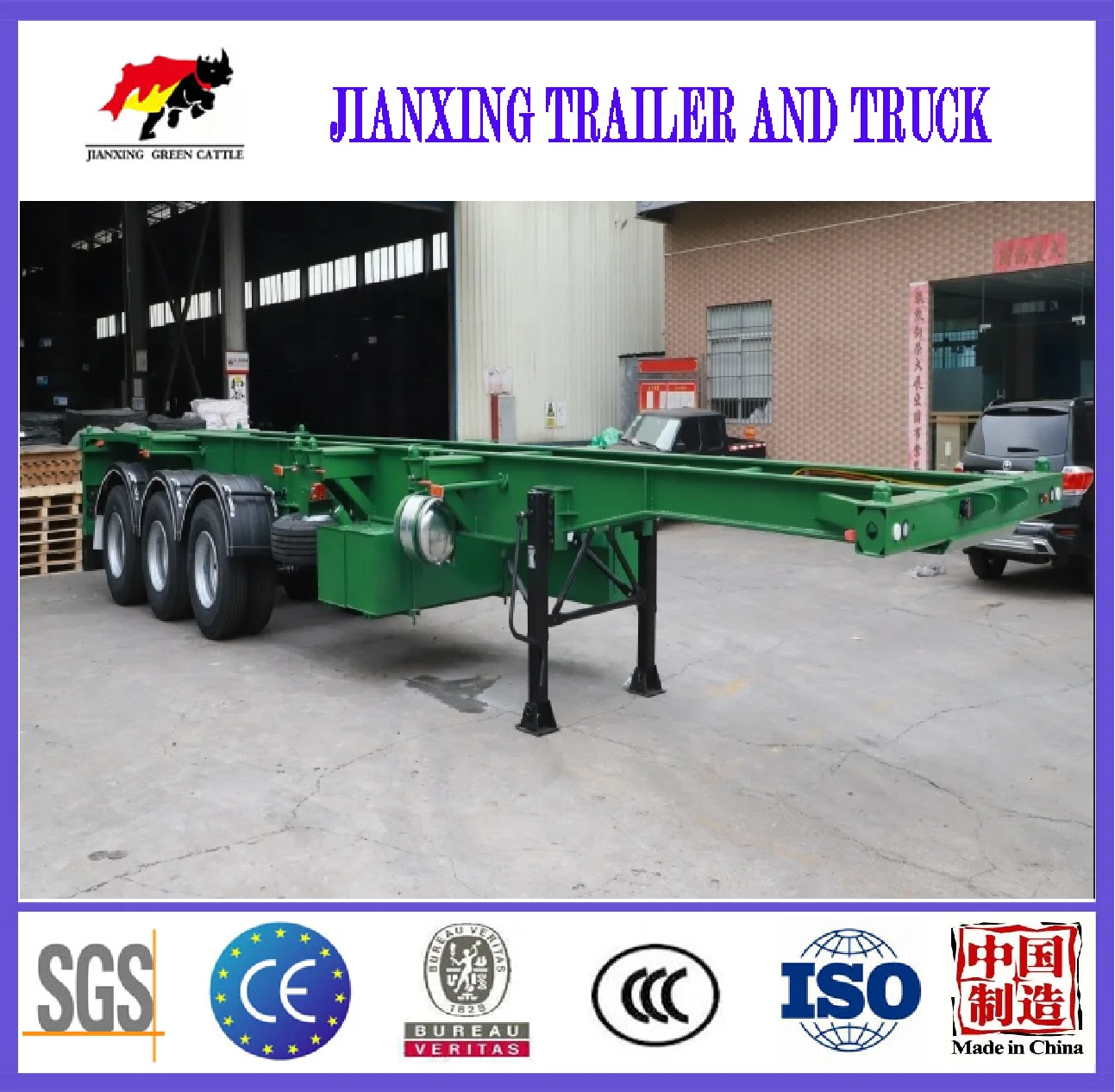

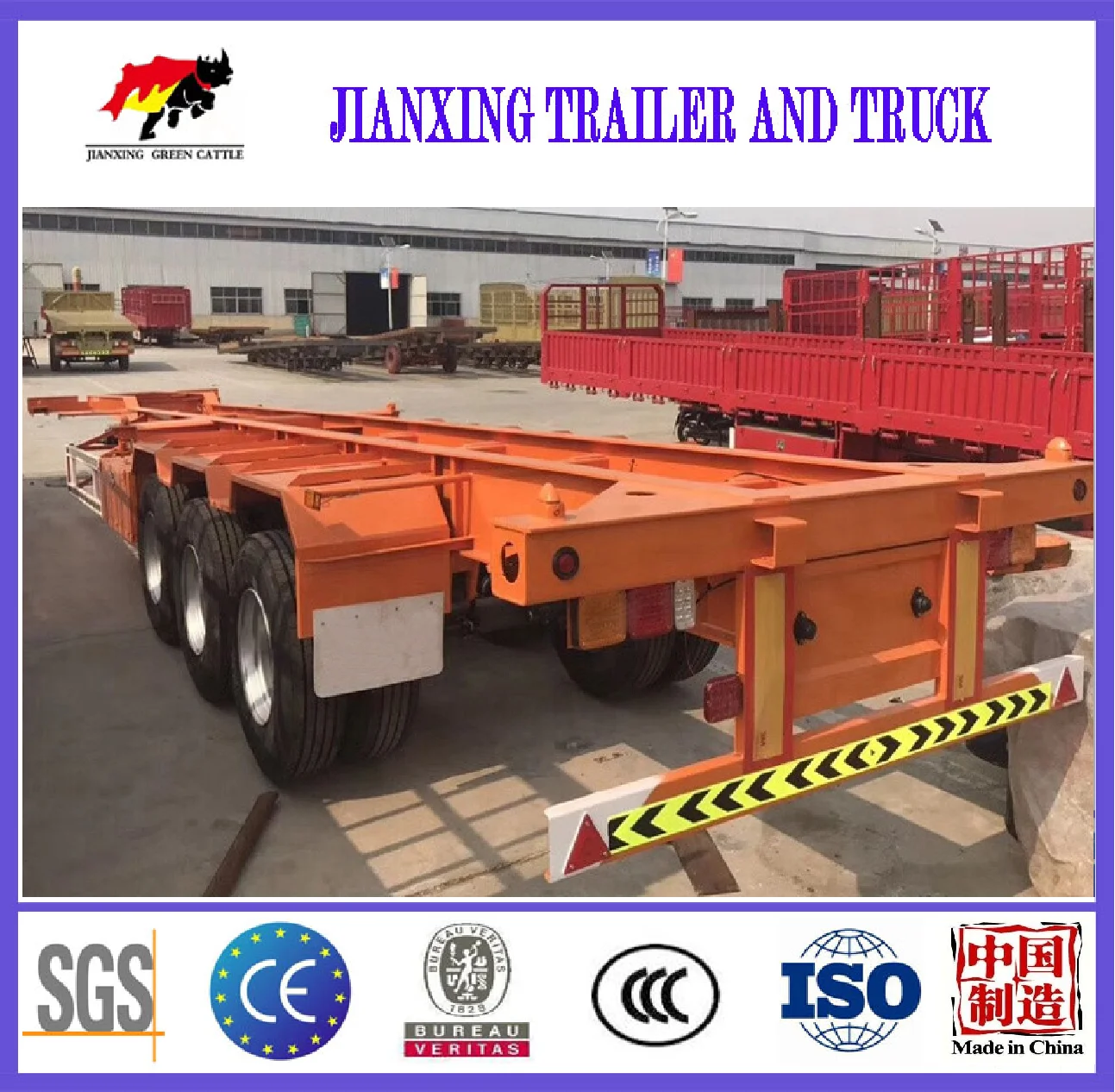

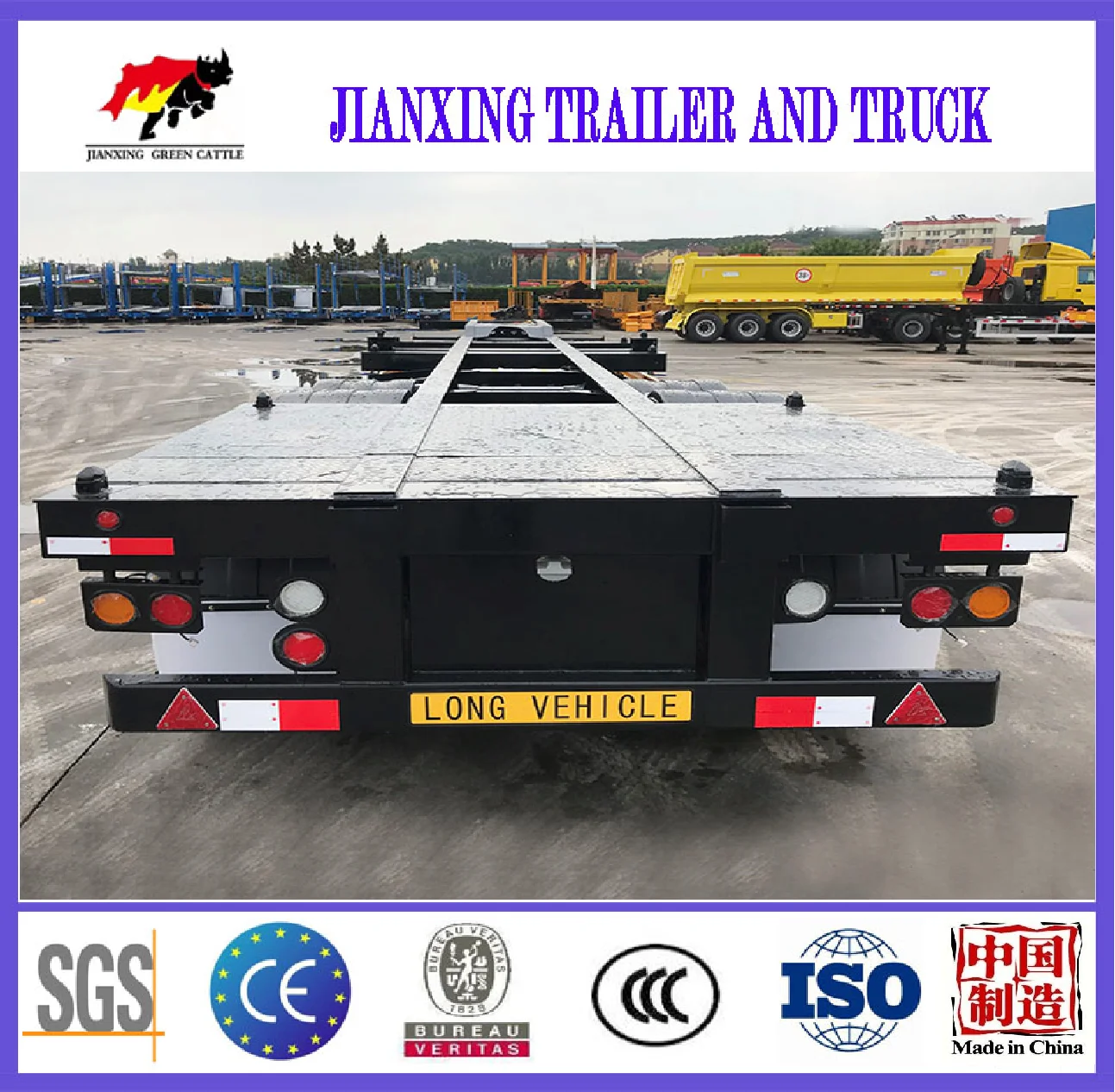

3 axles Skeleton Semi Trailer | ||||
Specifications | ||||
Dimension | 12.38m×2.48m×1.55m (Outside) | |||
Payload | 50T | |||
Tare weight | About 6.5T | |||
Twist lock | 12 units | |||
Chassis | ||||
Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. | |||
Frame Beam | Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm | |||
Axle | 2/3/4 axles, 13Ton Fuwa brand 16ton brake pads | |||
Landing Gear | 28T lifting capacity with two speed | |||
King Pin | 2.00 or 3.5 inch bolt-in king pin | |||
Suspension | Mechanical suspension reinforced type | |||
Leaf Spring | 90mm(W)*13mm(T)*10 Layer | |||
Pneumatic Braking System | Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve | |||
Rim | 9.0-20*12 pcs | |||
Tire | 12R22.5*12 pcs | |||
Accessories | One standard tool box | |||
Spare tire rack | One | |||
Electrical system | 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors | |||
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||
Shipping Terms | By Bulk Cargo/RORO/40HQ container | |||
Jianxing Green Cattle International (Shandong) Co., Ltd. was established in 2021 in Jinan by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. Our company is located in Wanda Plaza in the Jingsi Road in the center of Jinan City. There are more than 40 kinds of products and the weight of vehicles from 8 to 120 tons.Our products are exported to all over the world, such as southeast Asia, Central Asia, the Middle East, Africa and so on.
Our products have passed the China Quality Certification Center "ccc" certification and ISO9001: 2000 quality management system certification. And we also have BV certification, SGS certification, CE certification,etc.
The company covers an area of 25 acres, with a workshop area of more than 15 acres and more than 300 employees. The company has professional equipment with advanced processing technology and selected high-quality raw materials and components to manufacture full trailers and semi-trailers. From the cutting of the sheet to the welding to the packaging, there is a special team responsible for it.
The various trailers produced by the company are novel in shape, unique in design, reasonable in structure, sturdy and durable.
The various trailers produced by the company are novel in shape, unique in design, reasonable in structure, sturdy and durable.
By Ro-Ro Ship Transportation
The ro-ro ship, also known as on-board and off-board, is a transport ship that uses a tractor to pull semi-trailers directly into and out of the cargo hold. The advantages of ro-ro ships are high loading and unloading efficiency, fast ship turnover and convenient water and land direct inter modal transportation.
By Bulk Cargo Ship Transportation
Bulk cargo transportation refers to the organizational form engaged in the transportation of bulk cargo by sea.
It can realize the mechanization of loading and unloading, handling, and the effective loading capacity is large.
By Container Transportation
Container transport is a modern mode of transport in which containers are used as transport units to transport goods.
Container transportation can ensure the safety of goods, save packaging costs, and use machinery to load and unload, makes it more efficient.
