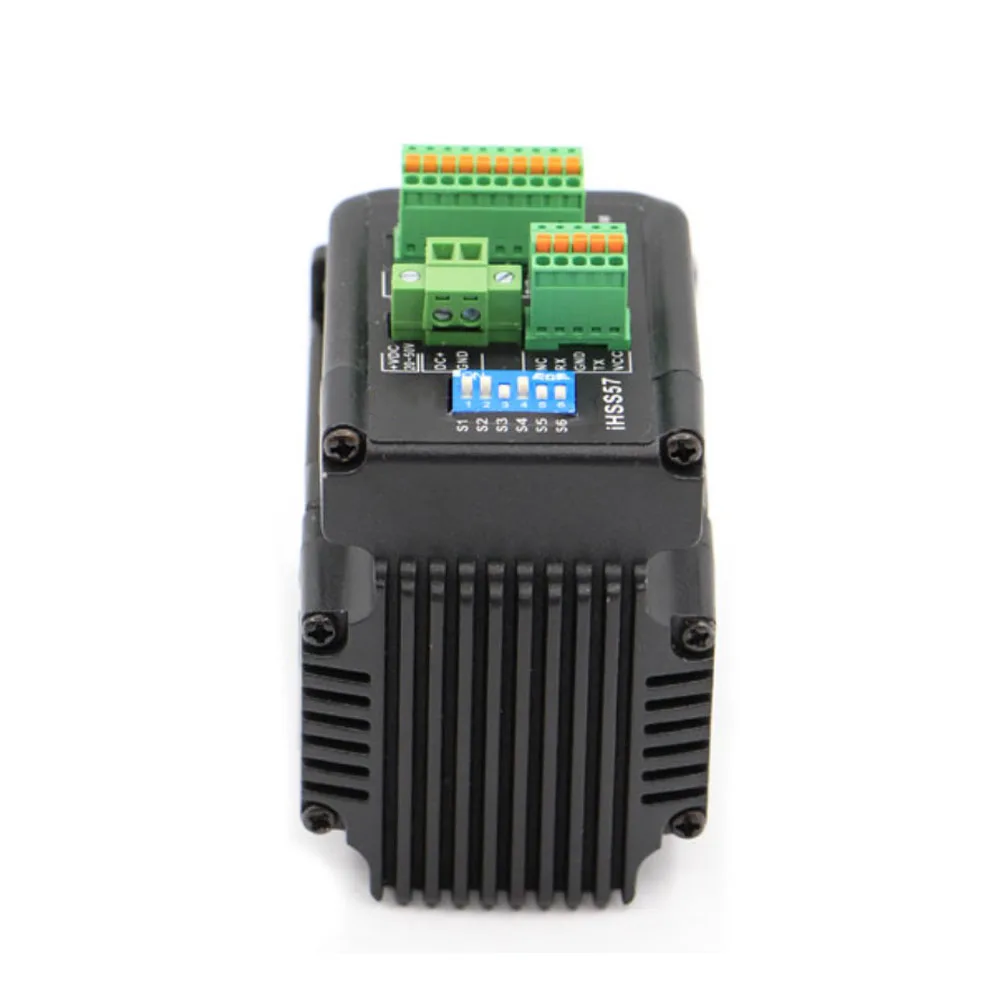

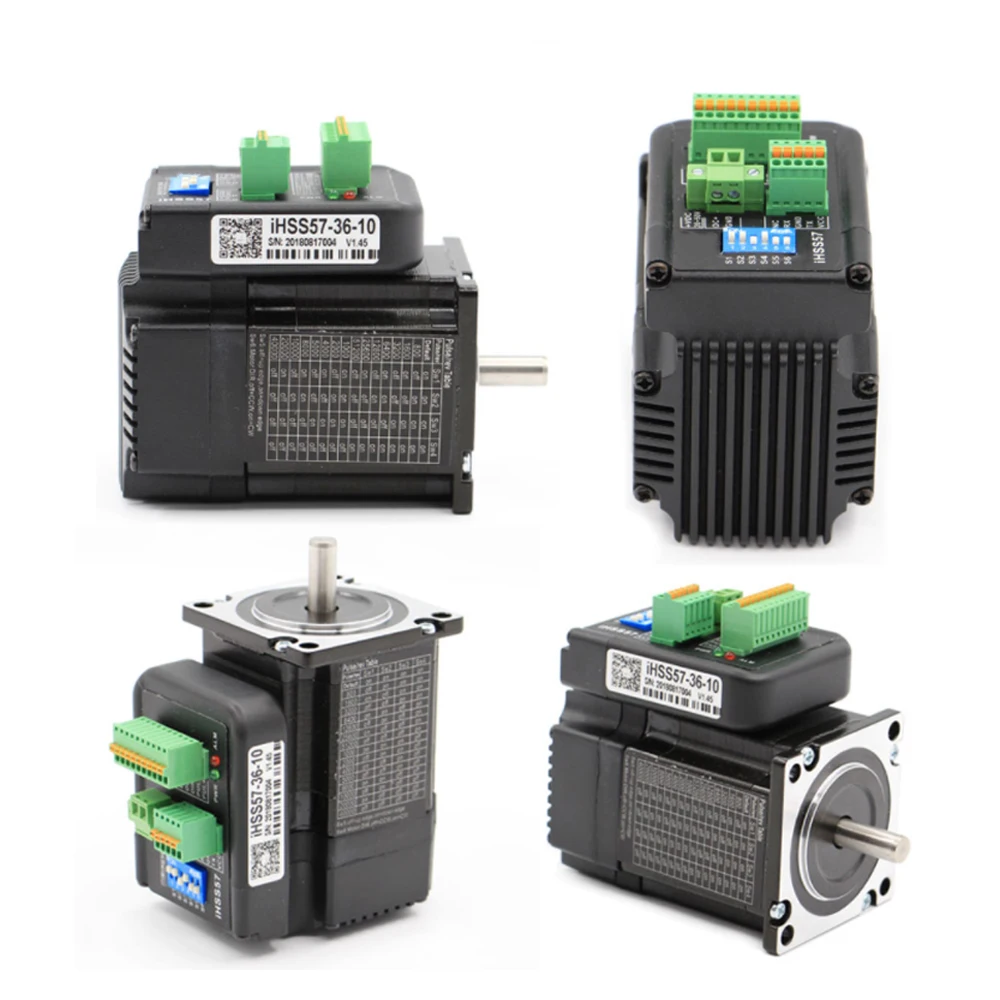

Nema23 Closed Loop Stepper Motor 1.2nm 2.0nm Nema 23 Hybrid Integrated Stepper Servo Motor With Driver
- Category: >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (1600547621094):

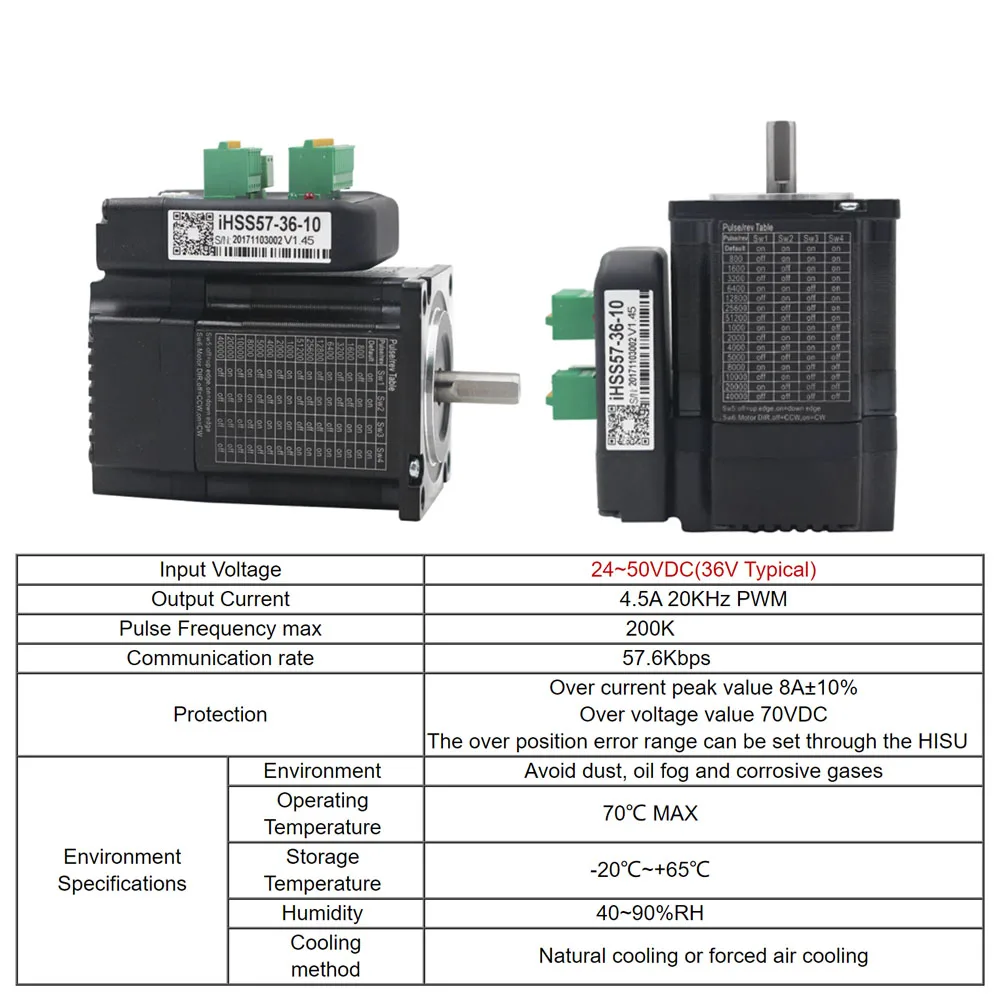

Product Overview

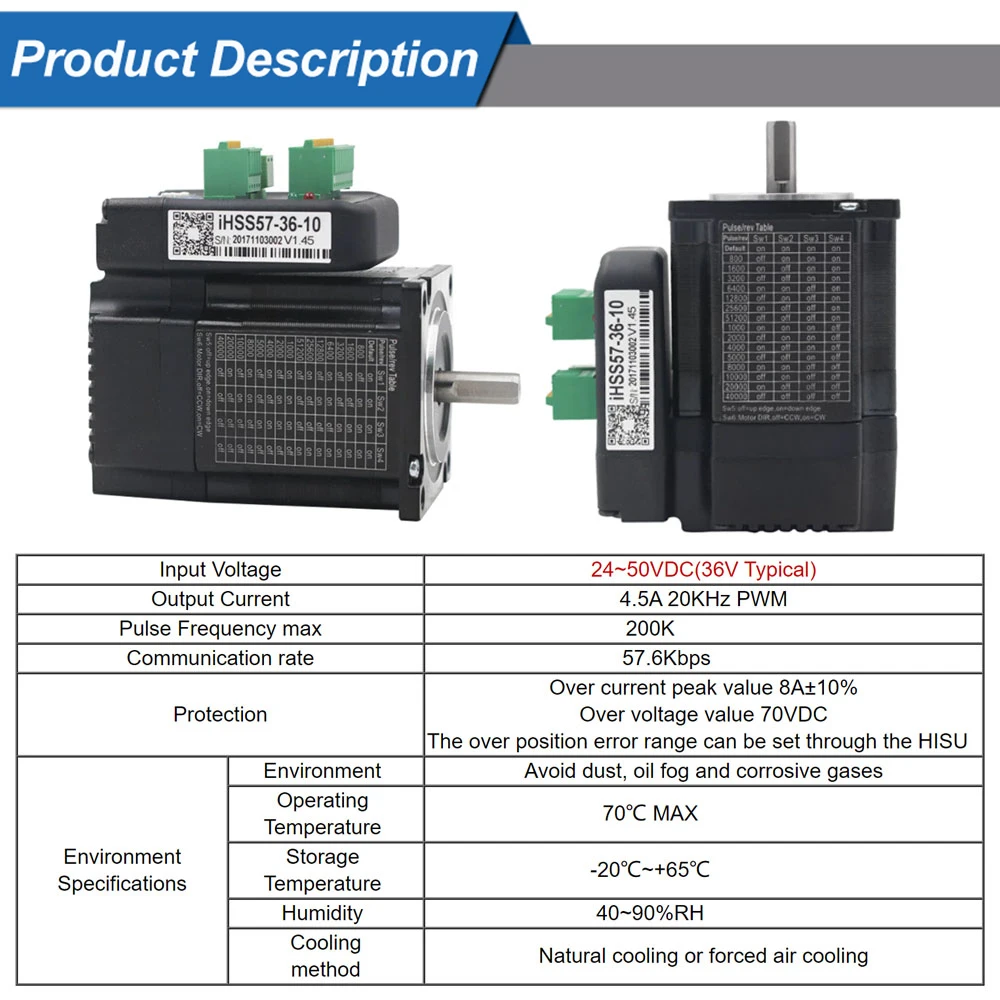

Description
Specification
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | Jkongmotor |
Model Number | iHSS57-36-10 |
Phase | 2 |
Type | Hybrid |
Current / Phase | 4.0A |
Certification | ce, RoHS |
Motor type | integrated closed loop stepper motor |
Product name | iHSS57-36-10 |
Holding Torque | 1.2N.m |
Voltage | 36V |
Current | 4.0A |

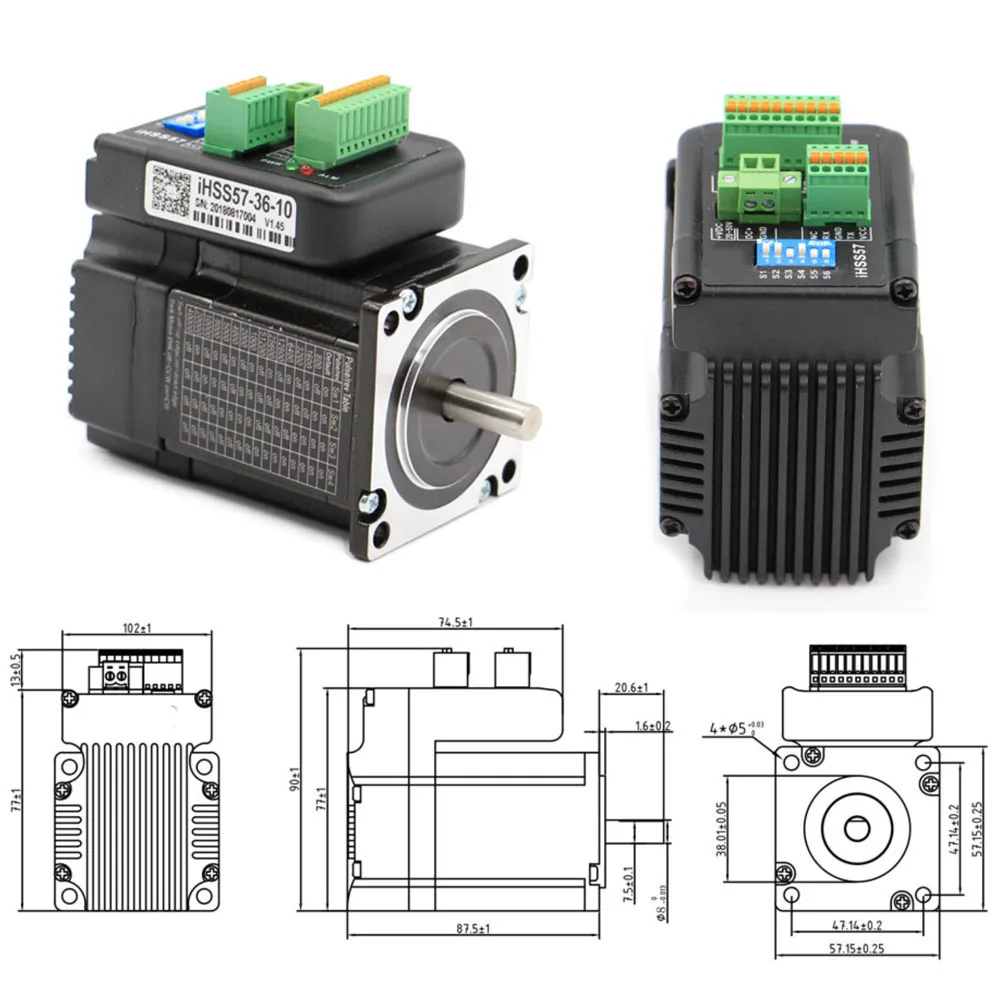

Shaft Dimension | 8*21mm |
D-cut Dimension | 15mm |
Body length | 108mm |
Keywords | integrated stepper servo motor with controller |
Product Keywords | Hybrid Servo Stepper Closed Loop Motor |
Step Angle: 1.8°
Postion accuracy: 1.8°±0.09
Number of phase: 2Temp rise( Max): 80°C
Dielectric Strength: 500VDC
Insulation Class: B
Current /phase: 4.0A
DC Resistance: 0.44Ω
Inductance /phase: 1.4mH
Holding torque: 1.2Nm
Inertria: 280g.cm⊃2;
The Integrate Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical encoder with high speed position sampling feedback of 50 μ s, once the position deviation appears, it will be fixed immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.
Postion accuracy: 1.8°±0.09
Number of phase: 2Temp rise( Max): 80°C
Dielectric Strength: 500VDC
Insulation Class: B
Current /phase: 4.0A
DC Resistance: 0.44Ω
Inductance /phase: 1.4mH
Holding torque: 1.2Nm
Inertria: 280g.cm⊃2;
The Integrate Stepper Servo Motor is merged the stepper servo driver and motor together. This motor system integrates the servo control technology into the digital stepper drive perfectly. And this product adopts an optical encoder with high speed position sampling feedback of 50 μ s, once the position deviation appears, it will be fixed immediately. This product is compatible the advantages of the stepper drive and the servo drive, such as lower heat, less vibration, fast acceleration, and so on.
Model Name: | Holding Torque: | Voltage: | Current: | Shaft Size: | D-cut Size: | Body Length: |
iHSS42-24-05 | 0.48N.m | 24V | 1.2A | 5*24mm | 15mm | 76mm |
iHSS42-24-07 | 0.7N.m | 24V | 1.2A | 5*24mm | 15mm | 88mm |
iHSS57-36-10 | 1.2N.m | 36V | 4.0A | 8*21mm | 15mm | 108mm |
iHSS57-36-20 | 2N.m | 36V | 5.0A | 8*21mm | 15mm | 127mm |
iHSS60-36-30 | 3N.m | 60V | 5.0A | 8*31mm | 25mm | 117mm |
iHSS86-60-45 | 4.5N.m | 60V | 6.0A | 14*38mm | 73mm | 121mm |
iHSS86-80-85 | 8.5N.m | 80V | 6.0A | 8*21mm | 73mm | 141mm |
* Integrated compact size for saving mounting space
* Without losing step, High accuracy in positioning
* 100% rated output torque
* Variable current control technology, High current efficiency
* Small vibration, Smooth and reliable moving at low speed
* Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
* User-defined micro steps
* No adjustment in general applications
* Over current, over voltage and over position error protection

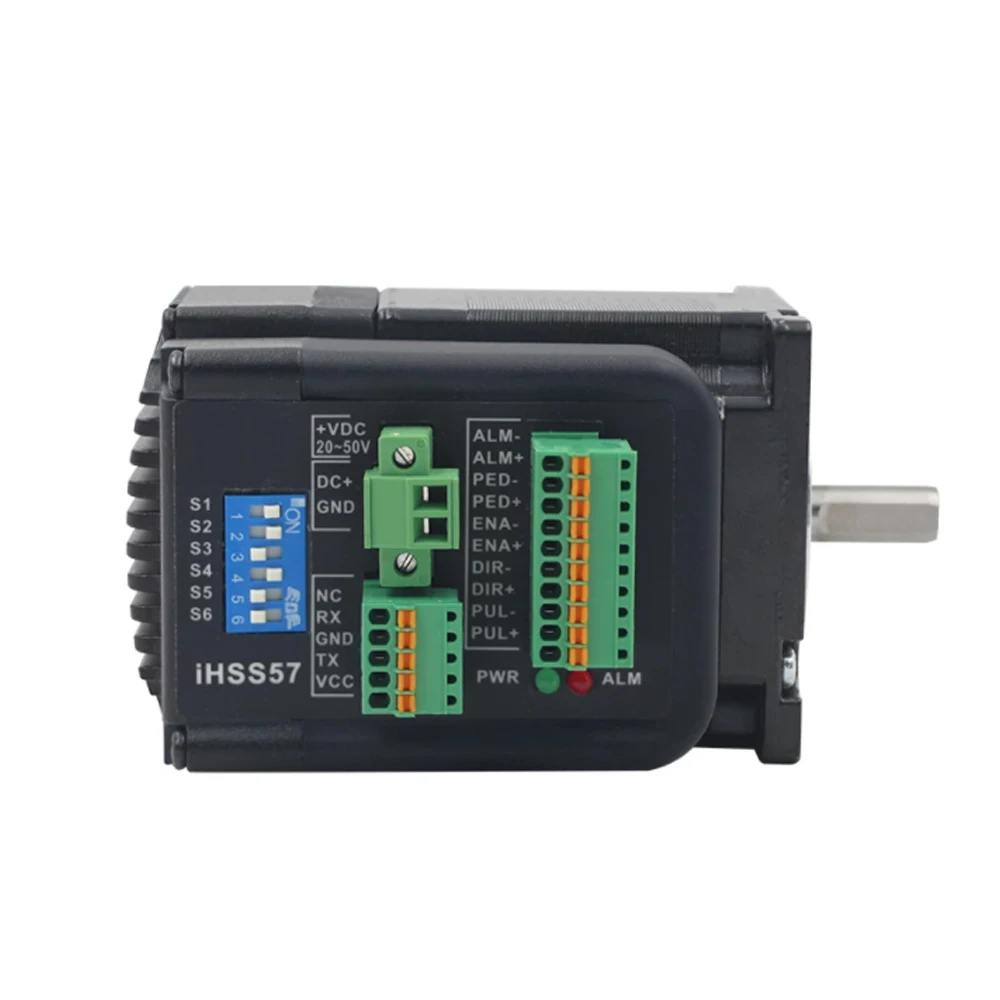

* Green light means running while red light means protection or off line
* Without losing step, High accuracy in positioning
* 100% rated output torque
* Variable current control technology, High current efficiency
* Small vibration, Smooth and reliable moving at low speed
* Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
* User-defined micro steps
* No adjustment in general applications
* Over current, over voltage and over position error protection
* Green light means running while red light means protection or off line
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign
development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign
development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
