High Quality Wholesaler Pneumatic One Touch Tube Fittings Pneumatic Connectors Plastic Pneumatic Air Fittings
- Category: >>>
- Supplier: Yangzhou Zhuocheng Pneumatic Technology Co. Ltd.
Share on (1600547632486):
Product Overview
Description
Banner
Products Description
Name | |
Material | Alloy Steel, Brass, Plastic |
Working Medium | Air , Vacuum |
Working temperature | 0℃~60℃ |
pressure Range | 0.1~1.0MPA |
Applicable Tube | PU/Nylon Tube |
Using Range | pneumatic equipment，Air Tbue |
Description
Product Name: Pneumatic quick connector

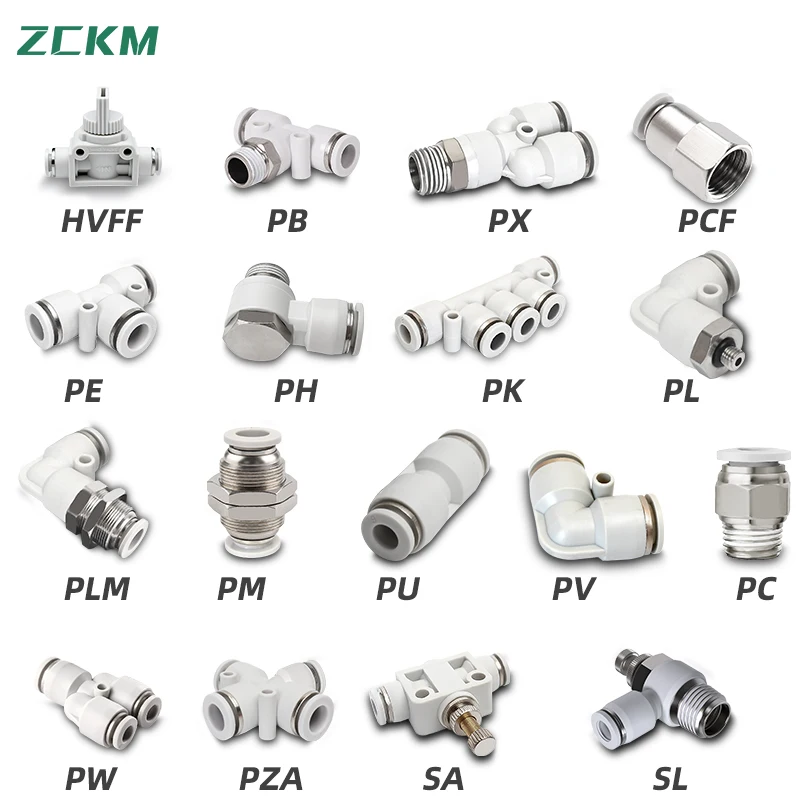

Model:PE PU PC PCF PGJ PM PK PZA PV PX PB PE PY PL SA SL and so on
Working Pressure: 0-1.5 MPa; Applicable Tube: PU/ PA/ PE/ PVC.
Connector type: 4mm to 16mm;
Fluid Admitted: Air Vacuum Water (no freezing); Release rings adopt ellipse design, which can be removed conveniently.Connector type: 4mm to 16mm;
All taper pipe threads are paint Teflon leakage-proof rubber, with good sealing performance, high pressure resistant and non tripping.
