500mm Belt Width Poly Urethane PU Primary Scraper for Belt Conveyor
- Category: Material Handling Equipment Parts >>>
- Supplier: Tangshan Xieli Conveyor Belt Transport Equipment Co. Ltd.
Share on (1600547638749):
Product Overview
Description
Recommend Products
Products Description

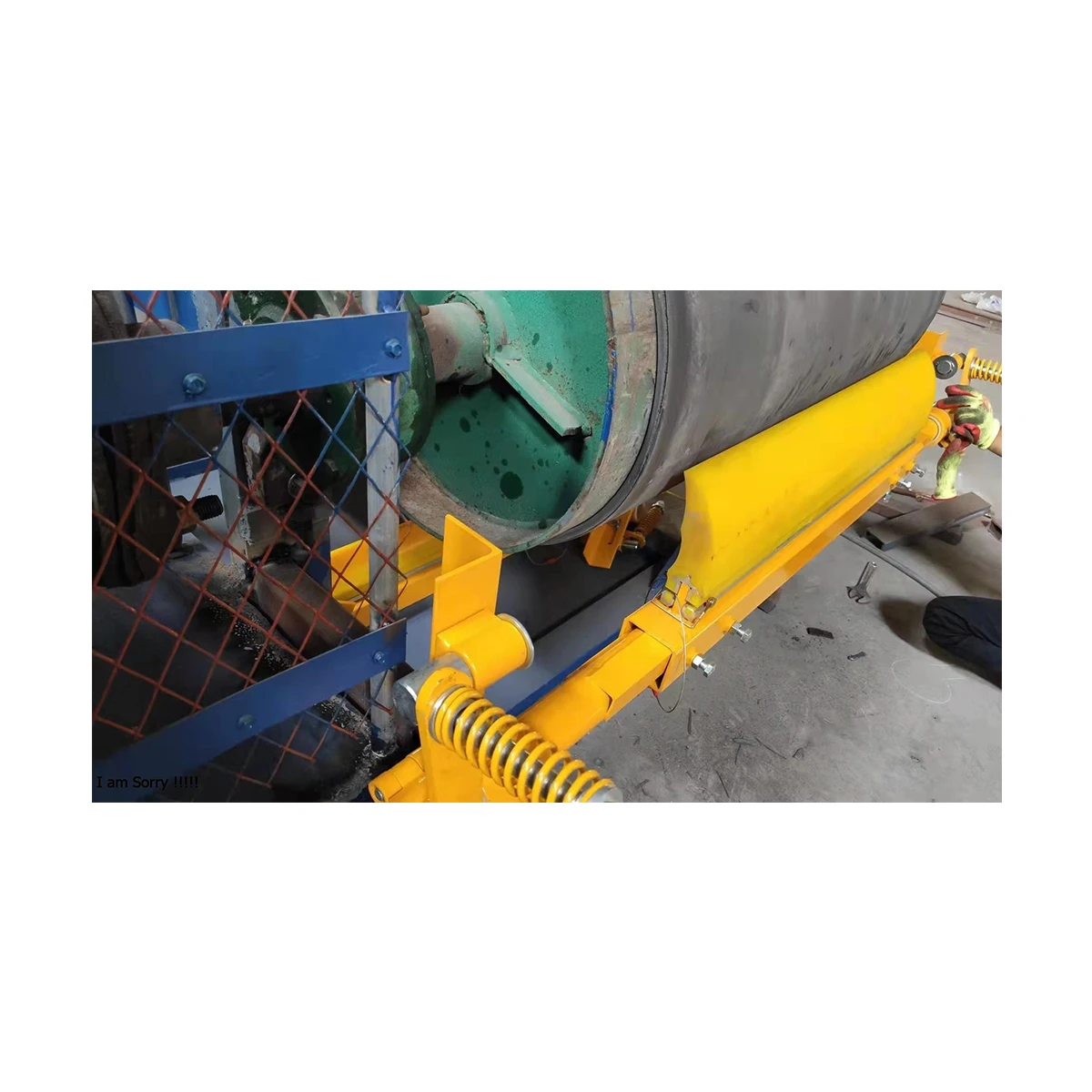

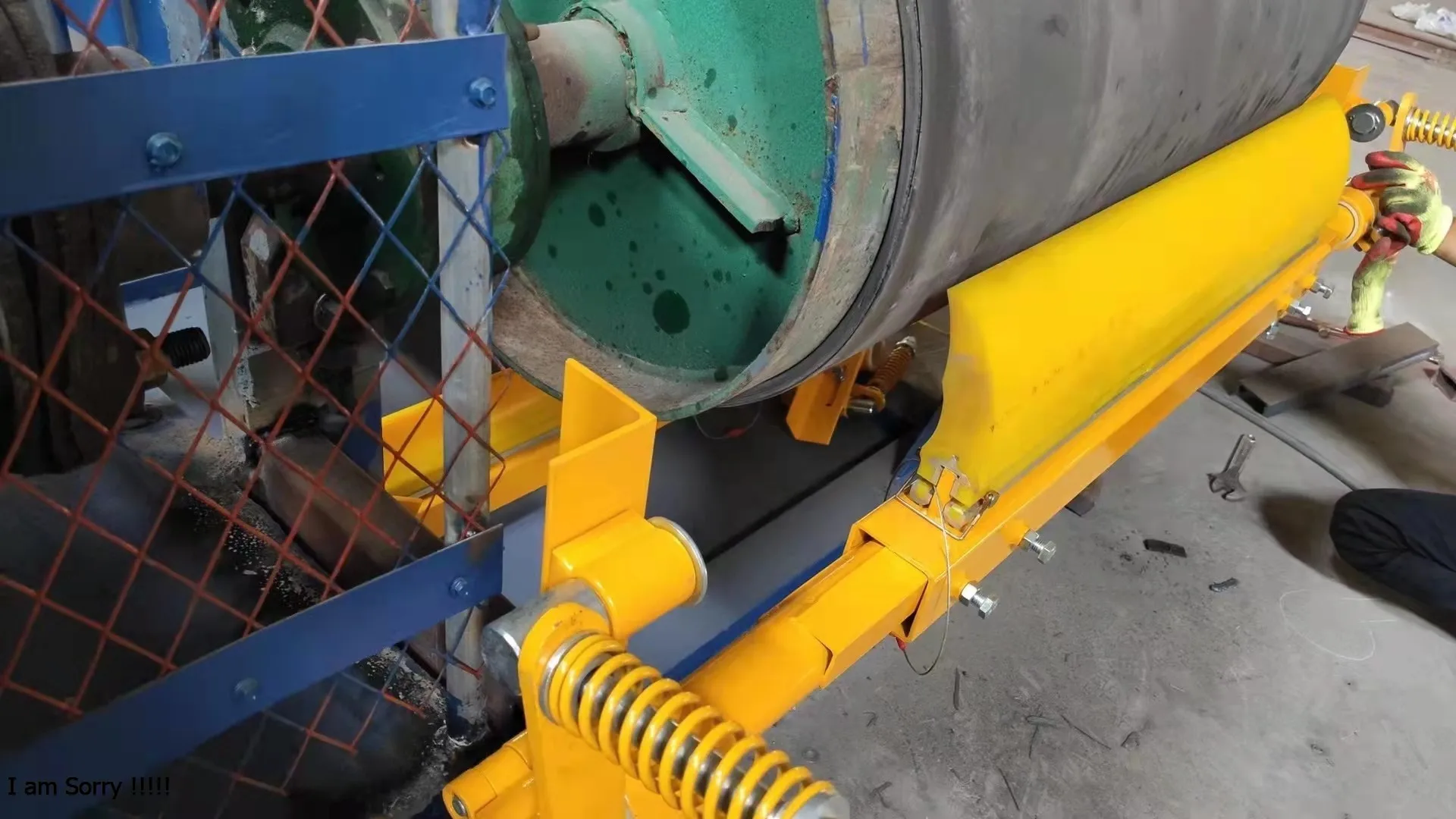

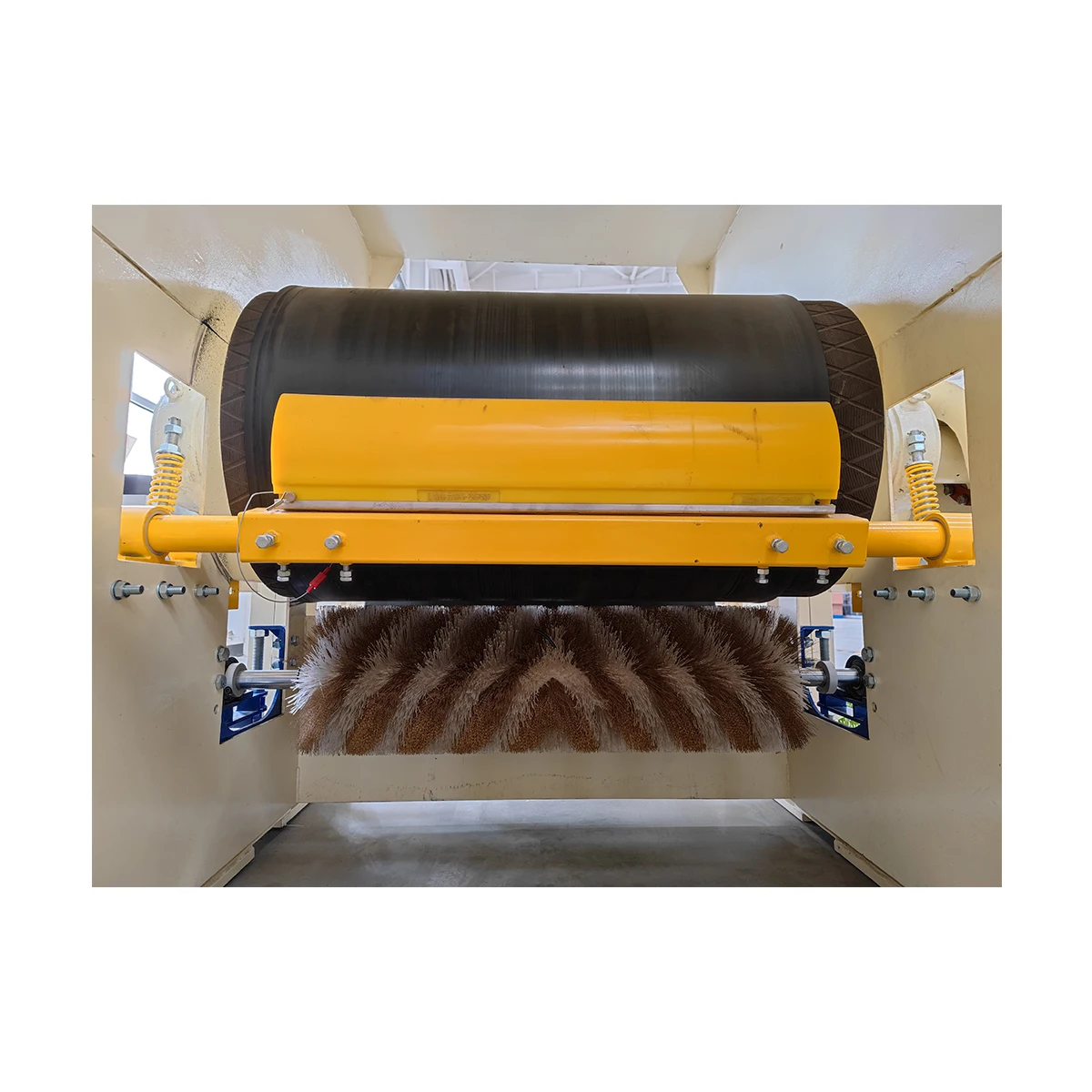

The belt cleaner can effectively wipe off the adhesive materials on the conveyor belt. Proper installation and maintenance of the belt cleaner can reduce the cost of material cleaning, reduce the downtime of the belt conveyor, and extend the service life of the belt and other conveyor components.
Characteristic

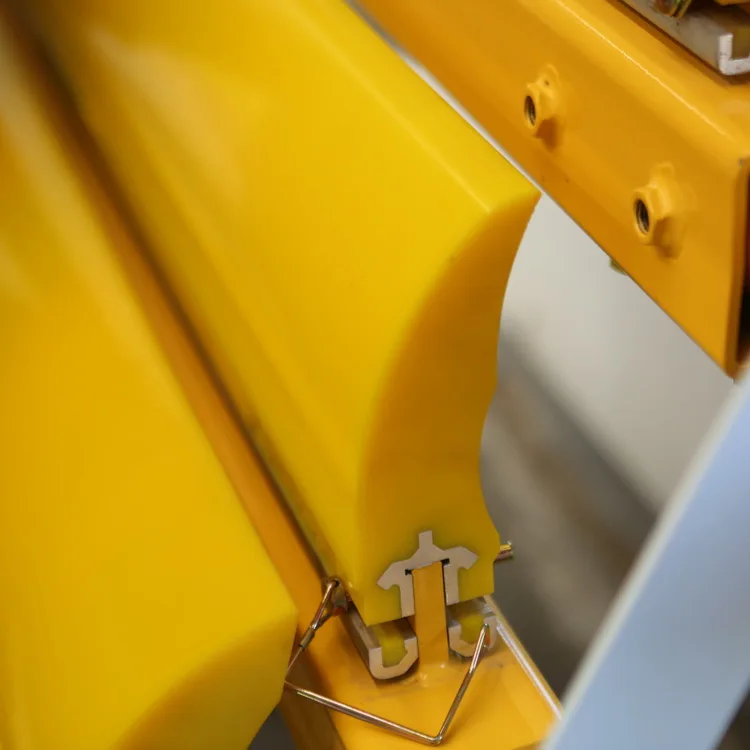

High performance polyurethane material blade: Wear resistance, hydrolysis resistance, corrosion resistance, fracture resistance, don't damage to the conveyor belt;

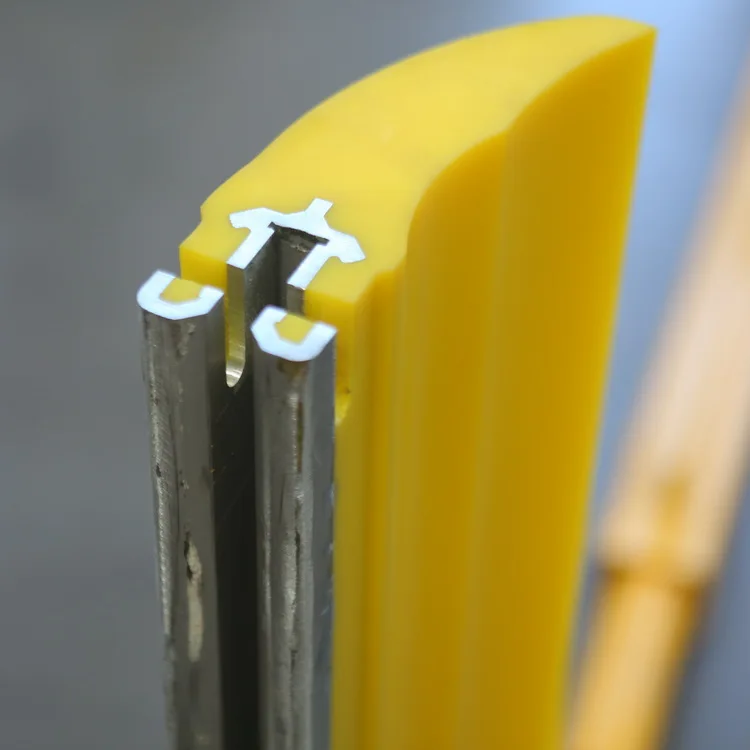

Quick replacement of blade: Pull out the fix pin, remove the old blade, replace it with a new blade, and then insert the fix pin;
Fixed rod split design: Consisting of middle fixed rod and extension rod on both sides, the length of fixed rod can be adjusted;
Spring tensioning mechanism: When the blade wears or the conveyor belt runs, the blade can automatically follow up and compensate to ensure that there is a suitable contact force between the blade tip and the conveyor belt;
Polyurethane belt cleaner | ||||||||
Model | Belt width(mm) | Steel tube length(mm) | Blade length(mm) | NW/PC (kg) | ||||
XLGH | 500 | 1300 | 450 | 42.5 | ||||
650 | 1450 | 600 | 46.3 | |||||
800 | 1600 | 750 | 50.2 | |||||
1000 | 2000 | 900 | 57.5 | |||||
1200 | 2200 | 1100 | 62.6 | |||||
1400 | 2400 | 1300 | 67.8 | |||||
1600 | 2600 | 1450 | 76.9 | |||||
1800 | 2800 | 1650 | 81.3 | |||||
2000 | 3000 | 1800 | 85.9 | |||||
Blade Material: Polyurethane | ||||||||
500mm Belt Width Poly Urethane PU Primary Scraper for Belt Conveyor
