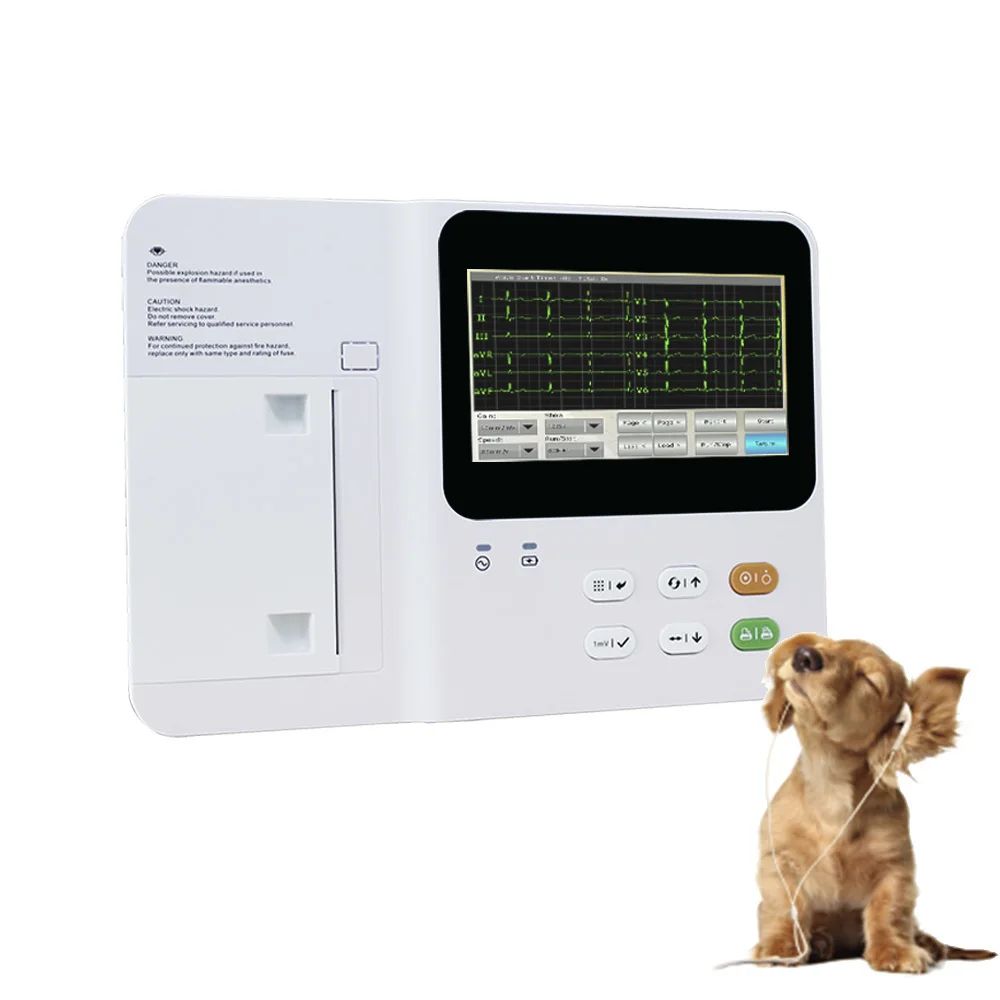

Veterinary Instrument 12 Leads 6 Channels EKG Cat for Dogs Cost Feline Canine ECG InterpretationOther Veterinary Instrument
- Category: >>>
- Supplier: Shanghai Link Instruments Co. Ltd.
Share on (1600547647304):
Product Overview
Description
Product Description
Products Description

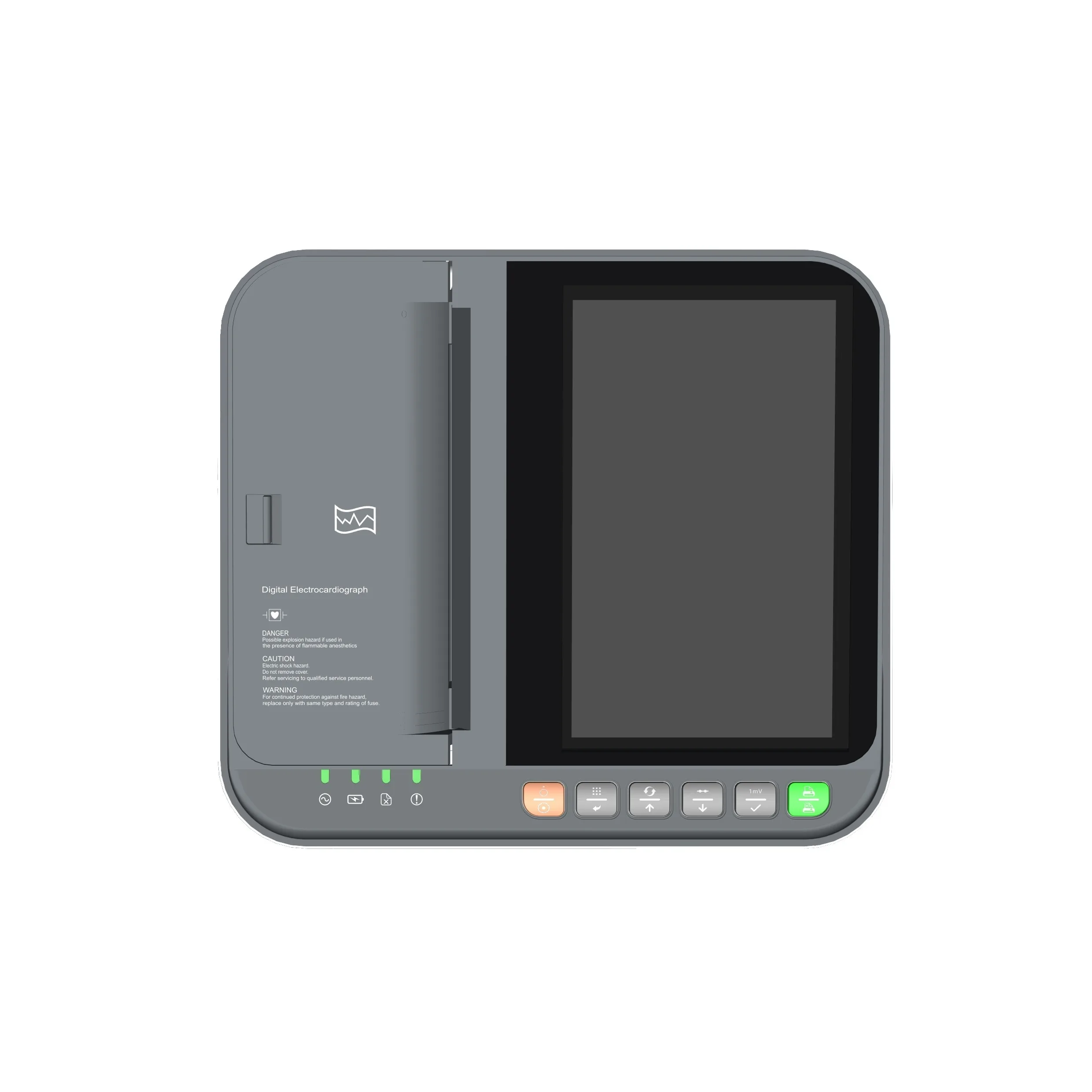

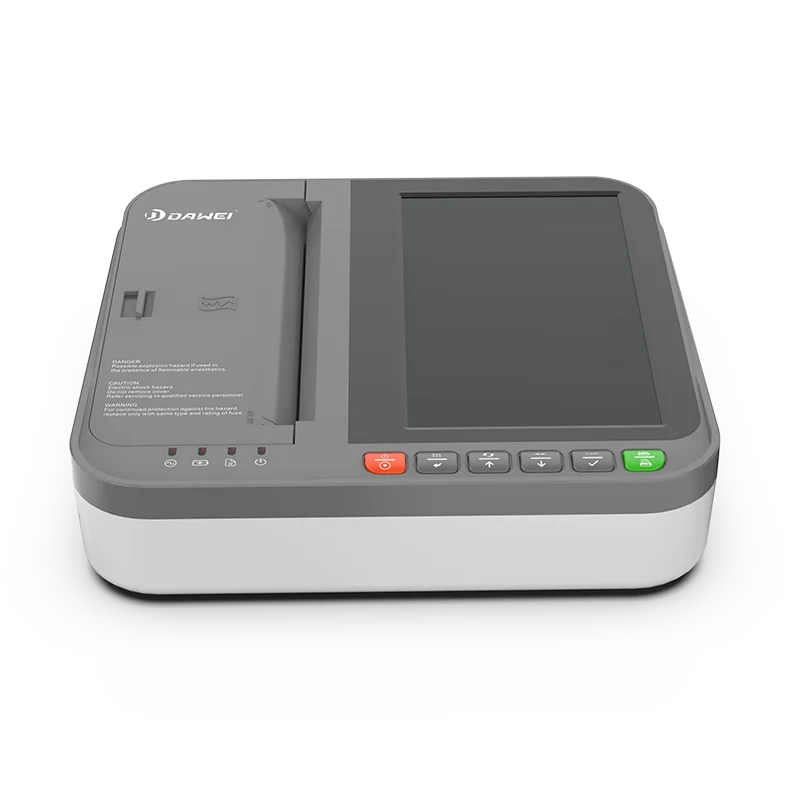

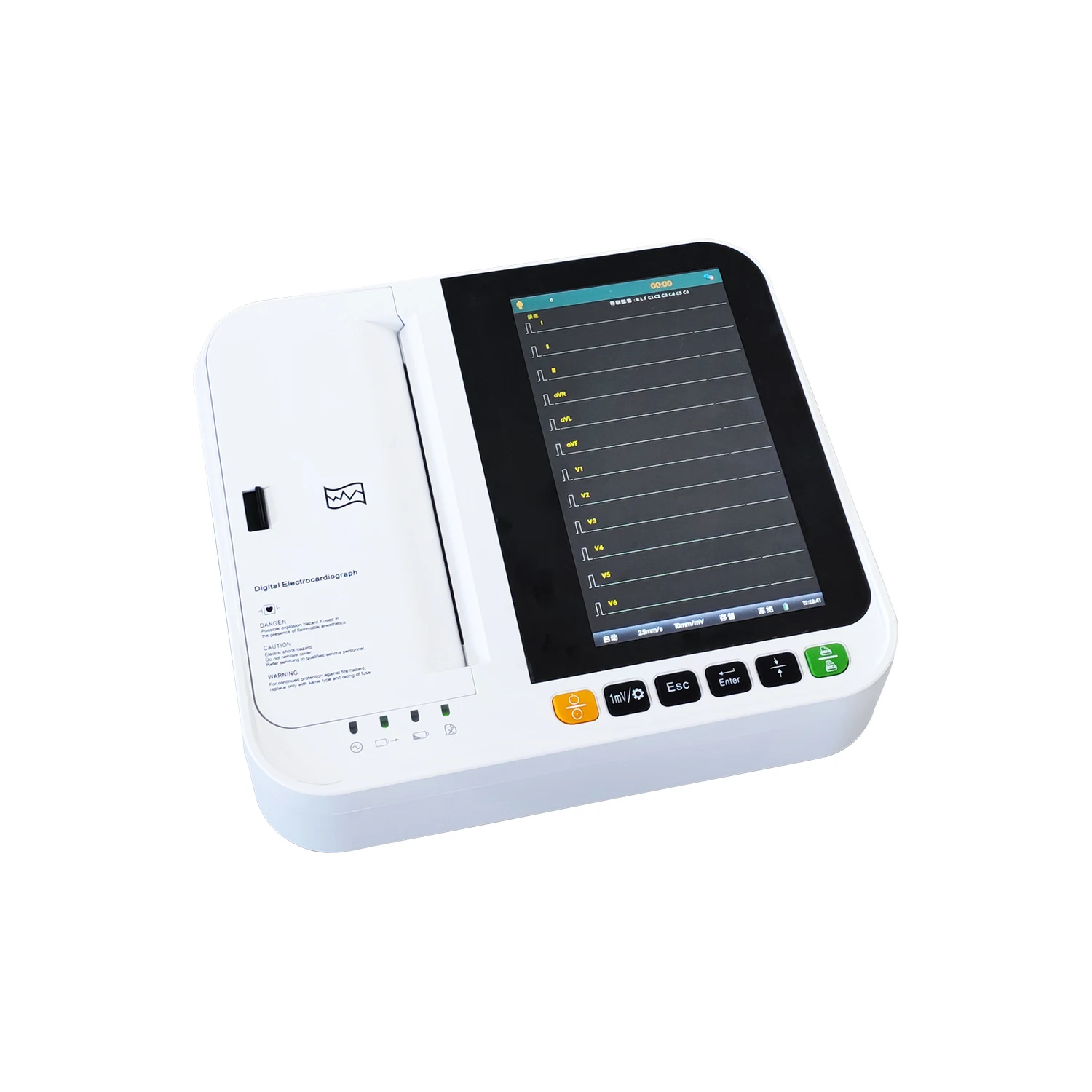

DE06 VET
Technical indicators
Common mode rejection ratio (CMRR) | ≥100dB | ||
The input circuit | Float, defibrillation | ||
Input loop current | ≤0.1чA | ||
Sampling rate | 12bit/1000HZ | ||
Operating mode | Manual/automatic | ||
The filter | Working filter, electromechanical filter | ||
Drift filtering | Anti-drift system | ||
The input impedance | ＞50MΩ | ||
Patient leakage current | ＜10чA | ||
Fuse specification | T1.6A/ 250V Ø5×20 | ||
Recording paper specification | Scroll/folding thermal recording paper (210mm ~ 216mm self-adaptive) | ||
Calibration voltage | 1mV±3% | ||
Polarization resistance voltage | ±300mV | ||
Time constant | ≥3.2s | ||
Frequency response | 0.05-150Hz | ||
Noise level | ≤15чVp-p | ||
Minimum detection signal | ≤20чV | ||
The feeding speed | 12.5 mm/s, 25mm/s, 50mm/s | ||
The sensitivity | 5, 10, 20 (mm/mV ±5 %) | ||
record | Twelve high resolution thermal print | ||
The battery | 14.52V/5.2Ah（75.504Wh） | ||
Overall dimensions | 365mm×306mm×109mm | Net weight: 4.25 KG | |
Size of packing box | 400mm×350mm×200mm | Gross weight: 6.2 KG | |

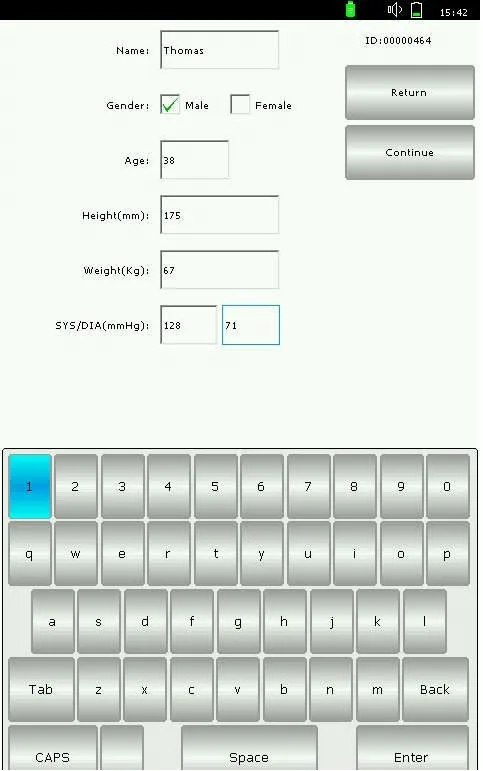

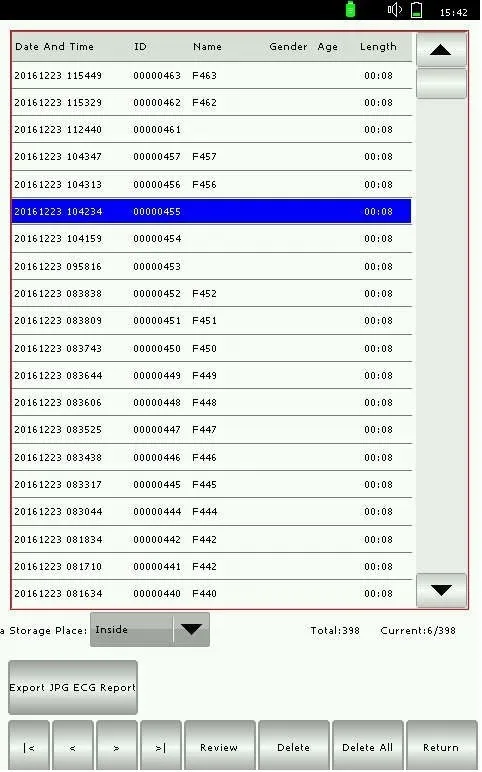

Patient data

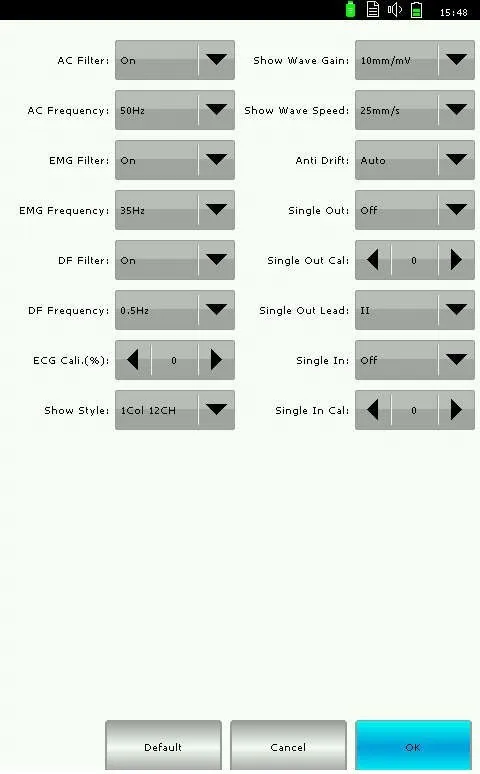

Settings
Creat new case

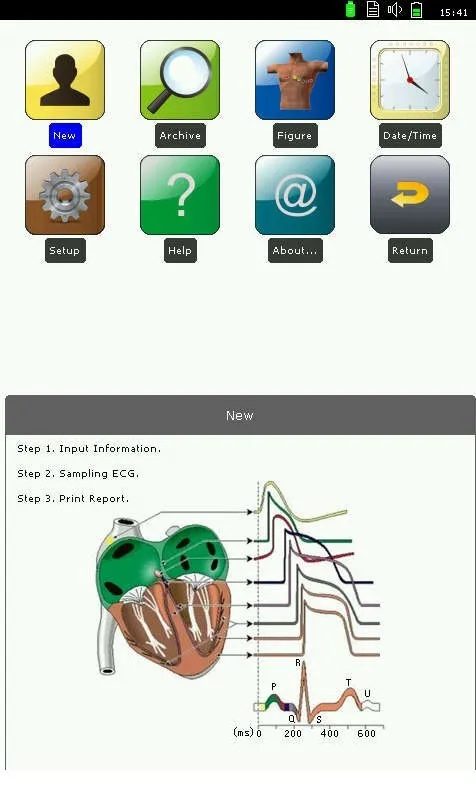

Software interface

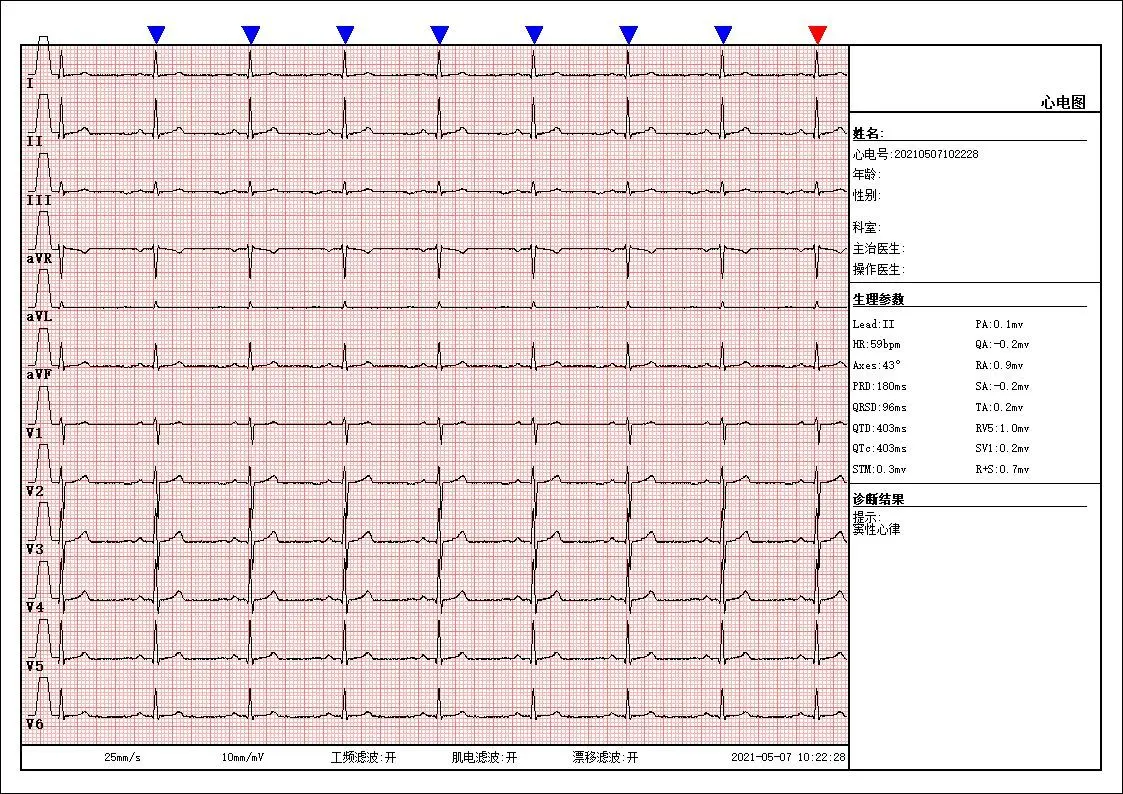

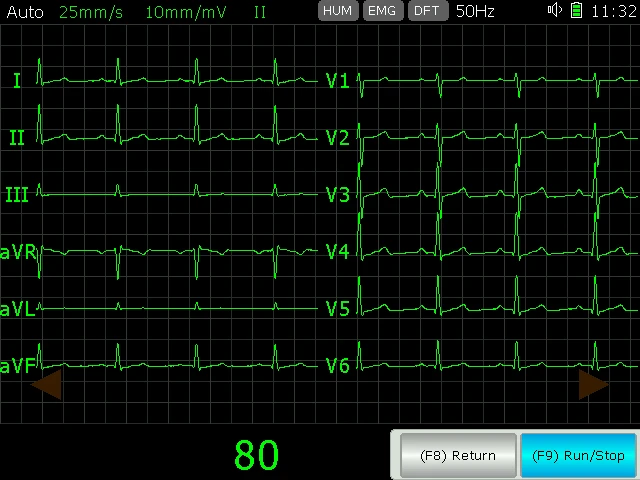

Working status:

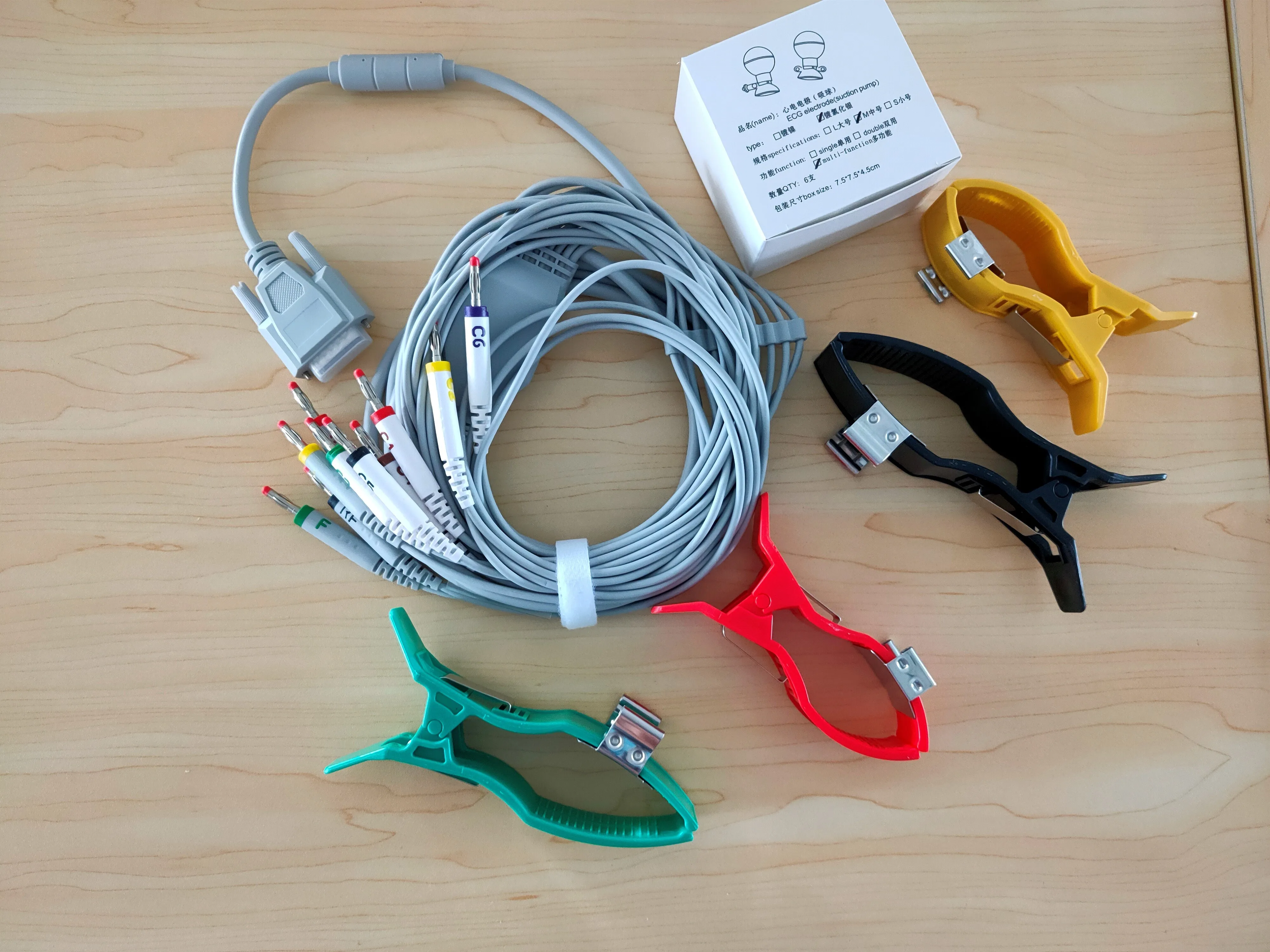

Standard accessories:
More models coming soon
Product | Model No. | Monitor | Width of printer paper | Auto-analysis | |||
3-Channel | DE-03 | 7” touch screen | 80mm | Yes | |||
6-Channel | DE-06 | 7” touch screen | 112mm | Yes | |||
12-Channel | DE-12 | 10.2” touch screen | 210mm/215mm/216mm | Yes | |||

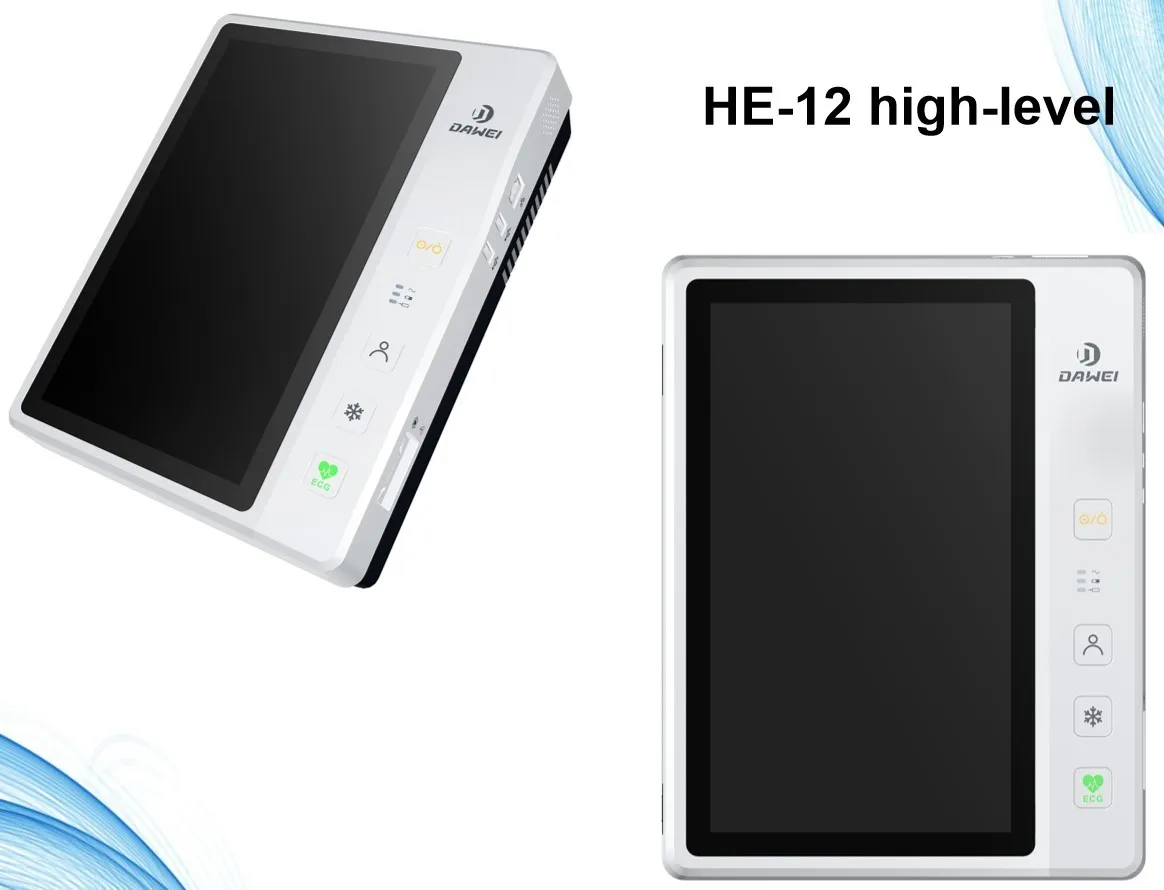

HE-12 | 13.3” touch screen | 210mm/215mm/216mm | Yes | ||||
Workstation | Connect to PC, adapt to every model of ECG machine | ||||||
Company Profile
After more than 10 years, Dawei has developed into a leading domestic manufacturer of High-tech Ultrasound Equipment. Now our products are sold to more than 30 domestic provinces and exported to over 160 countries and regions."Profession creates more splendidness." Dawei has met the standards of ISO13485, received CE certification, and also gainedvarious of invention patents and software copyrights.

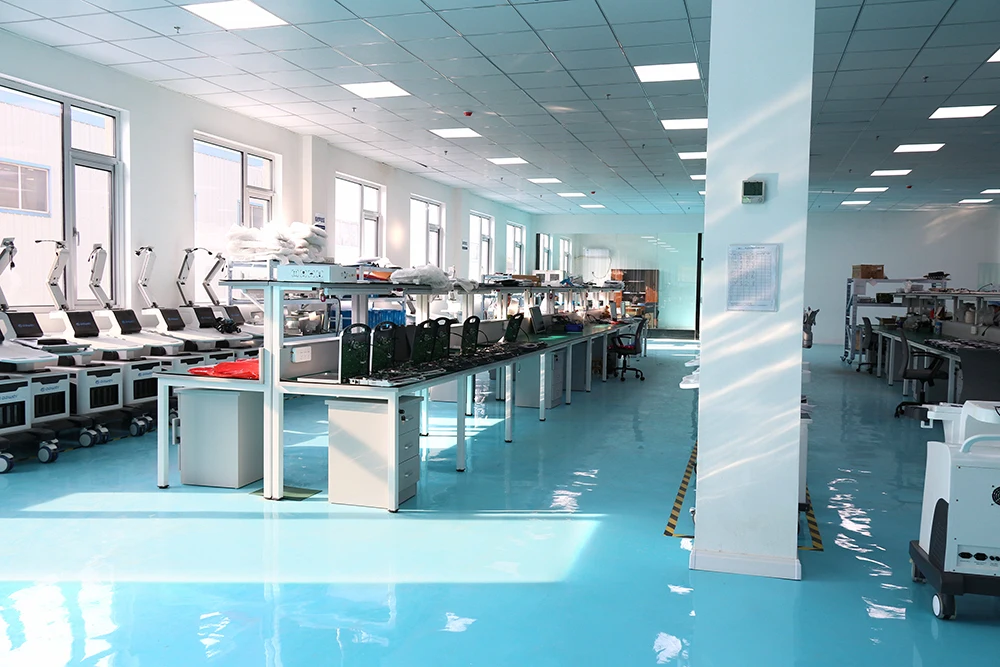

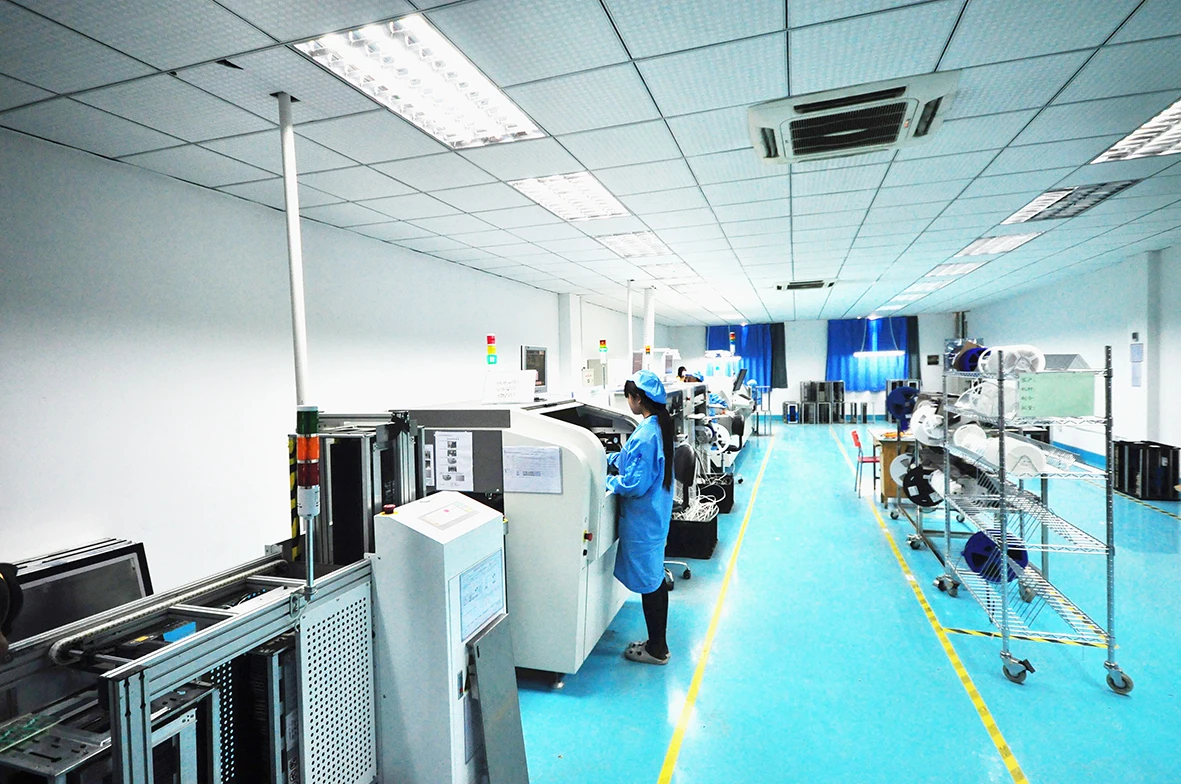

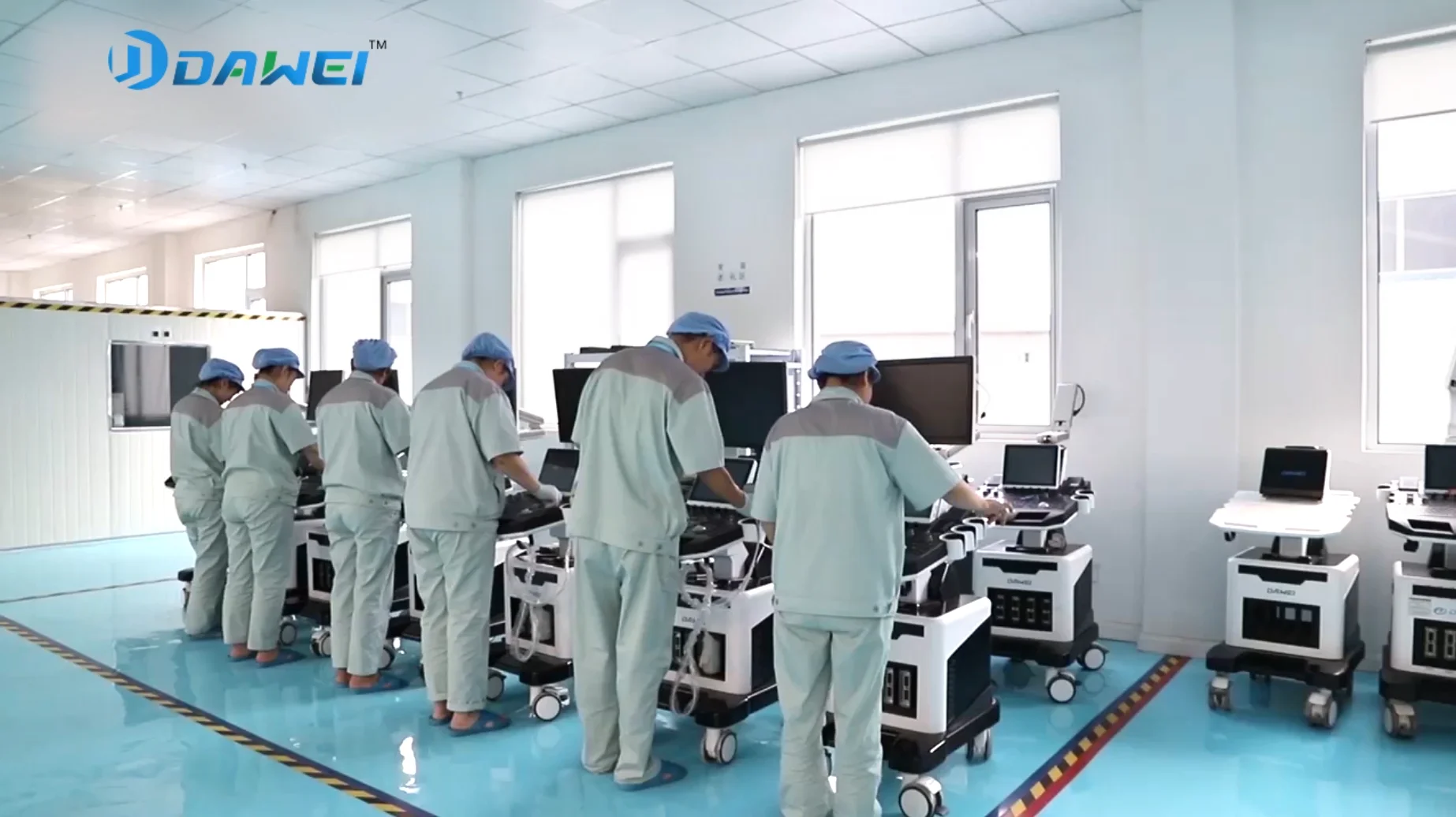

Production Line
Matherboard
Probe Assembly
QC

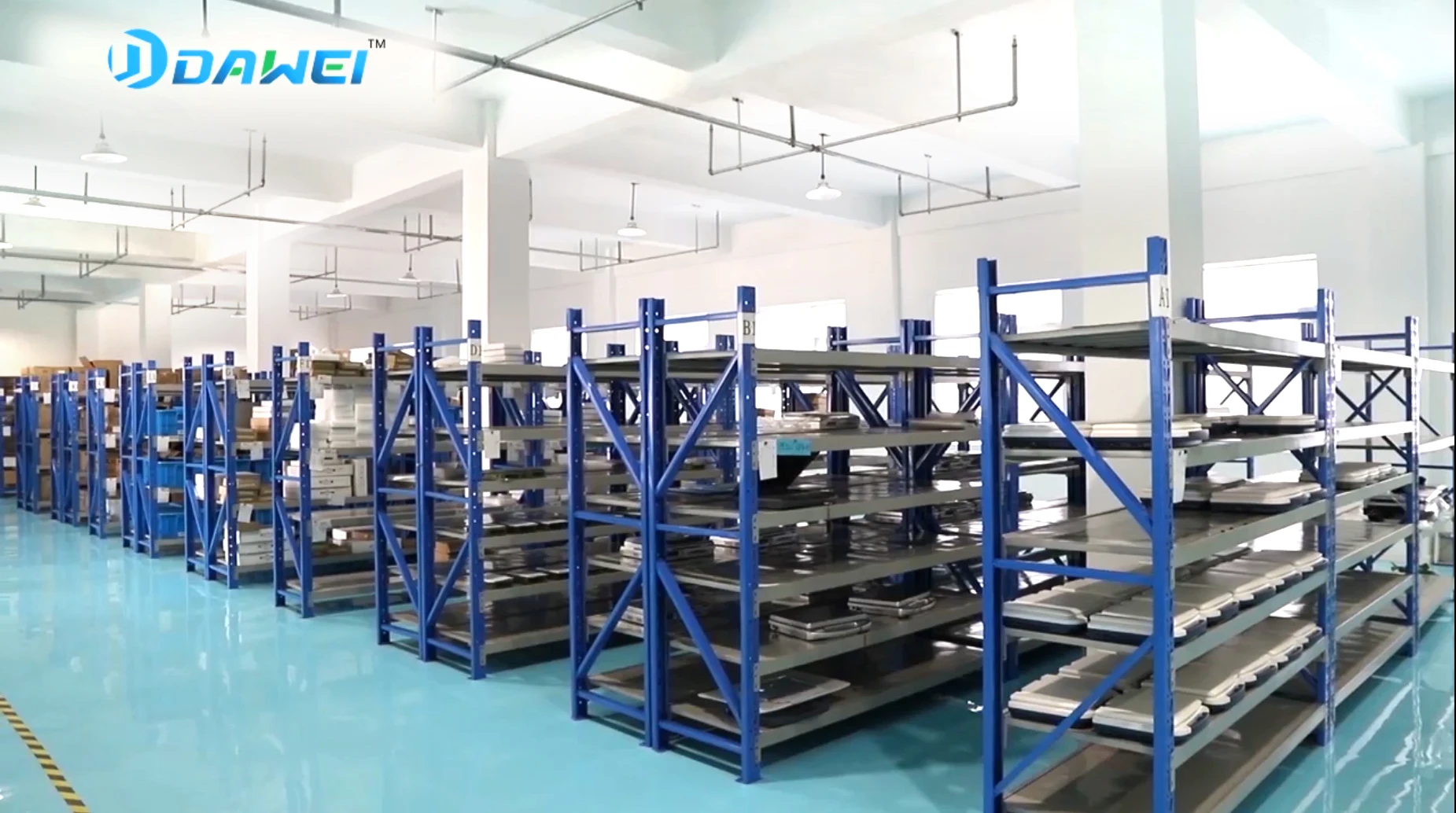

Warehouse
Certifications

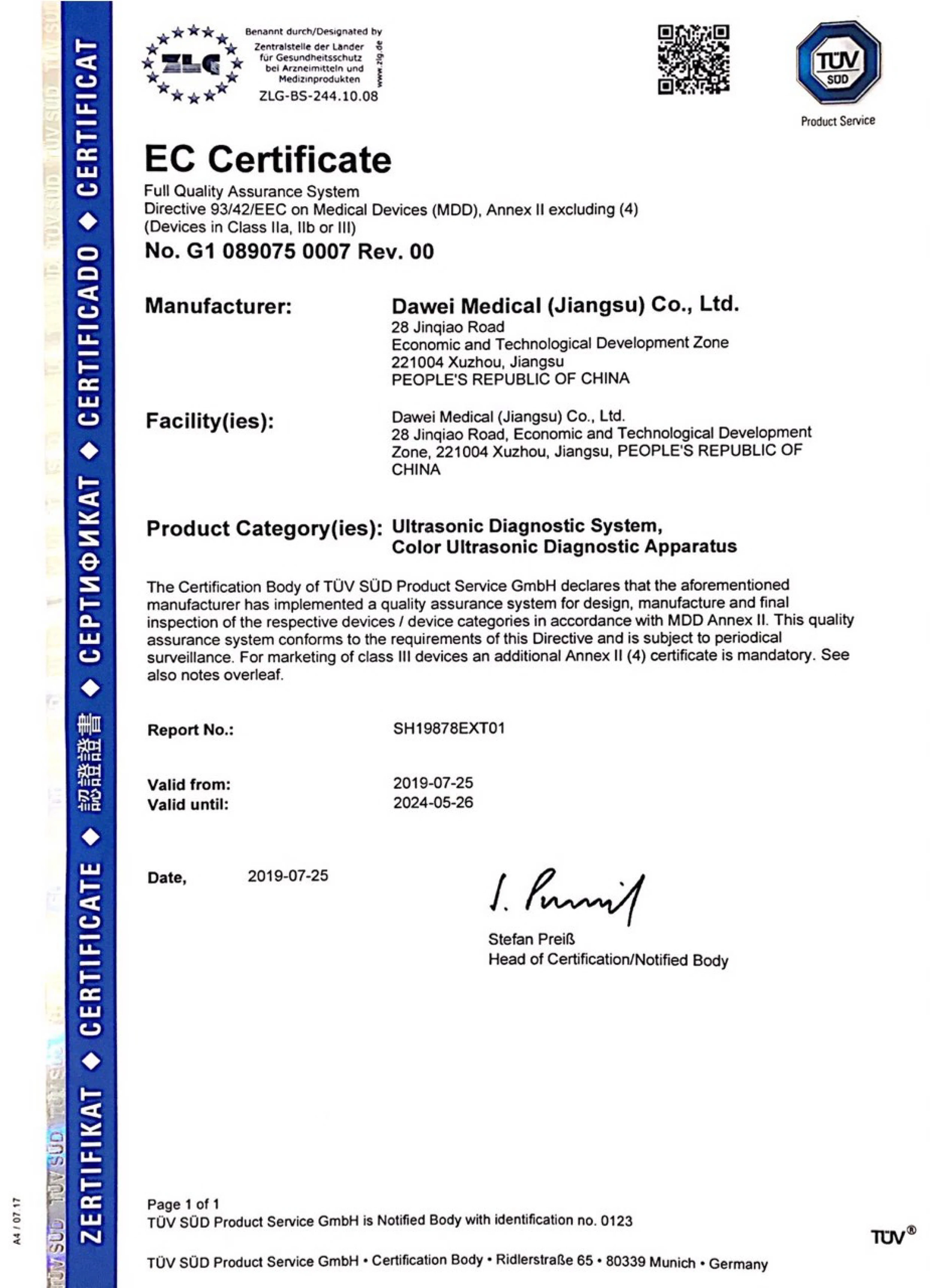

CE
ISO
Specification
item | value |
Packing & Delivery
One piece in seperate package
