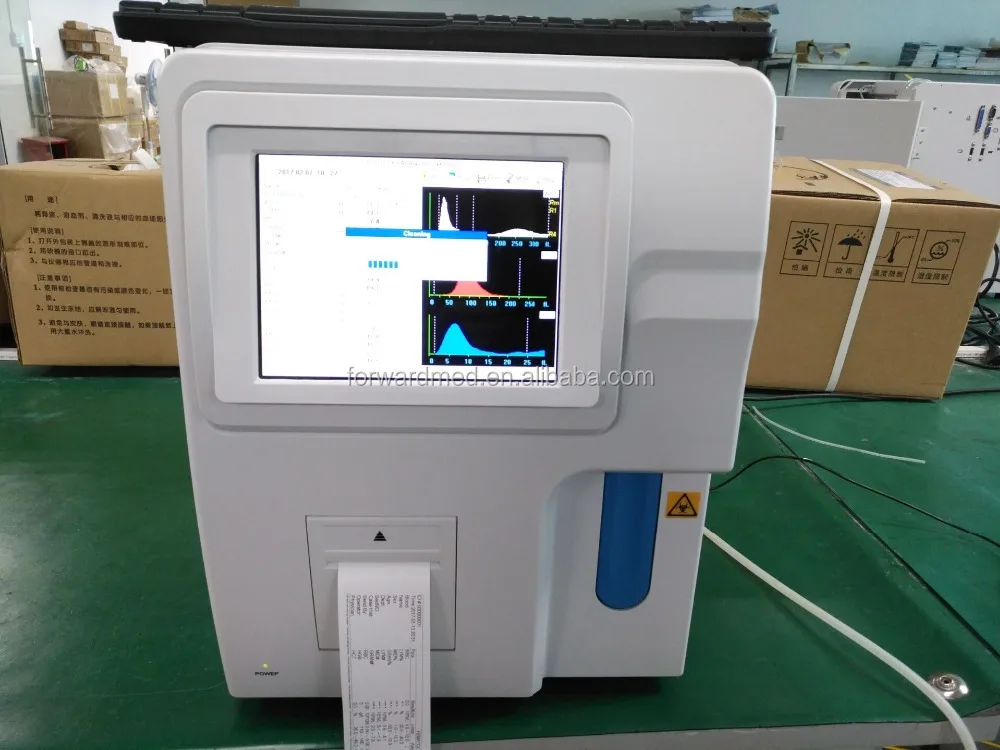

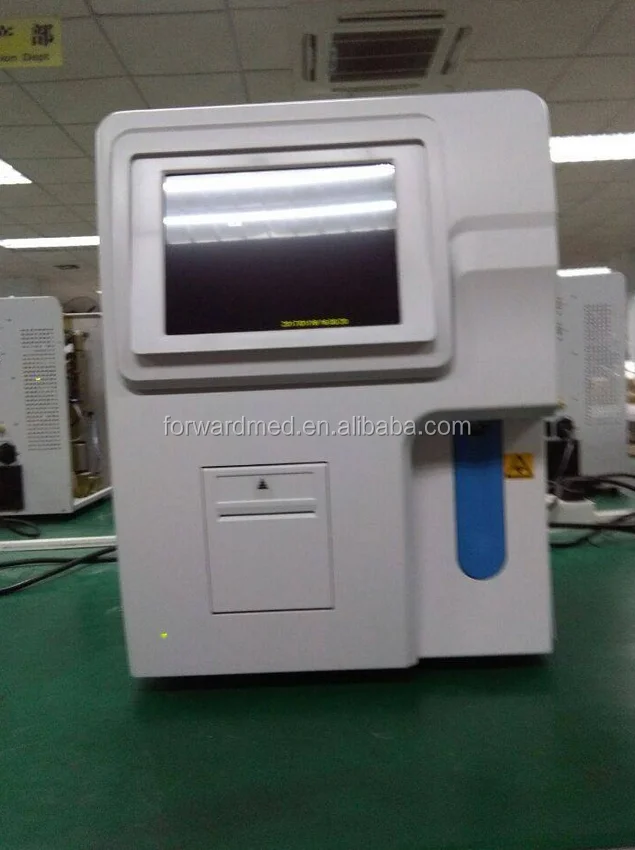

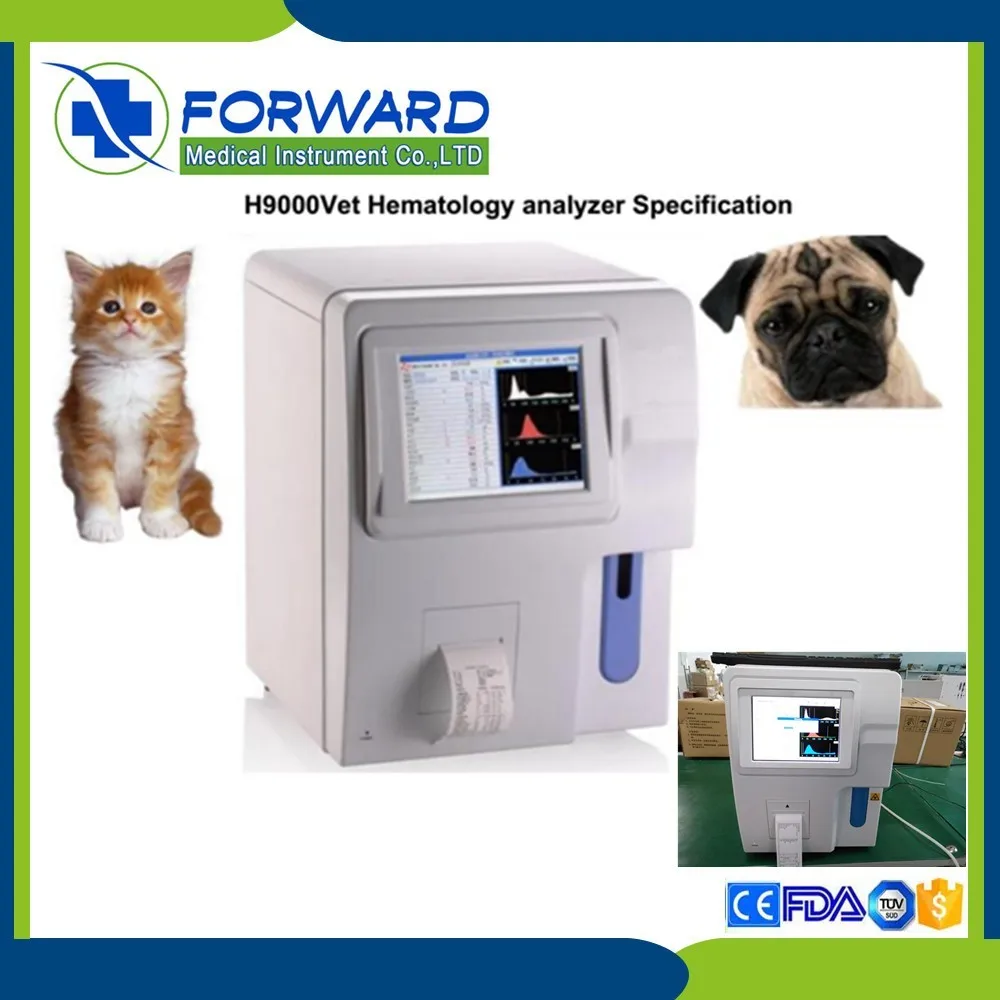

open system 3diff cheapest veterinary Hematology Analyzer price with touch screen/computer blood cell counter

Product Description



Main Technical Specifications

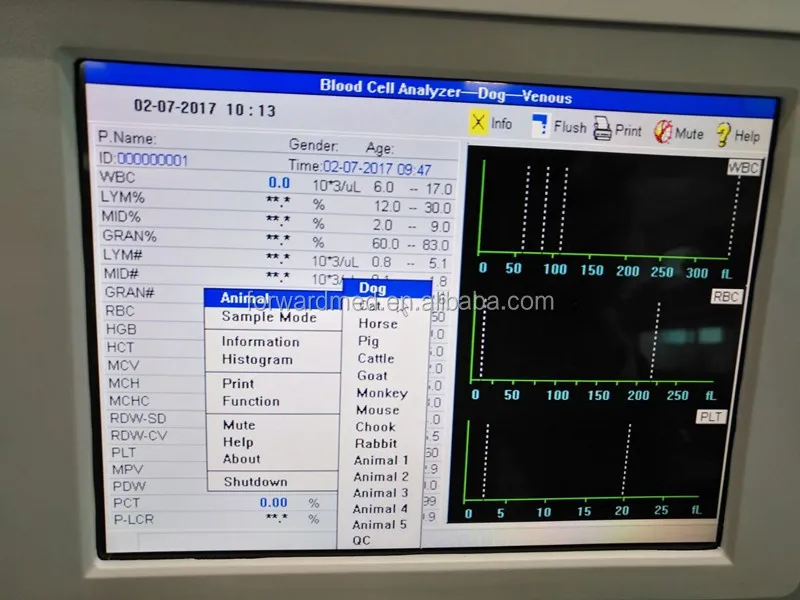

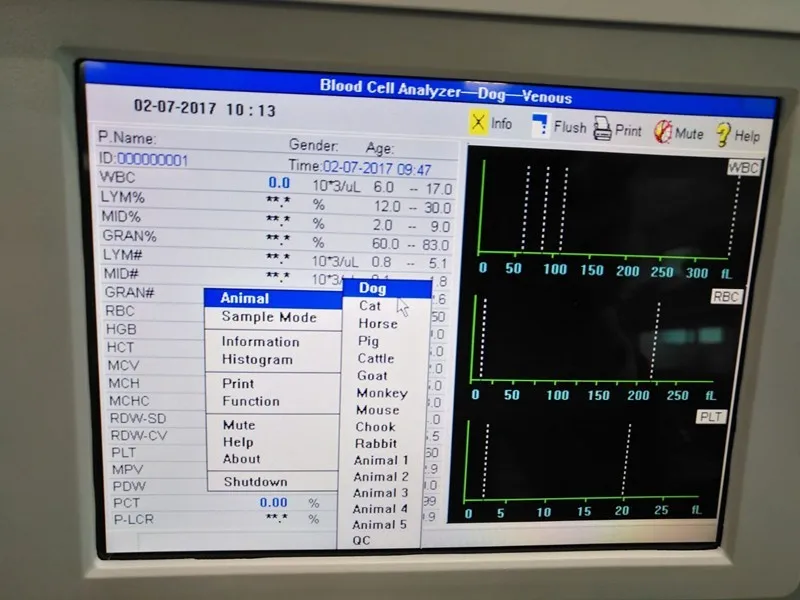

Animal Type: cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, plus 5 user-defined animal settings

Methodology: Electrical resistance for counting, hemoglobin cyanide method and SFT method for hemoglobin

Parameter: 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)

Work mode : Single Channel + unique Hemoglobin test system

Sample volume: 9.6μL for Venous and capillary mode, 20μL for pre-diluted mode

Throughput: More than 35 samples per hour, operate 24 hours a day, auto sleeping and waking-up functions

Storage: up to 100000 sample results including histograms can be stored, convenient for inquiry and management of history data

Operation langue: English

QC control : X-B, L-J, X , SD, CV %

Reference Value Setting : Male , Female, Children, Neonate

Alarm : 25 test of alert messages

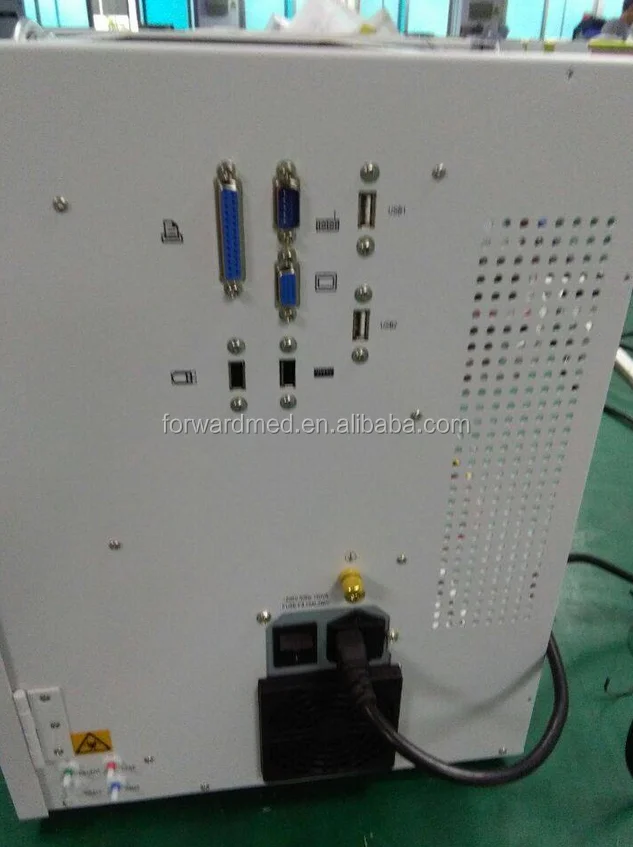

Input / output : RS232, parallel printer and keyboard

Print : Graphic thermal printer with various printing format,  optional external printer

Temperature : 18℃ - 30℃,wet ≤ 10-90%

Power supply : 220 V ±22 VAC, 50±1Hz

Dimension : 33 CM ( L ) * 38 CM ( W ) * 43 CM ( H )

Weight : 20 KG

Precision

Parameters                 linear range            CV %

WBC( 10 9 / L )              0.0 - 99.9              ≤2%

RBC ( 1012 / L )              0.0 - 9.99             ≤1.5%

MCV ( fL )                  40-150                ≤0.5%

PLT ( 10 9 / L )              0-999                  ≤4.0%

HGB( g/L )                 0.0-300.0               ≤1.5%

Parameters

WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB,HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV,PDW,PCT,L-PCR

3 –histograms : WBC,RBC and PLT
