ET4410 100KHz digital inductance meter lcr meter
- Category: >>>
- Supplier: Hangzhou Zhongchuang Electron Co. Ltd.
Share on (1600547662803):
Product Overview
Description
Product Description

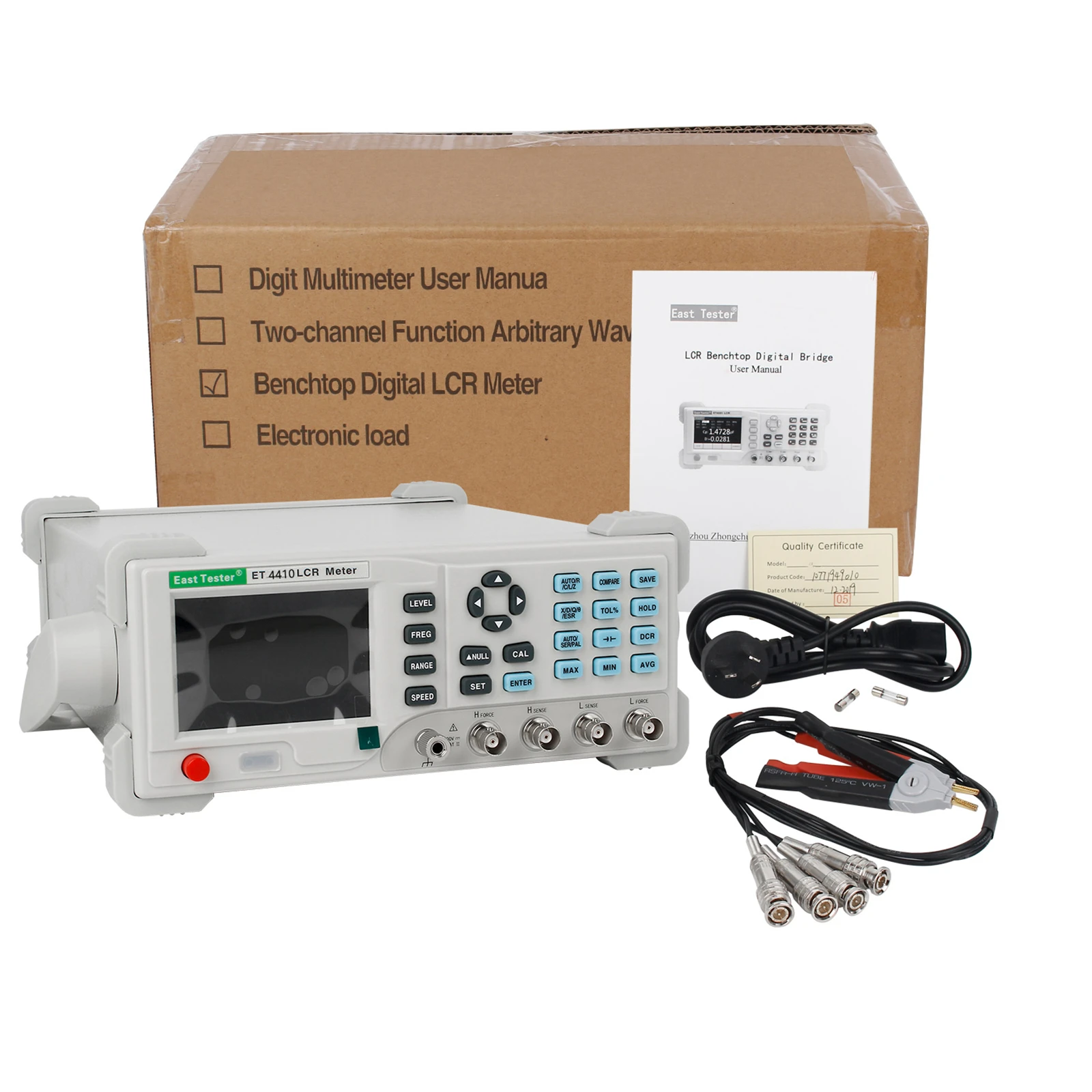

ET4410 100KHz digital inductance meter lcr meter
ET1091C Wholesale 10Hz~ 100KHz Lcr Transistor Tester Diode Capacitance ESR Meter
Basic information
The highest measuring frequency is 100kHz, and the stepping;
frequency is continuously adjustable at 1Hz;
Test level 10~2000 mV, 1 mV step continuously adjustable;
Supporting DC Resistance (DCR) and Electrolytic Capacitance Measurement;
Internal bias voltage output 10mV~1500mV;
3.5-inch TFT display, 5-bit display;
Communication:USB Device, RS232 (or 485), Handle, GPIB (optional),
USB Host (optional);
Data recording function (maximum, minimum, average);
Supporting SCPI Communication Protocol;
Provide system settings to configure Chinese or English, buzzer, screen brightness, etc;
The basic measurement accuracy is 0.2%;
Manual and automatic range;
With open circuit and short circuit calibration function;
Comparator sorting (5 gears), alarm function.
LCR BridgeMeter 100Hz~ 10KHz Digital electronics component tester LCR Meter
Model | ET4401 | ET4402 | ET4410 | ET4501 | ET4502 | ET4510 | |||||
Testing frequency | 10 points (100, 120, 200, 400, 800, 1K, 2K, 4K, 8K, 10K) | 12 points (100, 120, 200, 400, 800, 1K, 2K, 4K, 8K, 10K, 15K, 20K) | 16 points (100, 120, 200, 400, 800, 1K, 2K, 4K, 8K, 10K, 15K, 20K, 40K, 50K, 80K, 100K) | 10-10KHz continuous adjustable, 1Hz stepby- step | 10-10KHz continuous adjustable, 1Hz stepby-step | 10-100KHz continuous adjustable, 1Hz step by-step | |||||

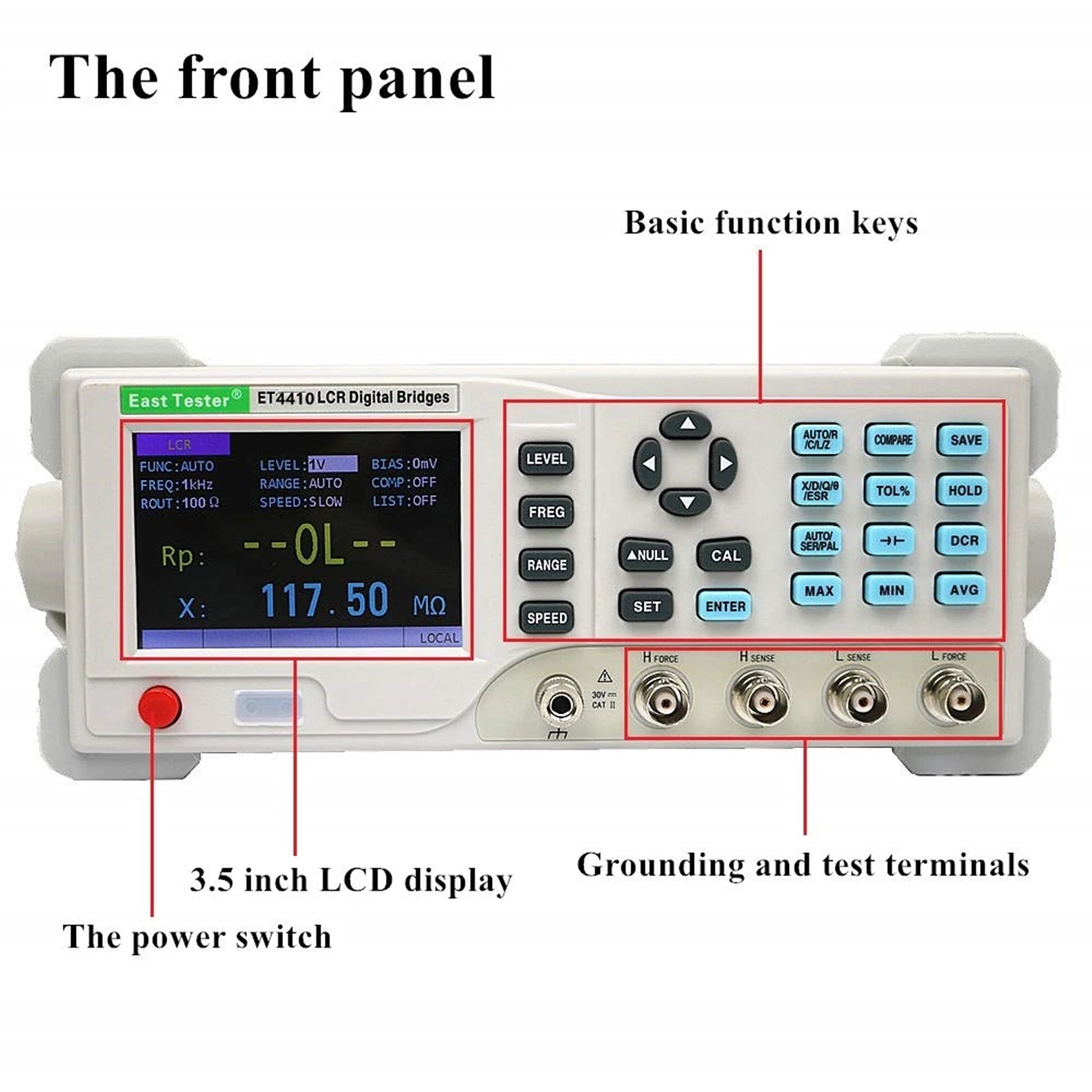

Display screen | Display screen 3.5 inch TFT LCD | ||||||||||
Number of display digits | Principal parameter: 5 digit，Secondary parameter: 5 digit | ||||||||||
Measured parameter | Principal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESR | ||||||||||
Measurement range | L：0.001μH～9999H， | ||||||||||
C：0.001pF～99.999mF | |||||||||||
R：0.0001Ω～99.99MΩ | |||||||||||
Basic accuracy | 0.20% | ||||||||||
Measuring display speed | 2 time/s (slow), 4 times/s (medium), 8 time/s (fast) | ||||||||||
Internal bias | 0-1500mV adjustable, at a step of 1mV. | ||||||||||
Testing level | Six fixed level(0.1V、0.3V、0.6V、1V、1.5V、2V) | 0.1~2V adjustable, at a step of 1mV. | |||||||||
Signal source output impedance | 30Ω、100Ω | ||||||||||
Calibration function | Open circuit calibration, short circuit calibration | ||||||||||
Screening function | The limit range of screening can be set to -50%～＋50%, and the fixed points are 1%, 5%, 10% and 20% | ||||||||||
Comparator | 5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary setting | ||||||||||

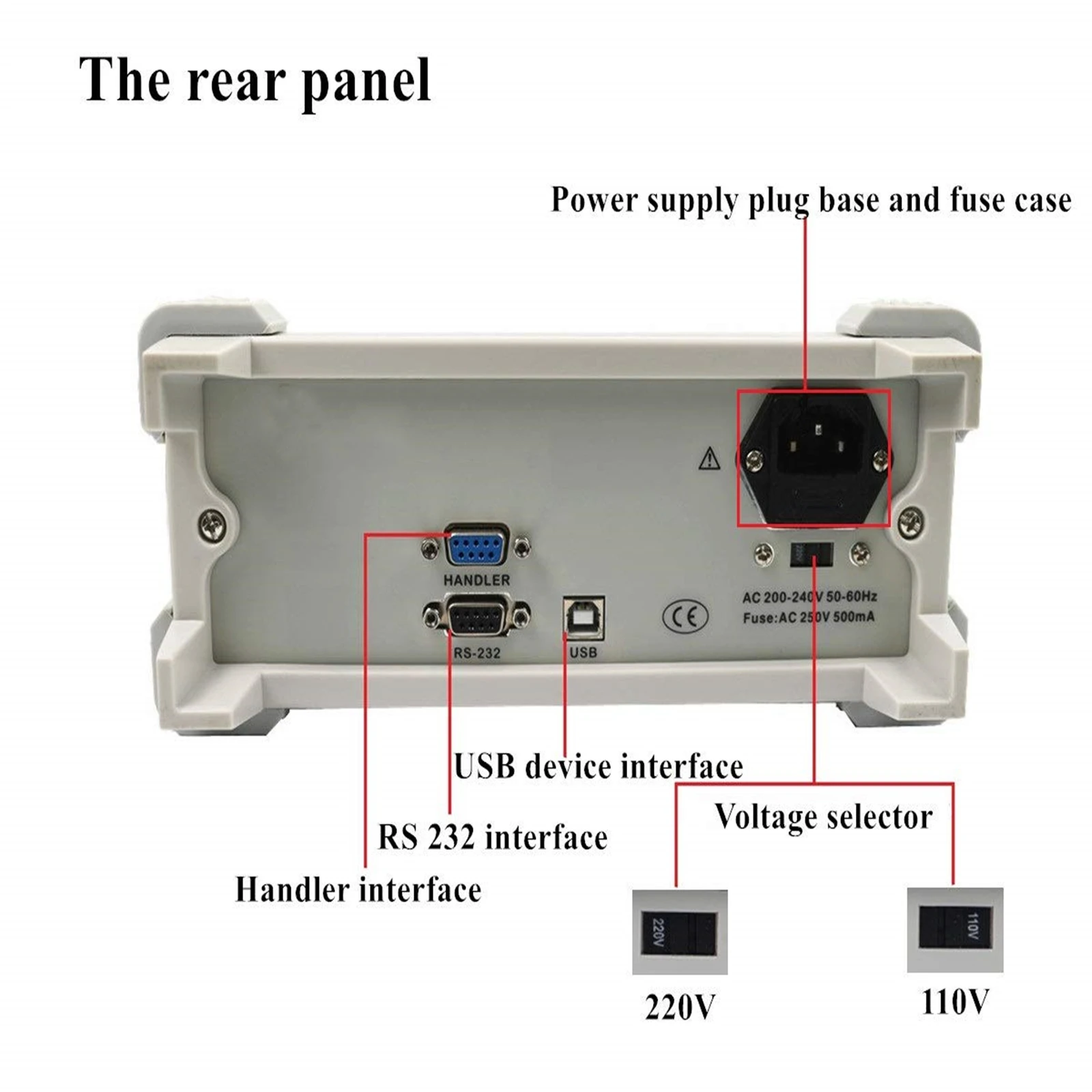

Interfaces | standard: RS232（or 485）, USB Device, Handler ;optional: GPIB,USB Host | ||||||||||
Others | Support dc resistance (DCR), electrolytic capacitor measurement model,Adjustment of backlight brightness, Chinese and English are optional. | ||||||||||
General technical specifications
Power voltage: 220V.AC ±10%, 50Hz; 110V for option
Power consumption: <20W
Display: 7" TFT LCD, with a resolution of 800*480
Interfaces: Ethernet, RS232, GPIB, USB and Handler interfaces
Service environment: 0°C-40°C
Sizes: 330mm*285mm*136mm (L*W*H)
