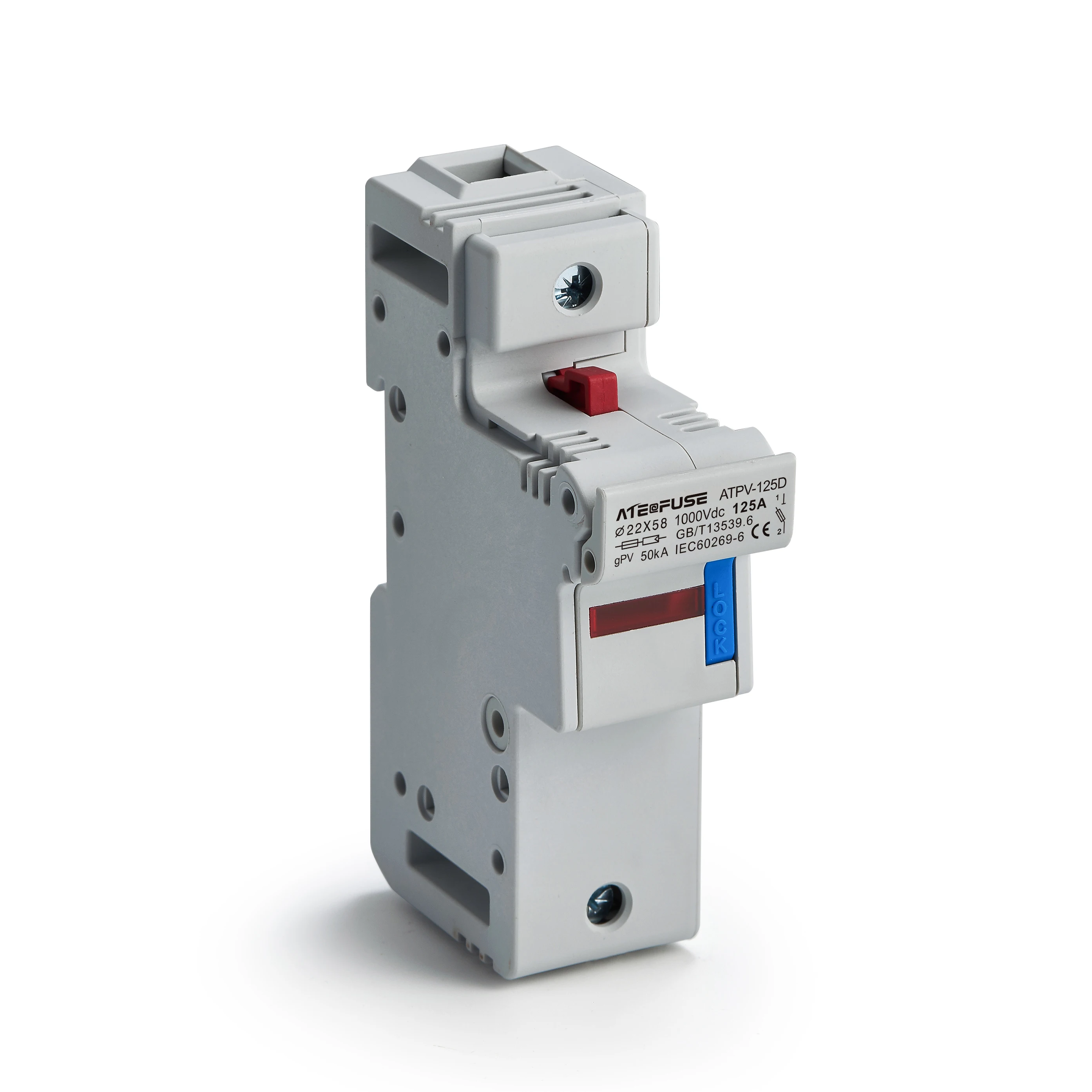

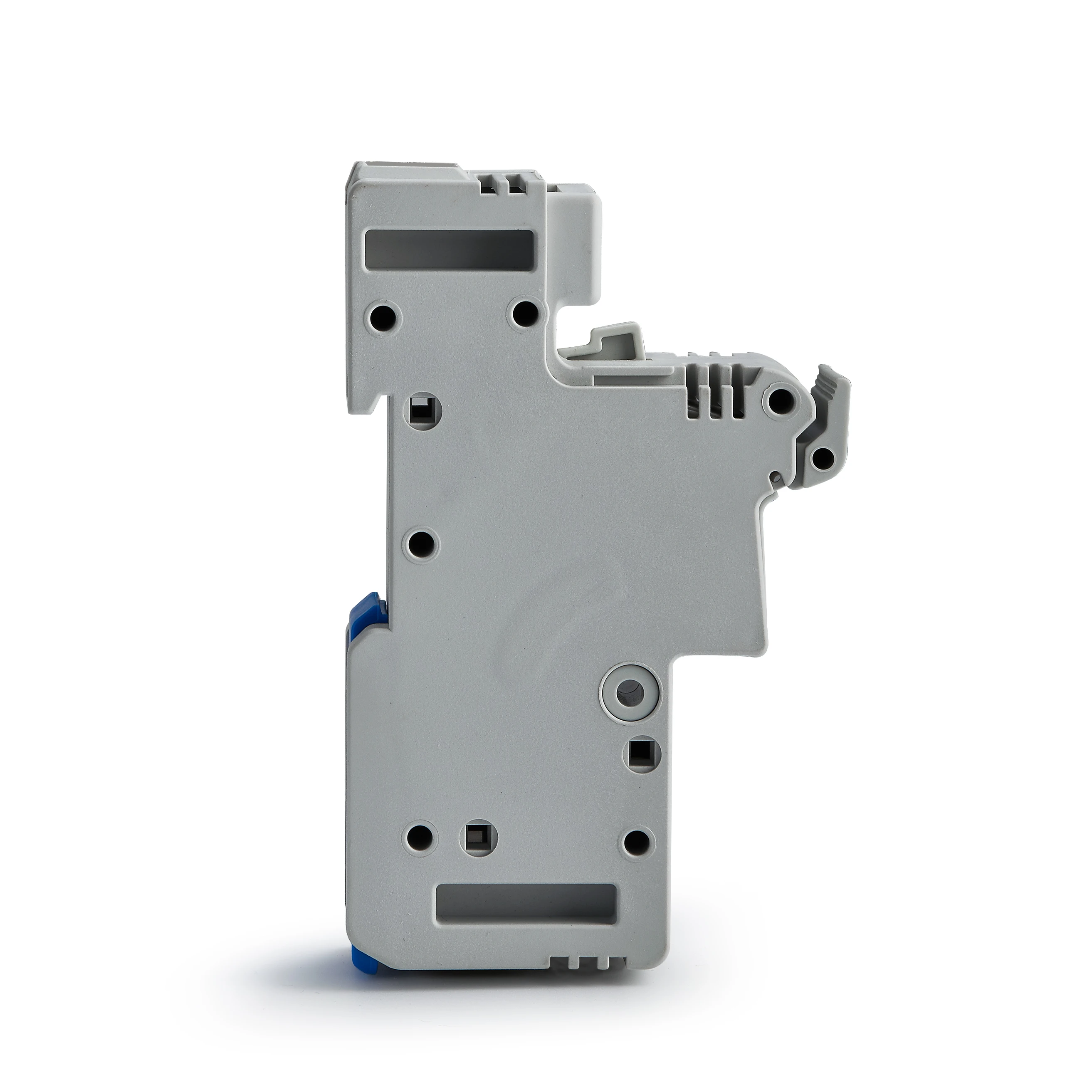

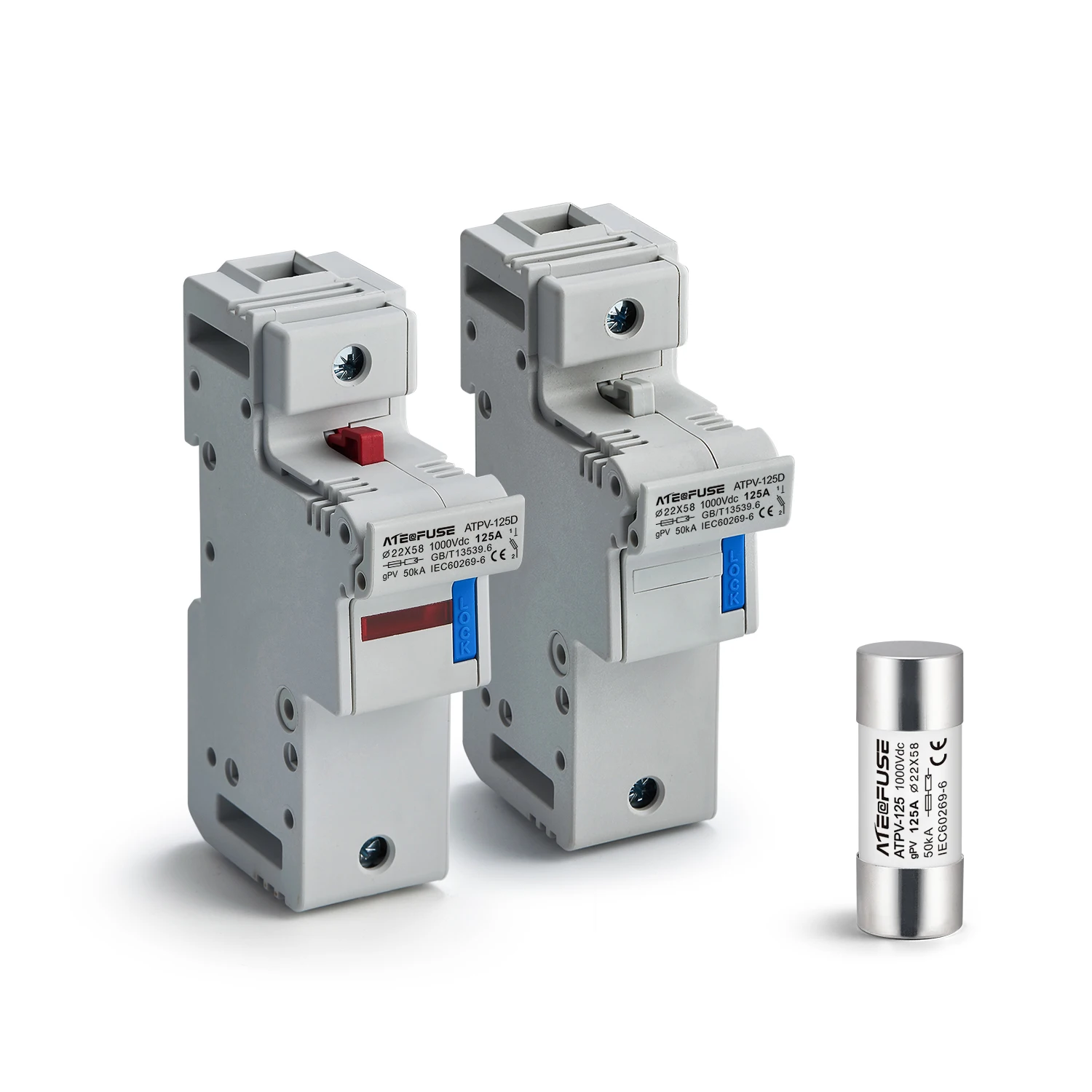

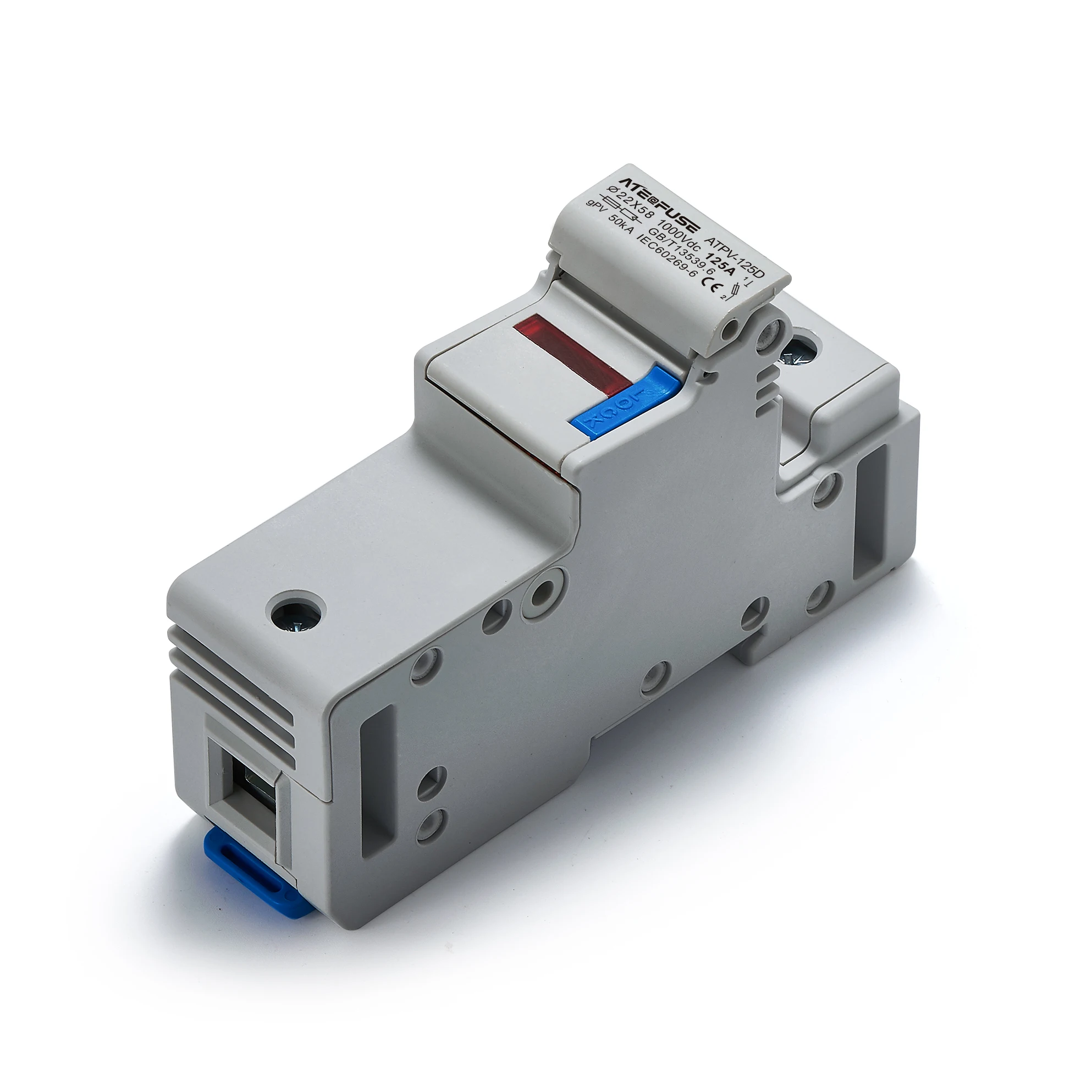

1000V LED Fuse Holder for Solar PV System Protection Fusible 22x58MM gPV PV Solar Fuse
- Category: >>>
- Supplier: Zhejiang Aite Electric Technology Co. Ltd.
Share on (1600547674316):
Product Overview
Description
PRODUCT SPECIFICATIONS
Product name | 1000Vdc fuse link |
Rated current | 8A-125A |
Material | ceramic |
Product Overview

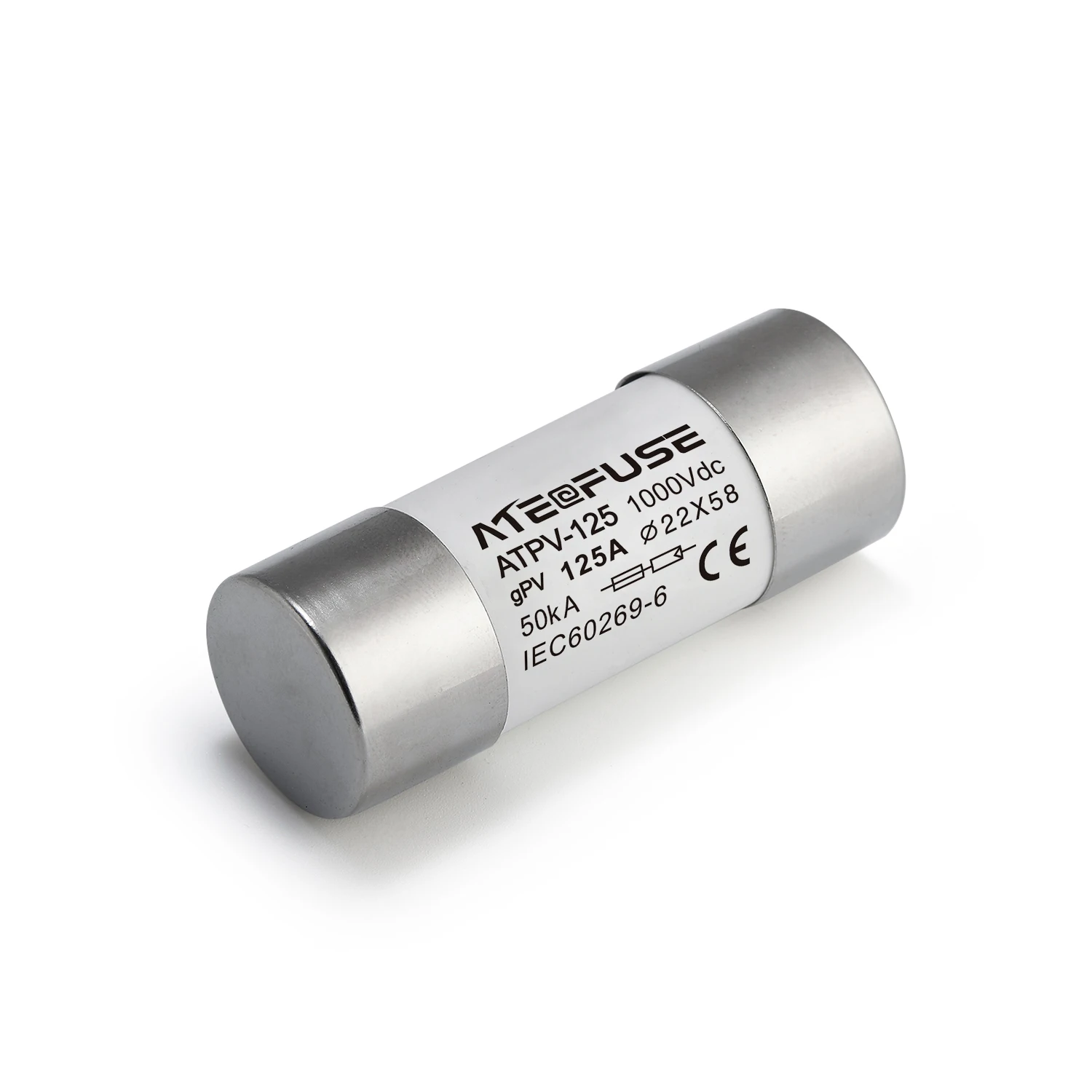

ATPV-125 1000V DC 8A-125A
The ATPV type fuses are suitable for lines with rated DC voltage up to 1000V and rated current up to 125A.
It’s provide short-circuit protection for
* connected in series and parallel with photovoltaic panels and batteries
* the charging and converter system
* photovoltaic power plants, inverter and rectifier systems
* photovoltaic power generation system surge current
rated breaking capacity up to 50kA.
It’s comply with China national standard GB/T13539.6, IEC60269-6，the International
Electrotechnical Commission standard IEC60269-6, and UL248-19
It’s provide short-circuit protection for
* connected in series and parallel with photovoltaic panels and batteries
* the charging and converter system
* photovoltaic power plants, inverter and rectifier systems
* photovoltaic power generation system surge current
rated breaking capacity up to 50kA.
It’s comply with China national standard GB/T13539.6, IEC60269-6，the International
Electrotechnical Commission standard IEC60269-6, and UL248-19
FEATURES AT A GLANCE
Advantage:
① Double cover design with inner cover and outer cover.
② The thickness of the electroplated coating is thickened, which promotes the contact between the inner cover and the conductive part of the base more closely and the conductivity is better.
③ The fused piece is made of pure silver, which ensures that the product has low temperature rise, low power consumption, long service life, overload or short circuit can play the best protection role.
④We have designed a more perfect solution, which can make the rated current of 10 * 85 reach 35A and the breaking capacity reaches 50kA. It completely meets the requirements of current promotion of solar crystalline silicon panel in the market, and enables users to reduce the cost utilization rate higher without changing the solution of combiner box.
⑤ UL, TUV certification
