Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Large Size Laser Cutting Machine for Garment and Fabric MAX Leather Original Acrylic Dst Honeycomb Marketing Wood Key Training
- Category: >>>
- Supplier: Shanghai Zhaozhan Automation Equipment Co. Ltd.
Share on (1600547689000):
Product Overview
Description
Large Size Laser Cutting Machine for Garment and Fabric MAX Leather Original Acrylic Dst Honeycomb Marketing Wood Key Training
Product Description
Fiber laser cutting machine is mainly used in metal processing industry, as the industry more widely,The materials to be processed are also getting larger and larger, and largeformat laser cutting machines have emerged, which are mainly suitable for sheet metal, Advertising, kitchenware, lamps, knives, hardware, steel structure and other metal parts processing industries. Currently the traditional cutting methods used for metal materials such as flame cutting and plasma cutting are due to the accuracy and speed of cutting.The degree is limited to a large extent, especially for the cutting of large format thick plates, which makes the traditional cuttingThe equipment cannot achieve the effect of fast cutting speed and high precision.
Zhaozhan company launched a Light cutting machine to meet the requirements of different cutting equipment.
1. High accuracy, and good slit roughness. After cutting, there is basically no need for subsequent processing.
2.It is convenient to arrange and modify,Suitable for personalized processing.
3. High cutting precision, good stability,It can work continuously for a long time, 4. The cutting area is large and suitable for cutting materials.
5.Machinable materials are: ordinary carbon steel,Nonferrous metals such as stainless steel, alloy steel, aluminum plate, copper plate and titanium plate.

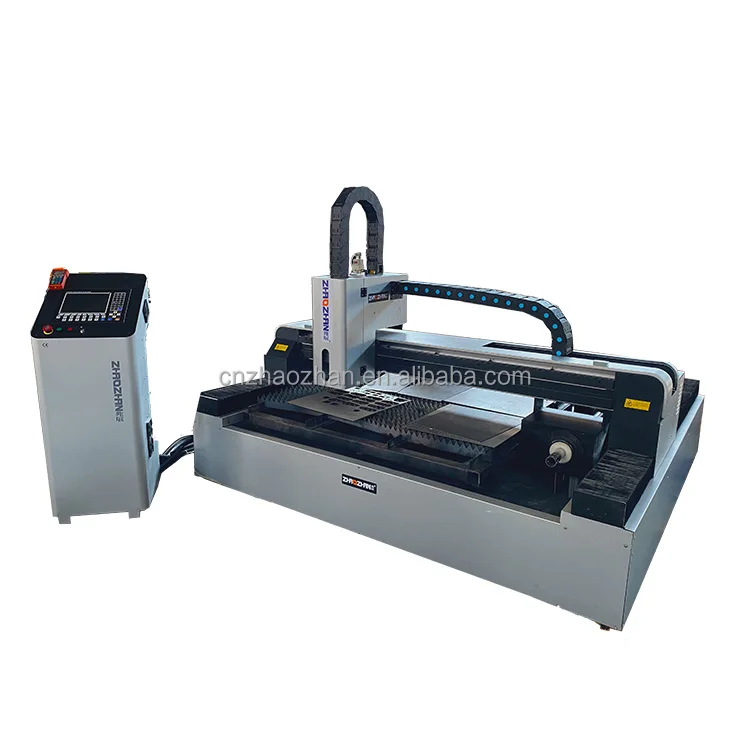

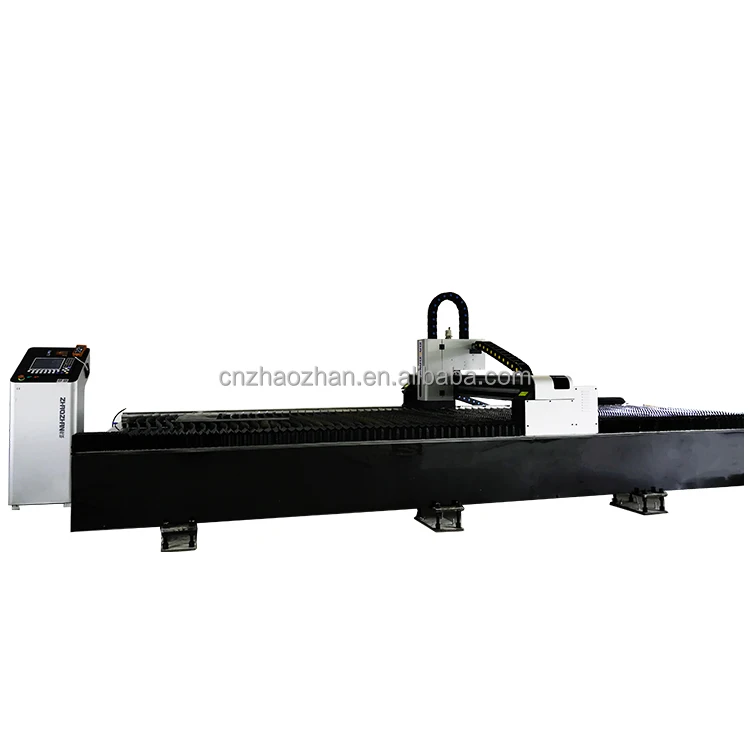

Name | KING LASER CNC CUTTING MACHINE | ||
Model No. | KING-5020L | KING-5025L | KING-5030L |
Effective Cutting Rangge Y*X | 3500*1500mm | 3500*2000mm | 3500*2500mm |
Customized Information | Length of Y axis rails can be customized extending | ||
Suitable Fiber Laser Power | 1000W/ 1500W/ 2000W/ 3000W/ 4000W/ 6000W | ||
X/Y Axis positioning accuracy | ±0.05mm/m | ||
X/Y Axis repeated positioning | ±0.02mm | ||
Maximum velocity of movement | 30m/min | ||
Torch Lifting Distance(Z) | ≤150mm | ||

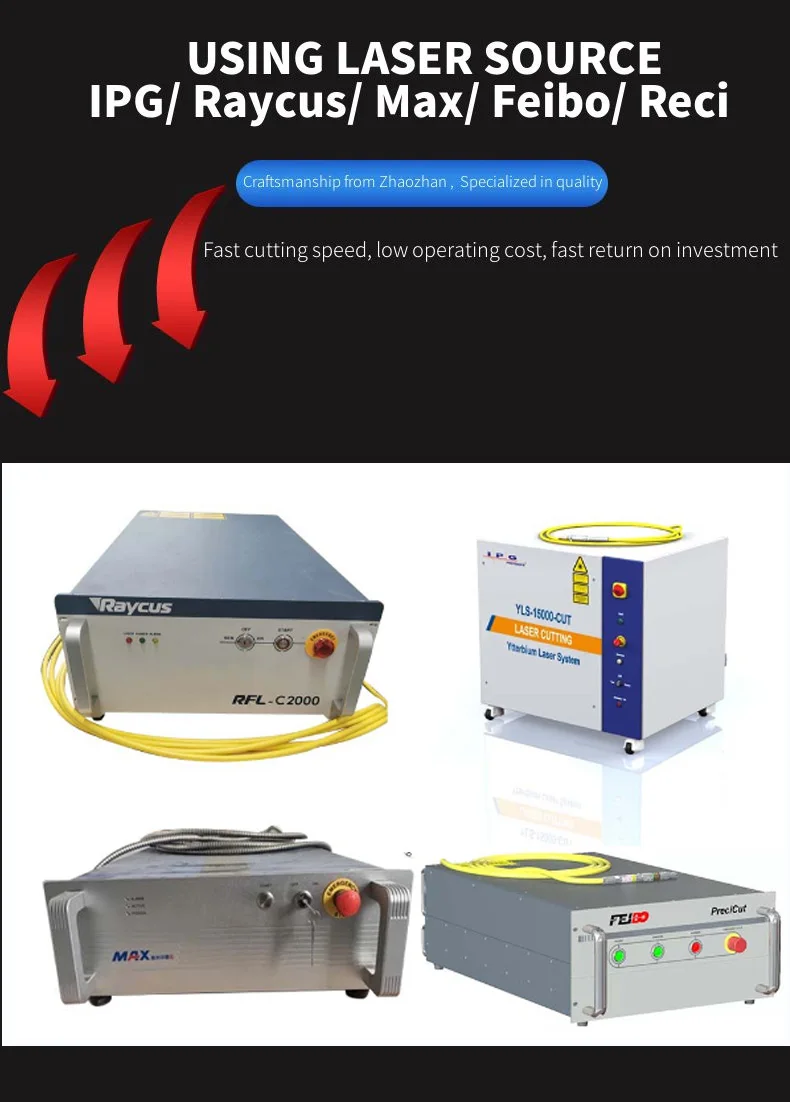

Laser source | Standard Configuration: Feibo | ||
Torch | Standard Configuration:Switzerland Raytools with Auto focus | ||

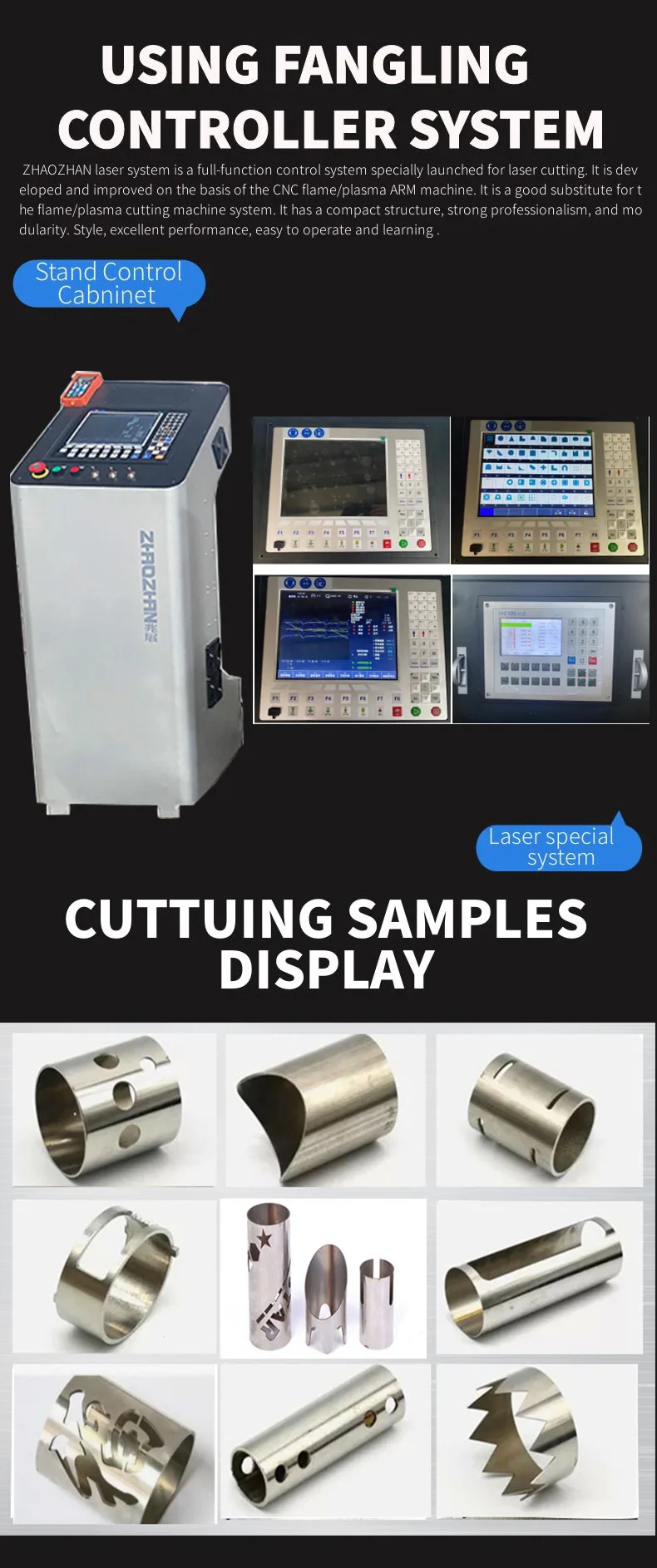

Control System With Torch Height control | Standard Configuration:Zhaozhan | ||
Nesting software | FASTCAM | ||
Water cooling chiller | Standard Configuration:Doluyo | ||
Cutting Table and Base | H beam or other base construction and cutting table need supplied by user, and we can supply drawing for reference or separate quote. | ||
Needed Installation Area | L5m * W2.7m * H1.8m | L5m * W3.2m * H1.8m | L5m * W3.7m * H1.8m |
Packing Size | 2600*1000*1800mm | 3100*1000*1800mm | 3600*1000*1800mm |
Machine Weight | About 1100 KGS | ||
The parameters and configuration informations of products in the catalogue are subject to changes without prior notice. This product has been patented, and copying is not permitted! | |||

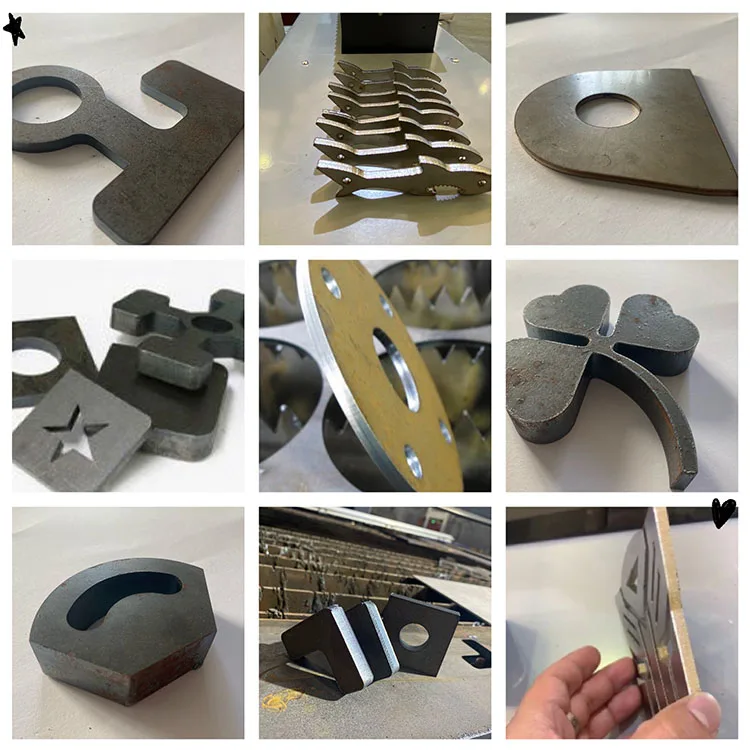

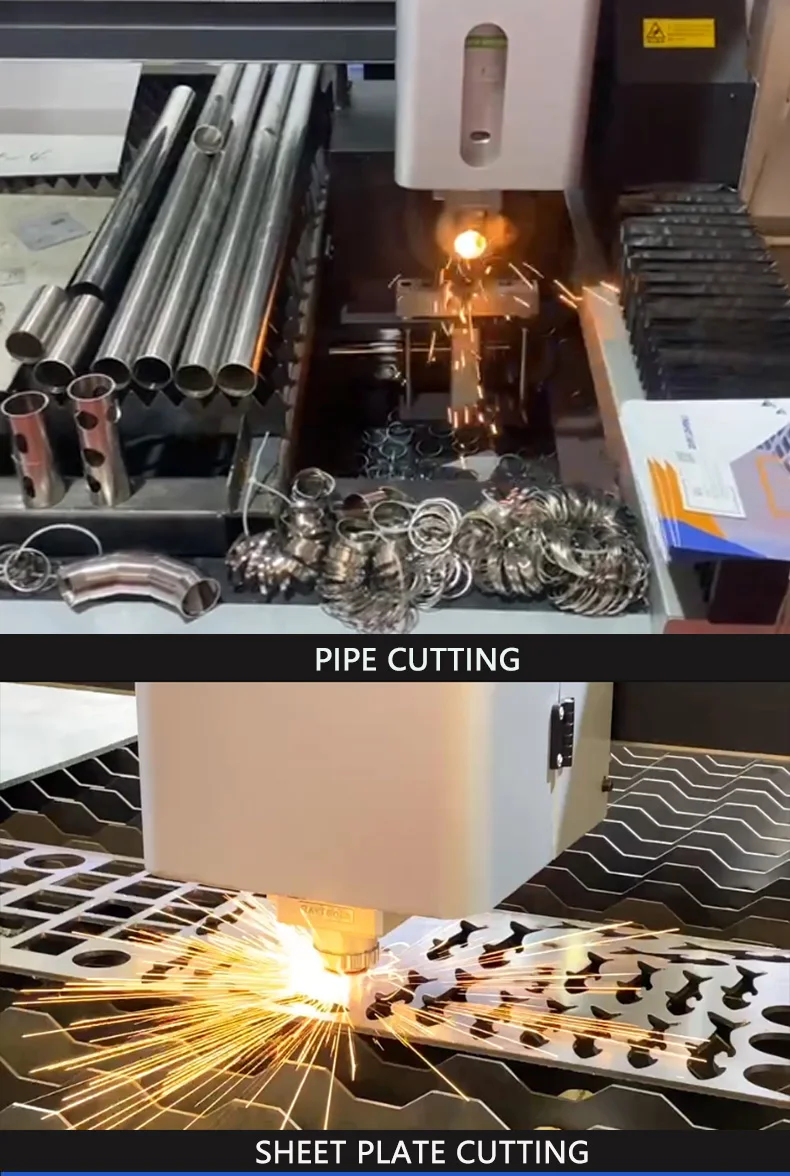

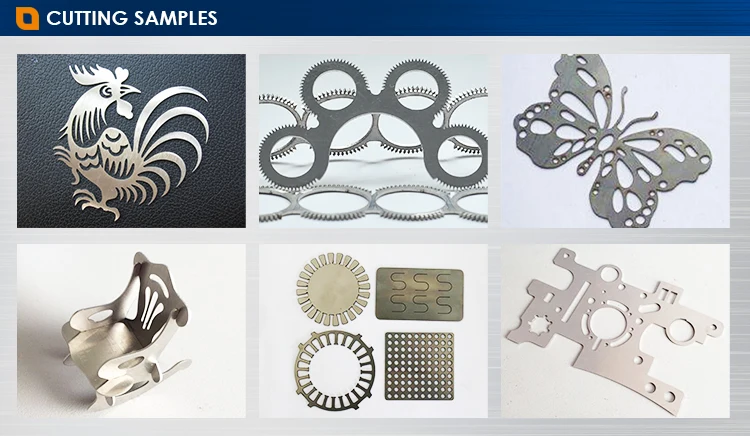

Cutting samples
Packaging & Shipping
Company Information
Certificate

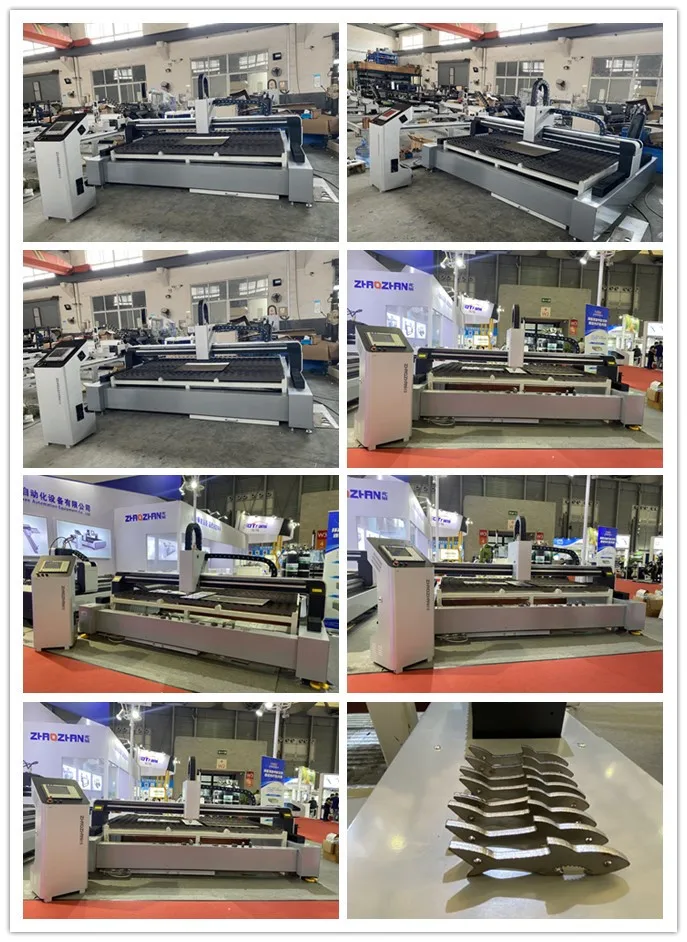

Our exhibition
