2023 new Hi Target V200 D8pro V30 V90plus Land Surveying Rtk chc i83 Base And Rover rtk Gps Price
- Category: >>>
- Supplier: Chengdu Zhicun Space Surveying And Mapping Instrument Co. Ltd.
Share on (1600547695562):
Product Overview
Description
Technical parameter
configuration | System kernel | Using multi-star system core | ||||
Number of channels | 800 | |||||
BDS | B1、B2、B3 | |||||
GPS | L1，L2，L5 | |||||
GLONASS | L1，L2 | |||||
GALILEO | E1，E5a，E5b | |||||
SBAS | yes | |||||
Output format | ASCII: NMEA-0183, binary code | |||||
Positioning output frequency | 1Hz~20Hz | |||||
Differential support | CMR、RTCM2.X、RTCM3.0、RTCM3.2 | |||||
Static format support | GNS, Rinex dual format static data | |||||
Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points) | ||||||
Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points) | ||||||
DGPS positioning accuracy | Plane accuracy: ±0.25m+1ppm; Elevation accuracy: ±0.50m+1ppm | |||||
SBAS positioning accuracy | 0.5m | |||||
Initialization time | <10 seconds | |||||
Initialization reliability | ＞99.99% | |||||
network | Built-in 4G full Netcom network communication | |||||
WiFi | 802.11b/g access point and client mode, can provide WiFi hotspot service | |||||
Bluetooth | Built-in Bluetooth | |||||
Built-in transceiver | ||||||
Power | 1W/2W/5W adjustable | |||||
frequency band: | 403MHz-473MHz | |||||
Transmission rate | 19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable | |||||
Power | 功率：5W/10W/20W/30W adjustable | |||||
frequency band: | 403MHz~473MHz | |||||
Transmission rate | 19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable | |||||
panel | Single button | |||||
Indicator light | Satellite lights, signal lights, power lights | |||||
Display screen | Industrial-grade OLED HD color display, capacitive touch screen | |||||
iPOWER smart balance technology, LBS, NFC | ||||||
Smart service | Voice broadcast, voice guidance, function self-check, DIY voice | |||||
Remote Service | Remote upgrade, remote registration, remote data download | |||||
battery | High capacity lithium battery 6800mAh/piece (Standard 2 pieces) with power display light, removable Single battery network mobile station continuously working for more than 10 hours | |||||
Input voltage | DC 6~28VDC, with over-discharge protection | |||||
size | Φ158mm×98mm | |||||
weight | ≤1.2kg (including battery) | |||||
Power consumption | 4.2W | |||||
material | Shell is made of magnesium alloy material | |||||
Environmental characteristics | Dust and water release | P67, can resist temporary immersion under 2 meters water, completely prevent dust from entering | ||||
Anti-fall | Resistance to natural drop of 3 meters | |||||
Operating temperature | -40℃~75℃ | |||||

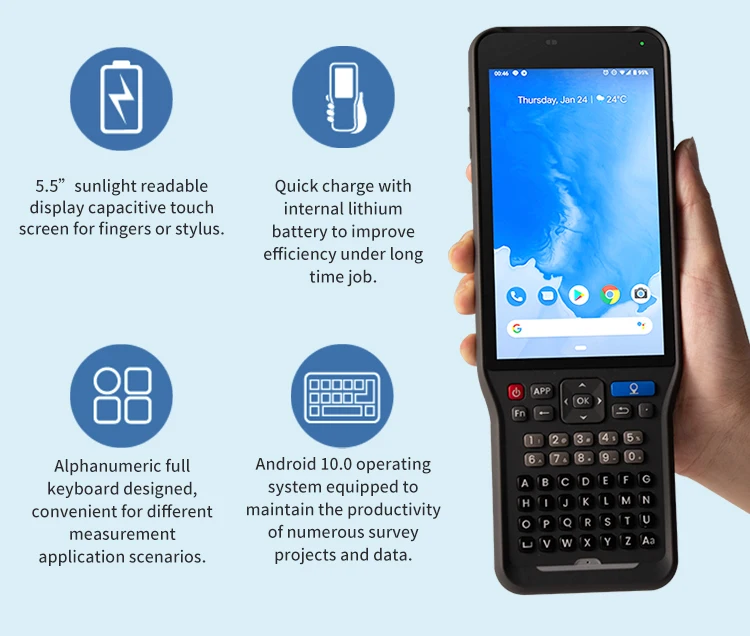

Operating hand thin | ||||||
model | iHand5.5 | |||||
operating system | Android 10 | |||||
processor | CPU: 8 core; 2.0 GHZ | |||||
storage | 2 GB RAM+16 GB ROM; T-Flash memory card, up to 128GB | |||||
display | 5.5’’, bright Outdoor Color capaci�ve touch screen (with touch pen, can be operated with gloves) | |||||
enter | Physical full keyboard | |||||
Cellular mobile | Built-in 4G full Netcom, dual card dual standby | |||||
WiFi | 802.11b/g access point and client mode, can provide WiFi hotspot service | |||||
Bluetooth | Built-in Bluetooth | |||||
NFC | Support NFC IGRS | |||||
USB | USB, TypeC interface, OTG | |||||
Power performance | Built-in battery | 7500 mAh internal | ||||
Working time | 14 hours | |||||
Physical properties | size | 236 mm*85 mm*25 mm | ||||
Weight | 480g | |||||
Operating temperature | -20℃ ~ +60℃ | |||||
