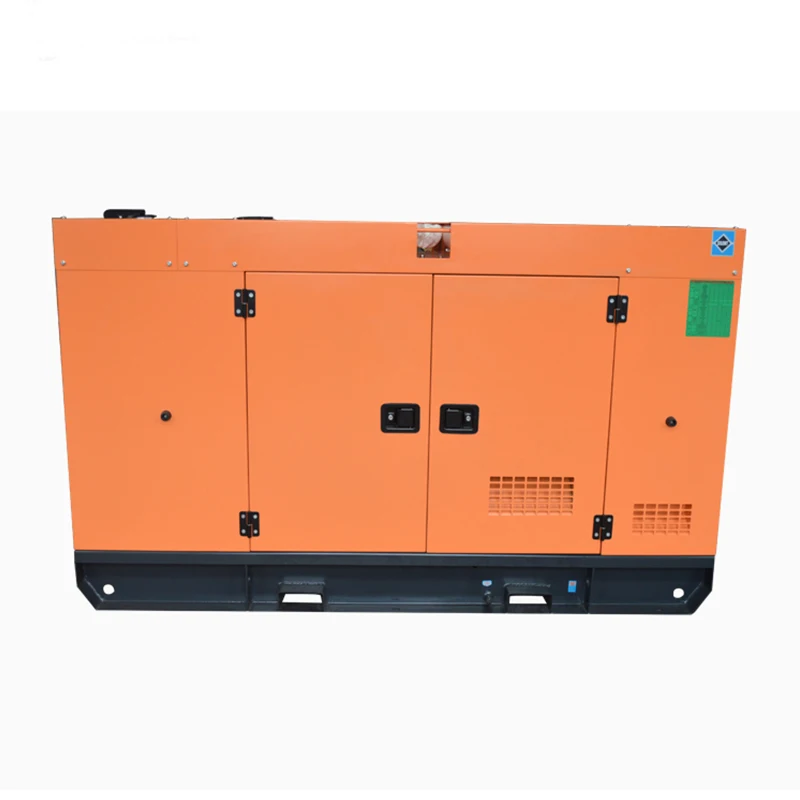

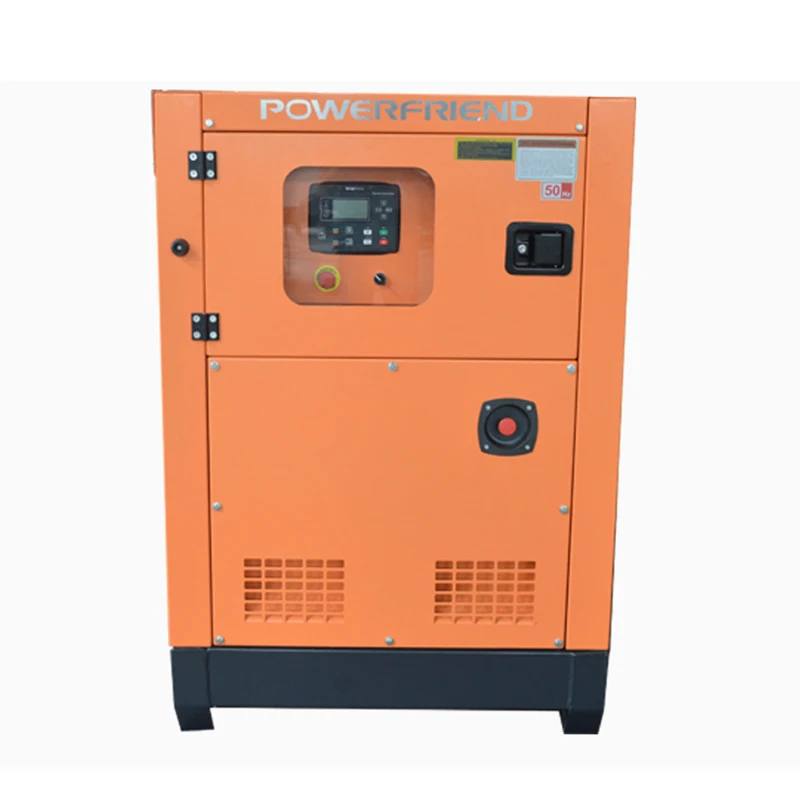

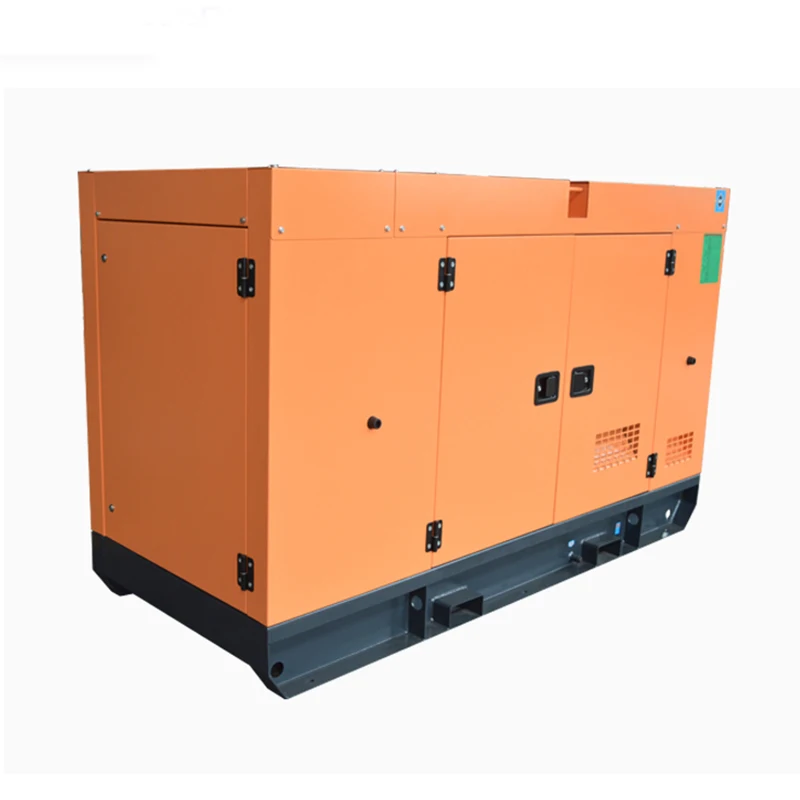

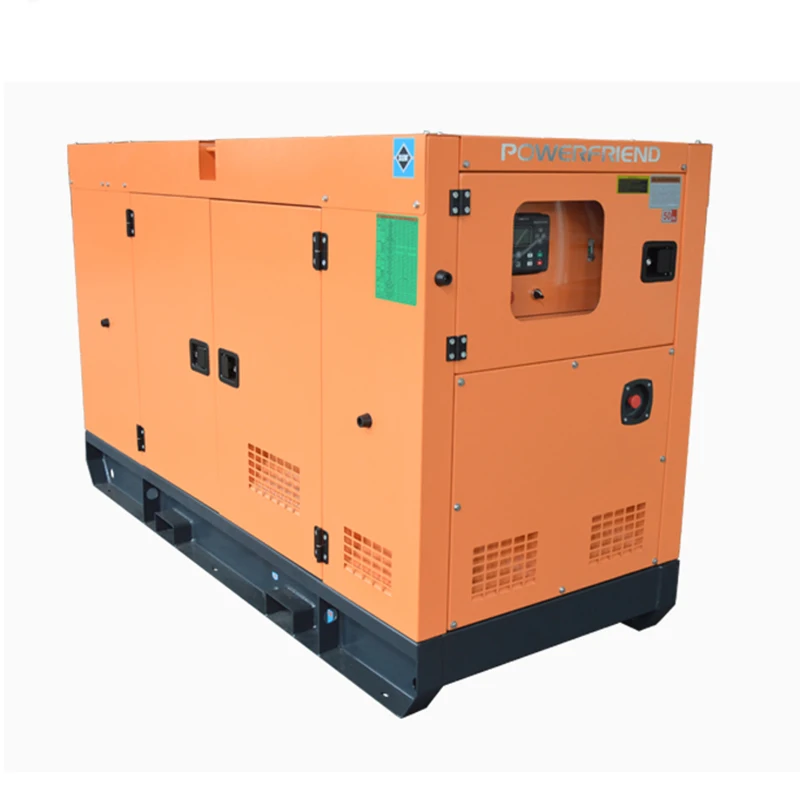

Price of 40 kw diesel generator 50kva ac brushless alternator 40kw super silent generator

Share on (1600547700253):


Price:$7,719.00

Quantity:


Product Overview

Description


Price of 40 kw diesel generator 50kva ac brushless alternator 40kw super silent generator






Product Description








1. Engine low fuel consumption.


2. All orignal engines and alternators.


3. The components we use are in high quality.


4. Fast delivery. Big quantity of Engines in stock.


5. The generator set is mounted on a heavy duty fabricated steel skid type base frame with anti vibration mounting pads.


6. Use high standard of sponge to make soundproof.


7. The canopy design is user friendly, and easy for maintenance.


8. Pre and after sales service is provided.


9. Fast response for the inquires, service, etc.
























































































































Genset Model  PF-DC55S
Prime Power40KW/50KVA
Standby Power44KW/55KVA
Phase Number3
Power Factor0.8
Rated Voltage400/230V
Frequency50HZ
Rated Current72.2A
Genset Structure Silent type
Dimension2650×1020×1480mm
Net Weight1350KG
Noise level70dB at 7 meters
Fuel Tank Capacity140L
Engine ModelDCEC/4BTA3.9-G2
Engine Features4-cylinder, 4 stroke, water cooled, Turbo
Bore * Stroke102x120mm
Displacement3.9L
12-hour Power(kw)50KW/1500
Fuel Consumption L/H11L/H
Compression Ratio16.5:1
Governor typeElectronic
Alternator ModelStamford/UCI224D, Mecc Alte, Marathon, Leroy Somer
Excitation Modebrushless self-excited
Insulation ClassH
Protection ClassIP23
Construction TypeSAE Disc-coupling
Controler panelSmartgen/ DeepSea/ Harsen
Smartgen 6110intelligent  and network techniques is used for automatic control system of diesel generator. It can carry out functions including automatic start/stop, data measure and alarming.automatic switching control functions (AMF), especially suitable for the automation system composed by Mains and Generator

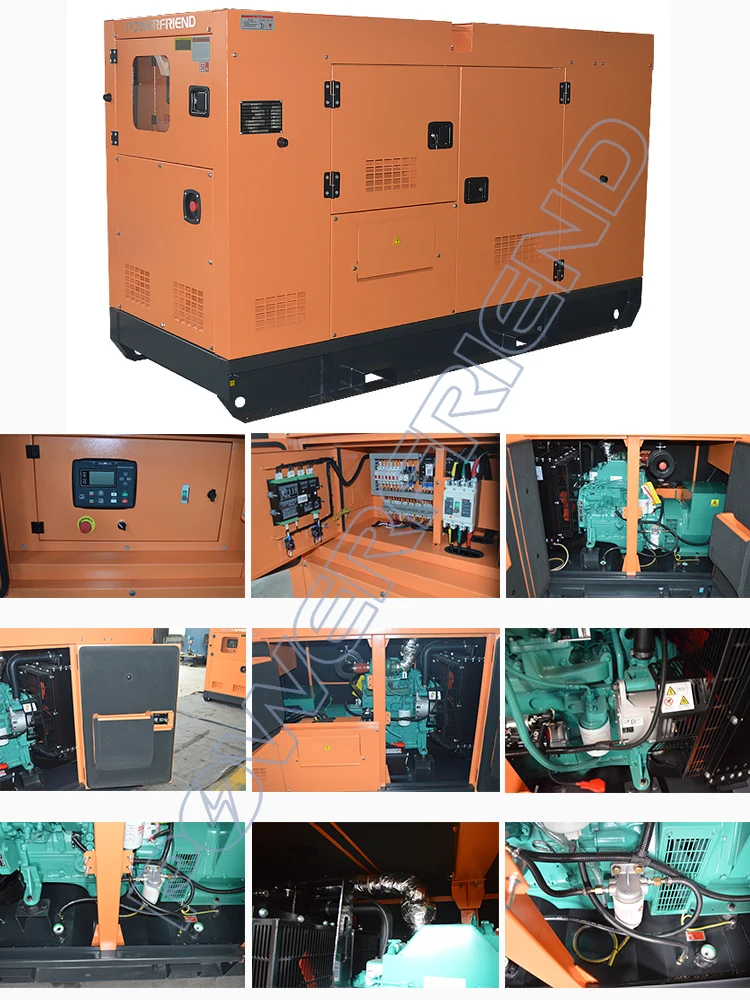

dc55-7

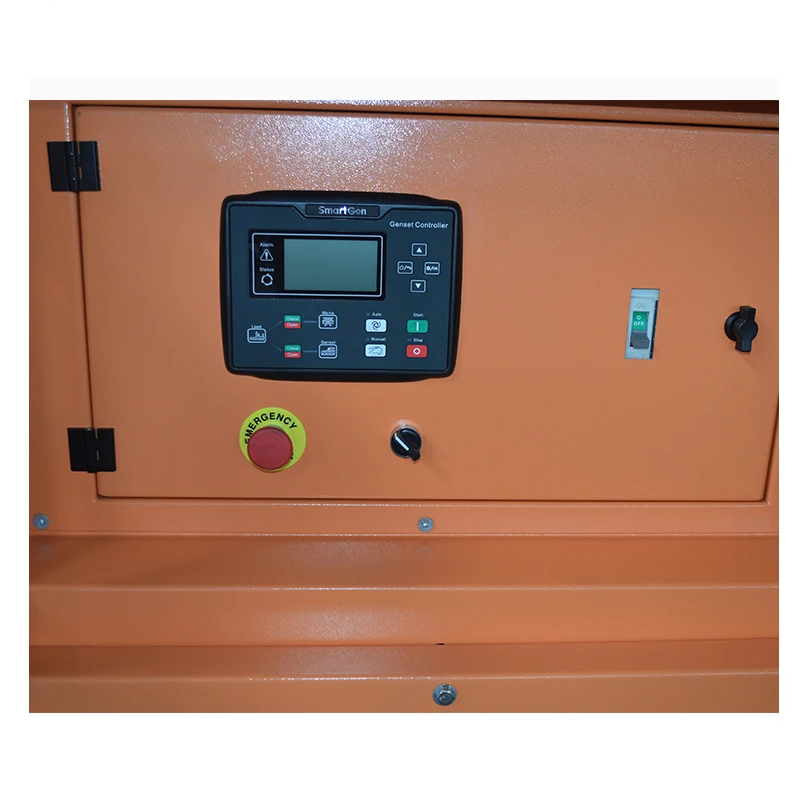

Control Panel


























Protection


  • Over Voltage

  • Under Frequency

  • Over Load




  • Under Voltage

  • Over Current

  • Phase Rotation




  • Over Frequency

  • Current Unbalance

  • Fuel Level


Optional Function


  • AMF




  • Remote Control




  • Synchronizing







Production Flow

































 Digital Punching&cutting


Powder PaintingGenset AssemblingWiring

 ShippingPackingTidy & CleanTest










































Quality Inspection Process


Strict inspection of the raw materials




 Repeated inspection during the production process




Each generator is tested strictly before delivery. Check status under load 0, 25%, 50%, 100%, 110%, 100%, 75%, 50%, 25%, 0




After testing, drain out all the oil, diesel & water from the genset.


Clean the genset, and packed, then transport



















Searching Table

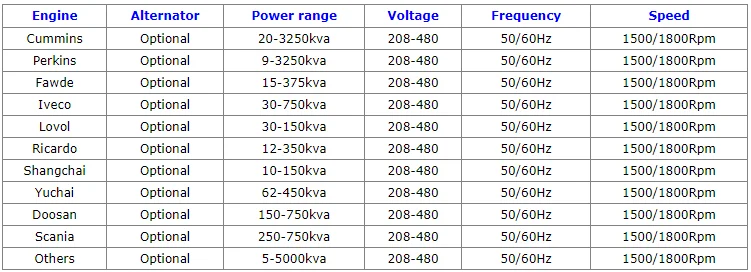

Diesel Generator Set Searching Table
Search by Power--
5-100kva101-200kva201-500kva501-800kva
801-1000kva1001-2000kvaabove 2000kva

Search by Engine--
CumminsPerkinsFawdeIveco
LovolRicardoShangchaiYuchai
DoosanScaniaOthers

Search by Type--
OpenSilentTrailerContainer

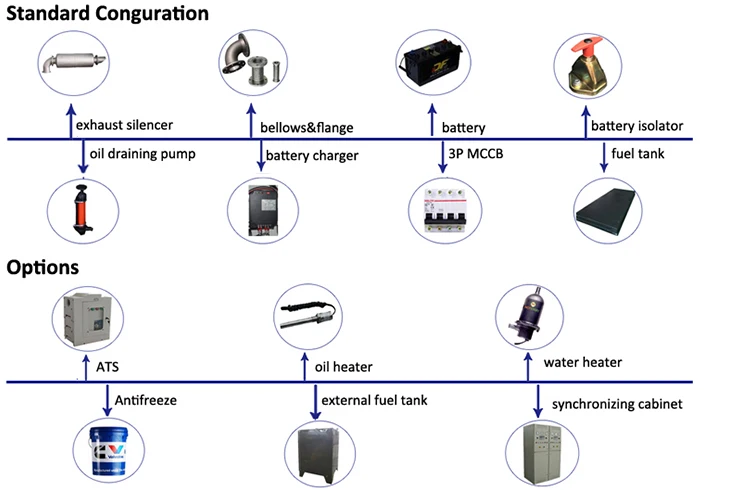

photobank (1)-1.jpg





Our Services








Our services


  • After-sales:


Once receive any feedback of quality problem we will respond at the first time, and solve the problems within 24 hours.



  • Guarantee:


Warraty period is one year or 1000 hours (depends on which occurs first ).  If the failure is caused by turbine manufacturing defects, we will be responsible for problems caused by quality of production or raw material, except the damageable spare parts of genset caused by crew wearing parts, consumable parts for daily use, human error , negligence or failure of following the original maintenance manual provisions, etc.



  • Free training:


We can professionally arrange experienced engineers to provide users with free training in our factory . Certainly , we also provide the paid training of customers’ site.











Company advantages


  • We are a powerful and unity sales team:


          we are not just sales, but also professional engineers here to give you fast response of Technical support and power solutions.


         90% of our sales team members are with more than 5 years of experience in the generator field.



  • We have professional electrical & mechanical engineers, standby you, to solve the pre/after-sales service.



  • We have strict Inspection dept. to make sure each genset is carefully test before leaving factory.



  • With the experience and knowledge of Gensets, we are enthusiastic and patient, and can communicate with you easily and efficiently.


 email








Company Information





JIANGSU UNITED POWER FRIEND TECHNOLOGY CO., LTD is focus on power generator products and service in China.


Being in  the power generation field for more than 10 years, we have very good connection with G-Drive Engines and brand alternators.


We are not only assembling the generator set, but alsogiving you the best solution to meet your special needs on projects and your clients.


We supply Generator Sets from 2kva to 3000kva.




PowerFriend Projects----




          500kva for Guatemaia                Genset for Property                      Genset for Government




 IVECO gensets for Sinopec     40 sets of silent genset for Ukraine Army     14 sets of Paralleling Gensets


OEM Partners----







PowerFriend Show----



Certificate----






Trade shows----


Our company has participated in several exhibitions, such as Canton Fair(Guangzhou) and many foreign trade shows.


trade show3




Packaging & Shipping----


Delivery Time: 30 days after deposit,   By Sea


Package: nude packing or plywooden case


package-big generator.jpg





FAQ


Q1: What is your warranty period?


A1: Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


Q2: Does your generator have global warranty?


A2: Yes. Global warranty service is available depending on the engines and alternators you choose. Please contact us for more details


Q3: What is your payment terms?


A3: T/T 30% advance payment, the balance 70% shall be paid before shipment.


L/C Irrevocable L/C at sight.


Q4: What is your delivery time?


A4: Our standard delivery time is 20 to 30 days. If you have urgent demand, the delivery will be shorter depending on the requirements. If you have special requirements, the delivery will be longer.


Q5: Can the generators be customized?


A5: Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


Q6: Can you use our logo?


A6: Yes. For mass orders, we can use customer's logo instead of ours.
