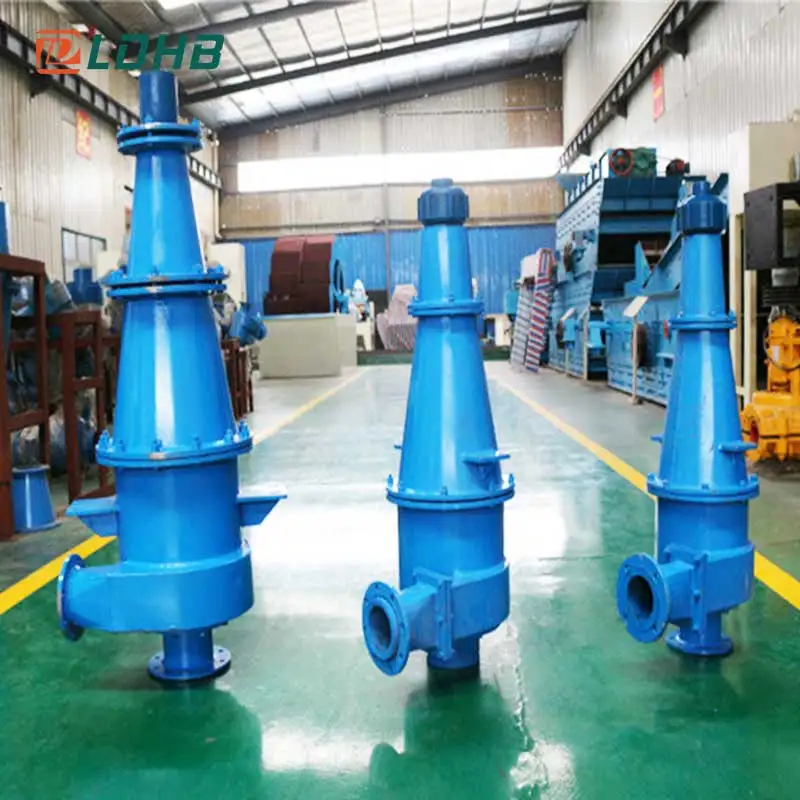

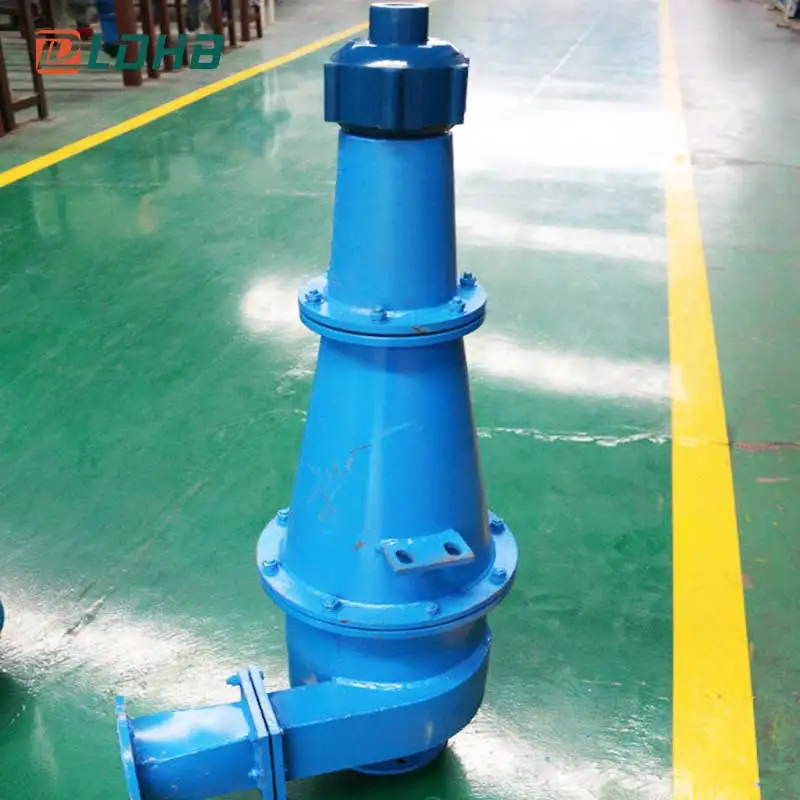

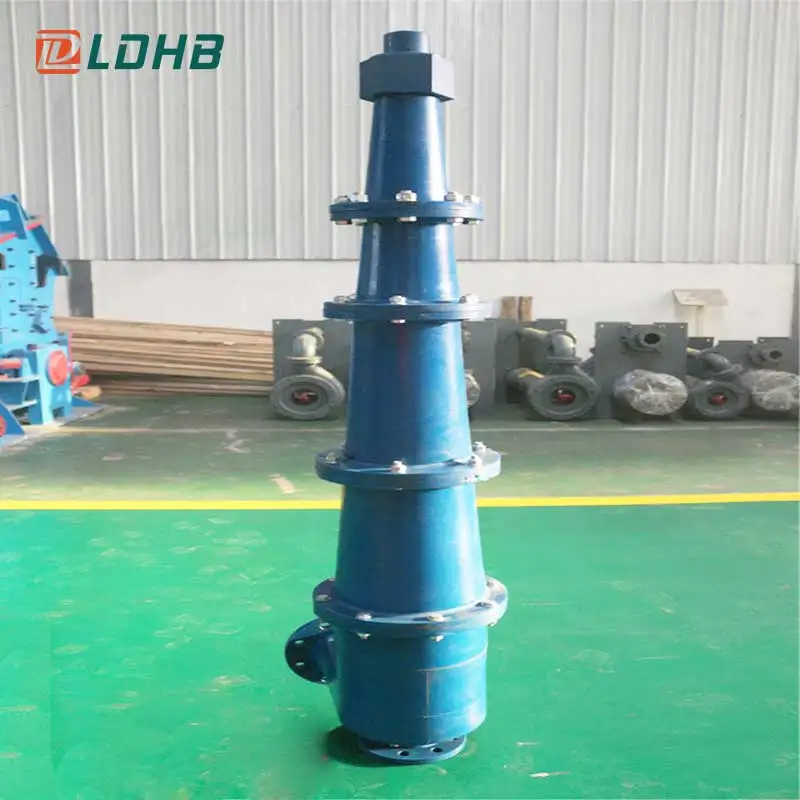

Mineral separator equipment sand hydrocyclone solid liquid hydrocyclone
- Category: >>>
- Supplier: Luoyang Longding Environmental Protection Technology Co. Ltd
Share on (1600547753410):
Product Overview
Description
Product Description
Production Application
Sand
hydraulic cyclone is one of the most important deviced in the minerals industry, its main use in mineral processing being as a classifier,which has proved extremely efficient at fine separation size. It is wideely used in closes-circuit grinding operaions but has found many other uses,such as desliming,degtritting, and thickening.
Specification
Model | Overflow Diameter (mm) | Underflow Diameter (mm) | Cone Angle | Max. Feeding Size (mm) | Capacity (㎡/h) | Classification Granularity (um) |
FX-710 | 240,260,280 | 120,140,160 | 20 | 16 | 400-550 | 74-250 |
FX-660 | 180,200,220, 240 | 80,110,150 | 20 | 16 | 250-360 | 74-220 |
FX-610 | 160,180,200,220 | 90,100,110 | 20 | 12 | 200-360 | 74-200 |
FX-500 | 130,140,150,160, 180,220 | 33,45,50,65,70,80, 90,100 | 10 20 25 | 10 | 140-220 | 74-200 74-200 74-150 |
FX-350 | 80,90,105,115,120 | 30,35,40,45,50,60, 70 | 15 20 25 | 6 | 60-105 | 50-150 50-150 50-150 |
FX-300 | 55,65,80,100,120 | 20,25,30,35,40 | 15 20 25 | 5 | 45-90 | 50-120 50-150 50-150 |
FX-250 | 60,75,80,100,120 | 16,18,20,25,30,35, 40 | 10 15 20 | 3 | 40-65 | 40-100 40-100 30-100 |
Detailed Images
Main Characteristics
1. Simple structure in linear type ,easy in installation and maintation.
2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3. High pressure double crank to control the die opening and closing.
4. Running in a high automatization and intellectualization,no pollution.
5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Related Products
Packing & Delivery
Packaging details
The normal package is plastic cloth for main machine and wooden box for the parts.The wooden box will be fumigated, And it can be also packed according to customers special request.
