Automatic 400g 500g Refined Salt Packing Machine Bag Salt Filling and Sealing Packaging Machine
- Category: >>>
- Supplier: Shanghai Jiaoban Machinery Co. Ltd.
Share on (1600547759144):
Product Overview
Description
JiaoBan Automatic 400g 500g Refined Salt Packing Machine Bag Salt Filling and Sealing Packaging Machine
Products Description
Model | JB-420L |
Packing speed | 20-50 bags/min |
Packing volume | 2000ml |
Making bag size | L: 60-300mm, W: 80-200mm |
Film width | ≤ 420mm |
Thickness of film roll | 0.04-0.09mm |
Pulling film type | Double belt pull film |
Air consumption | 0.8Mpa, 0.5m³/min |
Packing accuracy | ≤ ±1% |
Power | 2.5 KW |
Power supply | AC220V, 50/60Hz |
Seal type | Pillow seal, Gusset bag, Block bottom bag |
Main machine net weight | 450kg |
Main machine dimension | L1320 × W920 × H1390mm |
Usage:
This machine is mainly used for packing granule products: such as sugar, salt, beans, rice, peanuts, seeds, grains, cereals, nuts, MSG, etc.
This machine is mainly used for packing granule products: such as sugar, salt, beans, rice, peanuts, seeds, grains, cereals, nuts, MSG, etc.
Function and features:
1. This machine can automatically complete the following work: material lifting--cup volumetric filler measuring--coding--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products--sorting finished products.
2. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, whenreplacing product, it can be used at any time without resetting.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order tobe promptly ruled out.
5. Can make hole punching device according to customer’s request.
6. This machine has stainless steel type and carbon steel type for choice.
1. This machine can automatically complete the following work: material lifting--cup volumetric filler measuring--coding--bag making--filling--gas injection / exhaust (optional)--sealing--counting-- conveying finished products--sorting finished products.
2. PLC servo and pneumatic control system, large touch screen forms the core of drive control; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, whenreplacing product, it can be used at any time without resetting.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order tobe promptly ruled out.
5. Can make hole punching device according to customer’s request.
6. This machine has stainless steel type and carbon steel type for choice.
Details Images

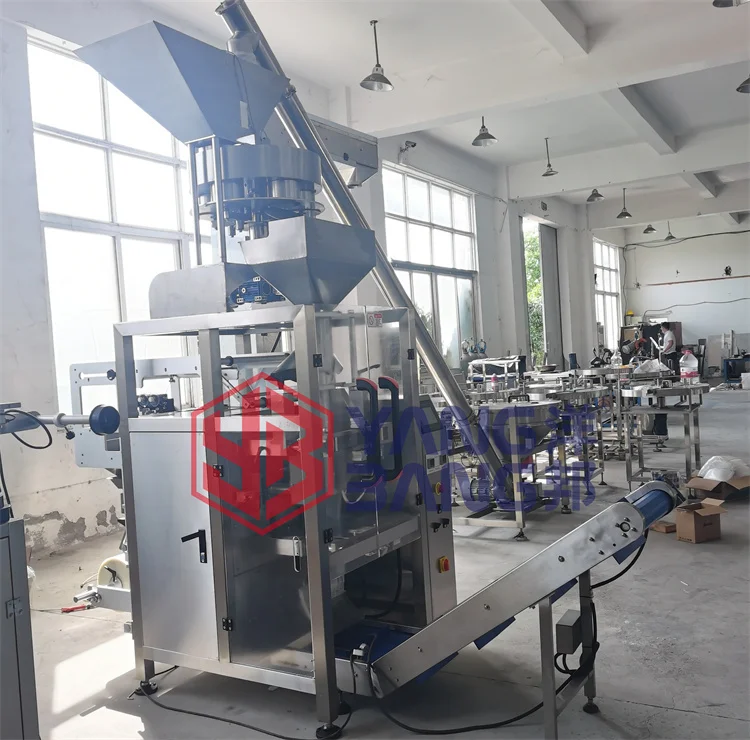

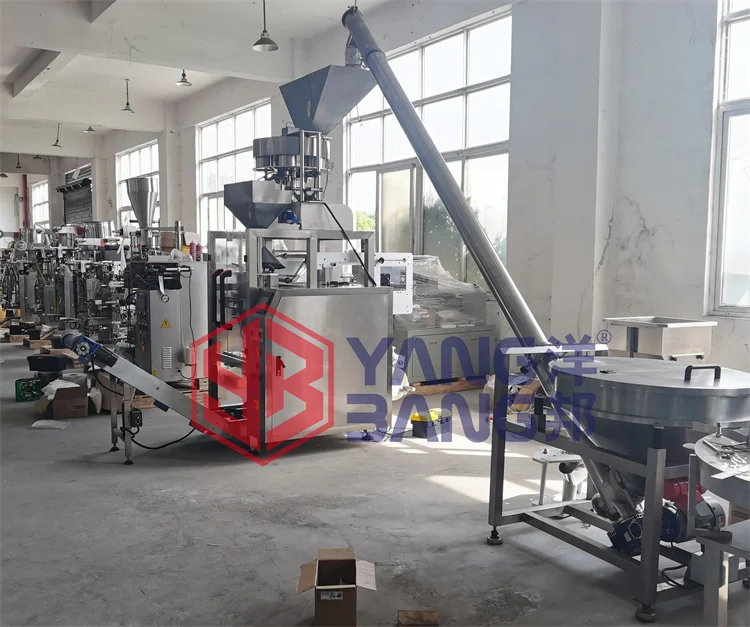

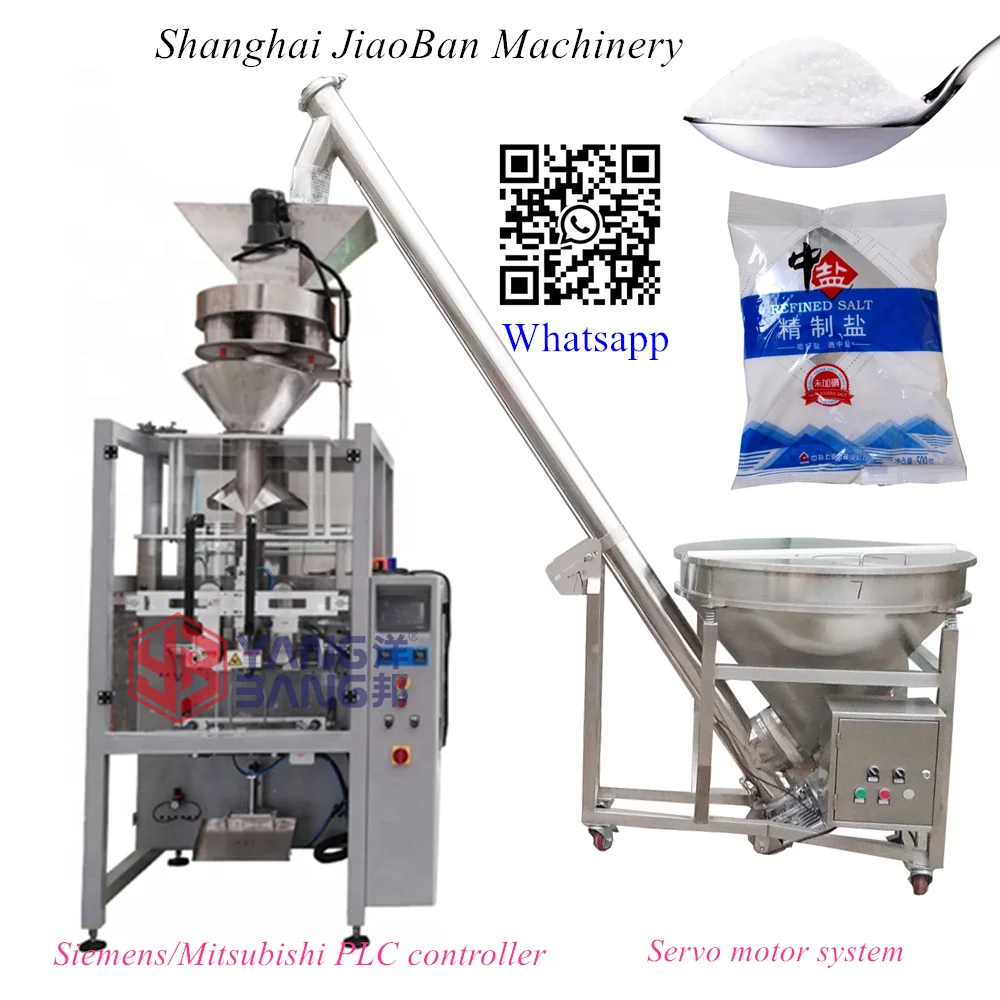

Automatic Refined Salt Packing Machine Bag Salt Filling and Sealing Packaging Machine

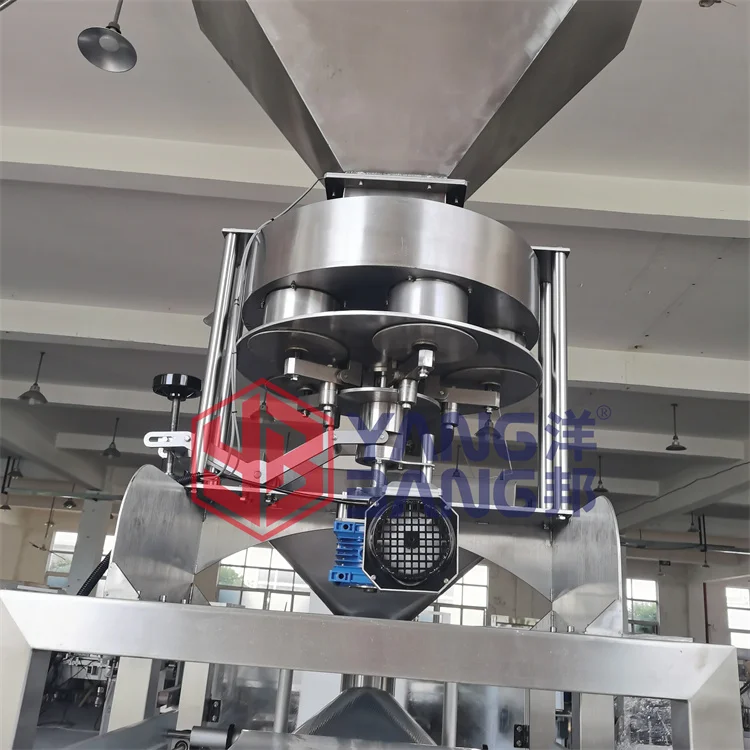

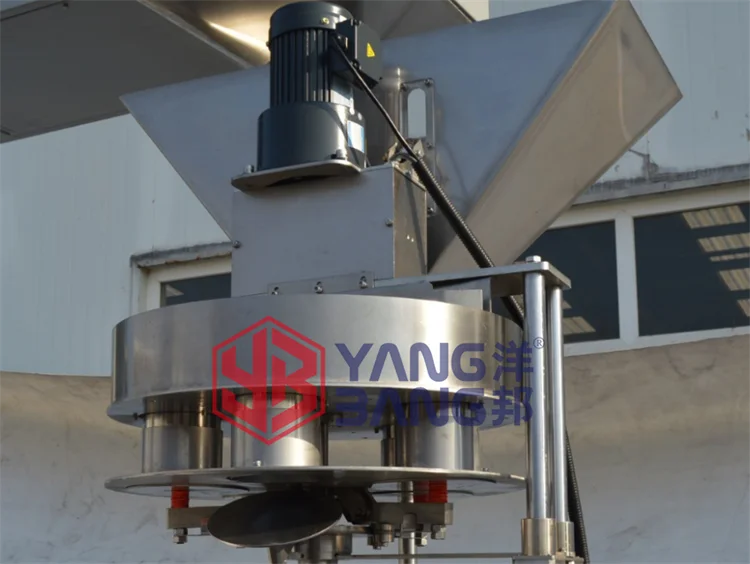

Automatic cup volumetric filler system

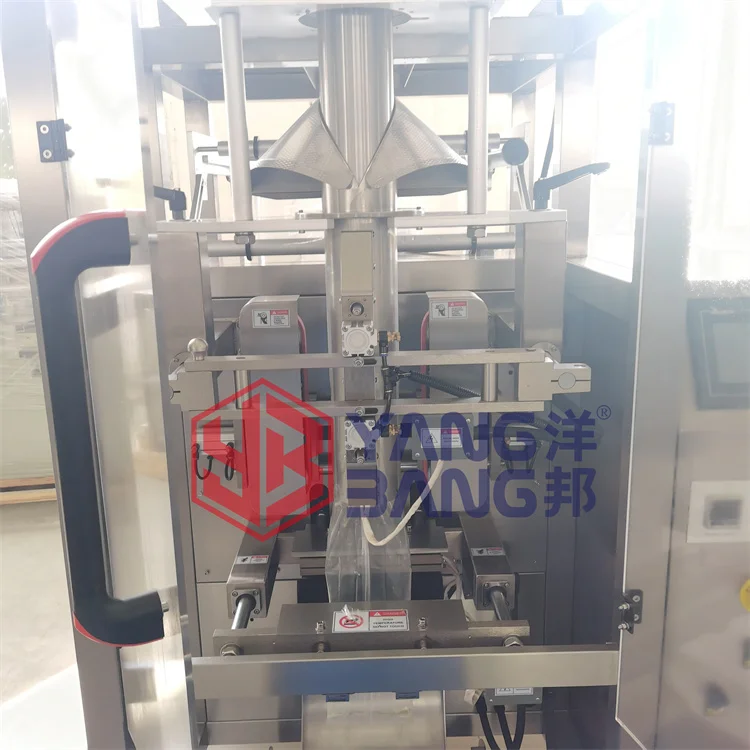

Collar type bag former
Double belts pull film

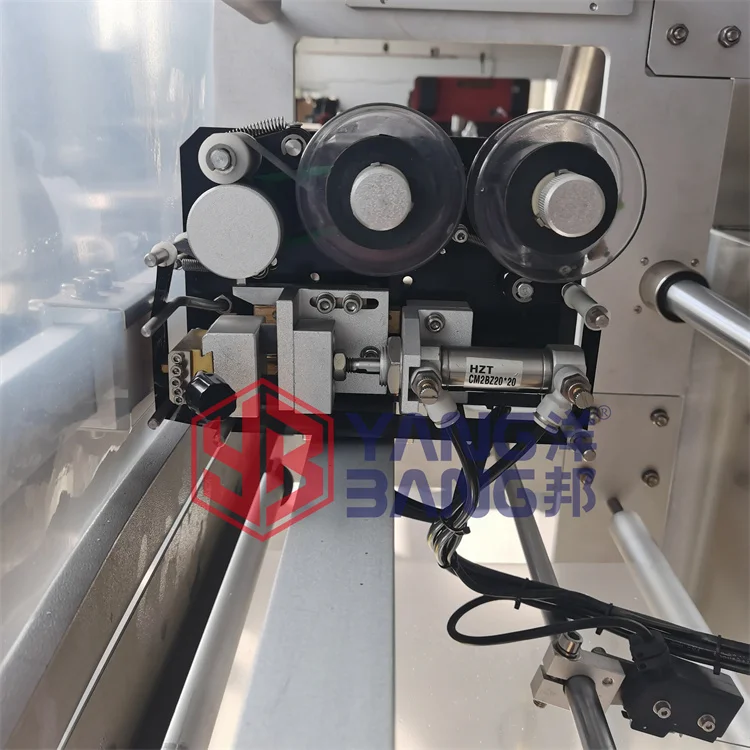

Ribbon/ laser/inkjet printer
For 1-4 lines

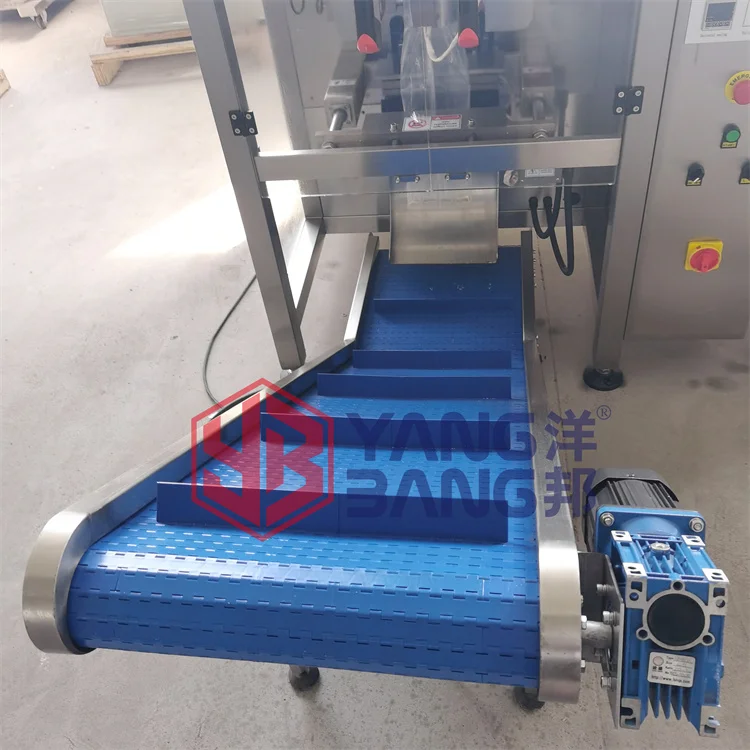

Exit conveyor for finished bags

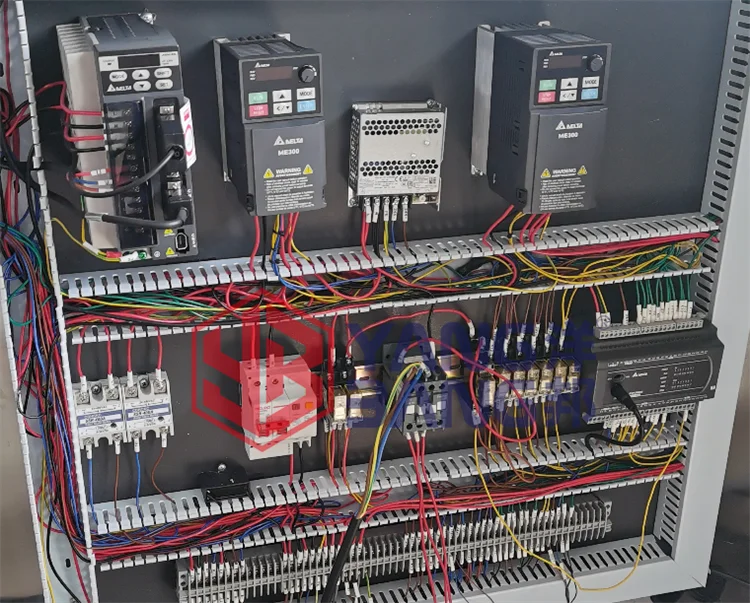

Good brand components (double frequency conveter)
Collection table, weight checker machine
Our factory make packing machines according to your requirements
Transaction Overview
Our company
Contact us

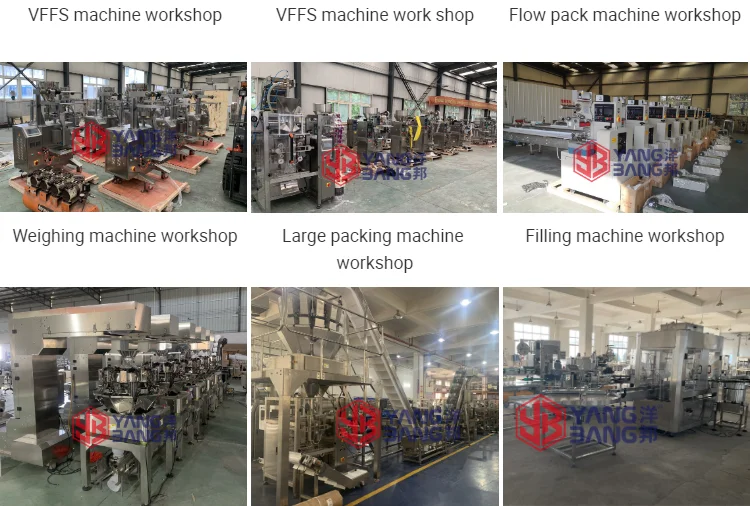

WORK SHOP
