Thermoplastic Rubber caster wheels 6 inch heavy duty wheels for machine
- Category: >>>
- Supplier: Zhongshan Augus Hardware Products Co. Ltd.
Share on (1600547763275):
Product Overview
Description
Company Introduction
Details Images
Products Description

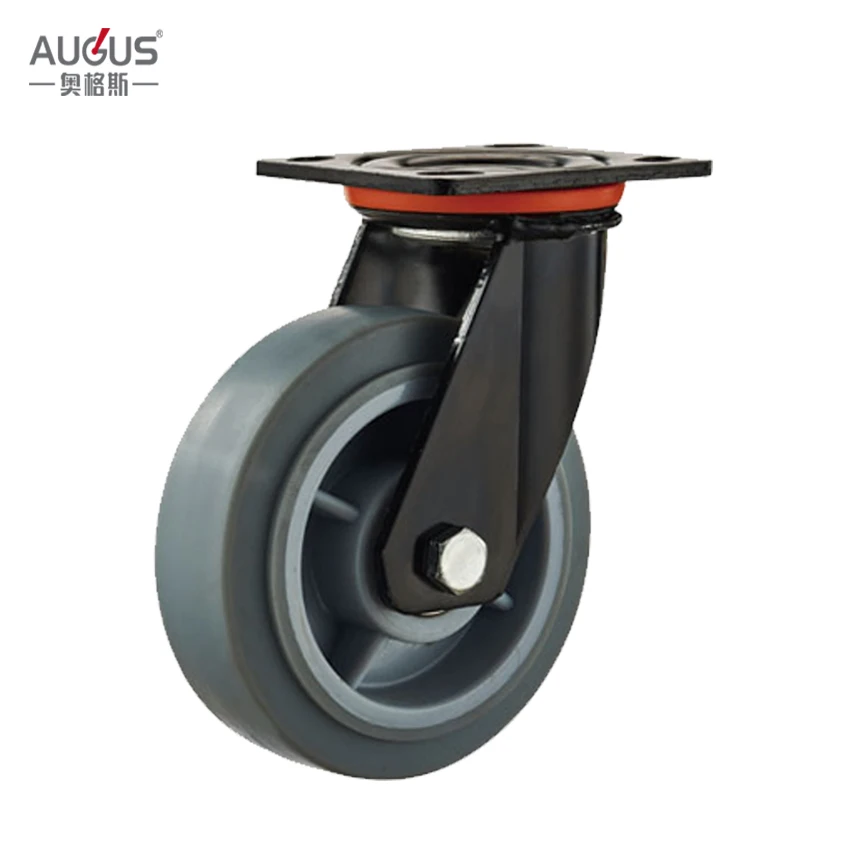

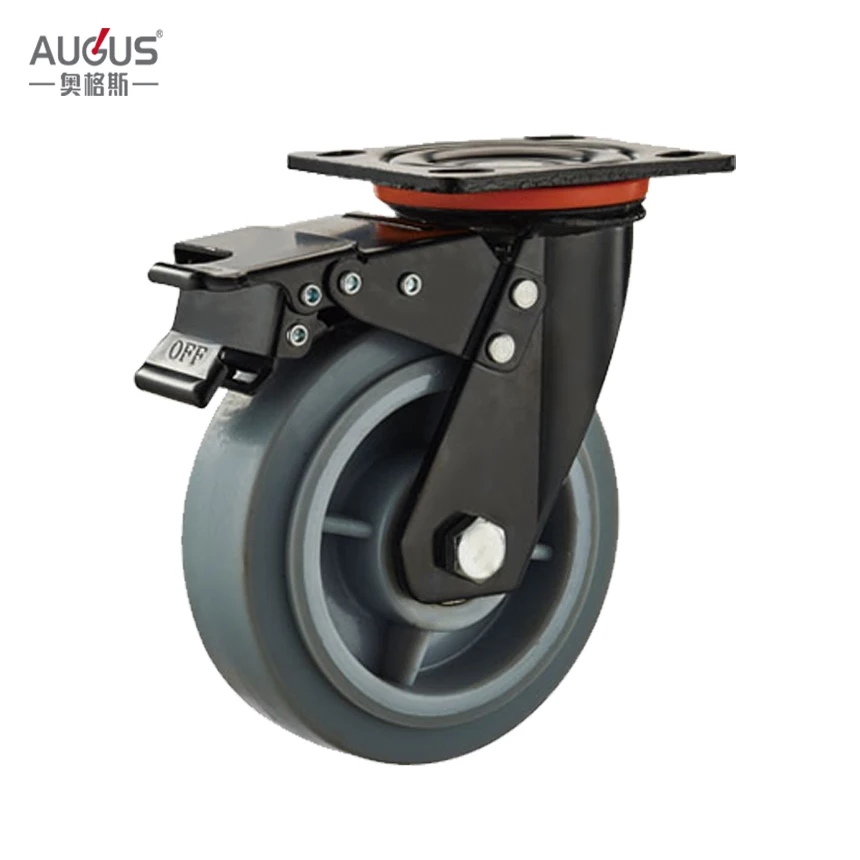

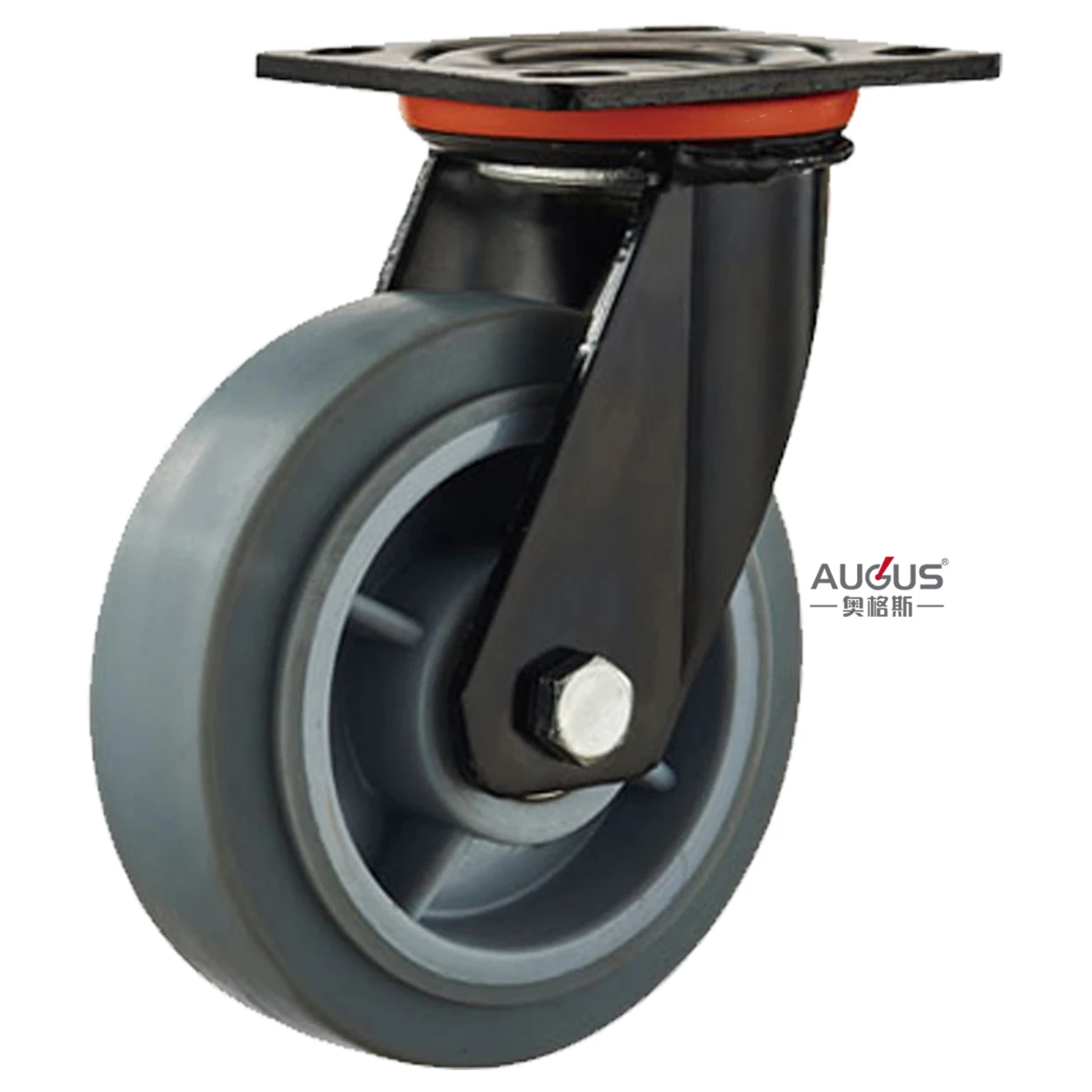

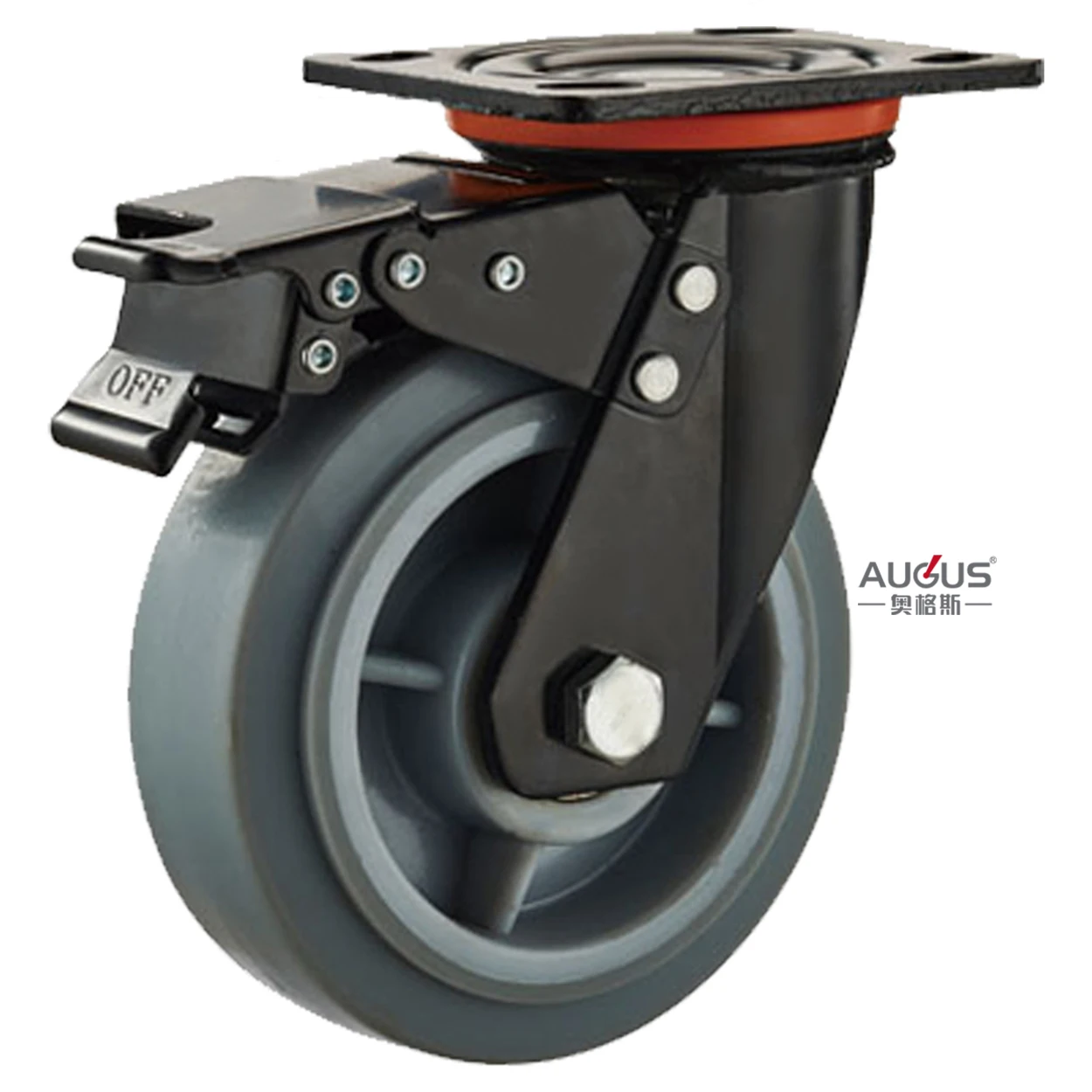

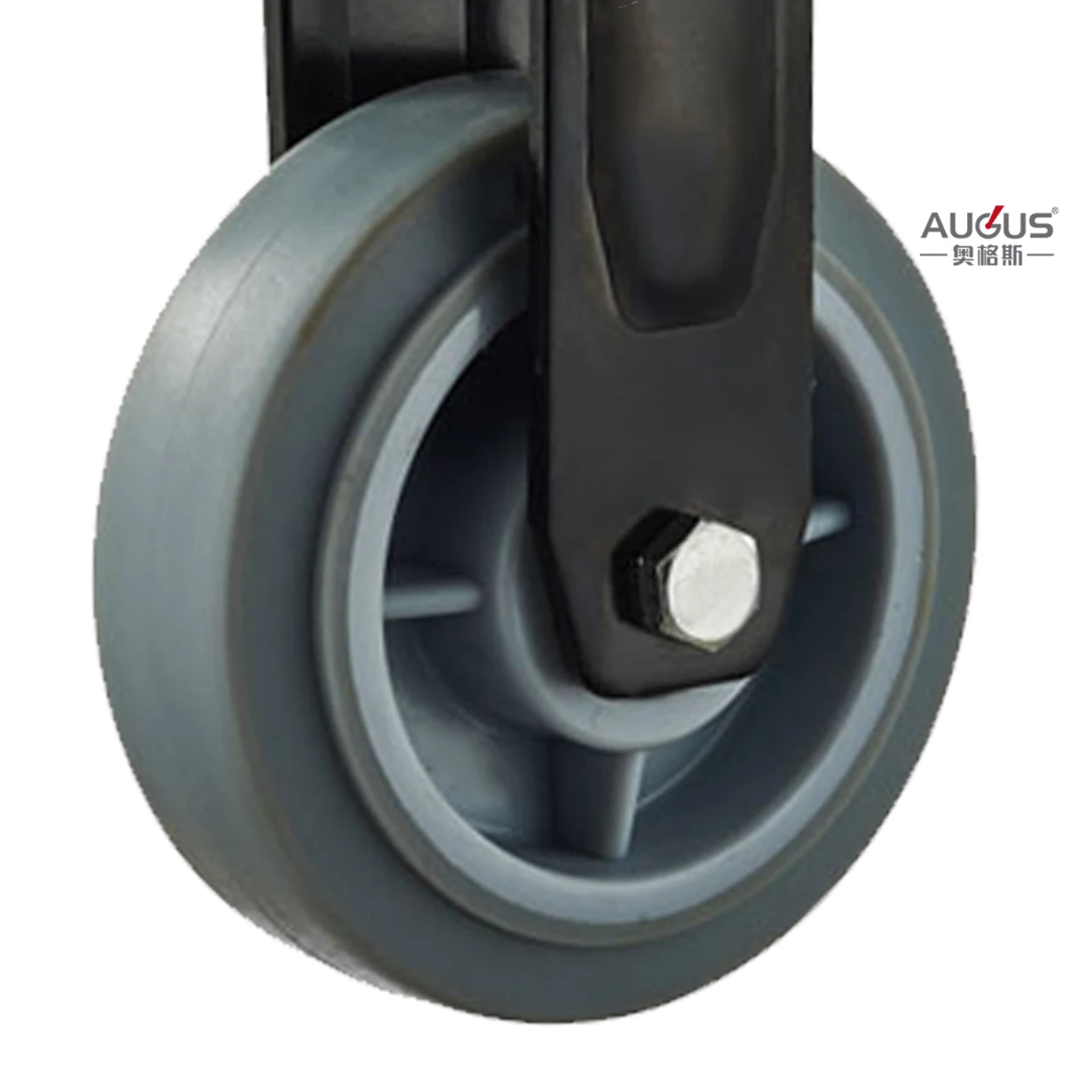

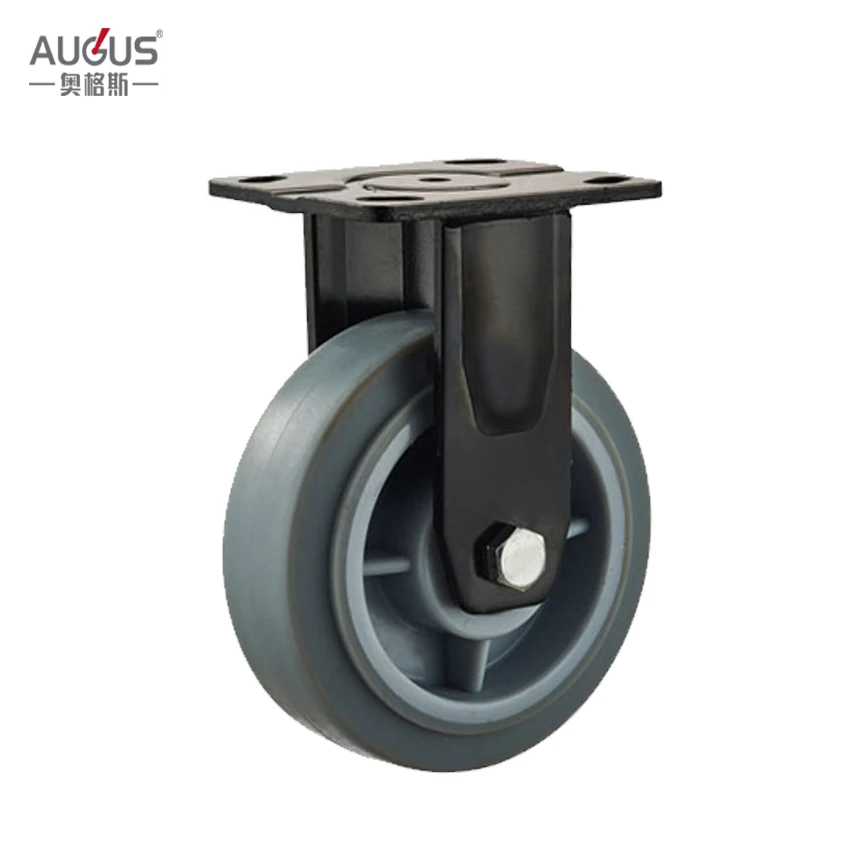

Heavy Duty 04 Series-Gray TPR Double Bearing
Description: Fix, Swivel
Brake mode: Total brake
Bracket mode: The bracket is made of Pressed Steel, blue zinc plated, black lacquer.
Install with axle, nut and bush. The tread is made of TPR (Thermoplastic Rubber), the center is made of PP, double bearing.
Install with axle, nut and bush. The tread is made of TPR (Thermoplastic Rubber), the center is made of PP, double bearing.
Product Paramenters
Details | 4 inch | 5 inch | 6 inch | 8 inch |
Wheel Diameter (mm) | 100 | 125 | 150 | 200 |
Tread Width (mm) | 50 | 50 | 50 | 50 |
Overall Height (mm) | 135 | 159 | 189 | 238 |
Offset (mm) | 20 | 30 | 36 | 39 |
Load Capacity (kgs) | 200 | 250 | 300 | 350 |
Size of Plate (mm) | 114x102 | 114x102 | 114x102 | 114x102 |
Hole Centre Distance (mm) | 85x72 | 85x72 | 85x72 | 85x72 |
