9M Manual Lighting Plant Diesel Generator Portable Trailer Led Light Tower

Share on (1600547782065):


Price:

Quantity:


Product Overview

Description

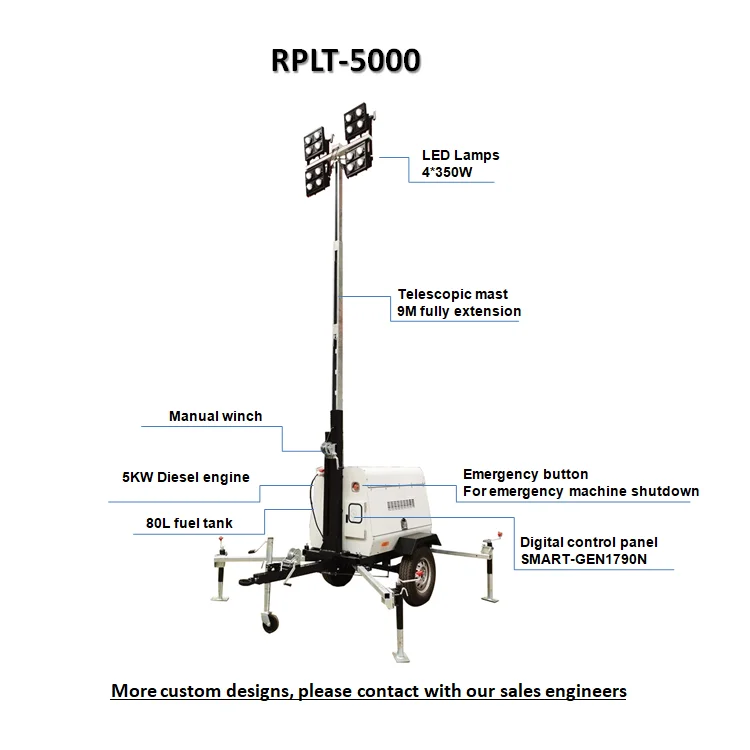

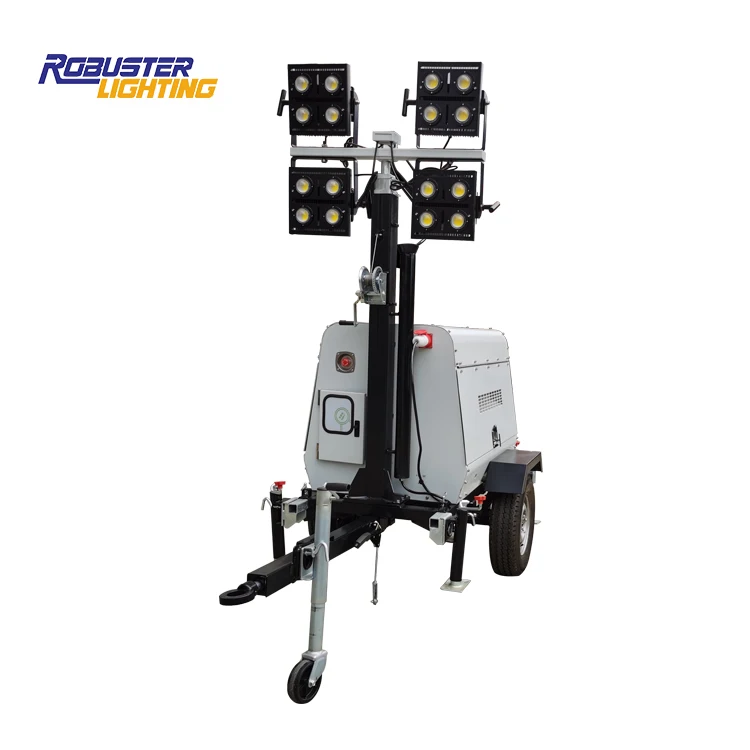

RPLT-5000K MANUAL LIGHT TOWER
* Compact and economical price
* KUBUTA Z482, 3000rpm
* Rate power 5kw
* Four 160W/240W/320W LED lights
* Manual Stabilizers and mast
* Digital controller
* 5/9m Manual mast height
* Ring hitch / ball hitch
* Safety design:
Fault protection: Fail-safe shutdown system-high temp, low oil pressure
* 85L fuel tank

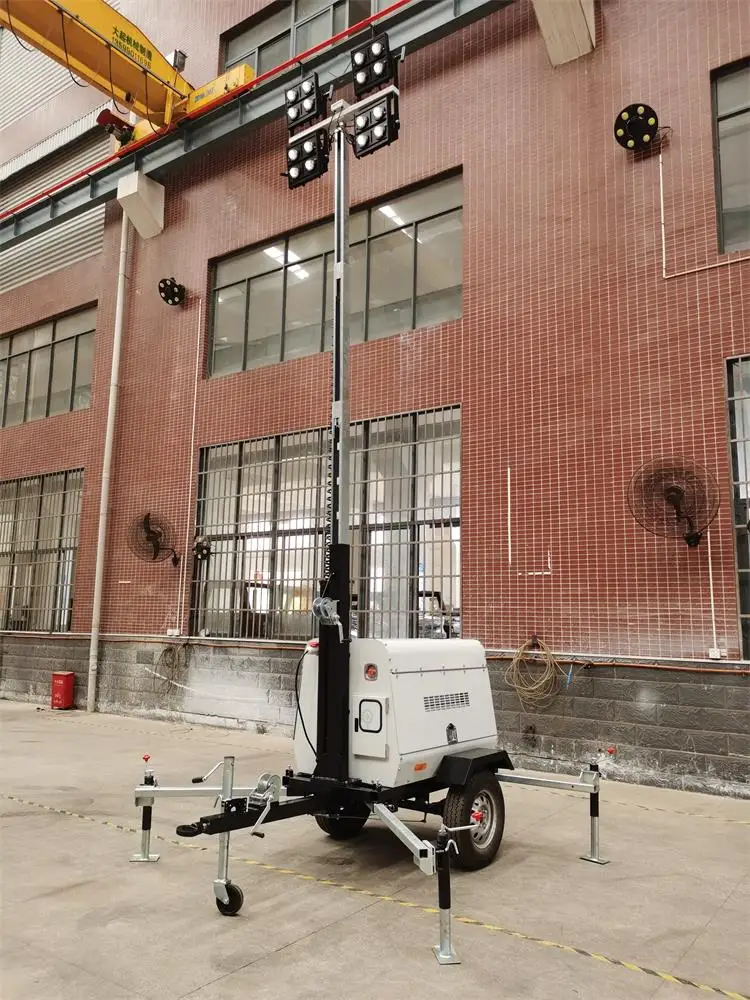

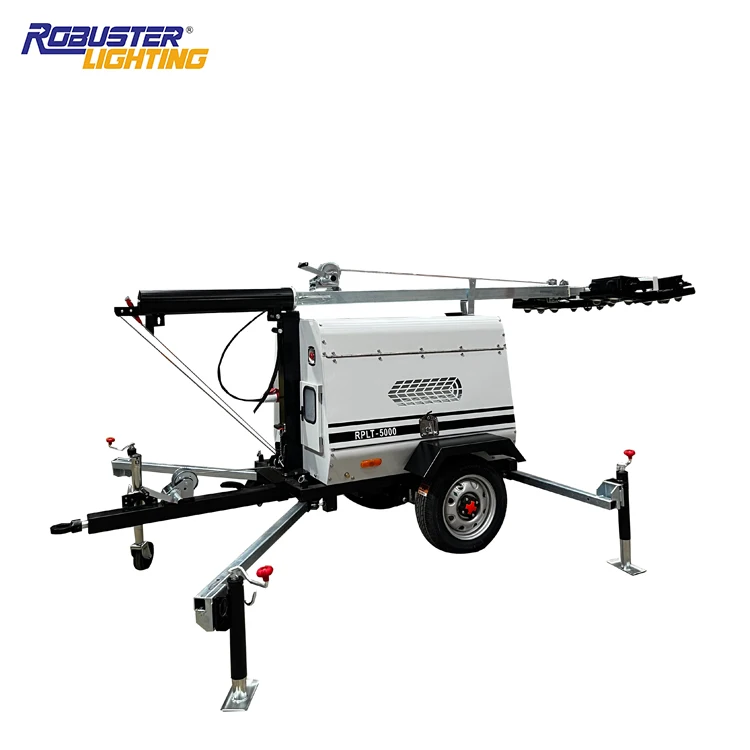

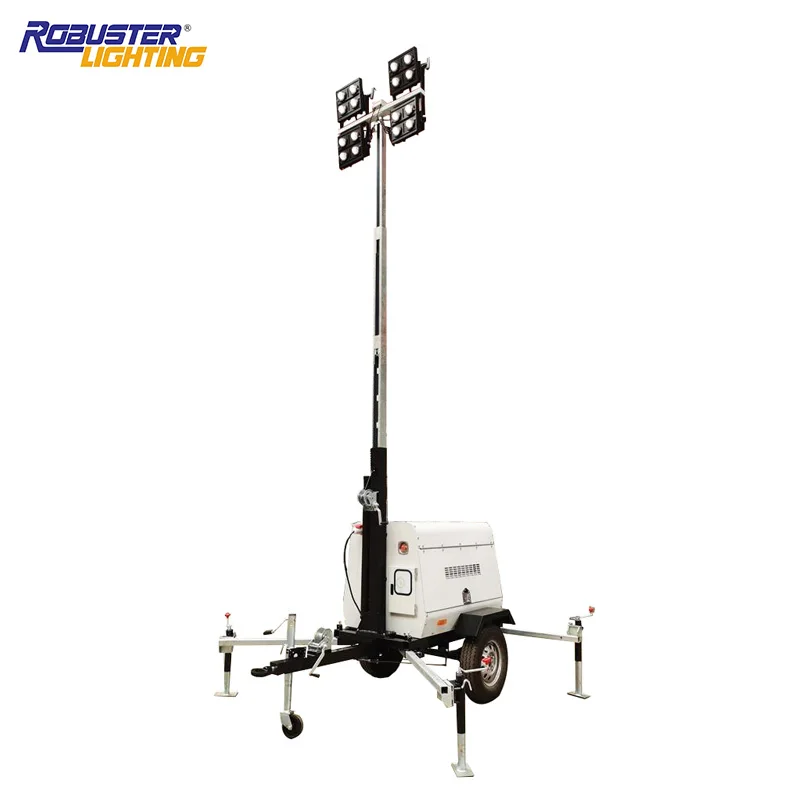

RPLT-5000 MANUAL LIGHT TOWER
This unit is our hot sales model, ideal solution for people who looking for international reliable brand engine and planing to save budget. Running with Japan Kubota origin engine, ensure machine performing stable. Compact design for structure, saving space and simple for towing or storage. Suitable for emergency lighting, car parks, construction site, mine site, back up power supply and large properties with expansive areas.Four 1000 Watt metal halide lights provide bright lighting for areas up to 7 acres.It can also equip with Four 160W/240W/320W LED lights.This unit uses spiral wire,that looks neat when it up and down.About the design,in order to reduce potential of dimension error,our lighting tower is used Pro E for design.And to make sure the stable and high quality,we design and produce cabinet,lampshades and the LED lamps ourselves.Then we can guarantee the good quality.To make sure the painting to last as long as possible,we use powder that is famous Euro brand Akzonobel.This model is the most cost-efficient model for you.


Optional Lamps


Square Metal Halide Lamp
IP54
Working hours: 2000-5000 hours
lamp capability: 4 x 1000w
Round Metal Halide Lamp
IP54
Working hours: 2000-5000 hours
lamp capability: 4 x 1000w
LED lamp
IP65/67
Working hours: 50000 hours
Lamp capability:
option 1: 4 x 160w
option 2: 4 x 240w
option 3: 4 x 350w


Light
Housing Material
Aluminium die cast
Type of lights
LED Lamp
Power of lights
4*320W
Lumen Output
6*110,000lm/6*110,000lm ( total )
Voltage
220V, 230V, 240V
Frequency
50/60Hz
Longevity
3 years
Waterproof grade
IP54
Color temperature
2100K-5700K
Mast
Material of mast
Galvanized iron
Mast lifting type
Manual mast
Mast section
3-section telescopic
Mast rotation system
358° manual operation
Max. height of mast
6 meters
Engine
Engine model
Kubota Z482-BG
Start system
Electric (Battery start)
Alternator
Sinocox
Engine speed
1500rmp
Rated power
4.5kw/50HZ 5.0KW/60HZ
Insulation
H
Fuel tank capacity
8L
Fuel consumption
0.7L/hr
Maximum Working Hours
100H
Controller system
Digital control panel GU3303
Waterproof grade
IP54
Engine shutdown protection
Low oil pressure, over speed, over current, high-temperature detection, low fuel level
Trailer
Stabiliser Supports
Optional 4*MANUAL
Tow Hitch
Ring/ball hitch
Tire Size
13 inch
Brakes
Manual

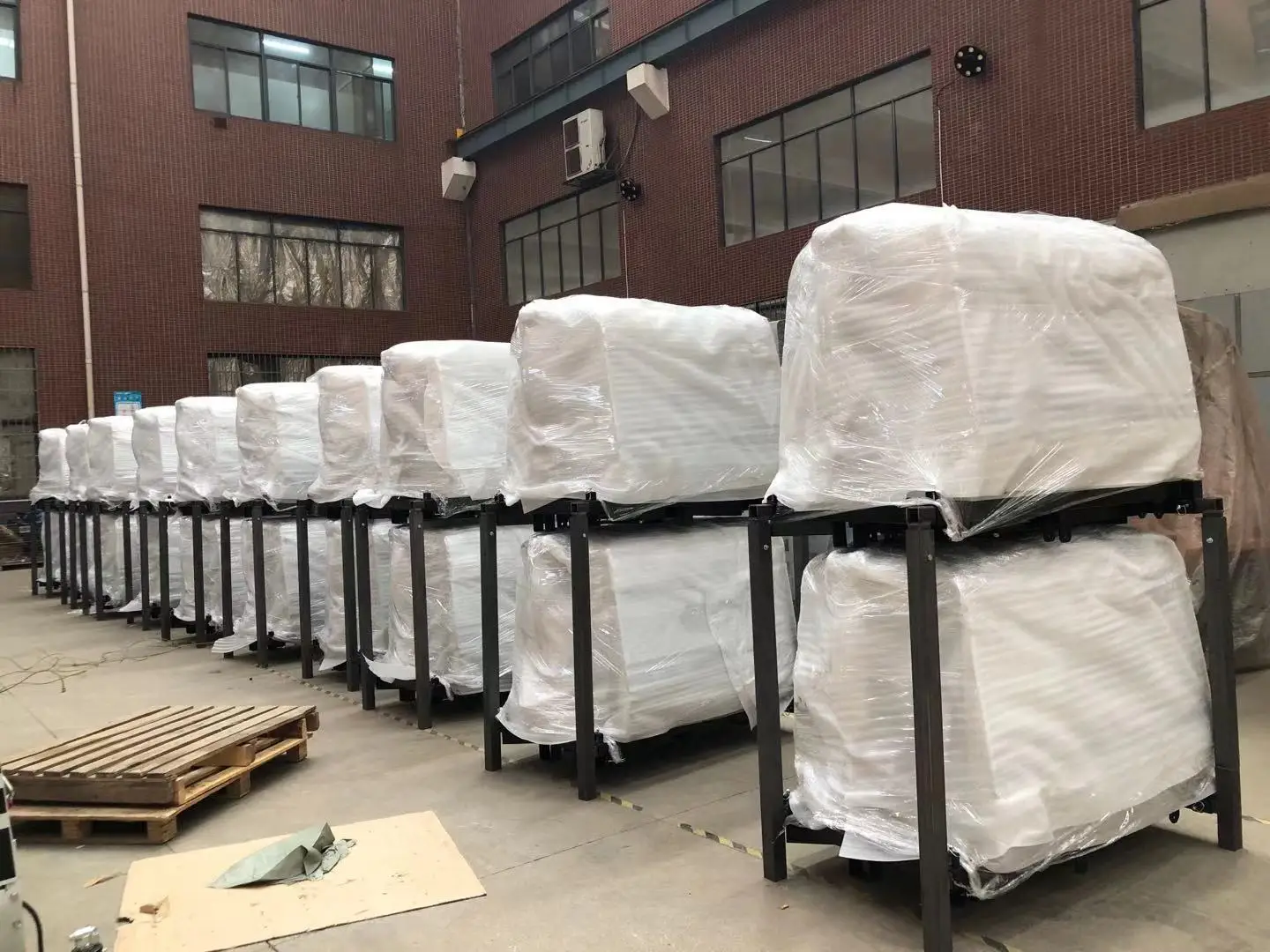

Packing
Net weight
830/780 kg
Dimention
2600x1350x2670mm






Successful Projects




Australia Agent
RPLT-7200 Heavy-duty light tower design for opencast working of Mine, safety 48V DC and Brightness 6*480w LED lamp.Our Australia agent provide longterm rental service for our clients.




2011 Scal Cricket challenge cup
RPLT-8000 light tower with 20kw rate power, 6x1000w metal halide lamp. Suitable for Major sport event in Sports Stadiums


2019 Indonesia Coal mine project
333


2020 Philippines Open-Pit Mine field project



2018 film shooting project
RPLT-6800 Hydraulic light tower, 30 seconds for lifting up mast. Using for night shot in Hengdian World Studios, help to provide quality illumination.


2019 Philippines Coal Mine field project
333

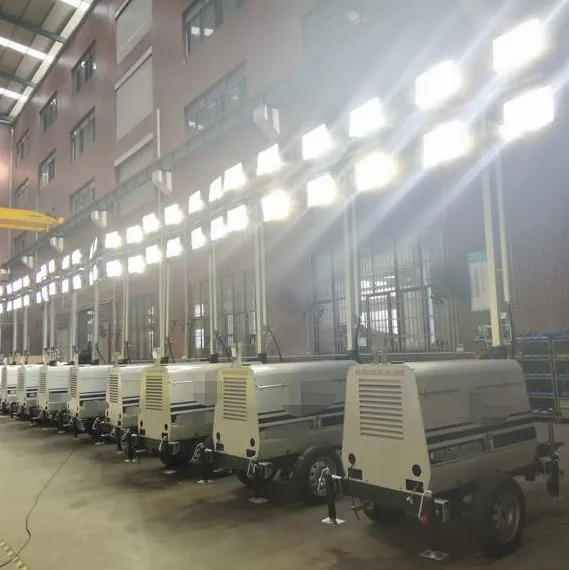

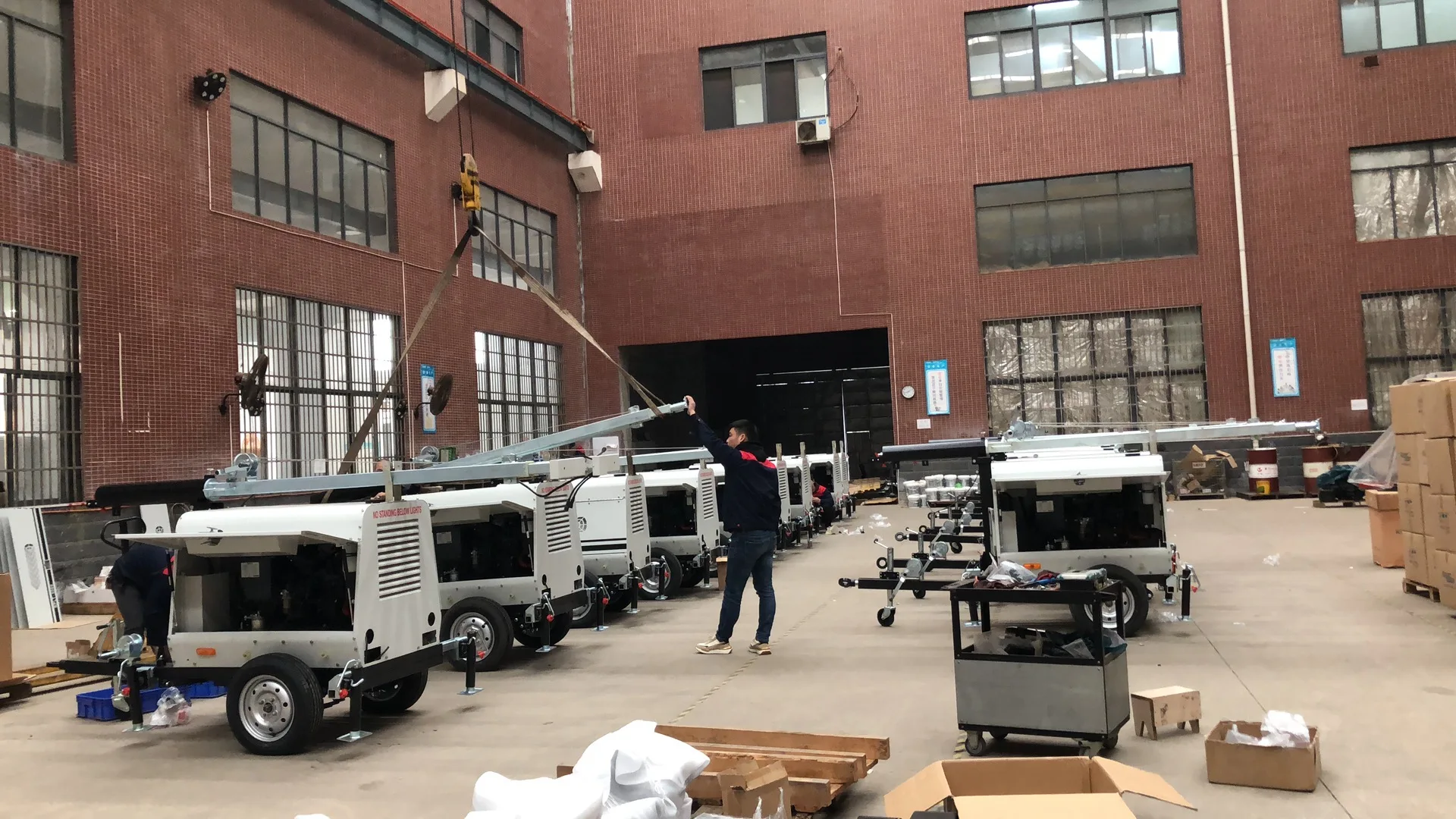

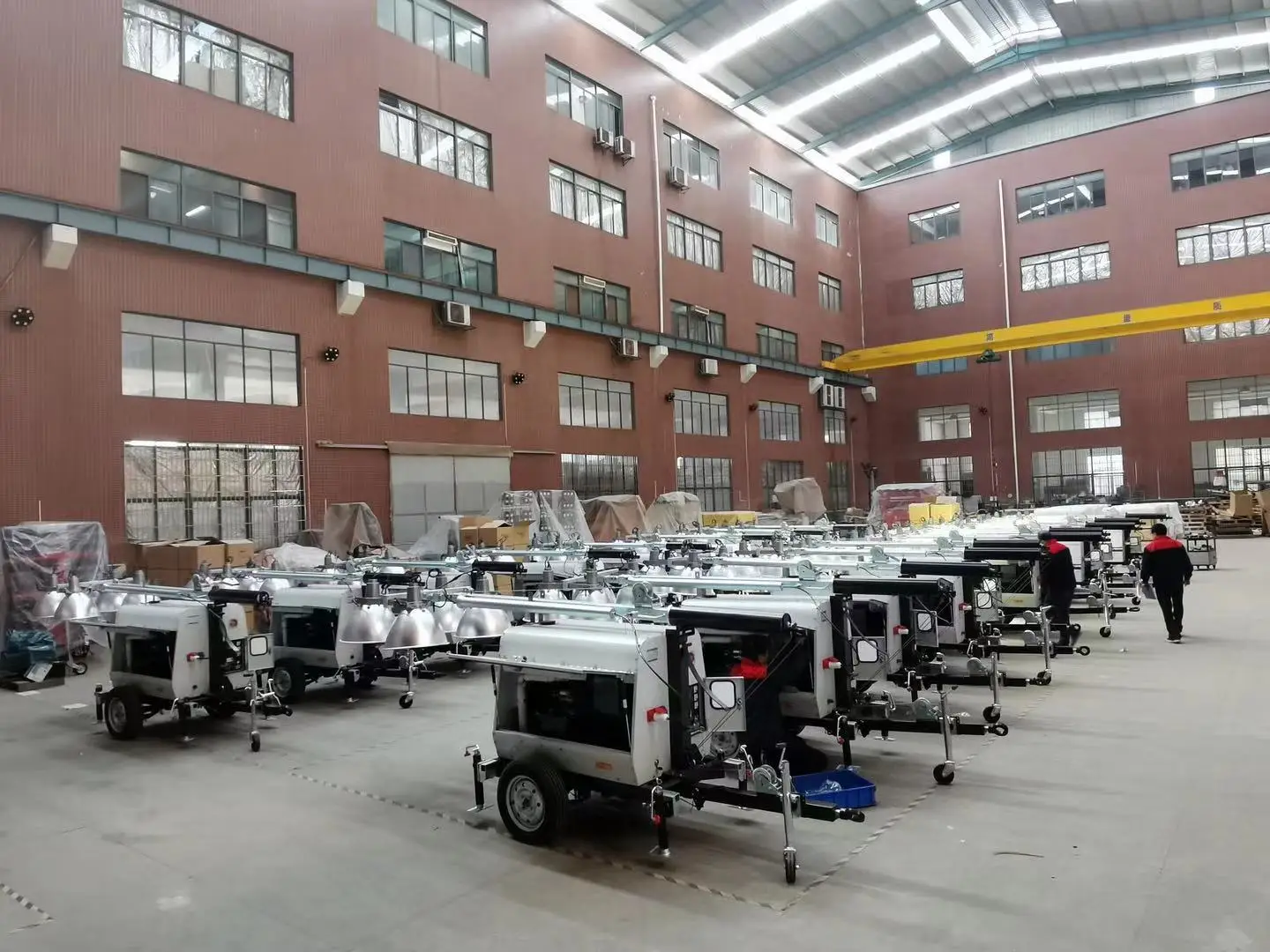

WorkShop
