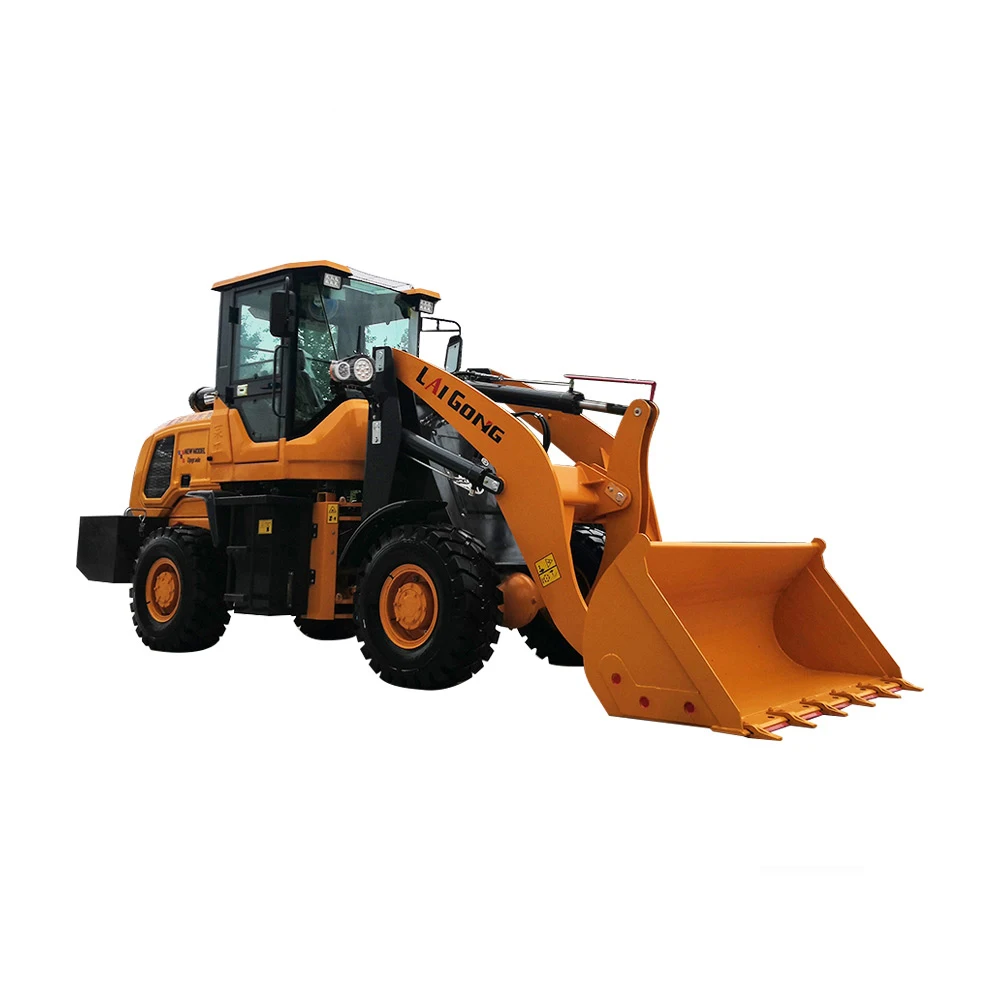

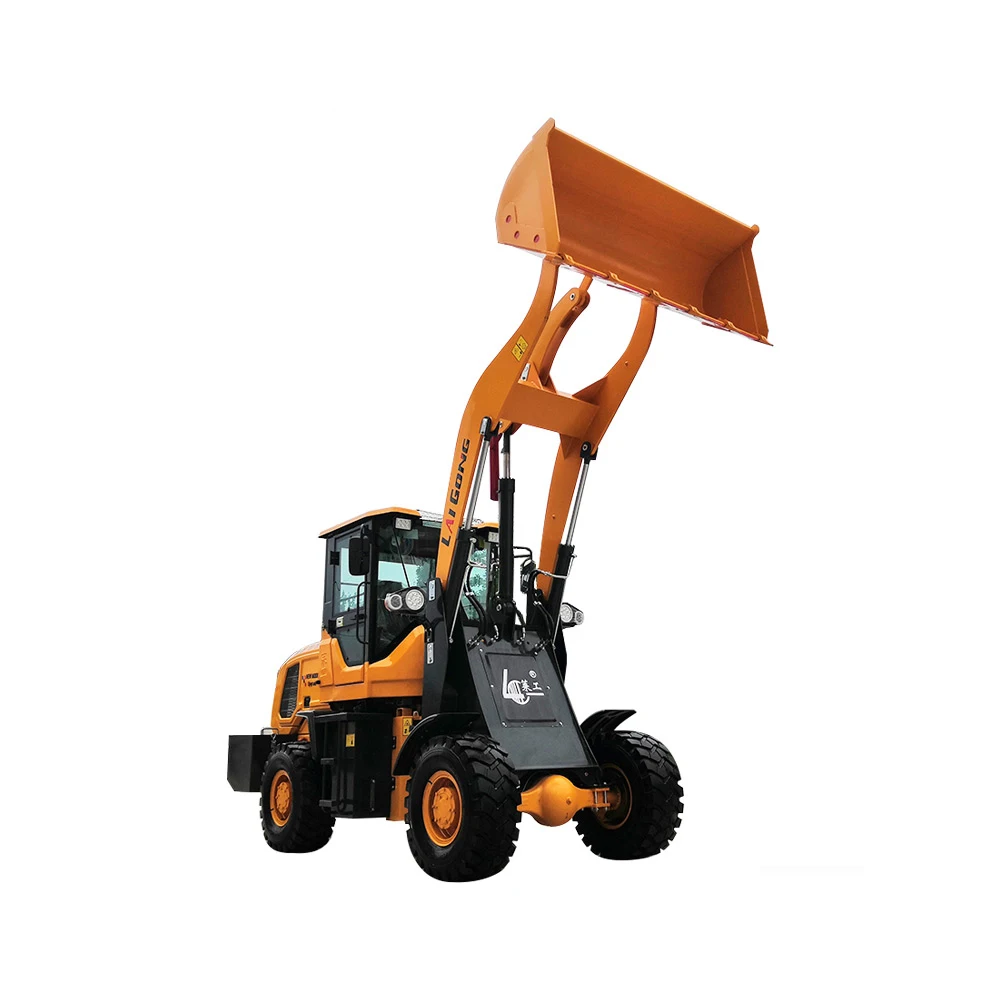

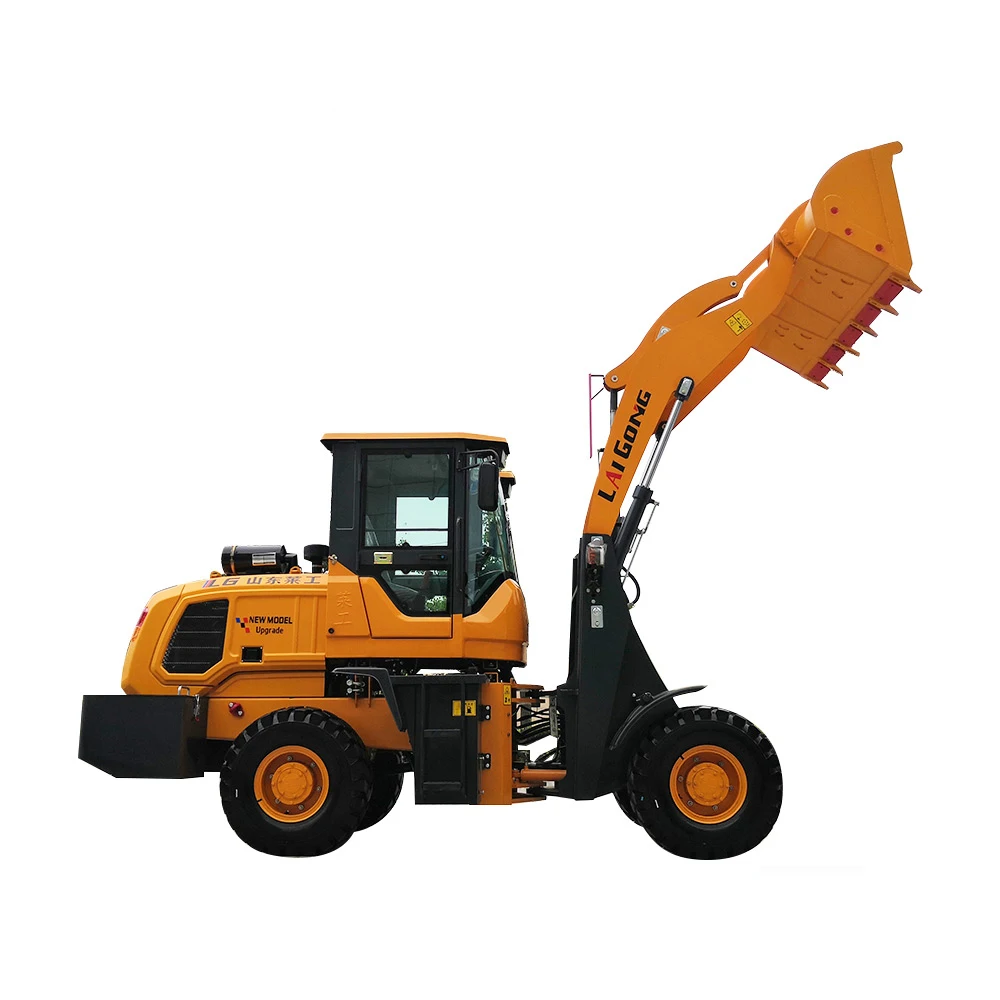

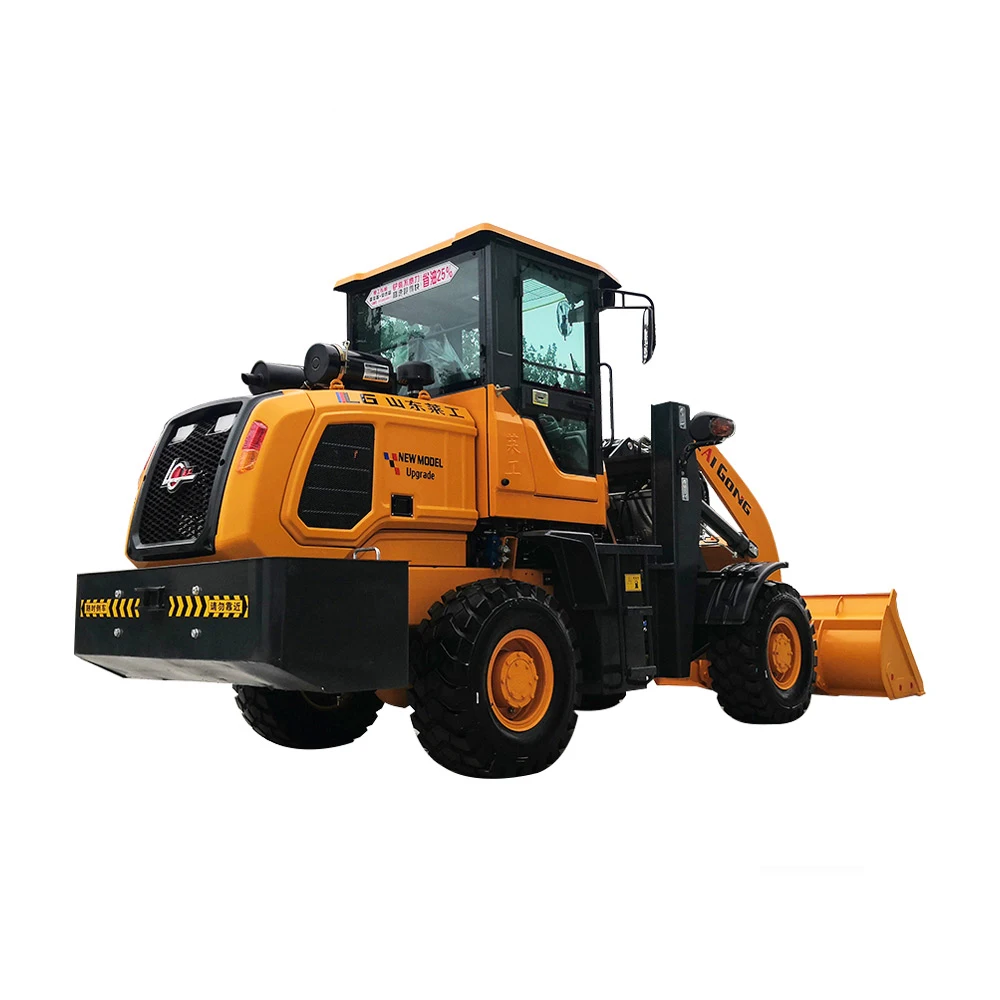

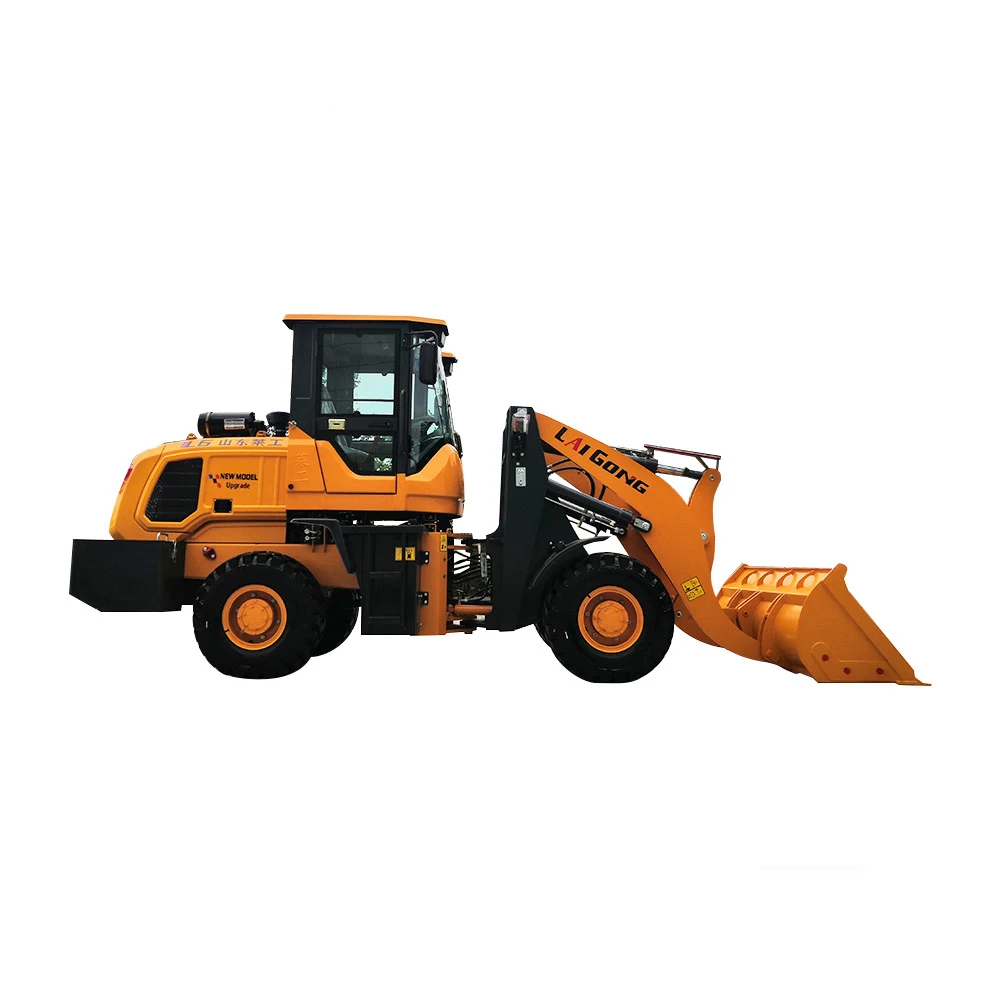

LG930 1.8Ton small wheel loader CE wheel loader bucket with different functions
- Category: >>>
- Supplier: Shandong Laigong International Business Co. Ltd.
Share on (1600547783280):
Product Overview
Description
LAIGONG LG930 wheel loader is a very powerful product, with compact size, strong engine power and optimized transmission, widely used in agriculture and forestry.
Product Paramenters
Overall Performance/Models | Unit | LG930 | ||
General Machine Performance | Operating weight | kg | 4700 | |
Length (L) | mm | 6100 | ||
Width (W) | mm | 2030 | ||
Height (H) | mm | 2720 | ||
Wheel base | mm | 2350 | ||
Wheel track | mm | 1450 | ||
Max.travelling speed | km/h | 30 | ||
Bucket Performance | Loading weight | kg | 1800 | |
Standard bucket capacity | m3 | 0.7 | ||
Possible Bucket capacity | m3 | 0.7-1.0 | ||
Bucket width | mm | 2000 | ||
Dumping height | mm | 3500 | ||
Dumping reach | mm | 850 | ||
Max. lifting height | mm | 4480 | ||
Transmission Performance | Transmission type | type | automatic | |
Control type | type | 1 | ||
Engine Performance | Model | name | YUNNEI 490 Turbo | |
Power | kw/rpm | 58 | ||
Number of cylinders | Unit | 4 | ||

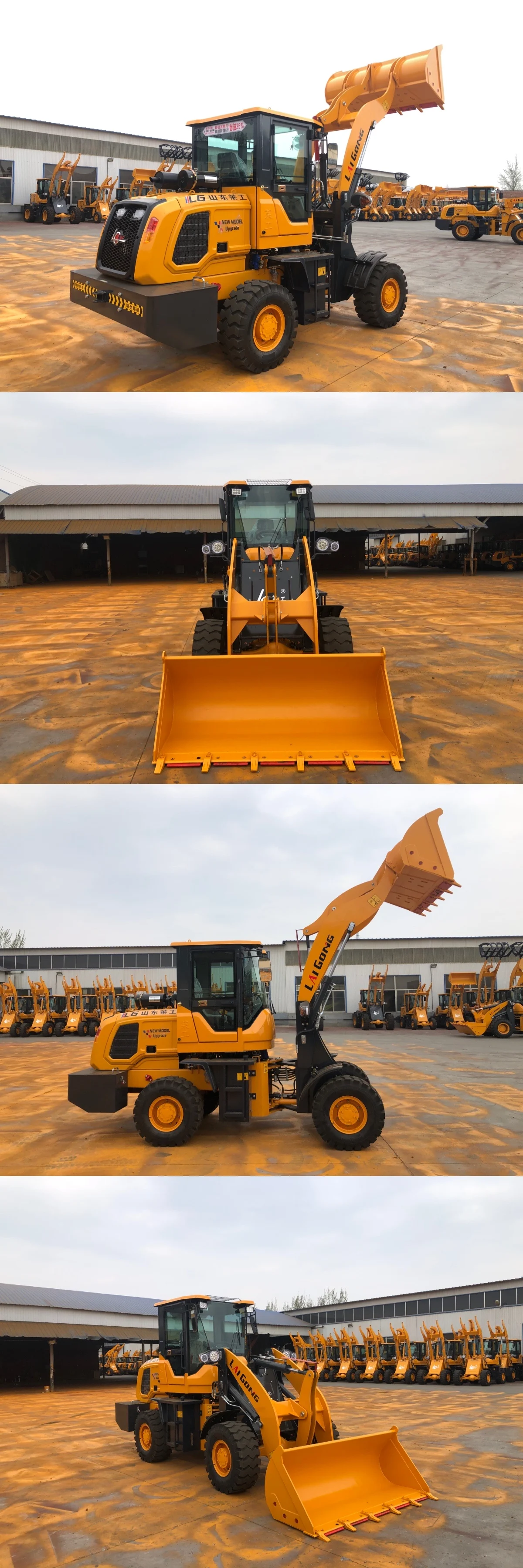

Details Images
Related Products
LG916
Total weight:2100kg
Loading weight:600kg
Bucket capacity:0.35-0.7m3
Power:37kw/rpm
Engine:Yunnei
LG918
Total weight:2800kg
Loading weight:1200kg
Bucket capacity:0.3-0.5m3
Power:37kw/rpm
Engine:Yunnei
Bucket capacity:0.3-0.5m3
Power:37kw/rpm
Engine:Yunnei
LG920
Total weight:3100kg
Loading weight:1500kg
Bucket capacity:0.4-0.7m3
Power:37kw/rpm
Engine:Yunnei 490
Bucket capacity:0.4-0.7m3
Power:37kw/rpm
Engine:Yunnei 490
LG925
Total weight:3400kg
Loading weight:1500kg
Bucket capacity:0.4-0.7m3
Power:42kw/rpm
Engine:Yunnei 490
Bucket capacity:0.4-0.7m3
Power:42kw/rpm
Engine:Yunnei 490
LG926
Total weight:3400kg
Loading weight:1500kg
Bucket capacity:0.4-0.7m3
Power:42kw/rpm
Engine:Yunnei 490
Bucket capacity:0.4-0.7m3
Power:42kw/rpm
Engine:Yunnei 490
LG928
Total weight:3500kg
Loading weight:1600kg
Bucket capacity:0.7-1m3
Power:58kw/rpm
Engine:Yunnei 490 Turbo
Bucket capacity:0.7-1m3
Power:58kw/rpm
Engine:Yunnei 490 Turbo
LG930
Total weight:3700kg
Loading weight:1800kg
Bucket capacity:0.7-1m3
Power:58kw/rpm
Engine:Yunnei 490 Turbo
Bucket capacity:0.7-1m3
Power:58kw/rpm
Engine:Yunnei 490 Turbo
LG936
Total weight:4750kg
Loading weight:1800kg
Bucket capacity:0.7-1.2m3
Power:76kw/rpm
Engine:Yunnei 4102 Turbo
Bucket capacity:0.7-1.2m3
Power:76kw/rpm
Engine:Yunnei 4102 Turbo
LG938
Total weight:5800kg
Loading weight:2000kg
Bucket capacity:0.7-1.5m3
Power:78kw/rpm
Engine:YUCHAI 4102 Turbo
Bucket capacity:0.7-1.5m3
Power:78kw/rpm
Engine:YUCHAI 4102 Turbo
LG939
Total weight:6000kg
Loading weight:2500kg
Bucket capacity:0.7-1.5m3
Power:85kw/rpm
Engine:YUCHAI 4105 Turbo
Bucket capacity:0.7-1.5m3
Power:85kw/rpm
Engine:YUCHAI 4105 Turbo
LG942
Total weight:7200kg
Loading weight:2800kg
Bucket capacity:1-1.5m3
Power:92kw/rpm
Engine:XICHAI CA6110
Bucket capacity:1-1.5m3
Power:92kw/rpm
Engine:XICHAI CA6110
LG946
Total weight:9300kg
Loading weight:3000kg
Bucket capacity:1.7-2.0m3
Power:92kw/rpm
Engine:DONGFANGHONG 6105T/WEICHAI Deutz
Bucket capacity:1.7-2.0m3
Power:92kw/rpm
Engine:DONGFANGHONG 6105T/WEICHAI Deutz
Optional Attachments:
Company Profile
Shandong Laigong Machinery Manufacturing Co., Ltd is a state-level high-tech enterprise. It was founded in 1998, covers an area of 150, 000 square meters located in Shandong Laizhou Laigong Industrial Park and specializes in mini construction machinery industry.
Laigong always adheres to the philosophy of "management science and technology leadership" and aims to become a century-old enterprise that creates great value for the society.
Relying on the mature experience of more than 40 years of engineering machinery manufacturing of our team, Laigong has established and passed the ISO9001 international quality system certification, ISO14001 environmental certification, CE, EAC, SGS, and has independent research and development capabilities of high-tech products. It has the world's advanced scientific research and testing facilities., intelligent detection system and more than 200 large and medium-sized equipment. To ensure stable improvement of product quality and performance is the first place of all our actions.
Our sales team adheres to the development concept of "VALUE IN ACTION" and "customer-centered" service concept.
There are more than 460 domestic and foreign distributors and service providers working with our high-quality and efficient marketing service teams.
Our products are now exporting to more than 60 countries and regions such as Germany, Poland, Russia, Brazil, Australia, Vietnam, Thailand etc., and have been widely recognized by domestic and foreign customers to help then to realize better business and better life.
Laigong always welcomes customers and friends from all over the world to be our close friends and partners.
Laigong, to win the world together with you!
Laigong always adheres to the philosophy of "management science and technology leadership" and aims to become a century-old enterprise that creates great value for the society.
Relying on the mature experience of more than 40 years of engineering machinery manufacturing of our team, Laigong has established and passed the ISO9001 international quality system certification, ISO14001 environmental certification, CE, EAC, SGS, and has independent research and development capabilities of high-tech products. It has the world's advanced scientific research and testing facilities., intelligent detection system and more than 200 large and medium-sized equipment. To ensure stable improvement of product quality and performance is the first place of all our actions.
Our sales team adheres to the development concept of "VALUE IN ACTION" and "customer-centered" service concept.
There are more than 460 domestic and foreign distributors and service providers working with our high-quality and efficient marketing service teams.
Our products are now exporting to more than 60 countries and regions such as Germany, Poland, Russia, Brazil, Australia, Vietnam, Thailand etc., and have been widely recognized by domestic and foreign customers to help then to realize better business and better life.
Laigong always welcomes customers and friends from all over the world to be our close friends and partners.
Laigong, to win the world together with you!
Certifications
FAQ
1.How long is your lead time?
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
15-20days after receiving the deposit
2.How is the warranty?
Our warranty time is 6 months from date of machine arriving at your destination port.
3.Do you have any machine in stock?
No, every machine is manufactured according to customer request. This ensures higher quality.
4.Could you do OEM?
Yes, OEM is acceptable. We could make the unique machine as per your specific configuration and requirements.
5.What is the advantage of LAIGONG?
All of our machines passed CE test, We strictly follow the CE standard to produce the loaders, and each of them is passed our rigorous inspection.Our factory is passed ISO9000 and ISO4000 test.
6.What kind of service can we get from LAIGONG?
If there is any using problem, we can provide online or video guidance.If there is any quality problem, we will provide solutions through your pictures or your description, or our local dealer could also service on-site. Our service department has no holiday, always stand by for you and respond within 5 hours.
7.Why do you choose LAIGONG?
LAIGONG Equipment established in 2018, In the earlier period, we only designed and manufactured the chassis frames, since 2011, we have started to assemble the loaders, we had gained lot of experience during these 5 years and summarized that the frame's quality decide the loader's quality, so our products are more practical and more reliable.
