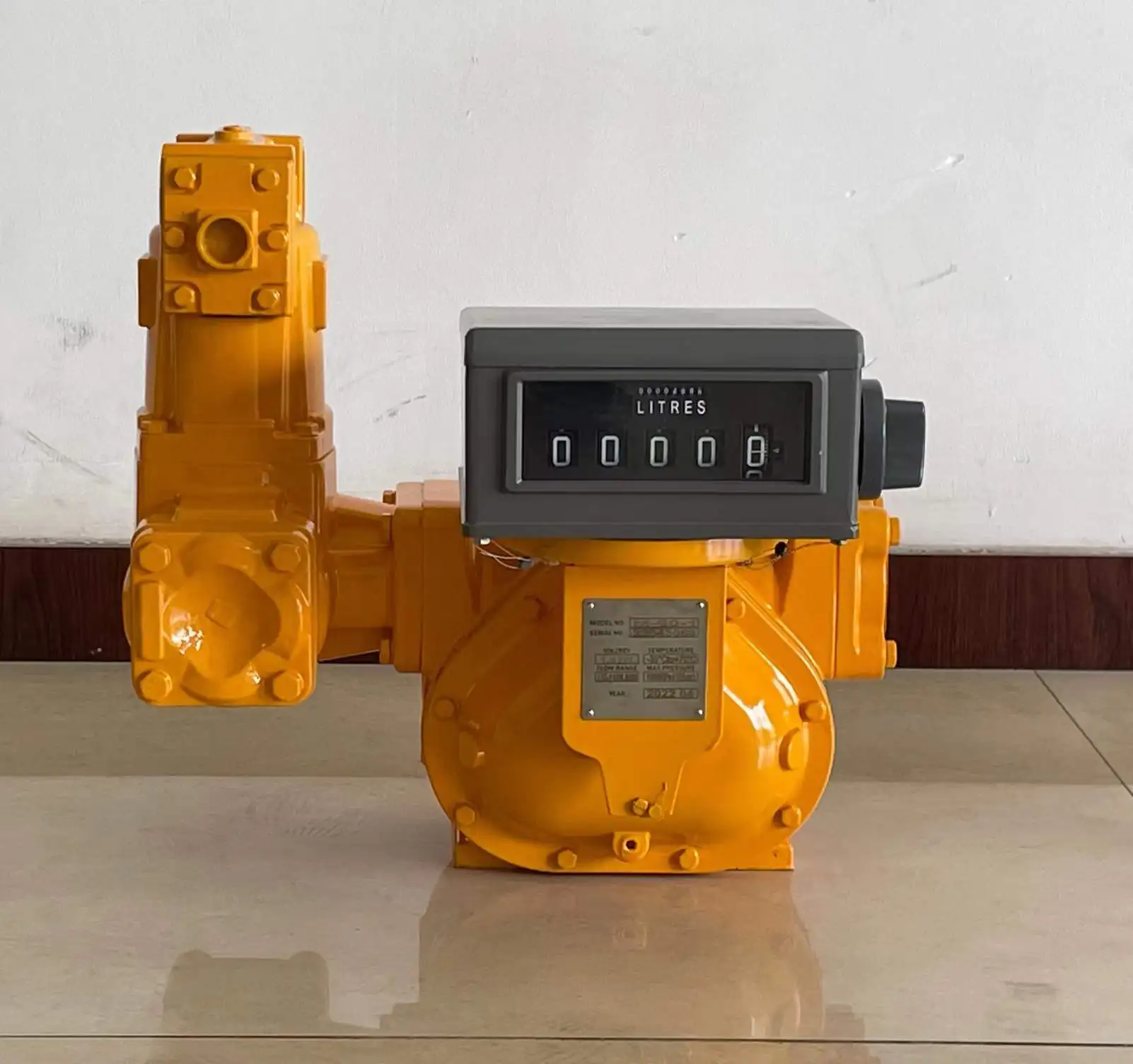

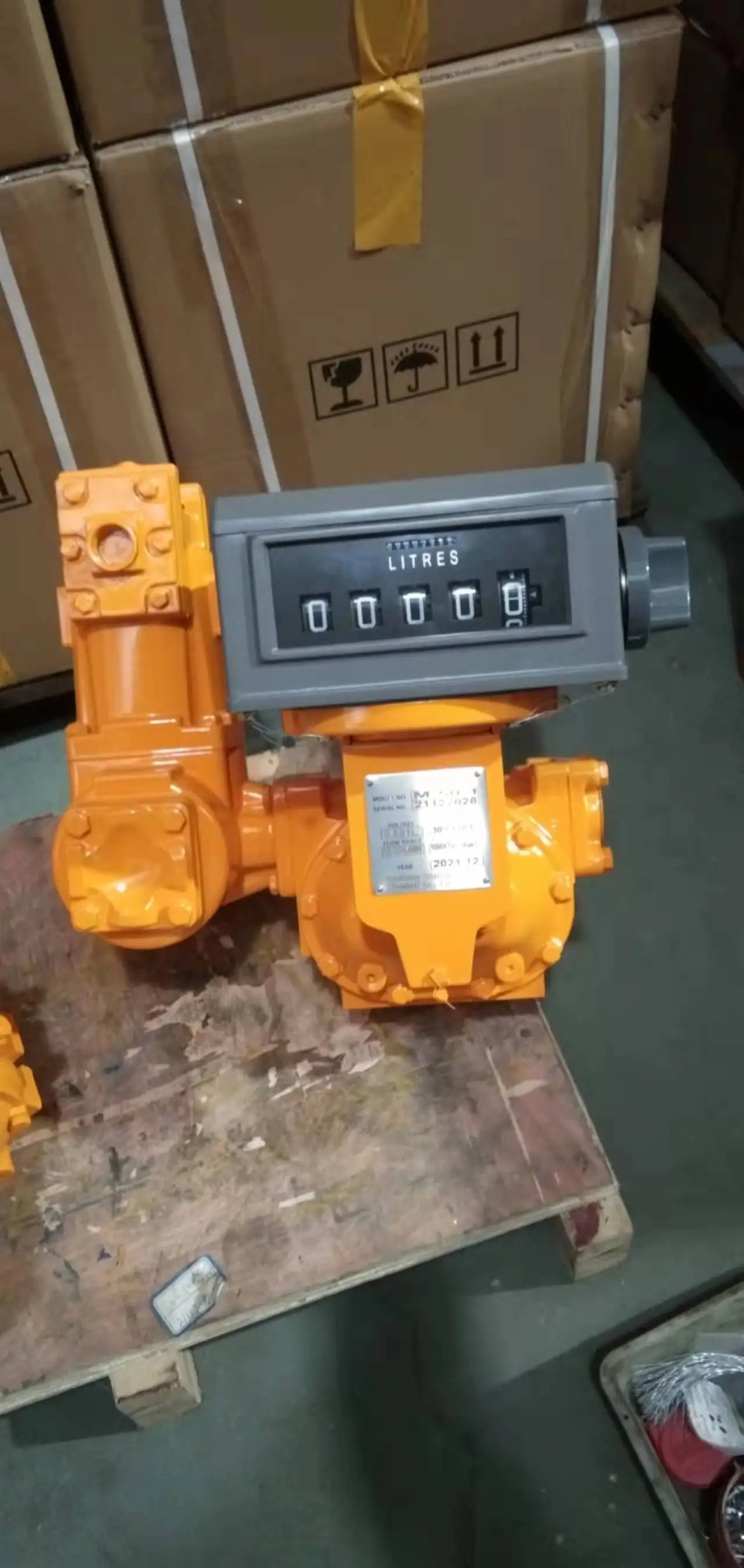

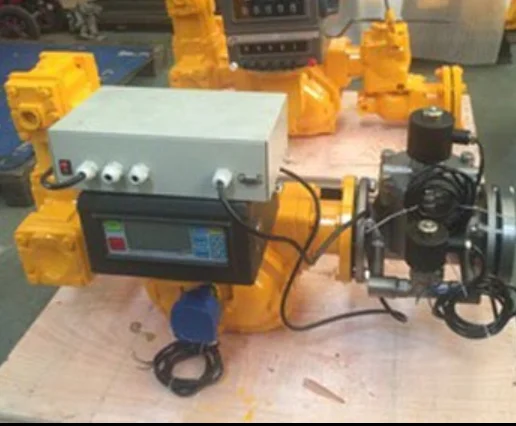

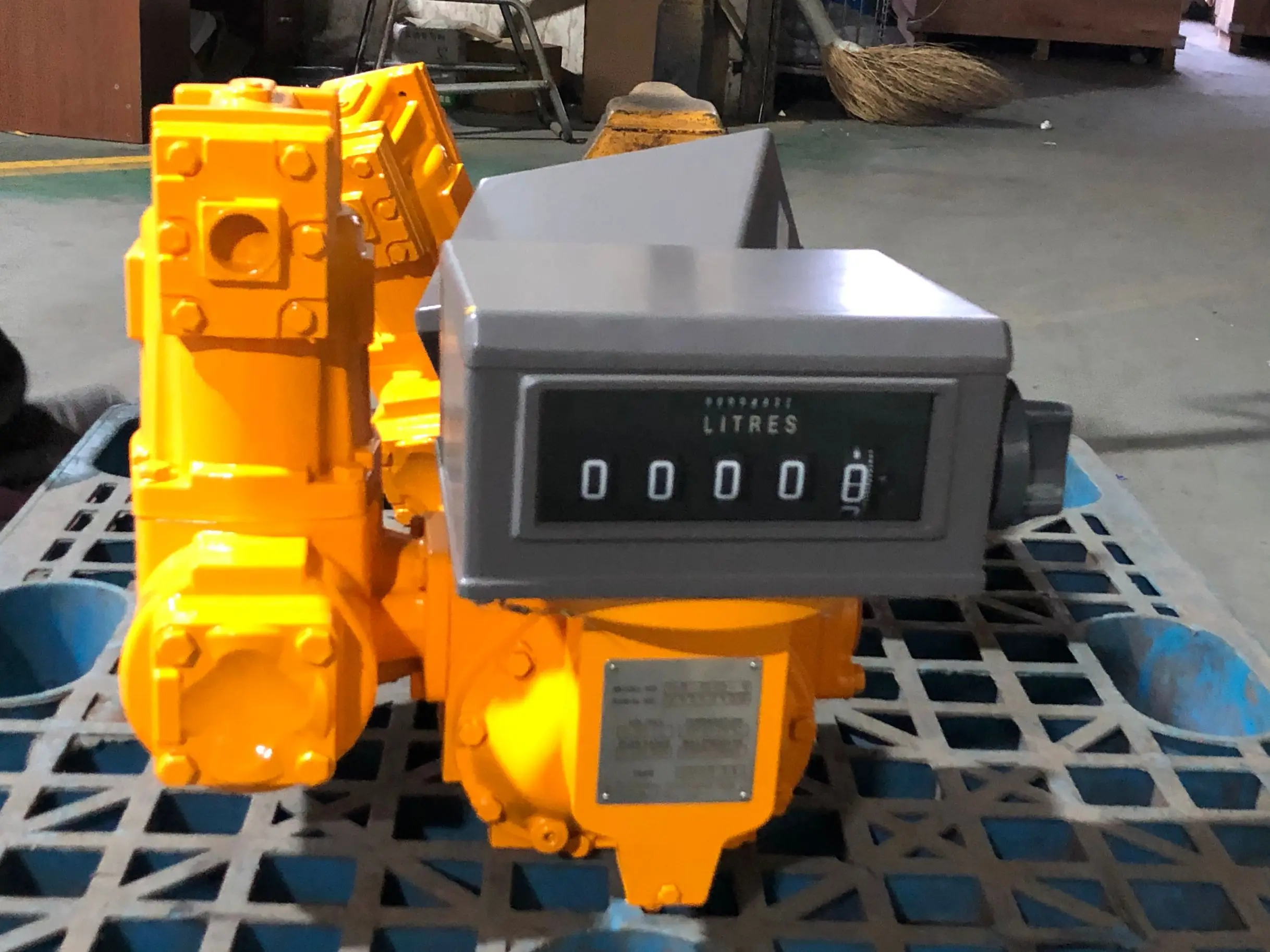

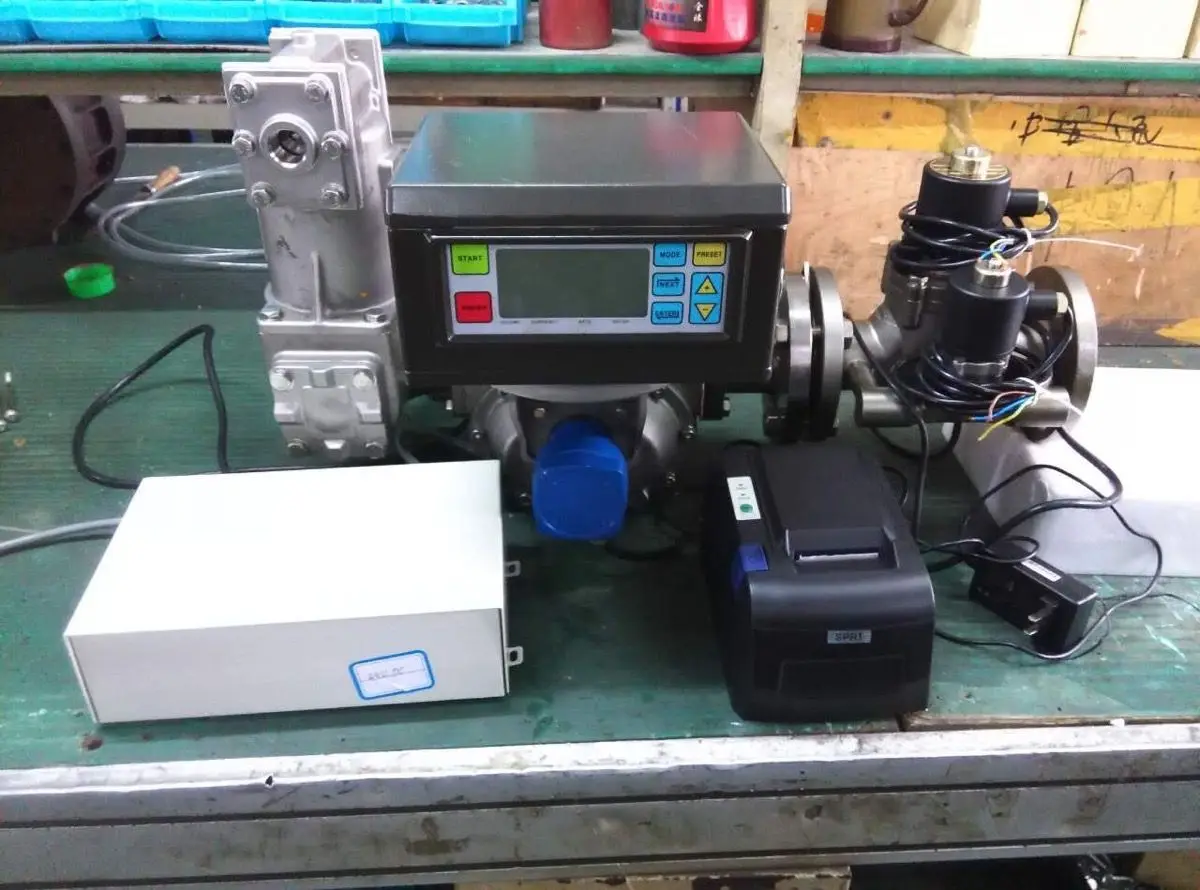

Расходомер топлива для грузовика, расходомер топлива

Product Overview

Description



Characteristics:

Excellent stepless adjusting mechanism allows a micro adjustment of the meter; High accuracy and repeatability over the widest range of flow; Superior accuracy at constant flow; Low maintenance, no metal-to-metal contact in measuring chamber, Long life service; Low pressure loss, a true gravity flow meter; Accuracy regardless of pressure fluctuations, temperature variation, viscosity; Choice of aluminum, cast iron, brass and stainless steel materials of construction.



Industries:

Automotive; Adhesives; Agriculture; Asphalt ; Aviation fueling ; Animal feeds; Beverage; Cosmetics ; Chemical processing; Concrete Add mixtures; Dairy; Liquid fertilizers; Food processing ; Fuel oil delivery; General industrial; Hydrocarbon processing; Liquefied gases; Lube oils; Marine ; Paint and varnish ; Petroleum marketing ; Petroleum production ; Pharmaceutical; Printing ink; Pulp &paper; Refining commercial Solvents; Recycling Railroad ; Textile.



Application:



1. refined petroleum products;

2. aviation gasolines and jet fuels;

3. a wide variety of products such as: liquid sugars, corn syrup, corn sweetners, dextrose, fructose, sucrose, maltose, lactose, corn oil, soy bean oil, cotton seed oil, coconut oil,.

4. treated waters (deionized, demineralized, and potable);

5. chlorinated solvents and general solvent metering;

6. acid pH liquids;

7. liquefied petroleum gas(LPG);

8. crude oil, also for heated and/or viscous liquids;

9. oil or water based latex products, polyester resins, and adhesives (neutral pH), also for metering herbicides and nitrogen fertilizer solutions;

10.herbicide;

11.sodium hydroxide (caustic) solutions, high sulfur crude oil (LACT and NOD) and other alkaline pH liquids ,abrasive liquids.



Technical Specification:

Technical Specification:
Model	M-40-1	M-50-1	M-50H-1	M-80-1	M-80H-1	M-100-1	M-100H-1	M-150-1	M-150H-1
Size	40mm /1.5”	50mm / 2 "		80mm / 3 "		100mm / 4 "		150mm / 6 "
Flow Range (L/Min)	25-250	38-380	55-550	75-750	115-1150	130-1300	170-1700	225-2250	300-3000
Volume/Rev.	0.309L	0.681L		1.839L		5.102L		9.507L
Max.Pressure	10Bar/150PSI							25Bar/350PSI
Accuracy	±0.2%
Repeatability	≤0.05%
Standard Measurement	Liter / US Gallon/IMP Gallon
Viscosity	30SSU~1,500,000SSU
