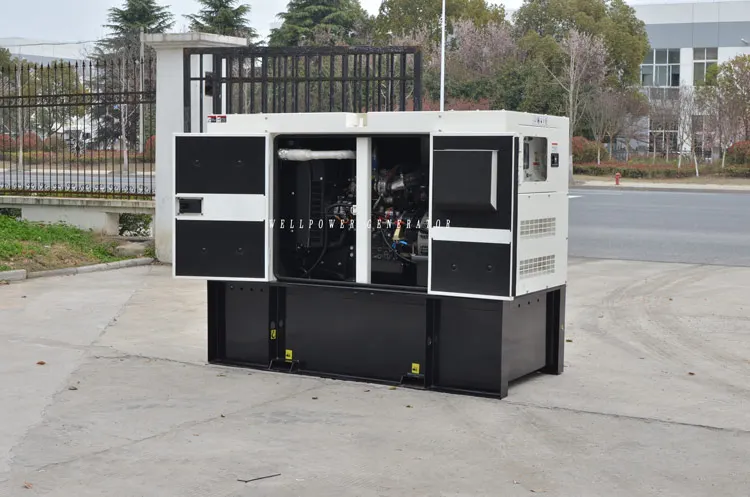

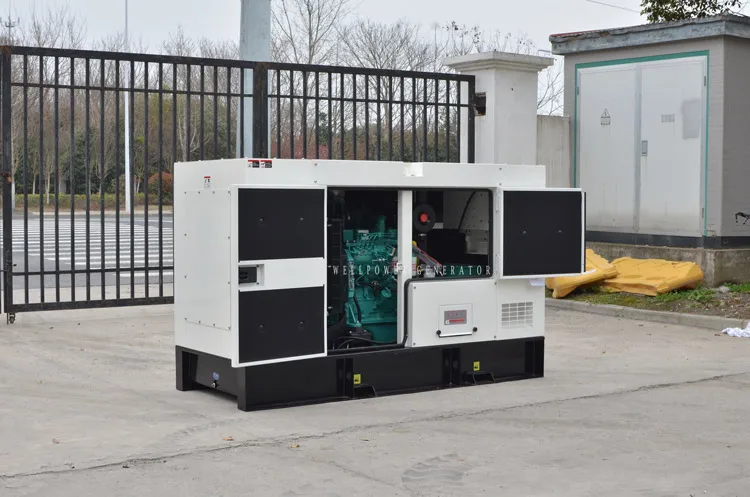

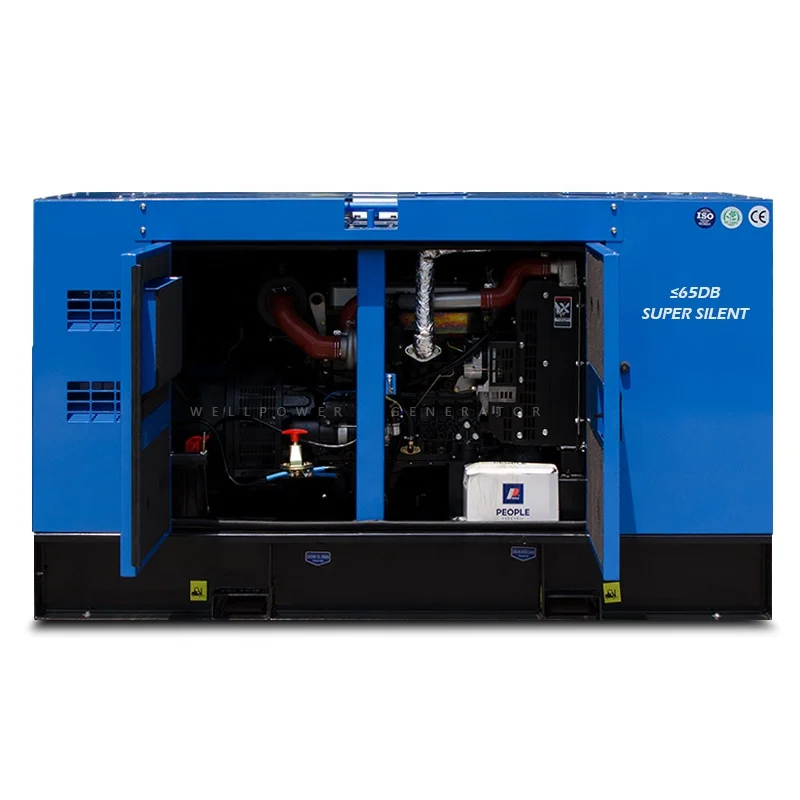

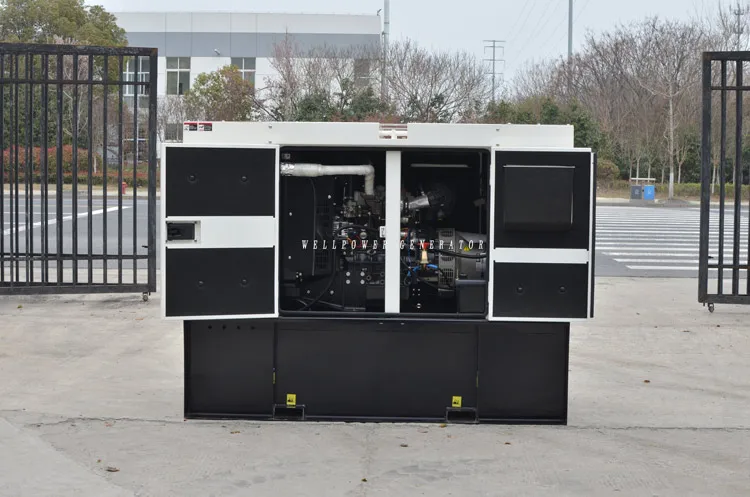

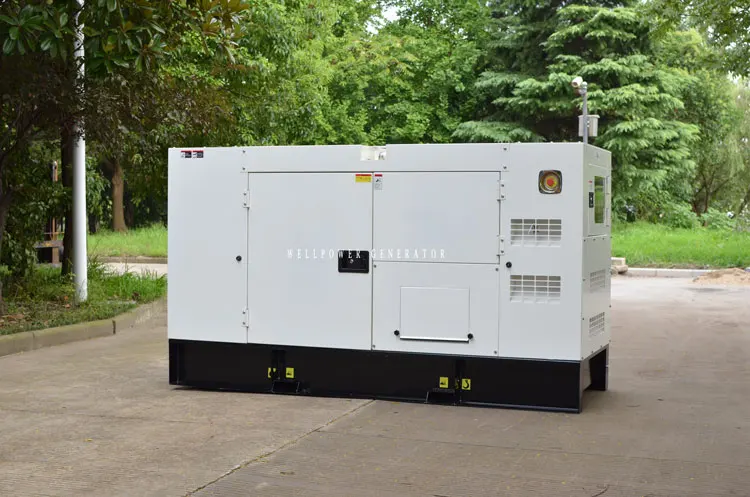

New factory sale super silent 20kw diesel generator set with YangDong engine Y495D

Product Overview

Description

Technical Specification

Model	Voltage	HZ	P.F (COS)	Standby power	Prime power	Net Weight
WP-YD20GF	400V/230V-3P	50	0.8	22 KW	20 KW	780 kg

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by YangDong engine, Wellpower alternator and DeepSea/ComAp/SmartGen control panel

Engine Spec

Engine model	Y495D
Engine manufacturer	YangDong
Number of Cylinders	4 Cylinders in line
Aspiration	Natural
Bore×Stroke	95mm×105mm
Displacement	2.977 L
Compression ratio	18 : 1
Prime Power	26 KW
Standby Power	29 KW
Steady speed droop	≤1%
Coolant capacity(engine only)	5 L
Fuel Consumption	243 g/kw.h
Starter Motor	DC24V,
Alternator	DC24V

Alternator Spec

Alternator model	Wellpower/Leroy Somer/Stamford
Prime power	22 KW
Frequency/speed	50HZ/1500RPM
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase	Three Phases

Control Panel

Model	SmartGen/ComAp/Deepsea
The control module gives digital readouts of:	Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run.
The control module has indicators for failure information:	Over speed / under speed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:	Low engine oil pressure; High engine water temperature; Over speed/ under speed; Failure to start after three attempts

Standard Accessories

Standard Accessories	Open type	Silent type
Sound-proof & Weather-proof Canopy	N/A	√
Single-bearing generator again drops	√	√
Intelligent LED display control panel	√	√
Standard air filter, oil filter, fuel filter	√	√
Cooling water tank	√	√
High-efficient silencer.	√	√
Exhaust elbow	√	√
Steel base-frame against vibration	√	√
Operation& Maintenance manual	√	√

About us

Jiangsu Wellpower generator Co.,Ltd has passed ISO9001-2008 and CE.

Wellpower generator company mainly produces and sells Diesel Generators, inland diesel generators from 3-3000KVA, marine power emergent diesel generators from 12-500KW, and kinds of imported diesel generators, movable power station, sound-proof, multi-pieces connection, remote monitoring, generators with ATS, and gas generators. We persostently insist in high standard of product quality and lay on strict requirements on it, according to the policy of real price for survival and good quality for development.

If you have any needs of diesel generator, please don't hesitate to contact us.
